USER GUIDE

HomeWRK for Business

MX4300/MX4300S

Table of Contents

Product Overview_____________________________________________________________________________________________________________________ 3

Front/top ______________________________________________________________________________________________________________________________ 3

Back _____________________________________________________________________________________________________________________________________ 4

Bottom _________________________________________________________________________________________________________________________________ 5

Where to find more help_________________________________________________________________________________________________________ 6

Set Up _____________________________________________________________________________________________________________________________________ 7

Linksys HomeWRK System Settings _________________________________________________________________________________________ 8

Home ____________________________________________________________________________________________________________________________________ 8

Devices_________________________________________________________________________________________________________________________________ 9

To view or change device details ________________________________________________________________________________________________ 9

Speeds _______________________________________________________________________________________________________________________________ 10

Wireless______________________________________________________________________________________________________________________________ 11

Guest__________________________________________________________________________________________________________________________________ 12

Security______________________________________________________________________________________________________________________________ 13

AntiVirus__________________________________________________________________________________________________________________________________13

Web Content Filtering ______________________________________________________________________________________________________________13

Priority _______________________________________________________________________________________________________________________________ 14

System Settings _________________________________________________________________________________________________________________ 15

Advanced____________________________________________________________________________________________________________________________ 16

Internet Settings______________________________________________________________________________________________________________________16

Port Settings ___________________________________________________________________________________________________________________________16

Wi-Fi MAC Filters _____________________________________________________________________________________________________________________16

How to restore factory defaults ______________________________________________________________________________________________ 17

Specifications________________________________________________________________________________________________________________________ 18

Linksys _______________________________________________________________________________________________________________________________ 18

Environmental_____________________________________________________________________________________________________________________ 18

Product Overview

Front/top

The light on the top of your node gives you

information about the node’s operation.

Light

description

Status

Blinking blue Starting up

Solid blue Connected

Blinking purple Setup in progress

Solid purple Ready for setup

Blinking red Disconnected

•Child node: too far

•Parent node:

unplugged from

modem

Solid red No internet from the

modem

Solid yellow Weak connection

•Child node only

Back

USB 3.0 port— Connect and share USB drives on your network. For local file sharing only (no FTP,

media server or virtualUSB support). Also, not intended for sharing peripherals such as printers,

scanners or cameras.

Ethernet ports—Connect ethernet cables to these Gigabit ethernet (10/100/1000) ports and to

other wired devices on your network. If you have more than one node in your HomeWRK system, use

one of these ports to connect to your modem or modem-router.

Note—For best performance, use a CAT5e or higher rated cable on the Ethernet port.

Internet port—Connect an ethernet cable to the yellow gigabit (10/100/1000) port, and to a

broadband internet cable/DSL or fiber modem. If you are using this router as a child node in a mesh

Wi-Fi system, you can use this port to create a wired connection to another node.

Power port—Connect the included AC power adapter to this port.

Bottom

Reset button—Press and hold until the light on top of the node turns red, fades and flashes bright red

again to reset the node to its factory defaults.

Wi-Fi Protected Setup button—Press to connect WPS-enabled network devices.

Power switch—Slide to | (on) to power on the node.

Help

Where to find more help

www.linksys.com/homewrk/help

Set Up

IMPORTANT—Linksys HomeWRK nodes can be set up as primary nodes or child nodes. A primary

node must be connected with an ethernet cable to your modem or modem router. Once set up

wirelessly, secondary nodes can be connected to another node wirelessly or with ethernet cables.

1. Where does your internet come from? Choose A or B

If you have a separate modem and

standalone router, disconnect and

remove your old router.

If you have a modem-router, leave it

connected.

2. Plug a node into a power source and connect its Internet port to the modem or modem-router

with the supplied ethernet cable.

If you have multiple nodes, choose one of them to connect to your modem. We'll tell you how to

set up your other nodes later.

3. On a device with a data plan, visit Linksys HomeWRK in a browser.

Use the link and instructions in the email sent from your company to continue setup.

Linksys HomeWRK System Settings

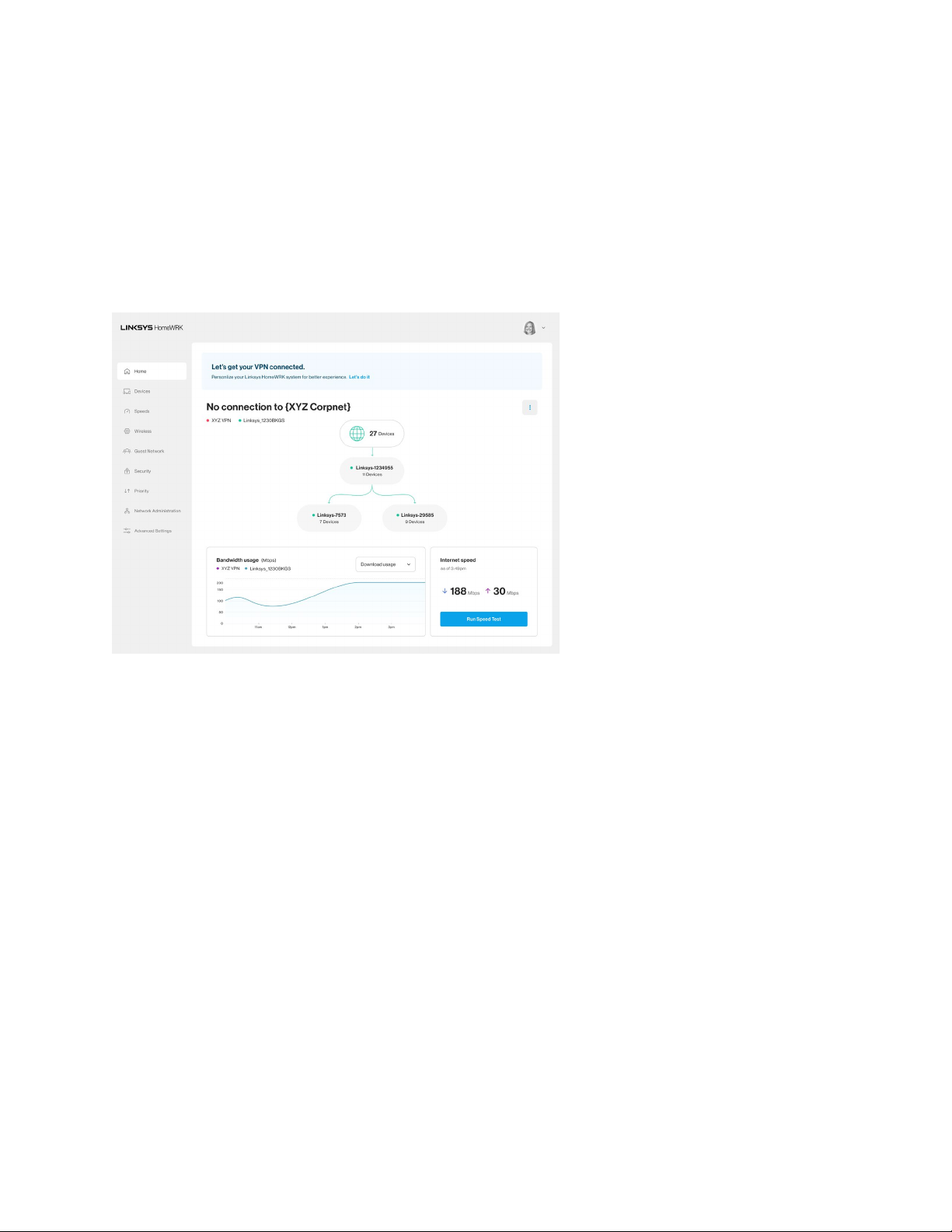

Home

Home displays a snapshot of your mesh system. See if your personal and corporate WiFi networks are

connected to the internet. You also can see how many total devices are connected to your WiFi and

which node they are connected to. Other information on your home screen: bandwidth usage over

time and internet speed.

Devices

View all devices that have been connected to your corporate and personal WiFi. Devices that are no

longer connected appear in the Offline tab. Choose a specific device to view details about its identity

and its connection. You can remove offline devices that are not likely to rejoin your WiFi.

To view or change device details

Choose a specific device to view details about its identity and its connection. You can remove offline

devices that are not likely to rejoin your WiFi.

Speeds

Run a speed check to make sure you are getting the speeds you are paying for or troubleshoot

connectivity issues. We do daily speed checks to provide you a 30-day snapshot of your system’s

speeds.

•Download speed is the rate at which internet content is transferred to your parent node

•Upload speed is the rate at which you can upload content to the internet

Note—While speed check measures the speed between your ISP and your parent node, true

internet connection speeds at the device level are determined by a variety of factors, including

ISP account type, local and worldwide internet traffic, and the number of devices in your home

that are sharing the internet connection.
