Lionel

Rocket Launcher

Owner’s Manual

Lionel

Rocket Launcher

Owner’s Manual

This accessory features a launching rocket. Be sure to keep clear

of the rocket when it is on the launch pad. Children should be

supervised by an adult when operating this accessory.

Caution!

Thank You

Thank you for your purchase of the Lionel Rocket Launcher! Featuring a lighted motorized

gantry that positions the rocket on the launching pad, this accessory allows you to relive

the early days of America’s space program. This classic accessory has been enhanced with

smoke, red flickering booster LEDs, and realistic sound effects with dialog for a more realistic

launch. It also features Plug-Expand-Play control and Command Control for use with a Lionel

CAB controller. Let the countdown begin!

This accessory features a launching rocket. Be sure to keep clear of the rocket

when it is on the launch pad. Children should be supervised by an adult when

operating this accessory.

•Base platform

•Lighted Motorized Gantry

•Rocket

•Plug-Expand-Play Controller

•Instruction Manual

Caution!

Rocket Launcher inventory of parts

Table of contents

Wiring your accessory to a Plug-Expand-Play lock-on 3

Adding smoke fluid to your Rocket Launcher 4

Connecting the Plug-Expand-Play controller to the Rocket Launcher 5

Installing your Rocket Launcher 5

Powering your Rocket Launcher 6

Legacy controller operations 6-7

TrainMaster Command Control (TMCC/Command Control) operations 8

Assigning your Rocket Launcher a new ID # 9

Operating your Rocket Launcher 9-10

LEGACY controller operations

The LEGACY CAB-2 Remote Controller 11

The Velocity Throttle 12

The Multi-Controller 12

The Train Brake Slider 12

The Warning Sound Controller 12

RailSounds sounds system 13

TrainMaster Command Control operations

CAB-1 Remote Controller commands 14

CAB-1 Remote Controller numeric keypad commands 14-15

Replacing the LEDs 15

Limited Warranty/Lionel Service 16

Wiring your accessory to a Plug-Expand-Play lock-on

Figure 1. Plug-Expand-Play wiring

Lock-on Power Block

Lock-on

3-pin male

connector

3-pin male

connector

3-pin male

connector

Plug-Expand-Play

Accessory

Your Plug-Expand-Play accessory connects to either a Plug-Expand-Play lock-on (6-81313)

or a Plug-Expand-Play power block lock-on (6-81314) with the 3-pin male connector that

is attached to its base. Simply plug this connector into the lock-on and apply track power. To

turn the accessory OFF, unplug the 3-pin connector from the lock-on or turn off the track

power. See figure 1 for wiring.

Auxiliary Power Supply

(optional)

The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights

reserved.

Lionel®, FasTrack®, LEGACY®, LEGACY®Control System, Lockon®, TMCC®, CAB-1®Remote Controller, Plug-

Expand-Play®

e control box is required for operation of this accessory.

For Command Control, the Plug-Expand-Play ground must be connected to the

command base. For example, if an auxiliary power supply was used that the command

base isn't connected to, you wouldn't have command control of the Rocket Launcher.

Note!

Plug-Expand-Play

is revolutionary accessory system simplies the setup and operation of your

favorite accessories. Plug-Expand-Play accessories easily connect to your layout

for power using a standardized 3-pin cable that connects directly to a Plug-

Expand-Play Lock-on track section. ere are separate-sale cables that allow you

to expand your system to meet your needs.

TrainMaster Command Control

Devices equipped with the classic TrainMaster® Command Control system are

controlled by commands from your CAB-1 or CAB-2 Remote Controller. Motion,

basic sounds, and other control actions are all at your ngertips as you walk

around your layout.

Adding smoke fluid to your Rocket Launcher

Before you operate your Rocket Launcher, be sure to add smoke fluid to the smoke unit.

Never operate this accessory without smoke fluid. To add the fluid, squeeze the sides and

lift up the block house as illustrated in Figure 2. Remove the small plug and add 8-10 drops of

smoke fluid. Add several more drops as smoke production decreases.

Never operate this accessory without smoke fluid to avoid damage to the smoke

unit.

Caution!

SMOKE

OFF

PROG

VOLUME

KNOB

RUN

Figure 2. Smoke unit location

Plug

ADD SMOKE

FLUID HERE

Fan. DO NOT ADD SMOKE

FLUID HERE!

Volume knob

Program/

Run switch

Smoke unit

switch

FRONT

REAR

Connecting the Plug-Expand-Play controller to the Rocket Launcher

Installing your Rocket Launcher

Set up your controller to operate the Rocket Launcher's gantry crane and begin the

countdown. As illustrated in Figure 3, simply connect the Plug-Expand-Play controller

with the plugs on the wires.

The plugs are “keyed” to fit together only one way.

Place the Rocket Launcher on your layout.

Choose a location that is approximately 16”

x 10”. Next, position the gantry crane on its track

so that the post in the platform is inserted into

the slot at the base of the gantry. Be sure that the

side of the gantry with the rounded openings in

the platform faces the launch pad.

Set up the derrick at the top of the gantry.

Carefully raise the mast until it snaps into place.

It should now be in a vertical position as

illustrated in Figure 5. To lower the mast, gently

bend the mast lock away from the base to pull

the locking pin out, but be careful not to bend

the mast lock excessively. Finally, check that the

winch lines are properly threaded through the

pulleys.

To avoid damaging your mast, do not

raise it beyond its vertical position.

Note!

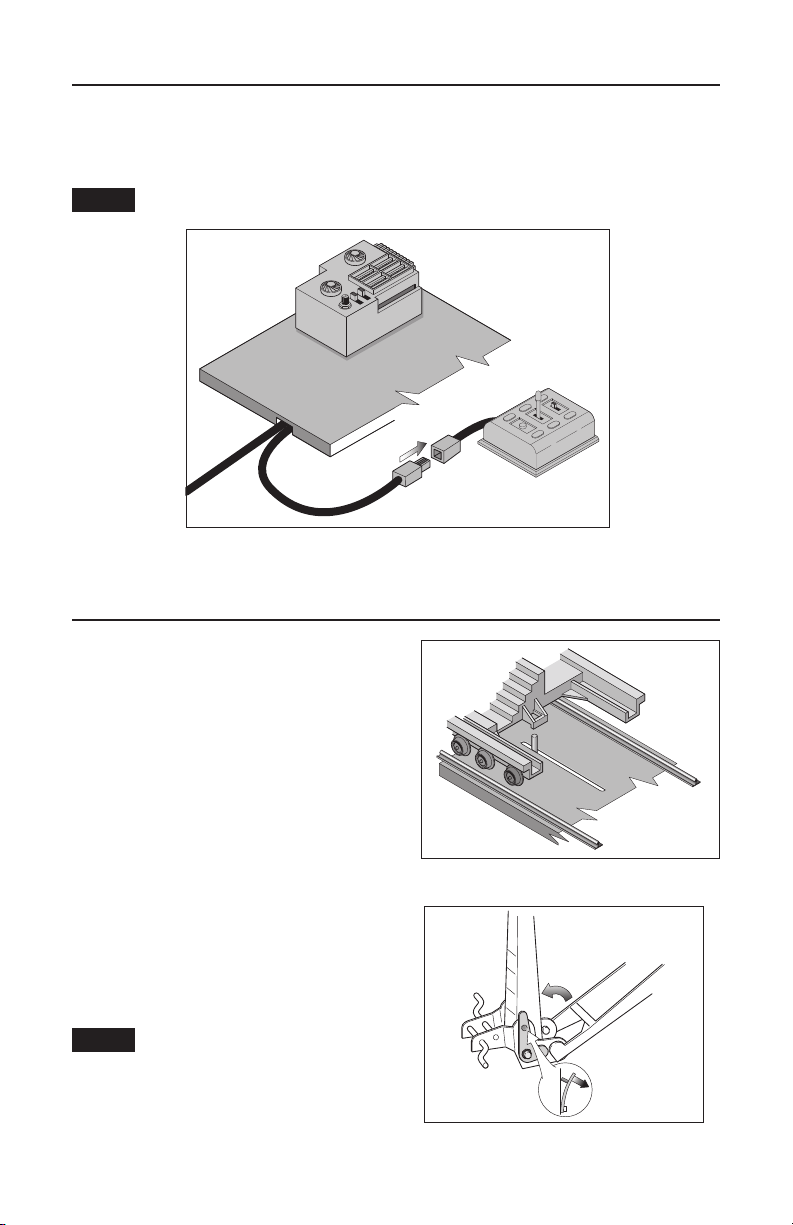

Figure 3. Controller connection

Figure 4. Gantry positioning

Figure 5. Derrick set up

Note!

1. Turn off track power, and then plug in the LEGACY Base and connect it to the track.

2. Plug your Rocket Launcher into a Plug-Expand-Play Lock-on. If the Lock-on has a

power switch, make sure it is on.

3. Increase track power voltage to full power (no more than 19 volts AC). If a circuit

breaker trips when you turn on the Lionel power supply, make sure the track is free of all metals

that may cause a short circuit.

4. As illustrated in Figure 6, press ENG and 1 (or your selected ENG ID#) to address the

locomotive with your LEGACY CAB-2 Remote Controller.

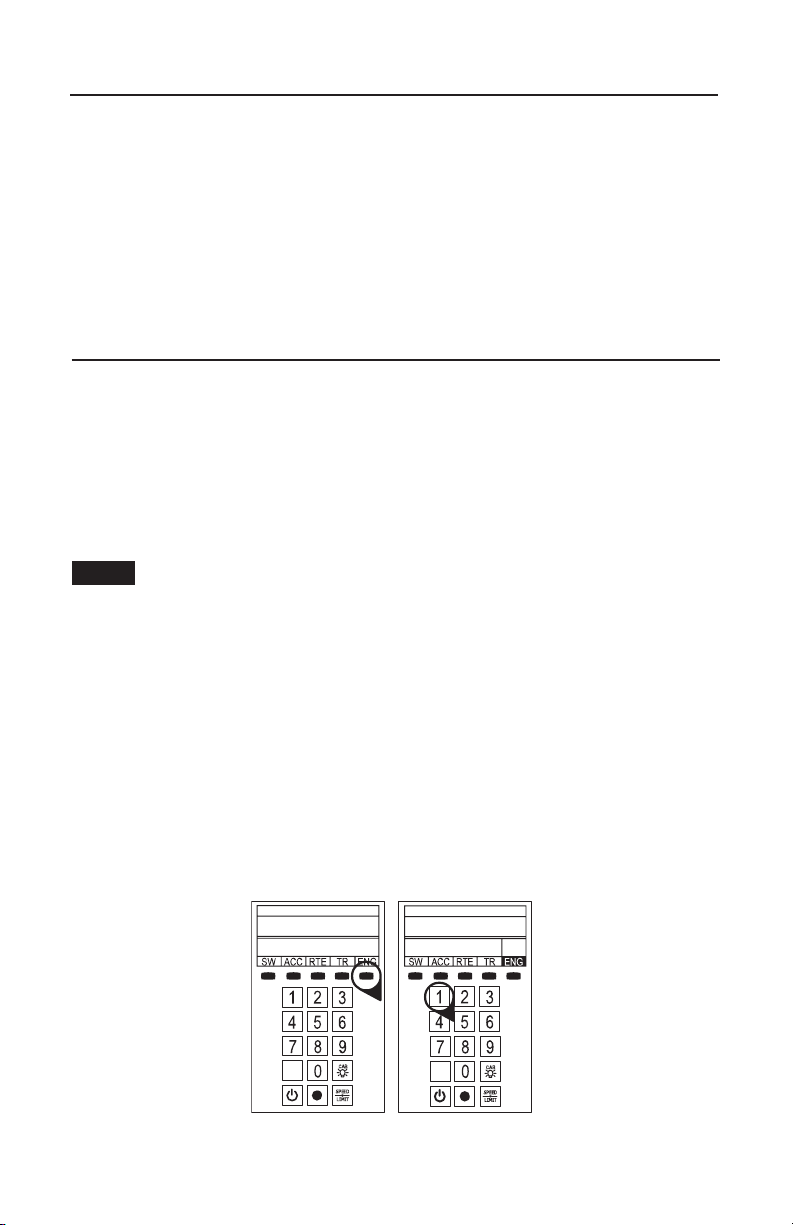

Figure 6. LEGACY engine selection

LEGACY controller operations

Your Rocket Launcher is compatible for operation with the Lionel LEGACY system. It will also

operate on the original Lionel TrainMaster System (TMCC1) and also on the LEGACY Cab-1L /

Base-1L operating system.

Your commands are sent by the Remote Controller to the Command Base, which broadcasts a

radio frequency that is distributed through the outer rails of the track to your accessory. Your

accessory will not respond until it recognizes its unique ID#, so you can operate multiple Command-

equipped accessories on the same track at the same time.

Powering your Rocket Launcher

Your Rocket Launcher is designed to work with either AC or DC power.

AC Power: Use an alternating-current (50-60Hz AC) transformer for Legacy, Command Control,

Bluetooth, or Conventional control. Powering your accessory in excess of 19 volts AC may result in

damage to sensitive electronic components.

DC Power: Use a DC transformer for Plug-Expand-Play control only. Your accessory is NOT

designed to operate with Command Control while using DC power. Powering your accessory in

excess of 19 volts DC may result in damage to sensitive electronic components.

Due to technical dierences, we recommend using CAB1 mode with the Cab2 controller

for optimum Command Control operation. e original Cab1 and Cab1-L also work very

well with this accessory.

Note!

5. After selecting the ENG ID# on the Cab 2 remote, your remote needs to be configured

for TMCC or CAB1 control for the accessory. Select the ID# of your accessory as before,

then press the INFO button on the top right of your CAB-2 remote.

Press the SCROLL button on the top left of the CAB-2 row until the CONTROL tab is selected.

Press the button that corresponds to the TMCC or CAB1 (preferred) Mode selection on the

screen.

6. Press the SCROLL button once more to select the SOUND tab. Press the button that corresponds

to RS5 to enable RailSounds 5 Mode. This will also enable the icons on the keypad for a more

user-friendly experience. Congratulations! You have now configured your CAB-2 remote to run

your accessory in CAB1 (preferred) or TMCC mode. Enjoy all the features your locomotive has to

offer.

7. Press the Start Up key on your LEGACY CAB-2 Remote, shown in Figure 9. Then, let

the countdown begin! Your rocket launcher's sound will start up, and the accessory-specific

touch screen buttons will populate the remote. For more information on operating your accessory

with the LEGACY system, please refer to the LEGACY section of this manual. Additional

information is also found in the LEGACY System Manual, available online at

www.lionel.com.

LEGACY Control operations continued

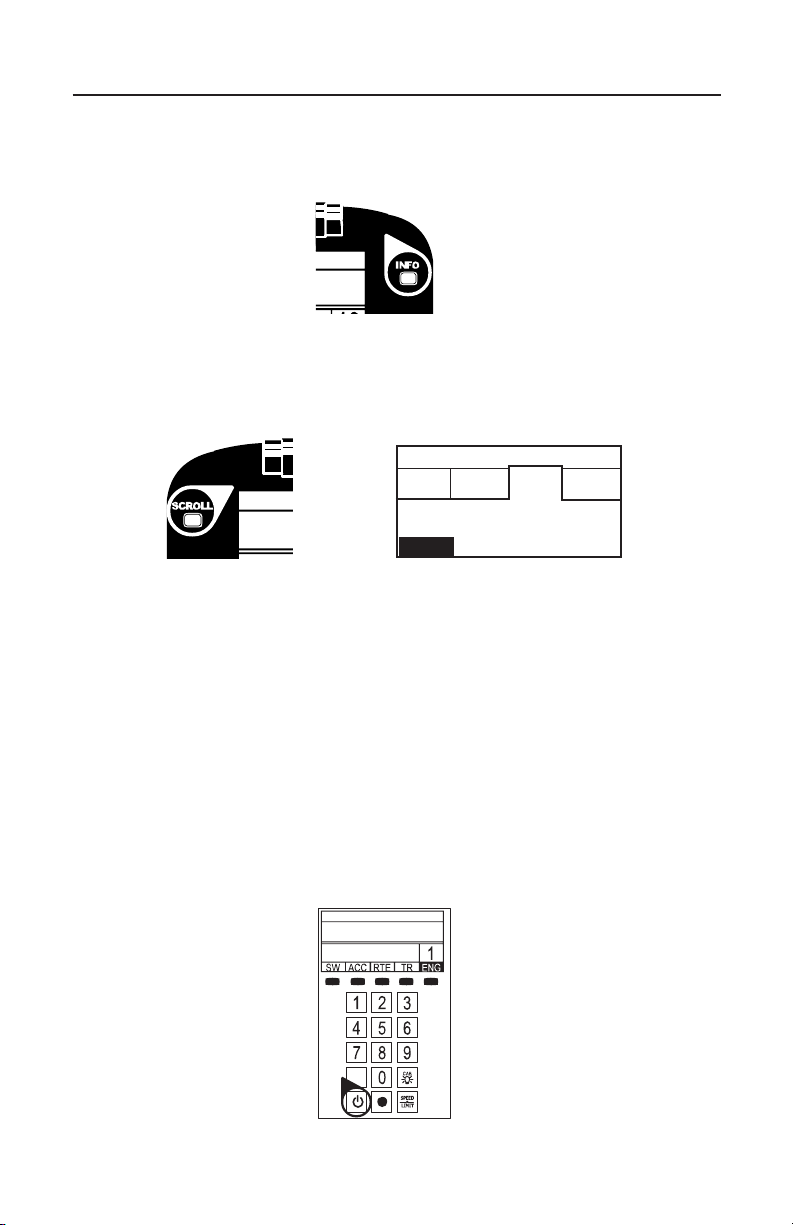

Figure 9. LEGACY start-up

Figure 7. CAB-2 info button

Figure 8a. CAB-2 scroll button Figure 8b. CAB-2 control screen

ENGINE 1 INFO

Custom

Type

OTH TMCC

CAB1

TMCC



LRS

Control

Sound

TrainMaster Command Control (TMCC/Command Control) operations

For operation in the TrainMaster Command Control environment, you need a TrainMaster

Command Base (6-12911) and a CAB-1 Remote Controller (6-12868). Refer to your TMCC

System Manual for complete information.

Your commands are sent by the CAB-1 Remote Controller to the Command Base, which

translates the command into digital code. That code is sent through the outside rails to your

accessory, which will not respond until it recognizes its unique ID#. TrainMaster Command Control

gives you the power to operate multiple Command-equipped accessories on the same layout at the

same time.

1. Turn off track power, and then plug in the Command Base and connect it to the

track.

2. Plug your Rocket Launcher into a Plug-Expand-Play Lock-on. If the lock-on has a

power switch, make sure it is on.

3. Increase track voltage to full power (no more than 19 volts AC). If a circuit breaker trips

when you turn on the Lionel power supply, check to make sure the track is free of all metals that

may cause a short circuit.

4. Press ENG and the programmed ID to address your Rocket Launcher with your

CAB-1 Remote Controller.

5. Let the countdown begin!

For operation in the Command Control environment, you will want to give your Rocket Launcher

a unique ID#. Your accessory will respond to commands associated with its ID# while all other

accessories will disregard these commands. This procedure is not necessary for Plug-Expand-

Play operation.

1. Slide the program run switch on the smoke generator cover to the PROG position.

See Figure 2 on page 4.

2. Plug the launcher into a Plug-Expand-Play lock-on.

3. Connect the Command Base and plug it in.

4. Power up the track.

5. Press ENG on the CAB-1 or CAB-2 remote.

6. Enter the unique ID#. Choose any number from 1 to 98 that has not been assigned

to another locomotive or accessory (ENG).

All Command Control enabled locomotives respond to ENG 99. We recommend that you

reserve ID# 99 as a "universal" ID#.

7. Press SET. The launcher will emit a beep sound.

8. Slide the program run switch back to the RUN position.

The Rocket Launcher's ID# has been set. Be sure to record the new ID# for your

reference.

Assigning your Rocket Launcher a new ID#

Note!

Operating the Rocket Launcher

All systems are “Go” for launch! Complete these final preparations, then start the

countdown.

To prevent damage to the smoke unit, do not operate the Rocket Launcher

without smoke fluid or turn the smoke unit OFF.

Caution!

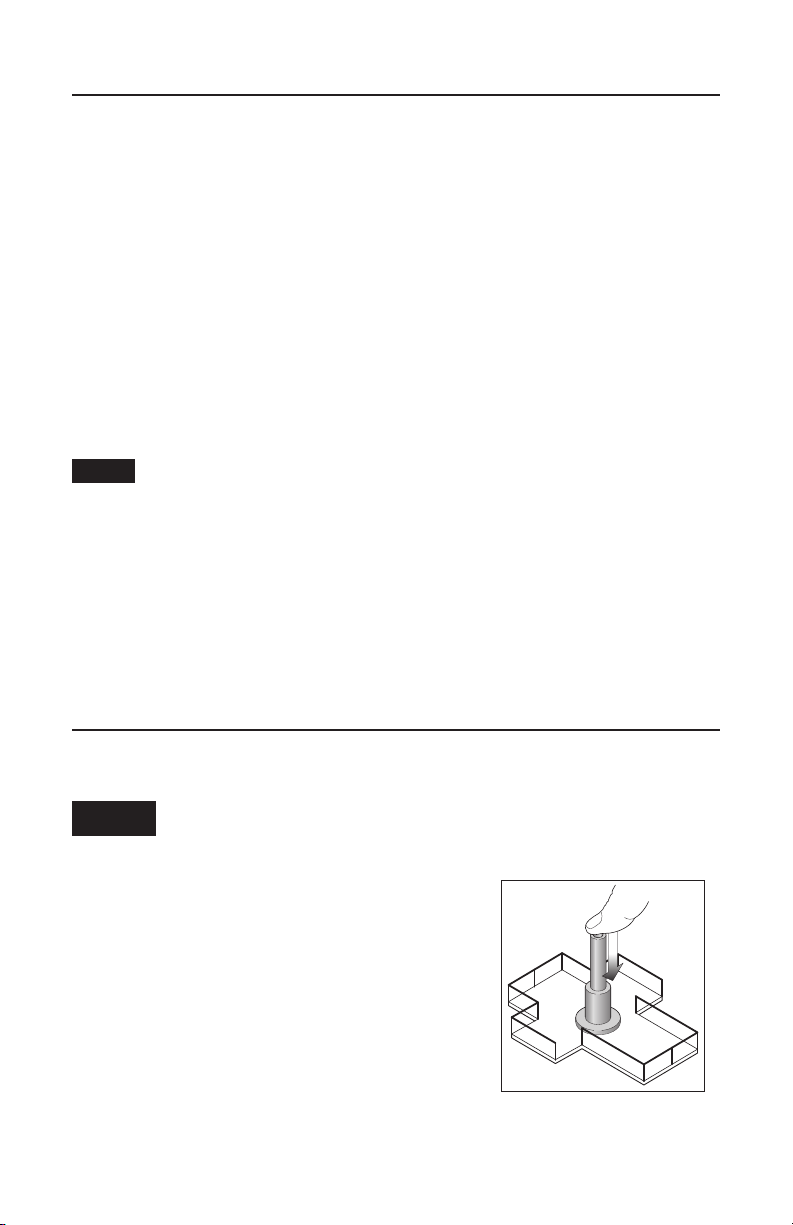

Figure 10. Arming launcher

1. Suspend the rocket from the crane’s magnet and press

the launching mechanism down until it locks as

illustrated in Figure 10.

2. Maneuver the gantry toward the rocket platform using

the GANTRY lever on the PEP controller or by using

the red throttle knob on the CAB1 / CAB1-L or CAB2

controllers. Key 3 and Key 6 of the CAB controllers

also control forward / reverse gantry movement.

3. Once the rocket is in position, stop the gantry

movement by releasing the lever (PEP control)

or by using the red knob, reset (Key 0) or the

DIR change button (CAB controllers). Or

simply wait for the limit switch to stop

movement.

4. Turn the cranks to lower the rocket onto the

launch pad, then move the gantry back. To

identify the cranks, refer to Figure 12.

If the gantry is at the forward limit

switch when a launch is begun, it

will automatically be retracted to

the rear limit switch location.

Crank 1 will raise and lower the magnet.

Crank 2 will raise and lower the boom.

5. Start the countdown by pressing the Launch

button on the PEP controller, or by pressing

and holding Aux1 for more than 3 seconds on

the CAB1, CAB1-L or CAB2 controllers.

Press and hold the Launch button

on the Plug-Expand-Play control

box to shutdown launcher. Press &

hold while shutdown to start in

T-Minus 15 Mode (short launch).

Note!

Caution!

REVERSE

GANTRY

FORWARD

SMOKE OFF

SMOKE ONLAUNCH

Figure 11. Plug-Expand-Play control box

Figure 12. Derrick cranks

Crank 2

Raises and

lowers the boom

Crank 1

Raises and lowers

the magnet

Operating the Rocket Launcher continued

Press the Launch button (PEP controller) if you wish to abort the launch during the launch

sequence. The red triangular button or the Key 0 (Reset) can be used to abort a launch if

using one of the CAB remotes.

Keep clear of the rocket during launch to avoid injury.

6. Get ready for another launch! Repeat the steps above.

Inhaltsverzeichnis

Andere Lionel Spielzeug Handbücher

Lionel

Lionel American Flyer GP-7 Bedienungsanleitung

Lionel

Lionel Trolley Ready-to-Run Bedienungsanleitung

Lionel

Lionel Tinplate 392 Steam Locomotive Bedienungsanleitung

Lionel

Lionel SD40 Bedienungsanleitung

Lionel

Lionel F3A Bedienungsanleitung

Lionel

Lionel Strasburg Passenger Bedienungsanleitung

Lionel

Lionel American Flyer 4-8-4 Northern SteamLocomotive and... Bedienungsanleitung

Lionel

Lionel Holiday Special Train Set Bedienungsanleitung

Lionel

Lionel Dash 8-40 BW Diesel Locomotive Bedienungsanleitung

Lionel

Lionel Hudson Jr. Bedienungsanleitung

Lionel

Lionel Pioneer Zephyr Bedienungsanleitung

Lionel

Lionel Copper Range MineReady-to-Run Set Bedienungsanleitung

Lionel

Lionel Super 381 Bedienungsanleitung

Lionel

Lionel FT A-Unit Diesel Locomotiv Bedienungsanleitung

Lionel

Lionel GP-20 Bedienungsanleitung

Lionel

Lionel E-6 Bedienungsanleitung

Lionel

Lionel USRA 0-8-0 Steam Locomotive and Tender Bedienungsanleitung

Lionel

Lionel Illuminated Station Platform Bedienungsanleitung

Lionel

Lionel American Flyer 2-8-8-2 Steam Locomotive Bedienungsanleitung

Lionel

Lionel BNSF Ice Cold Express Bedienungsanleitung

Lionel

Lionel 2340 GG-1 LOCOMOTIVE Bedienungsanleitung

Lionel

Lionel 2-8-0 Consolidation Bedienungsanleitung

Lionel

Lionel Ready-to-Play 2006132 Bedienungsanleitung

Lionel

Lionel 1563W Wabash Freight Set Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
