Product Overview

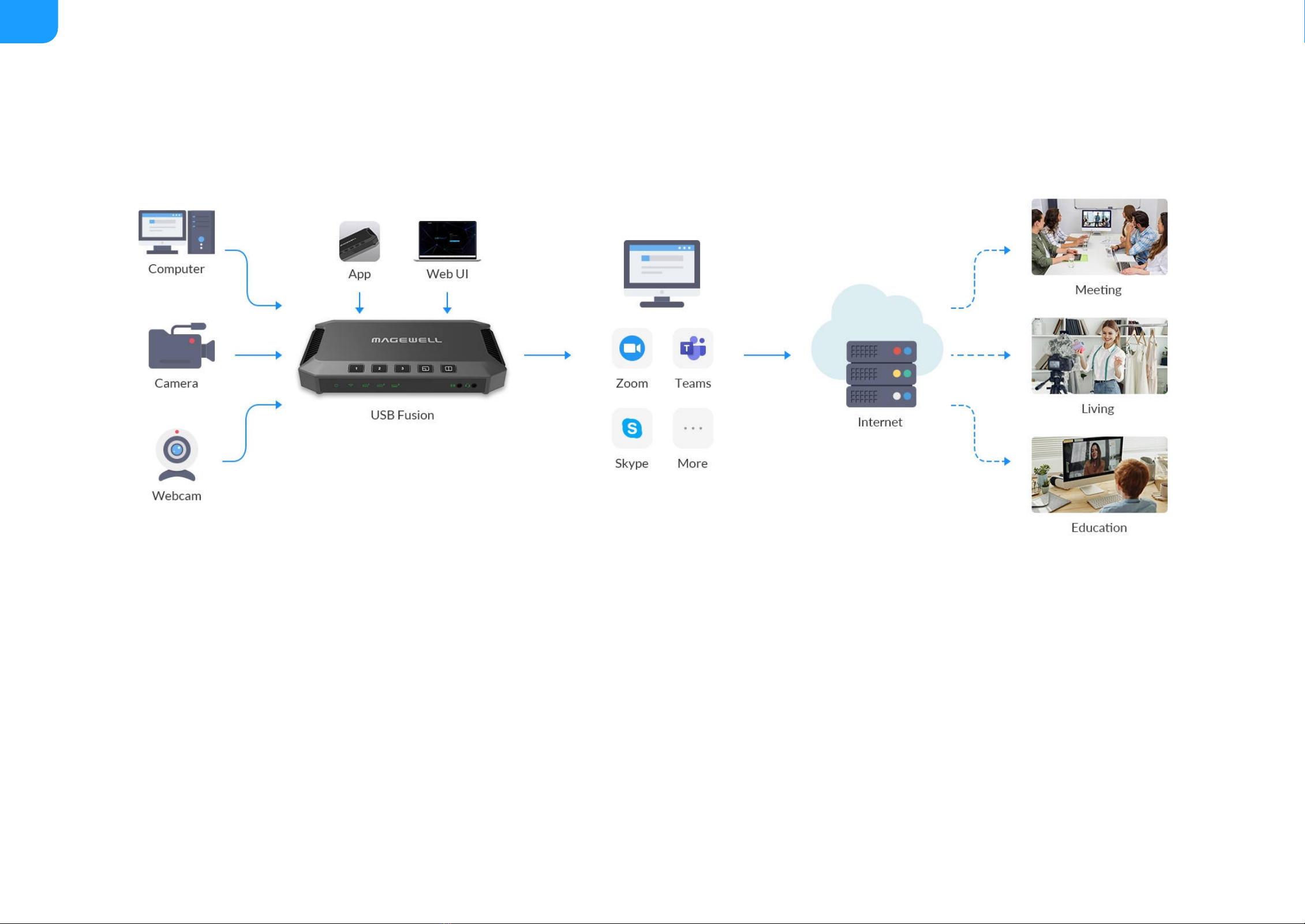

USB Fusion makes your online lectures and virtual events more engaging. Our USB Fusion hardware lets you combine camera and wired screenshare inputs into

attractive live presentations for remote education, webinars, live streaming and more.

USB Fusion is a multi-input USB video capture device with integrated source switching and layout control. Offering two HDMI inputs and one USB webcam input, USB

Fusion can switch between sources or combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via

its USB 3.0 interface.

USB Fusion features the following:

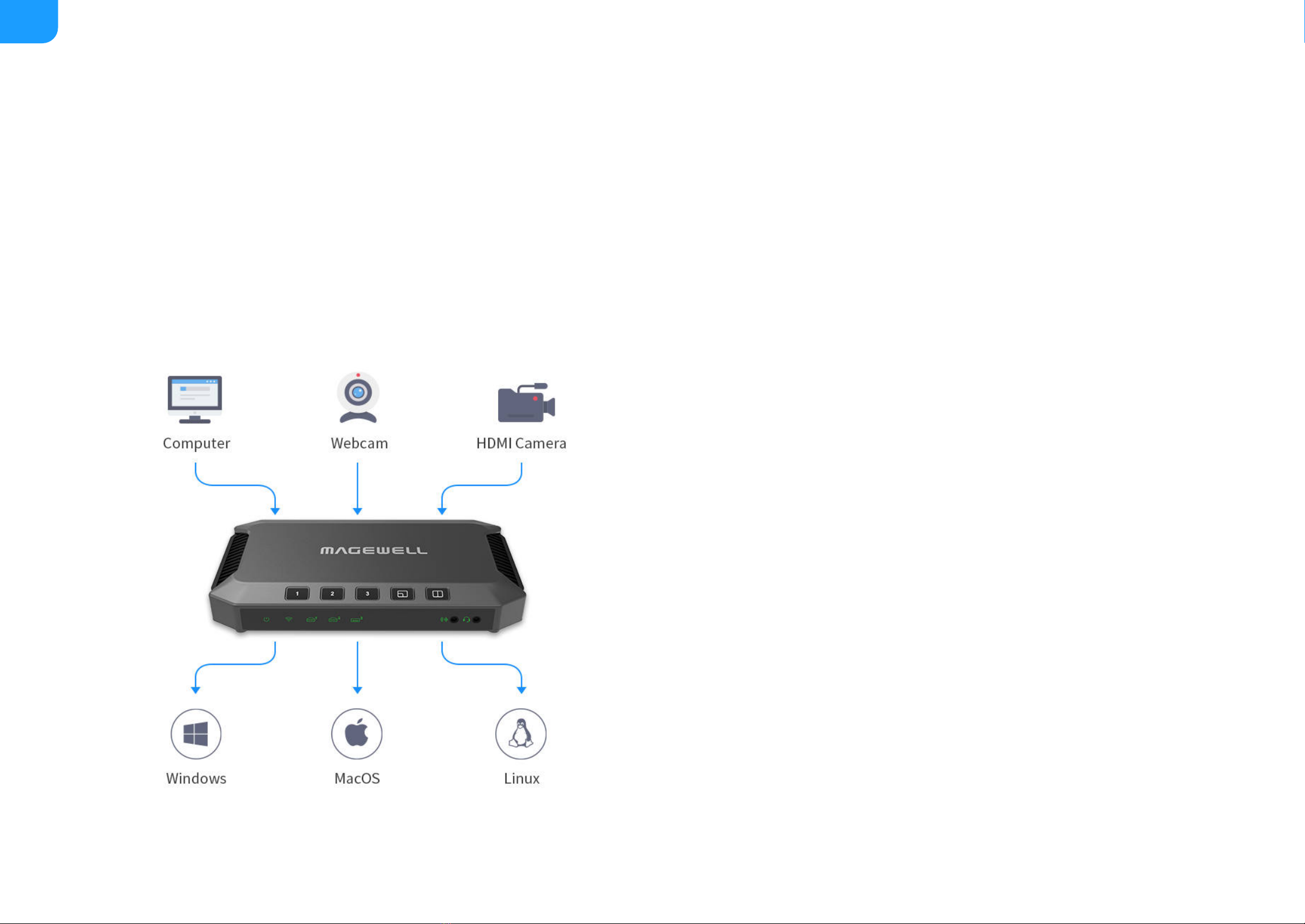

As a standard UVC/UAC device with automatic, driver-free installation, USB Fusion is immediately compatible with a wide range of operating systems and software

applications. Users or administrators can configure and manage the hardware through its built-in web UI, while the free USB Fusion companion tablet App provides

additional features to augment your presentations.

Using the USB Fusion companion App, teachers and event hosts can create presentation playlists in advance and incorporate pre-recorded audio and other media

files into their sessions. The App’s annotation tools can be used to mark up presentation materials, and the annotations can be exported to a file for sharing after the

class or event. Sessions can also be recorded through the App to the USB Fusion hardware’s built-in storage for subsequent playback.

Two HDMI inputs and one USB webcam input with support for signals up to

1080p at 60fps

■

Support multiple scene display modes, such as single view, picture in

picture, and side by side

■

High-quality video processing with zero CPU usage

■

Support importing multimedia files to enrich presentations

■

Support more operations and settings through the companion App and

Web UI

■

Support USB 3.0 interface for high-speed data transferring

■

HDMI output for conveniently monitoring source or program

■

Standard UVC/UAC device offering broad compatibility with popular

software

■

Automatic, driver-free installation with support for Windows , Mac and

Linux operating systems

■® ®

Getting to Know USB Fusion

This chapter will introduce the indicators, buttons, and ports of USB Fusion, and tell you how get the App and log in the Web UI, as well as system requirements.

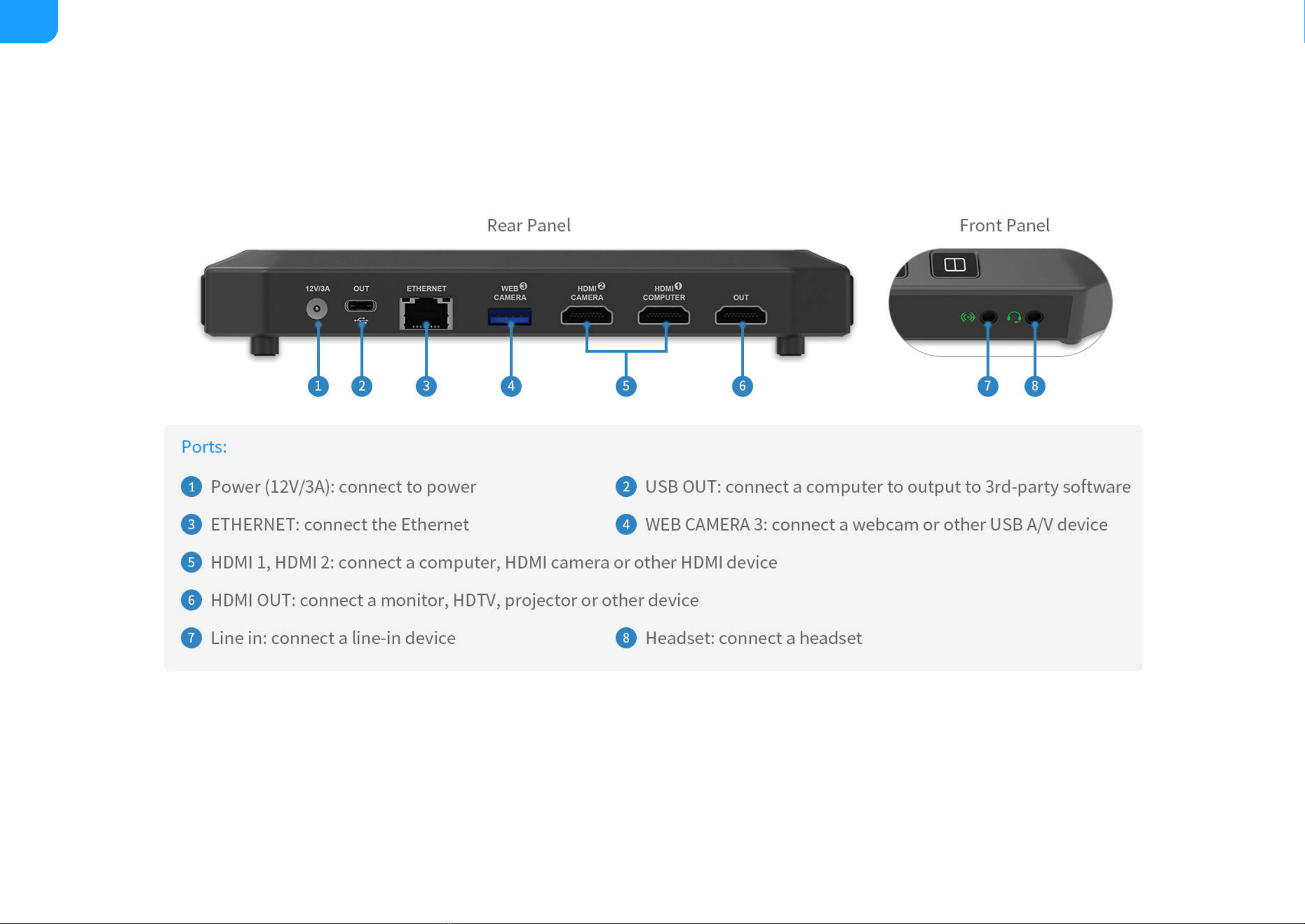

USB Fusion Device

USB Fusion App

With the USB Fusion App, you can create presentations, switch scenes, make

annotations, and record your presentation. You can make flexible presentations

easily. The USB Fusion App supports iOS 12 and later and Android 7.0 and

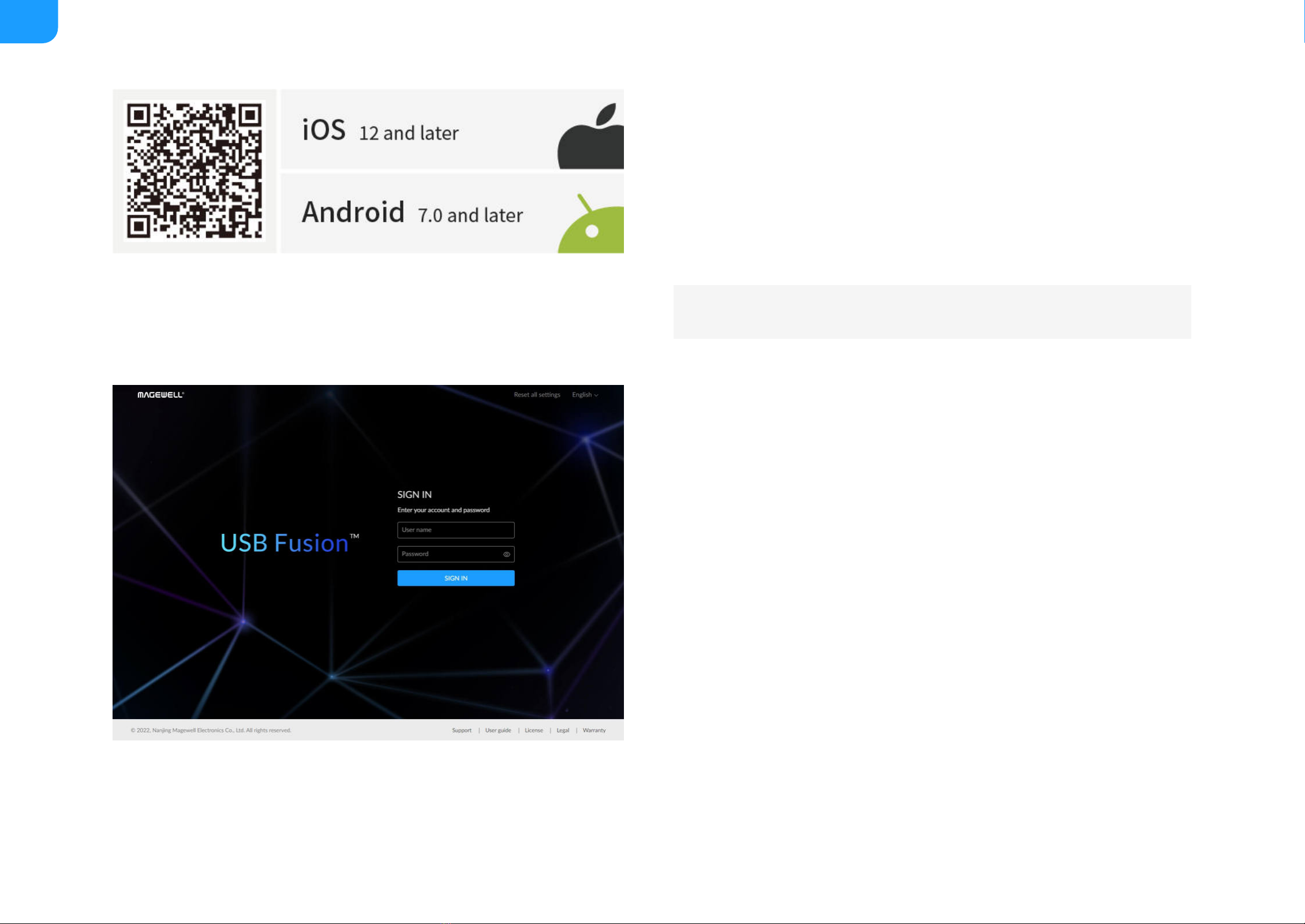

later. You can search for USB Fusion in the app store or scan the QR code to

download.

Web UI

USB Fusion provides a web UI for user to check device status, configure device

functions, create and manage presentations, and more.

1. On the computer connected to the USB OUT port, open a browser and

access 192.168.66.1.

2. Enter the default user name Admin and password Admin to log in.

Currently the App is available only on tablets.

Computer Configuration

Operating System Versions

Computer Port

To connect the USB OUT port of the USB Fusion, to receive PROGRAM scenes

output from the USB FUION

Tablet Version

To install the USB Fusion App for making presentations

Browsers Compatible with Web UI

To log in the Web UI for more advanced settings and presentation operating

Compatible Software

The software to connect the USB Fusion and use PROGRAM scenes output

from the USB Fusion for online classes, meeting or live streaming.

System Requirements

Windows

Windows 7 and later, Server 2008 and later (x86 & x64)

■

Linux

Linux system with kernel 2.6.35 and later (x86，x64 & ARM)

■

Mac

OS X 10.9 and later, macOS 10.12 and later

■

USB 3.0 port (recommended)

■

iOS 12 and later

■

Android 7.0 and later

■

Google Chrome version 49 and later

■

All Microsoft Edge versions

■

Mozilla Firefox version 61 and later

■

Apple Safari 11.1 and later

■

Opera 55.0.2994.44 and later

■

Skype

■

Zoom

■

Microsoft Teams

■

Other UVC/UAC-compliant software

■

Connecting Devices

To use USB Fusion, you need to first connect power, network and various

video/audio devices. USB Fusion supports the following connections:

Connecting to Power

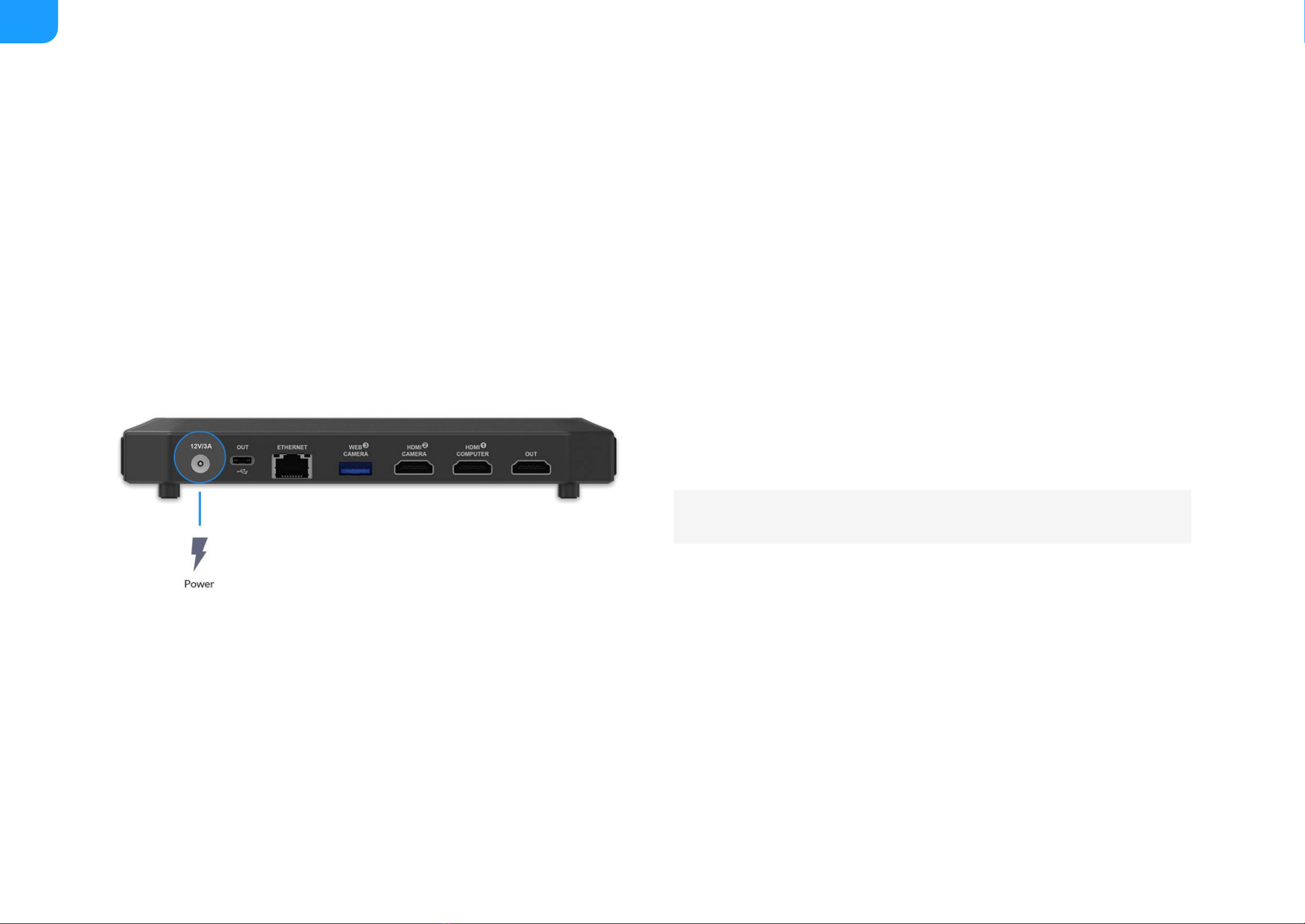

Use the supplied power adapter to connect the power port on USB Fusion and

power supply. After connected, the power indicator lights up.

Getting Started

USB Fusion is easy to use. No complicated configuration is required to implement high-quality capture and production. This chapter tells you how to use USB Fusion

and App for your presentation.

The device starts working after connected to power.

Connecting Video Inputs

USB Fusion can simultaneously connect three video inputs (two HDMI inputs

and one USB input), such as a computer, an HDMI camera, and a webcam.

The video inputs can be used separately or composited into a picture-in-

picture or side-by-side layout.

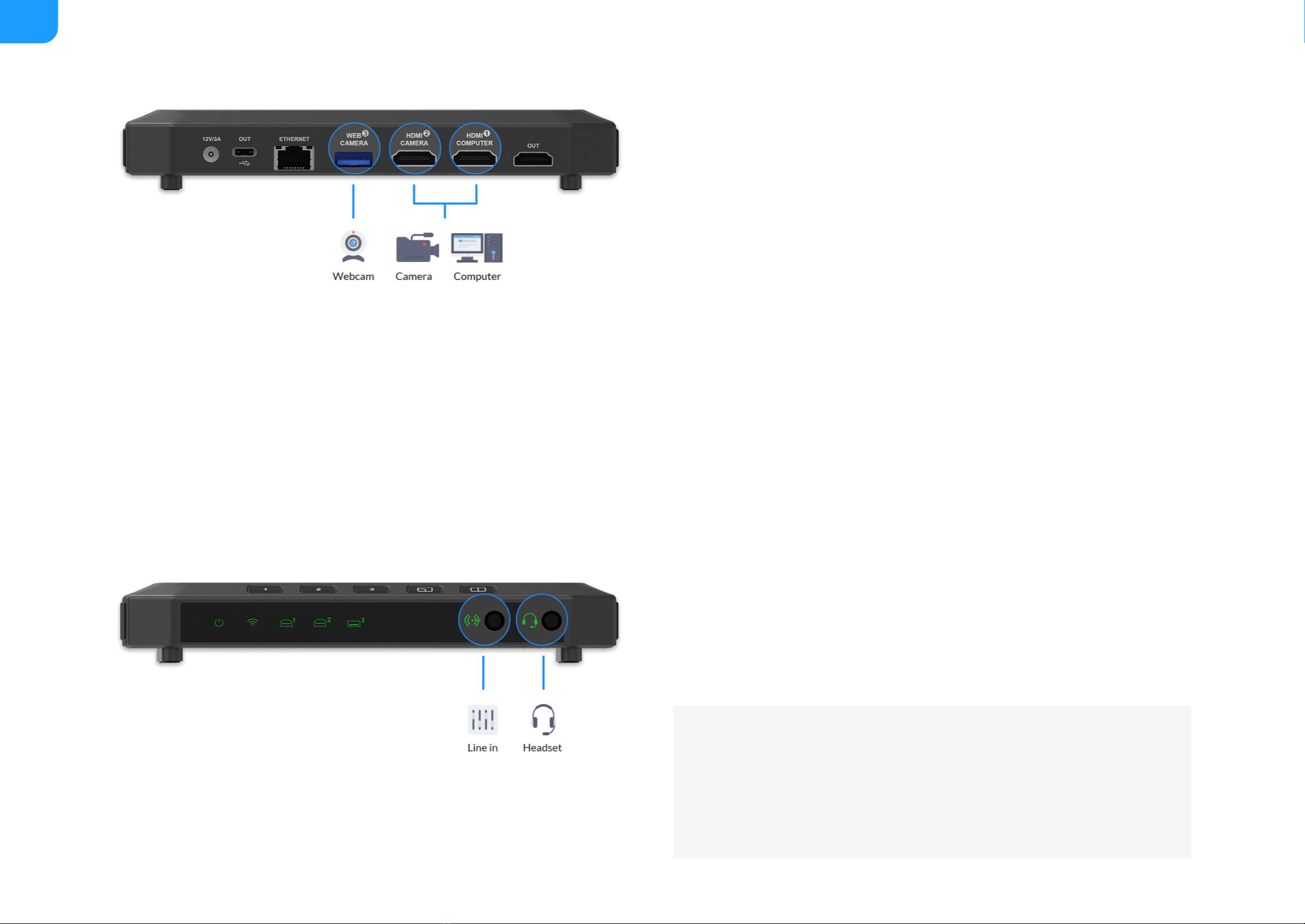

Connecting HDMI Input Sources

Use an HDMI cable to connect your computer or/and HDMI camera to the

HDMI 1 or/and HDMI 2 input port on the USB Fusion. The input computer is

called source computer. After connected, the HDMI 1 / HDMI 2 indicator lights

up.

Connecting a USB Input Source

Use a USB cable to connect your USB A/V device (e.g. a webcam) to the WEB

CAMERA 3 port on the USB Fusion. After connected, the WEB CAMERA 3

indicator lights up.

Connecting Audio

After connected, the line-in and headset indicators light up.

Connect a headset to the headset port on the USB Fusion.

■

Connect a line-in device to the line-in port on the USB Fusion. (Optional)

■

The line-in port supports two-channel audio input.

■

The headset port supports two-channel audio input and output (for

monitoring).

■

The headset port uses the CTIA standard. For an OMTP-compliant

■
