MasterChef T360 Bedienungsanleitung

T360 Barbecue

Assembly Manual

85-3052-6 (G30545) Propane

1 YEAR LIMITED WARRANTY

Manual Revision #: 12022013 PD

ANS Z21.58b-2012-CSA 1.6b-2012

ANS Z21.58b-2012-CSA 1.6b-2012 ANS Z21.58b-2012-CSA 1.6b-2012

ANS Z21.58b-2012-CSA 1.6b-2012

READ AND SAVE MANUAL FOR FUTURE REFERENCE.

Assemble your grill immediately.

Missing or damaged parts claims must be submitted within 30 days of purchase date.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-855-453-2150.

DANGER

1. If you smell Gas:

a. Shut o gas to the appliance

b. Extinguish any open ame

c. Open lid

d. If odor continues, keep away from

the appliance and immediately

call your gas supplier or your

re department

2. Do not store or use gasoline or other

ammable vapours and liquids in the

vicinity of this or any other appliance.

3. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

4. Requires two people to complete the

assembly process.

5. Beware of sharp edges.

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous res,

explosions, property damage, or serious

personal injury or even death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to assemble

and cook.

CAUTION

Sharp edges. Wear gloves when assembling

your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-855-453-2150

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at

all times.

HEAVY ARTICLE NEEDS 2 TO LIFT

To ORDER non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.masterchefbbqs.com

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

Before assembling the barbecue, read these

instructions carefully.

Assemble the barbecue on a at, clean surface.

Grill is heavy. You should have at least two people

assemble the barbecue together.

Notes: Do not fully tighten all the nuts during

this initial stage.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

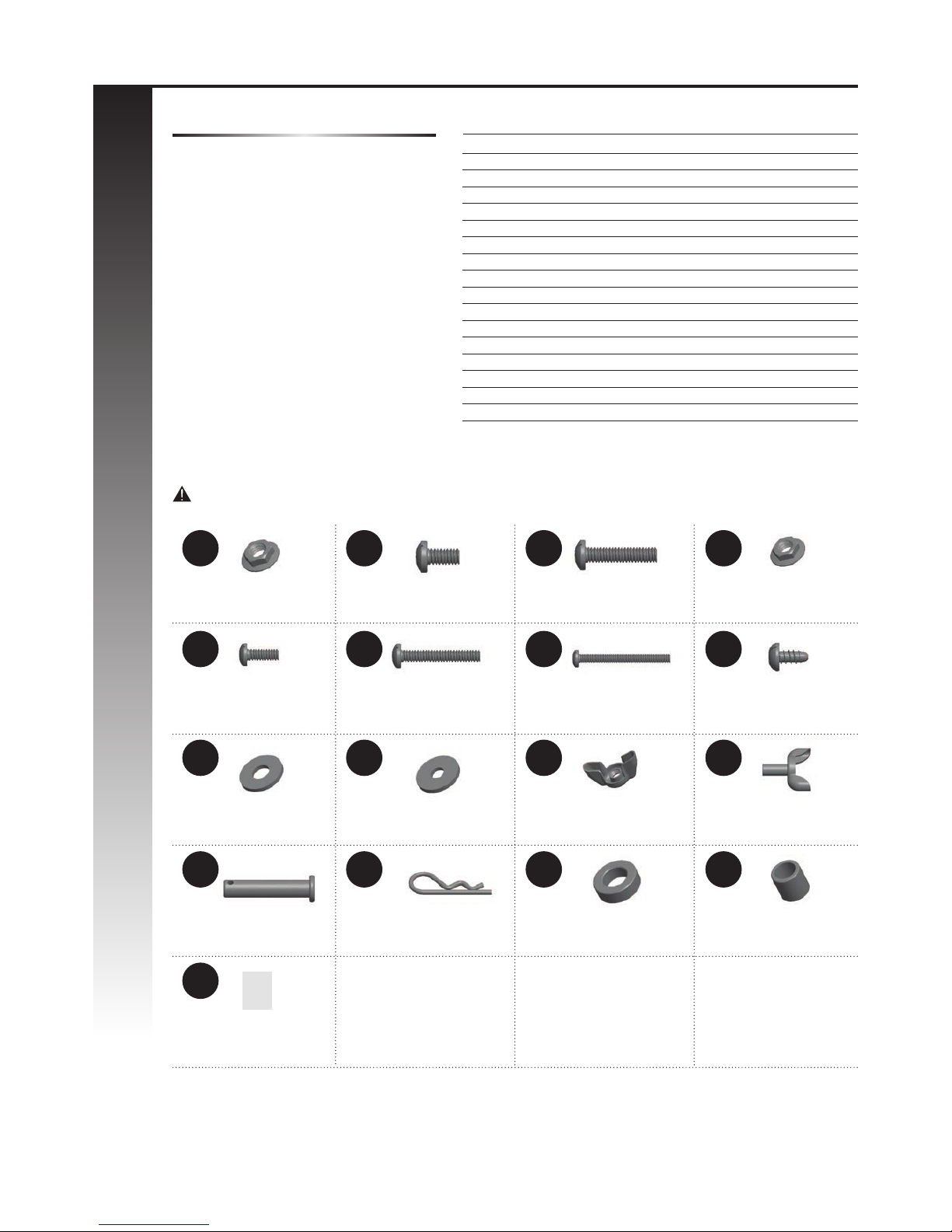

HARDWARE PACK

NO.10-24UNCX13 Screw

X 19

ST4.2X8 Tapping Screw

X 11

¼”-20UNC Wing Nut

X 2

Hitch Pin

X 5

Wheel Washer B

X 1

NO.10-24UNCX30 Screw

X 16

φ6.5 Fiber Washer

X 4

Bolt

X 4

NO.10-24UNCX50 Screw

X 12

φ5 Fiber Washer A

X 26

Wing Screw

X 1

Side Shelf Washer

X 8

KEY # DESCRIPTION PART NUMBER QUANTITY

1 ¼”-20UNC Nut 31220-13000-036 4

2 ¼”-20UNCX13 Screw 20120-13013-036 4

3 ¼”-20UNCX30 Screw 20120-13030-036 4

4 NO.10-24UNC Nut 31224-10000-036 42

5 NO.10-24UNCX13 Screw 20124-10013-036 19

6 NO.10-24UNCX30 Screw 20124-10030-036 16

7 NO.10-24UNCX50 Screw 20124-10050-036 12

8 ST4.2X8 Tapping Screw 24200-42008-136 11

9 φ6.5 Fiber Washer G431-0018-9000 4

10 φ5 Fiber Washer A G437-0050-9000 26

11 ¼”-20UNC Wing Nut 33300-13000-032 2

12 Wing Screw G306-0025-9084 1

13 Bolt G306-0004-9188 4

14 Hitch Pin G306-0005-9088 5

15 Wheel Washer A G305-0024-9088 1

16 Side Shelf Washer A006-0006-9000 8

17 Wheel Washer B G305-0058-9088 1

¼”-20UNC Nut

X 4

¼”-20UNCX13 Screw

X 4

NO.10-24UNC Nut

X 42

¼”-20UNCX30 Screw

X 4

Wheel Washer A

X 1

PARTS LIST PROPANE FOR 8530526 G30545

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top Lid Assembly G305-0R01-01

AB 2 Upper Hinge G206-0002-03

AC 1 Lid Handle G305-0090-01

AD 2 Lid Bumper G560-5002-01

BA 1 Burner Box Assembly G305-0S01-01

BB 2 Lower Hinge G206-0010-03

BC 1 Burner G305-AD00-01

BD 1 Flame Tamer G305-0078-01

BE 1 Cooking Grate G305-0006-01

BF 1 Warming Rack G305-0080-01

CA 1 Control Panel G305-AU01-01

CB 1 Manifold Assembly G305-AV00-01

CC 3 Control Knob G432-0090-01

CD 1 Ignitor G206-0701-01

CE 1 Grease Cup Hook G305-0043-01

CF 1 Grease Cup G430-0033-02

CG 1 Regulator G305-0056-01

DA 2 Upper Leg Support Bars G305-0600-01

DB 1 Cart Leg, Right, Front G305-0017-01

DC 1 Cart Leg, Right, Rear G305-0018-01

DD 1 Cart Leg, Left, Front G305-0019-01

DE 1 Cart Leg, Left, Rear G305-0020-01

DF 1 Burner Box Support, Left G305-0030-02

DG 1 Burner Box Support, Right G305-0031-02

DH 1 Side Brace G305-0700-01

DI 1 Heat Shield G210-0012-01

DJ 1 Front Panel G305-0U00-01

DK 2 Back Brace G305-0010-01

DL 3 Tank Exclusion G434-0056-01

DM 2 Support Bracket G305-0021-01

DN 2 End Caps, Cart legs G208-0012-01

DO 2 Wheel G206-0025-01

DP 1 Wheel Axle G305-0059-01

DQ 1 Tank Retainer Clip G306-0020-01

DR 1 Match Holder G401-0079-01

EA 2 Side Shelf E201-0009-02

EB 2 Side Shelf Bracket, Front G305-0082-01

EC 2 Side Shelf Bracket, Rear G305-0083-01

F1 1 Hardware Pack G305-B045-01

F2 1 Assembly Manual G305-M045-01

F3 1 Safe Use and Care Manual G451-M018-02

EXPLODED DIAGRAM PROPANE FOR 8530526 G30545

DK DN

CC CC

AB AD

HARDWARE

PACK

F2 F3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

Attach the Support Bracket (DM) to the bottom

of the left Cart Legs (DD & DE), as shown. Ensure

that the hardware is assembled through the

third hole from the bottom of the Cart Legs.

Insert Left Cart Legs (DD & DE) into the Upper

Leg Support Bar (DA), as shown.

Attach Side Brace (DH) to left front Cart Leg (DD)

using hardware, as shown in gure B.

ASSEMBLY INSTRUCTIONS

Close Up

YOU WILL NEED:

X 2

X 1

X 2

X 1

Assemble the Front Panel (DJ) to the Left and

Right Front Cart Legs (DB & DD), as shown.

Insert Right Cart Legs (DB & DC) into the Upper

Leg Support Bar (DA), as shown. Secure the

Right, Front Cart Leg (DB) to the Upper Leg

Support Bar (DA) using hardware, as shown.

Attach the Support Bracket (DM) to the bottom

of the right Cart Legs, as shown.

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 3

X 4

X 3

X 4

5Assemble the two Back Braces (DK) to the left

and right rear Cart Legs (DC & DE), as shown.

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

4 6

X 8 X 8

Attach the three Tank Exclusion rails (DL) to the

Front Panel (DJ) and the lower Back Brace (DK),

as shown. Secure using hardware.

Close Up

Back view

YOU WILL NEED:

X 3

ASSEMBLY INSTRUCTIONS

NOTE: Turn cart assembly upside down.

Place Wheel (DO) onto the Wheel Axle (DP).

“Cone” side of wheel should be against cart leg,

as shown in gure B.

Insert Wheel Axle (DP) through wheel axle hole

in the front and rear, of the Left Cart Legs (DD &

DE), as shown. The wheel axle hole is the second

hole from the bottom of the left Cart Legs (DD

& DE). To complete wheel assembly, position

the Wheel Washer B (#17), Wheel (DO), Wheel

Washer A (#15) and Hitch Pin (#14), onto Wheel

Axle (DP).

DD DE

YOU WILL NEED:

14 15 17

X 1 X 1 X 1

Close Up

8CA

Close Up

a. Assemble only the rear left Burner Box

Support (DF), and the rear right Burner Box

Support (DG) rst. The angled edge of the

Burner Box Supports (DF & DG) should be

positioned towards the front of the unit.

b. Assemble the Control Panel (CA) together

with the front left and right Burner Box

Support (DF & DG).

TIP: One person should align the Burner Box

Supports (DF & DG) and the Control Panel

(CA), while the second person assembles the

hardware.

Only tighten all hardware once correct

assembly has been veried.

4 7

X 8 X 8

Angled edge

ASSEMBLY INSTRUCTIONS

a. Position the Manifold Assembly (CB) through

the back of the Control Panel (CA), and

assemble.

b. Assemble the Igniter (CD) through the front of

the Control Panel (CA), as shown.

a. Assemble the Heat Shield (DI) to the Side

Brace (DH), as shown.

b. Insert the Tank Retainer Clip (DQ) into the Side

Brace (DH), as shown and secure using a wing

screw.

YOU WILL NEED:

X 3

YOU WILL NEED:

X 2

X 1

X 2

Back view
