MAYHEM STRENGTH Hack Squat Combo Bedienungsanleitung

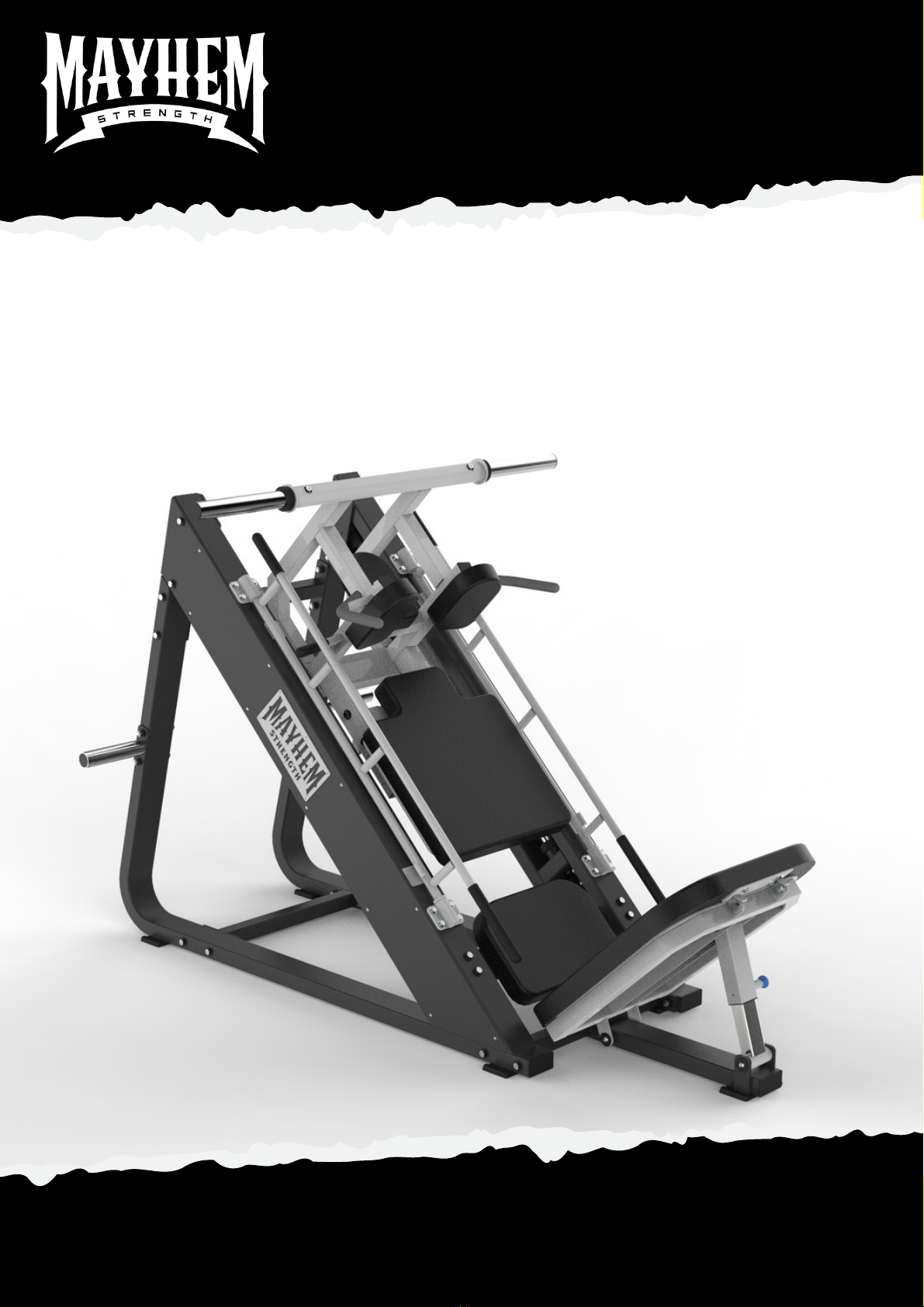

Leg Press - Hack Squat Combo

1

Leg Press - Hack Squat Combo

ASSEMBLY INSTRUCTIONS

Leg Press - Hack Squat Combo

2

Please take the time to carefully read the instruction manual before starting the

process of assembling your machine. If you have any inquiries or complications,

please call us at 662-GYM-BROS, or email us at [email protected].

Ensure to tighten all nuts and bolts, lubricate any sliding parts, bearings, and moving

mechanisms. We also suggest applying Loctite or any kind of thread locking adhesive

to anything that does not thread into a Teflon nut. It is also important to ensure that

every movement arm is properly aligned prior to frequent use, and that the machine

that you are assembling is fully functional.

Tools Required for Installation:

Rubber Mallet

Level

Ratchet and Socket Set

Snap Ring Pliers

Adjustable Wrench

2 People Required

Part Number

Part Description

Quantity

1

Support Upright

1

2

Cross Assembly

2

3

Foot Plate

1

4

Cross Assembly

1

5

Carriage

1

6

Connecting Plate

1

7

Linear Shaft

2

8

Adjusting Panel

1

9

Connecting Plate

1

10

Handle Stopper

1

11

Weight Holder

2

12

Hexagon Head Bolts M12x125

4

13

Hexagon Head Bolts M12x125

16

14

Hexagon Socket Button Head Screws M10x25

4

15

Hexagon Head Bolts M12x75

16

16

Hexagon Head Bolts M12x80

4

17

Hexagon Head Bolts M12x70

4

18

Hexagon Head Bolts M12x20

11

19

Hexagon Head Bolts M12x85

4

20

Hexagon Head Bolts M12x30

2

Leg Press - Hack Squat Combo

3

PARTS/HARDWARE LIST

Part Number

Part Description

Quantity

21

Bearing

2

22

Plain Washers

60

23

Spring Lock Washers

31

24

Hexagon Nuts M12

31

25

Plastic Washers

4

26

Plain Washers M10

49

27

Plain Washers M12

4

28

Hexagon Nuts M10

18

29

Head Pad Assembly

1

30

Arm Pad Assembly

1

31

Pad

1

32

Seat Pad Assembly

1

33

Back Pad Assembly

1

Leg Press - Hack Squat Combo

4

PARTS/HARDWARE LIST Continued

Leg Press - Hack Squat Combo

5

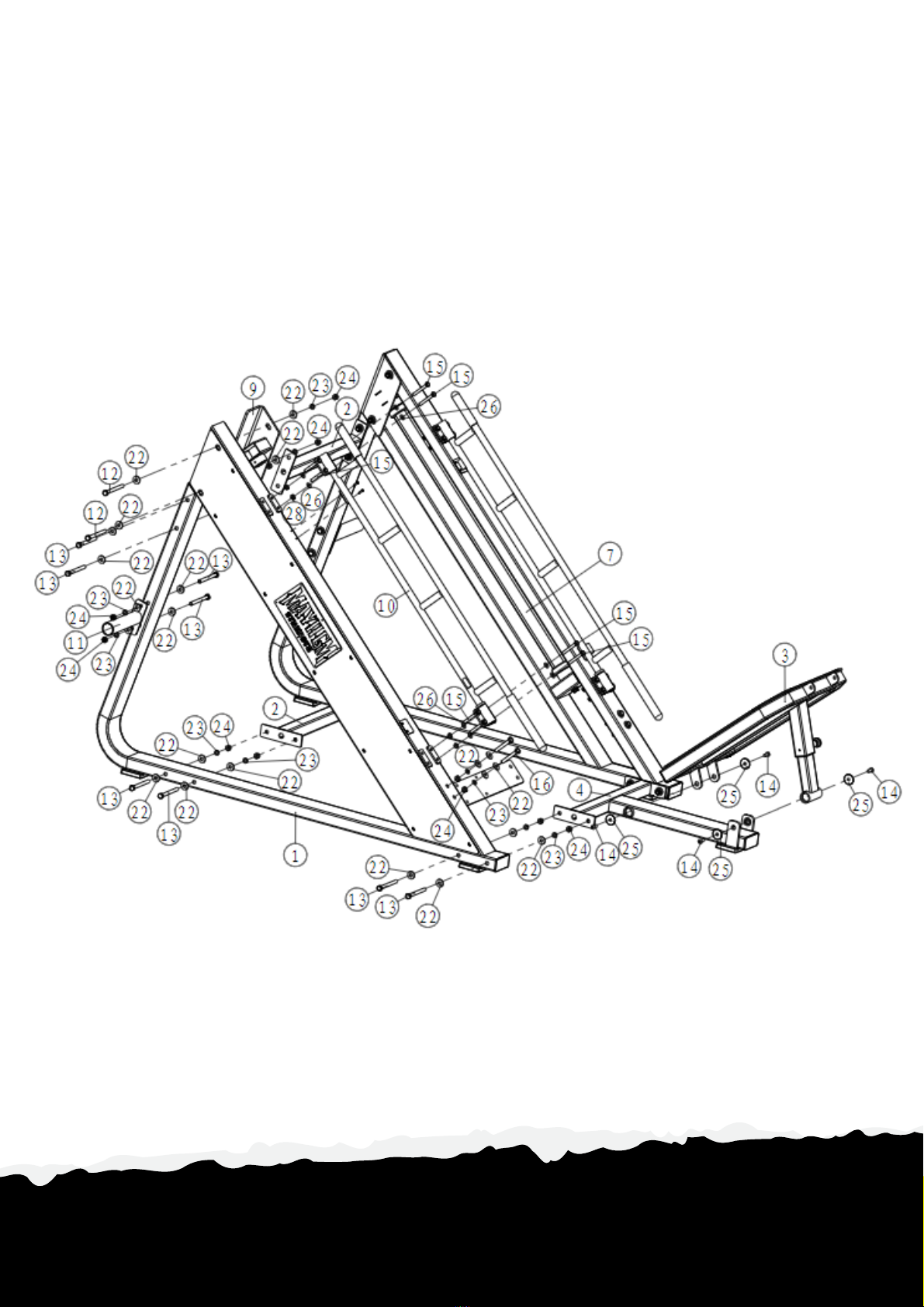

Frame Assembly

Leg Press - Hack Squat Combo

6

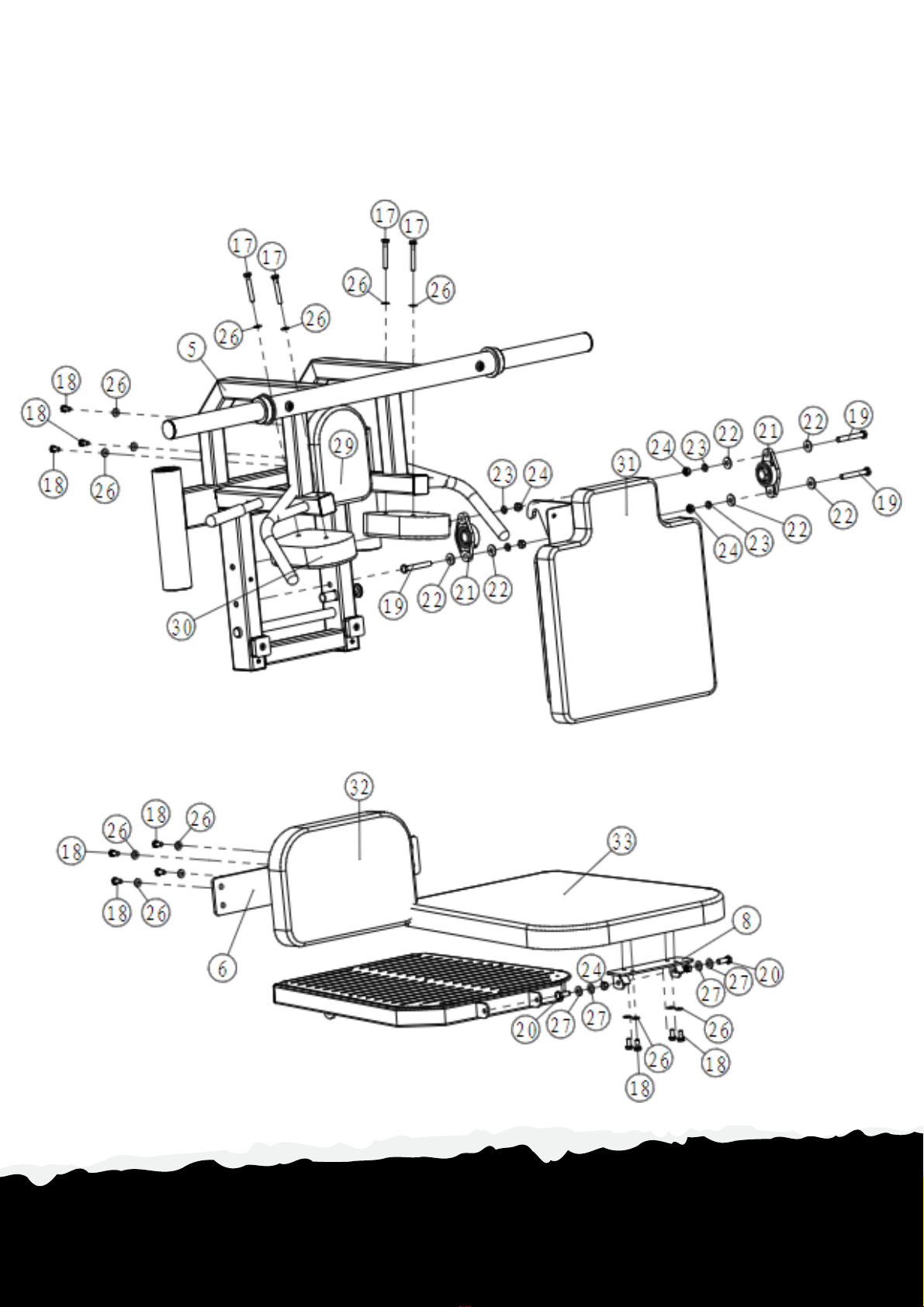

Cushion and Foot Plate Assembly

Leg Press - Hack Squat Combo

7

Hours of Operation:

Monday–Friday 9:00am - 5:00pm (PST)

Saturday 9:00am - 3:00pm (PST)

Sunday CLOSED

Phone: (662)GYM-BROS

Email: [email protected]

Visit Our Website: www.gymbrofitness.com

Have a question about assembly?

Please contact a Gym Bro Fitness Team Member!
