APC SmartTouch

Airborne Particle Counter

Operation Manual

Version 2.0

MANUAL HISTORY

The following is a manual history of the

APC SmartTouch

Revision Date: April 2012

IMPORTANT NOTE

In the following Merck shall mean Merck KGaA, Darmstadt, Germany.

Produced by

Merck KGaA

Frankfurter Strasse 250

64293 Darmstadt

Germany

Contents

Safety Information 4

I. Symbols 4

Safety 4

Laser safety 4

Labels 4

Description of Caution/Warning symbols 5

Caution or warning symbols 5

Important information 5

II. Warnings and precautions 5

Introduction and Unpacking 6

Introduction 6

Delivery check 6

Optional accessories 8

Getting Started 9

Rear panel 9

Connection ports 9

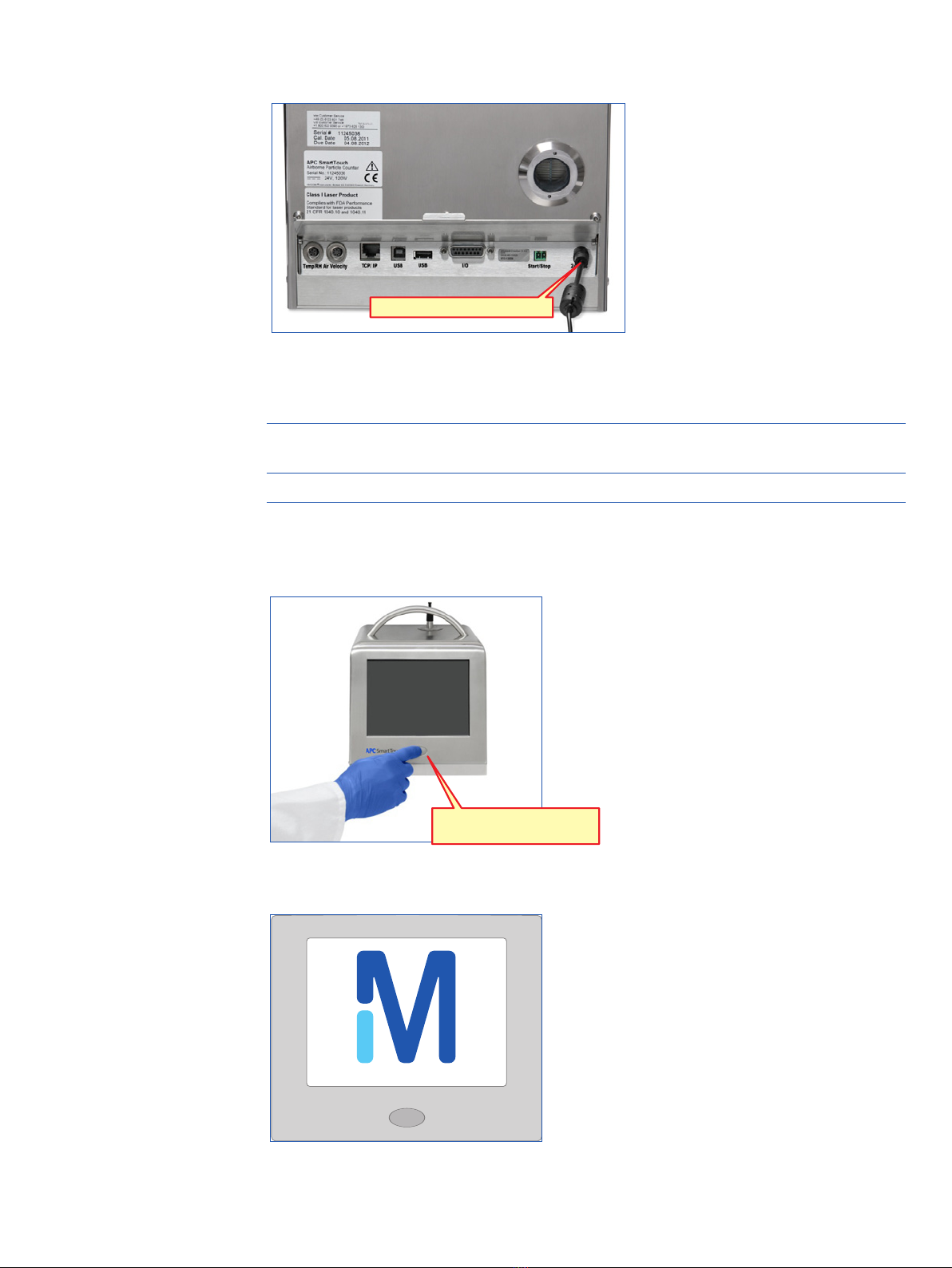

Power supply connection 10

Turning on the instrument 10

Battery indicator 11

Setting the screen contrast 11

Settings 12

Status screen 13

System settings 13

Language selection 14

Time format 14

Setting the time 14

Setting the date 15

Setting date format 15

Setting date and time using the screen keyboard 16

Setting instrument name 17

Calibration lock 17

Calibration alarm 18

Selecting flow rate (Dual flow only) 19

Calibration sheet 19

LAN (Local Area Network) connections IP address 20

Automatic method 21

Manual method 22

Installing And Using Zero Count Filter 28

Zero Count Filter 28

Installation steps 28

Remove instrument protective cap 28

Remove protective cover from Zero Count Filter 29

Fitting Zero Count Filter to instrument 29

Purge System 30

Setting Purge Timer 30

Setting Purge Wait Timer 32

Setting Count Timer 34

Setting Timer 35

Starting Purge Cycle 38

Removal of Zero Count Filter 40

Normal Purge Cycle Operation 40

Installing and Using the Isokinetic Probe 41

100 Litre isokinetic probe 41

Installation steps 41

Pre-programmed sample 43

Result reports 46

Report Range Selection 47

Report Type Selection Range 48

FS 209 (range) 48

ISO 14644 (range) 49

GMP (range) 49

Average/Min/Max (range) 49

Printing reports 50

Report place, building or room 50

Report type selection locations 52

FS 209 (Location) 52

ISO 14644 (Location) 53

GMP (Location) 53

Average/Min/Max (Location) 53

Memory 54

Report Type Selection Memory 55

FS 209 (Memory) 56

ISO 14644 (Memory) 56

GMP (Memory) 56

Average/Min/Max (memory) 57

Clear records 58

Count Mode 59

Setting concentration/counts 60

Selecting differential or cumulative 61

Recipe 61

Setting channels 62

Setting channel alarms 64

Action Limits 65

Alarm tone 66

Printer 66

New Measurement Point 67

USB interface 71

USB stick icon 71

Import/Export via USB 71

Export data 72

Import data 73

User 74

Compressed Gas Adapter (CGA) 76

Selection of the Orifice 77

Installation of the Orifice 77

Wall Mount 78

Connection to a Pressurized Line 78

CGA Fitting to Particle Counter 78

Maintenance 80

CGA Technical Specifications 81

Adding New Printer Paper 82

Maintenance 83

Maintenance and calibration Schedule 83

Troubleshooting 84

Contacting Customer Service 85

Appendix A Specifications 86

Safety Information

I. Symbols

Appropriate caution/warning statements are used throughout the

manual and on the instrument that require you to take caution-

ary measures when working with the instrument.

CAUTION

Caution! The User Manual needs to be consulted!

Failure to follow the procedures prescribed in this

manual might result in irreparable equipment

damage.

Warning! Failure to follow the procedures described in this manual

might result in a hazard. Unsafe use of the instrument could re-

sult in serious injury to you or cause damage to the instrument.

Safety

This section gives instructions to promote safe and proper

handling of the APC SmartTouch Airborne Particle Counters.

IMPORTANT

There are no user-serviceable parts inside the instrument. Re-

fer all repair and maintenance to a qualiﬁed factory-autho-

rized technician. All maintenance and repair information in

this manual is included for use by a qualiﬁed factory-autho-

rized technician.

Laser safety

• The APC SmartTouch Airborne Particle Counter is a ClassI la-

ser-based instrument.

• During normal operation, you will not be exposed to laser radi-

ation.

• Precaution should be taken to avoid exposure to hazardous ra-

diation in the form of intense, focused, visible light.

• Exposure to this light may cause blindness.

Take these precautions:

• DO NOT remove any parts from the particle counter unless you

are specifically told to do so in this manual.

• DO NOT remove the housing or covers. There are no user-ser-

viceable components inside the housing.

WARNING

The use of controls, adjustments, or procedures

other than those speciﬁed in this manual may

result in exposure to hazardous optical radiation.

Labels

Advisory labels and identification labels are attached to the out-

side of the particle counter housing and to the optics housing on

the inside of the instrument.

1. Serial number

label

(back panel)

Typenschild

- für den globalen Vertrieb

- Verkaufsprodukte und Service

Hinweis: Die Produktion Serialetikett mit Glyphe ® muss technisch noch geklärt werden

APC SmartTouch

Particle Counter, 1 CFM/100 L

Serial No. 12345678

24V, 120W

Merck KGaA, Darmstadt, Germany

RCS®High Flow Touch

Microbial Air Sampler

Serial No. 123456

24V, 72W

Merck KGaA, Darmstadt, Germany

2. Laser radiation

symbol label

(internal)

DANGER!

VISIBLE LASER RADIATION WHEN OPEN.

AVOID DIRECT EXPOSURE TO BEAM

WARNING: NO USER SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL

3. Calibration Label

(side panel)

Serial No.: 123456789

Date Calibration: dd mmm yyyy

Next Calibration: dd mmm yyyy

Merck KGaA, Darmstadt, Germany – www.your-contacts.com/biomonitoring

4. Laser radiation

label (internal)

5. European symbol

for non-dispos-

able item. Item

must be recycled.

Description of Caution/Warning symbols

Appropriate caution/warning statements are used throughout the

manual and on the instrument that require you to take cautionary

measures when working with the instrument.

CAUTION

Failure to follow the procedures prescribed in this

manual might result in irreparable equipment

damage. Important information about the operation

and maintenance of this instrument is included in

this manual.

WARNING

Warning means that unsafe use of the instrument

could result in serious injury to you or cause

damage to the instrument. Follow the procedures

prescribed.

Caution or warning symbols

The following symbols may accompany cautions and warnings to

indicate the nature and consequences of hazards:

Warns that uninsulated voltage within the instrument

may have sufﬁcient magnitude to cause electric

shock. Therefore, it is dangerous to make contact

with any part inside the instrument.

Warns that the instrument contains a laser and that

important information about its safe operation and

maintenance is included in the manual.

Warns that the instrument is susceptible to electro-

static dissipation (ESD) and ESD protection proce-

dures should be followed to avoid damage.

Indicates the connector is connected to earth

ground and cabinet ground.

Important information

The APC SmartTouch Airborne Particle Counter is

to be used in controlled areas such as cleanrooms,

isolators, operating theatres, ﬂow hoods etc.

II. Warnings and precautions

The APC SmartTouch Airborne Particle Counter is a state-of-the-

art instrument designed to collect ambient air in order to deter-

mine the concentration of micro particles in a controlled area.

A safe operation of the APC SmartTouch requires trained staff

aware of the general safety procedures and following the instruc-

tions set forth in this user manual. Potential risks associated with

the operation of the counter are explained in this section. Safety

procedures are provided to minimize these risks. Carefully follow

the instructions to protect yourself and the counter from poten-

tial hazards.

IMPORTANT

Please read all operation instructions in this user manual and

pay attention to all warnings displayed on the screen before

using the instrument. Keep this manual in a known place so

that it is available for all users for future reference.

IMPORTANT

Do not use the APC SmartTouch in hazardous areas, Eex areas,

where a ﬁre and/or explosion may occur.

Introduction and Unpacking

Introduction

The APC SmartTouch is an airborne particle counter with an infrared touch screen user interface. It operates on two lithium-ion batteries

(included) or an external (AC) power supply. The enclosure is of stainless steel.

The counter can be equipped with a dual flow rate of 1 CFM (cubic feet per minute) & 100 LPM (litre per minute) or a single flow rate of

1 CFM, 50 LPM or 100 LPM. Six particle sizes from 0.3 to 10 µm are standard on every counter. Up to 10,000 data records can be stored in

the internal memory of the counter and downloaded via the service software (included) for analysis and reporting.

Typical applications for the APC SmartTouch are cleanroom monitoring and certification, research, exposure assessment, indoor air quality,

filter testing, clearance testing, quality assurance, and contaminant migration studies. All APC SmartTouch instruments meet the JIS B

9921: 1997 and ISO 21501 standard.

Delivery check

Carefully unpack the APC SmartTouch from the shipping container and verify that all the items (see pictures) listed in the following table

are present. Contact your local Merck representative immediately if items are missing or broken.

The APC SmartTouch is to be used in controlled areas such as cleanrooms, isolators, operating theatres, flow hoods etc.

This Instrument should not be operated outside of this type of environment.

IMPORTANT

Please read all operation instructions in this user manual and pay attention to all warnings displayed on the screen before using the

instrument. Keep this manual in a known place so that it is available for all users for future reference.

Qty. Item description Part/Model Reference picture

1 APC SmartTouch 1 CFM

APC SmartTouch 50 LPM

APC SmartTouch 100 LPM

APC SmartTouch 1 CFM & 100 LPM

1.44181.0001

1.44182.0001

1.44183.0001

1.44093.0001

1 Stainless Steel Isokinetic Probe 1 CFM

Stainless Steel Isokinetic Probe 50 LPM

Stainless Steel Isokinetic Probe 100 LPM

Remark: dual ﬂow rate counters will contain

two Isokinetic Probes

1.44084.0001

1.44121.0001

1.44119.0001

1 Sampling Tubing of 1.5 meter 1.44104.0001

1 Zero Count Filter 1.44132.0001

1 Roll of Thermal Printer Paper 1.44147.0001

1 AC Power Cord + Adapter 1.44145.0001

Network cable 1.44075.0001

1 Table-top Tripod for Isokinetic Probe 1.44105.0001

1 APC SmartTouch Download Utility Software CD 1.44077.0001 (not shown)

1 USB Cable 1.44100.0001

1 Calibration certiﬁcate included (not shown)

1 User manual On CD (installed on CD)

1 Quick start guide On CD (installed on CD)

Optional accessories

The following photos and table list optional accessories. If you ordered optional accessories, make certain they have been received

and are in working order:

Item description Part/Model Reference picture

Carrying Case Steel model 1.44005.0001

Thermal Printer Paper Rolls (5ea) 1.44009.0001

Temperature / Relative Humidity Probe 1.44088..0001

Air Velocity Probe 1.44123.0001 (not shown)

Compressed Gas Adapter (CGA) 1.44179.0001

Sampling Tubing (per meter) 1.44104.0001

Purge Filter 942 841

APC SmartTouch Download Utility Software CD 1.44077.0001 (not shown)

USB Cable 1.44100.0001

Nozzle Set Compressed Gas Adapter, 1 CM 1.44170.0001

Nozzle Set Compressed Gas Adapter, 50 LM 1.4168.0001

Nozzle Set Compressed Gas Adapter, 100 LPM 1.44166.0001

IQ / OQ Documentation 1.44076.0001 ( not shown)

Getting Started

This chapter provides information to help you use the APC SmartTouch including:

• rear panel

• connection ports

• providing power/charging the batteries

• switching on the instrument

• working with settings

• performing a zero count check

• installation of the Isokinetic probe

• Running a basic sample

Rear panel

This is the rear panel of the instrument.

Connection ports

Hyper ﬁltered exhaust air outlet

Lift this door to expose connection ports

Temperature and Relative Humidity

Probe Connection: Optional

USB Port Connection

Port connection

for external

start/stop function

Ethernet Port Connection

External Power supply

connection (only use

the supplied power supply)

USB Port

Connection

Serial Port

Connection

Air Velocity Probe

Connection: Optional

Reset

Power supply connection

Please charge the instrument for 4 hours before using for the first time.

After this initial 4 hour charge the instrument can either be used via the external power supply

or the internal rechargeable lithium ion batteries.

NOTES:

When the instrument is connected to a power source the batteries will be charged even when the

counter is not switched on.

Disconnecting the AC power does not cause loss of data.

Turning on the instrument

This screen will appear after a few seconds:

Insert power plug as shown

To turn on the instrument

press here

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Merck Laborausrüstung Handbücher

Merck

Merck Millipore CellASIC ONIX2 Bedienungsanleitung

Merck

Merck Millipore ReadyStream Bedienungsanleitung

Merck

Merck Milli-Q EQ 7008 Bedienungsanleitung

Merck

Merck Millipore Auto2D Plus Bedienungsanleitung

Merck

Merck Pellicon Capsule Bedienungsanleitung

Merck

Merck Millipore mPAGE Bedienungsanleitung

Merck

Merck Millipore Auto2D Bedienungsanleitung

Merck

Merck MilliSentials MISELLABST Bedienungsanleitung

Merck

Merck Millipore Scepter 3.0 Installationsanleitung

Merck

Merck Millipore Milliflex Bedienungsanleitung

Merck

Merck Millipore DiluCult Bedienungsanleitung

Merck

Merck RQflex 10 Bedienungsanleitung

Merck

Merck Millipore Mobius Chrom 20 System Bedienungsanleitung

Merck

Merck Supelco TLC Explorer Bedienungsanleitung

Merck

Merck DiluCult Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung
