20689951w Rev 03/22 1 of 2

Removing a Defective

mPAGE®Electrode Core Clamp

1. Orient the mPAGE®Electrode

Core so the bottom portion

is facing up.

2. Open the defective core clamp,

ensuring the opposite core clamp

is in the closed position.

3. Grasping the open core clamp where the rail tabs engage with the

mPAGE®Electrode Core slide rail, twist until one of the rail tabs

disengages from the mPAGE®Electrode Core. Pull backward

to disengage the second rail tab.

mPAGE®

Electrode

Core clamp

closed

mPAGE®

Electrode

Core clamp

open

View from bottom

User Guide

mPAGE®Electrode Core

Clamp Replacement

ECCL2

Introduction

The mPAGE®Electrode Core

features replaceable core

clamps, mitigating the need

to replace the entire mPAGE®

Electrode Core assembly.

Gel aligners

Slide rail

Dead stops

Slide rail Rail tabs

Alignment

tab

Alignment

slot

20689951w Rev 03/22 2 of 2

The life science business of Merck operates

as MilliporeSigma in the U.S. and Canada.

Merck, Millipore, mPAGE and Sigma-Aldrich are trademarks of

Merck KGaA, Darmstadt, Germany or its affiliates. All other trademarks are the

property of their respective owners. Detailed information on trademarks is available

via publicly accessible resources.

Installing a New

mPAGE®Electrode Core Clamp

1. Position the gel aligners on

the mPAGE®Electrode Core

toward the core gasket.

2. Place the raised tab of the

replacement core clamp

behind the mPAGE®Electrode

Core dead stop.

3. Align the alignment tab in the

center of the core clamp

with the alignment slot on

the mPAGE®Electrode Core.

The rail tabs on the bottom

of the core clamp should

align with the slide rail on

the bottom of the mPAGE®

Electrode Core.

4. While holding the mPAGE®Electrode Core, firmly push core

clamp rail tabs until both sides fully engage the slide rail on

the mPAGE®Electrode Core.

Technical Assistance

If you need assistance, visit the tech service page

on our website at SigmaAldrich.com/techservice.

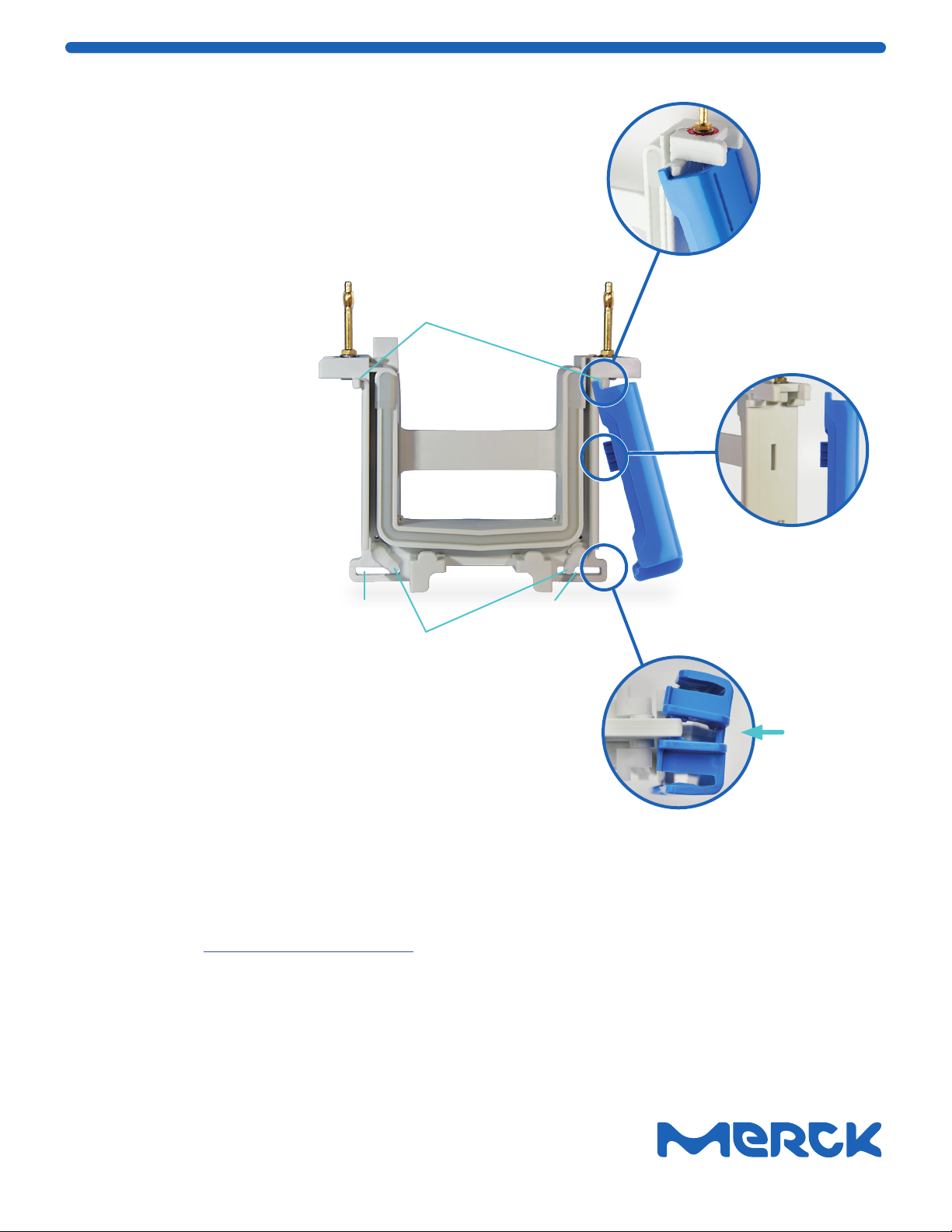

Alignment

slot and tab

feature

Gel aligners

flipped inward

Clamp

position on

the dead stop

Slide rail

Dead stops

Slide rail

Rail tabs

mounting

on the slide rail

PUSH
