INSTALLATION INSTRUCTIONS

107-FD1B

Patent Pending

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT COMPONENTS

• A) Radio trim panel • B) Radio housing • C) Sub dash brackets • D) Radio brackets • E) Panel clips (3) • F) #8 x 1/2” Phillips screws (4)

TOOLS REQUIRED

• Panel removal tool • 9/32” socket

• Phillips screwdriver • Cutting tool

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly

–ISO DDIN radio provision .....................................4

–Pioneer Modular radio provision .......................5

WIRING & ANTENNA CONNECTIONS

(sold separately)

See metra-online.com or axxessinterfaces.com

for audio and SWC interface options

Antenna Adapter: 40-EU10

A C D E

Ford Transit (excludes factory radio delete models) 2020

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

KIT FEATURES

• ISO DDIN radio provision*

• Painted scratch resistant matte black

* This kit is designed for an ISO DDIN radio which have an “L” shaped chassis

design, with the radio chassis at the bottom of the screen,

or Pioneer modular 6.8” radios.

† Refer to the radio manufacturer for current models

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY

(Figure A) (Figure D)

(Figure B) (Figure E)

(Figure C)

1. Unclip the trim behind the radio display,

then remove (3) 9/32” screws exposed.

(Figure A)

2. Slide the radio display up and out, then

unplug and remove. (Figure B)

3. Remove (2) screws securing the center

dash panel, then unclip, unplug, and

remove. (Figure C)

4. Remove (4) 9/32” screws securing the

radio display mount, then remove.

(Figure D)

5. Unplug the connectors from the radio

chassis. Remove (2) 9/32” screws

securing the chassis, slide out, then

remove. (Figure E)

Continue to Kit Preparation

REV. 12/11/2020 INST107-FD1B 3

(Figure B)(Figure A)

KIT PREPARATION

1. Attach the (3) included panel clips to the

radio trim panel. (Figure A)

2. Cut and remove the two lower mounting

tabs from the inside of the factory dash

panel radio opening. (Figure B)

Continue to Kit Assembly

Remove shaded areas

1.800.221.0932

MetraOnline.com

KIT ASSEMBLY

Bottom chassis radio provision

1. Secure the sub-dash brackets to the

dash using the factory screws. (Figure A)

2. Snap off the front of the radio brackets

and secure them to the radio using

screws supplied with the radio.

(Figure B, C)

3. Snap the radio housing into the factory

dash panel. (Figure D)

4. Snap the factory dash panel back

in place.

5. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

6. Slide the radio assembly into to the dash

and secure to the radio housing using

the (4) included Phillips screws.

(Figure E)

7. Snap the radio trim panel into the

radio housing. (Figure F)

(Figure A) (Figure D)

(Figure B) (Figure E)

(Figure C) (Figure F)

Remove shaded areas

REV. 12/11/2020 INST107-FD1B 5

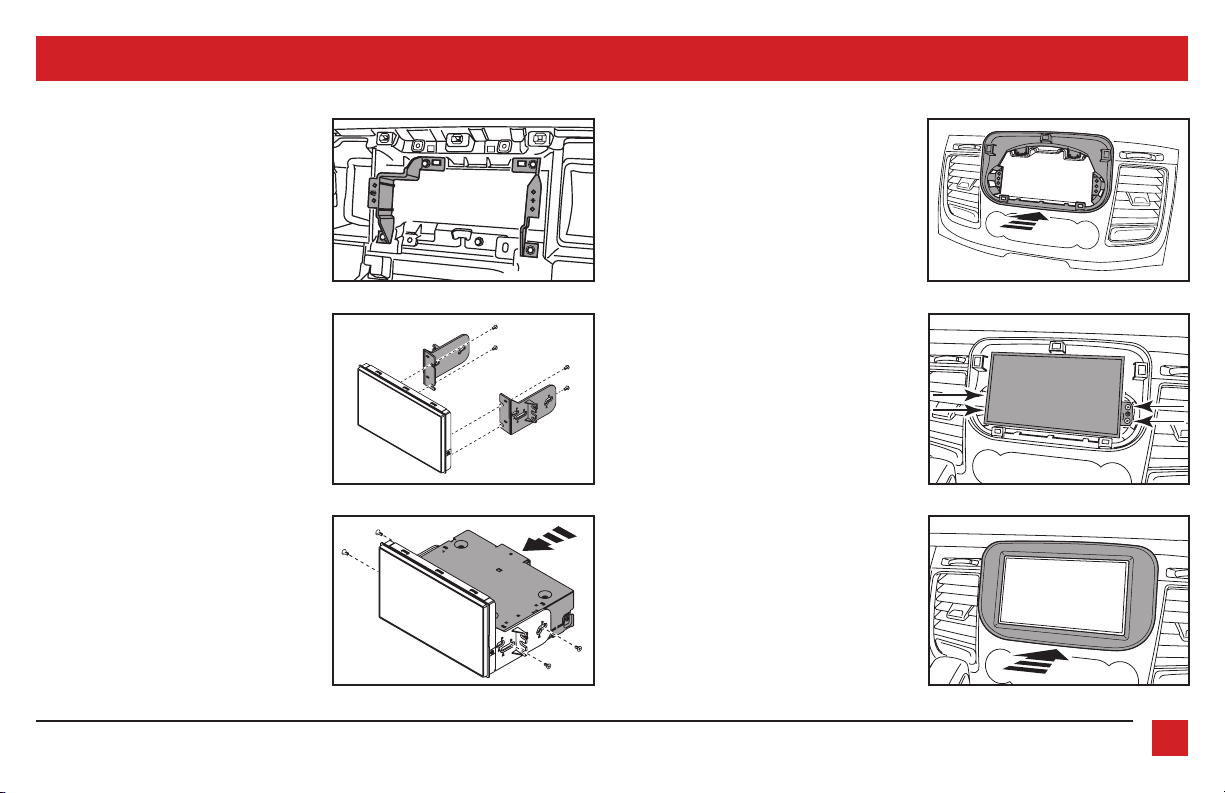

Pioneer Modular DDIN radio provision

Note: For steps 2 and 3, reference the

installation manual provided with the radio

for which hardware to use. The display

screen and radio chassis use two different

types of screws.

1. Secure the sub-dash brackets to the

dash using the factory screws. (Figure A)

2. Secure the radio brackets to the radio

display using (4) screws supplied with

the radio. (Figure B)

3. Secure the radio brackets to the radio

chassis using (4) screws supplied with

the radio. (Figure C)

4. Snap the radio housing into the factory

dash panel. (Figure D)

5. Snap the factory dash panel back in

place.

6. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

7. Slide the radio assembly into to the dash

and secure to the radio housing using

the (4) included Phillips screws.

(Figure E)

8. Snap the radio trim panel into the

radio housing. (Figure F)

KIT ASSEMBLY

(Figure D)

(Figure B) (Figure E)

(Figure C) (Figure F)

(Figure A)

1.800.221.0932

MetraOnline.com

REV. 12/11/2020 INST107-FD1B 7

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS

107-FD1B

Having difﬁculties? We’re here to help.

Contact our Tech Support line at:

386-257-1187

Or via email at:

techsupport@metra-autosound.com

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM
