INSTALLATION INSTRUCTIONS FOR PART 95-5818

95-5818

KIT FEATURES

•

A) & B) (2) Double Din Trim Plates • C) Double Din Brackets

KIT COMPONENTS

TOOLS REQUIRED:

Dremel or Suitable Cutting Tool

•

Small Flat Blade Screwdriver

•Panel Removal Tool • Socket Wrench

•

Metra 86-5618 Removal Keys

1-800-221-0932

www.metraonline.com

APPLICATIONS

FORD

F-150 2004 Heritage / F-150 1997-2003

Expedition 1997-2002

F650 2005-2008

LINCOLN

Navigator 1997-2002/Blackwood 2001-2003

•Double DIN Head Unit Provision

•Stacked ISO Mounts Units Provision

NOTE: Major sub dash modifications

arenecessaryto use this dash kit. You

will need to trim the sub dash to gain

suitable depth and height.

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

Wiring Harness:

•See www.metraonline.com for specific interface

Antenna Adapter:

•Not required

Dash Disassembly

-150 2004 Heritage / F-150 1997-2003 / Expedition 1997-2002 /

F650 2005-2008 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Lincoln

-Lincoln Navigator 1997-2002 / Blackwood 2001-2003 . . . . . . . . . . . . . .1

Kit Assembly

-Double DIN/Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . 2

TABLE OF CONTENTS

95-5818

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

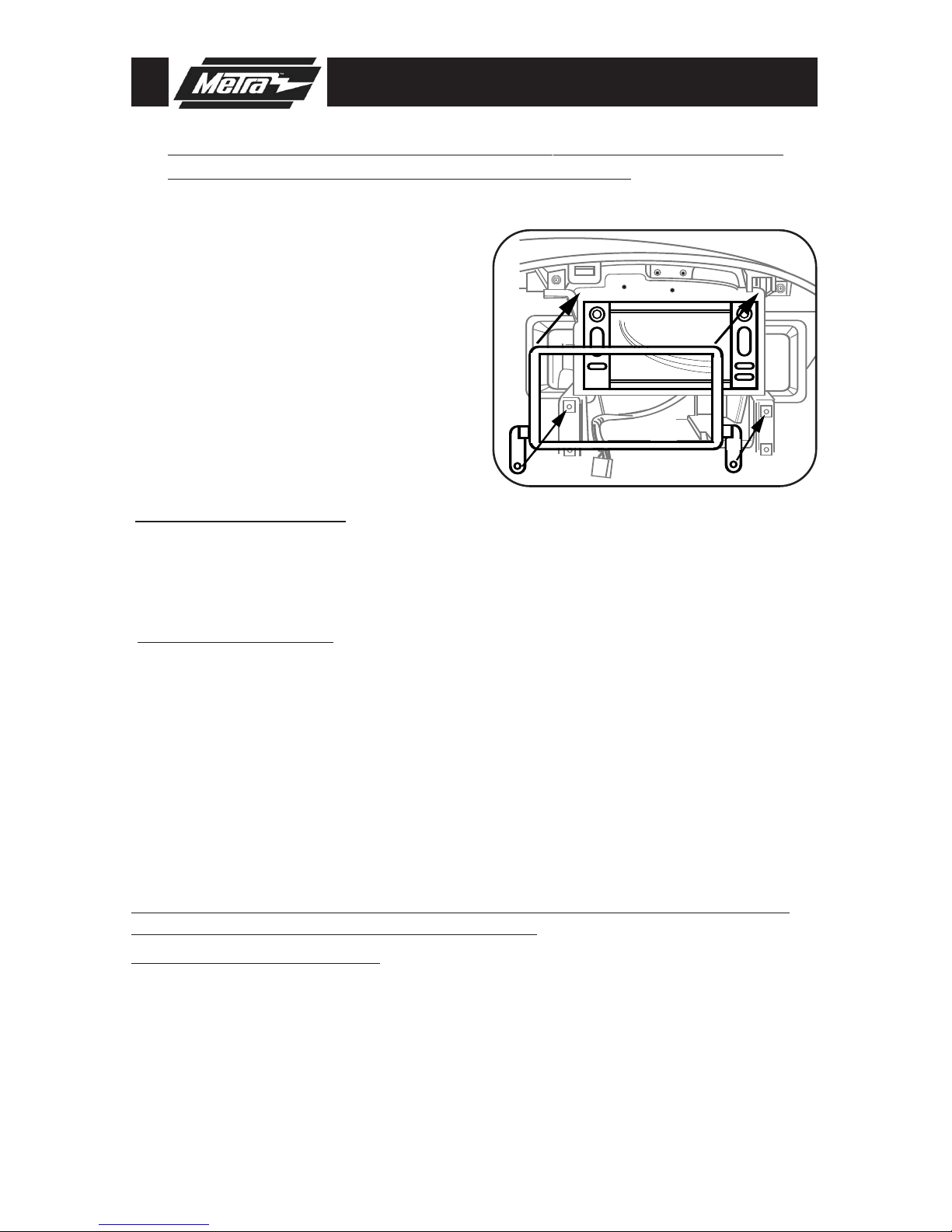

95-5818 DASH DISASSEMBLY

CUT OUT

TOP

CUT BAR CUT BAR

Using the Metra 86-5618 removal

keys, slide the radio out of the radio

cavity.Unplug and remove the radio.

(

Figure B)

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove the panel sur-

rounding the radio. (

Figure A)

Remove the (4) 7 MM screws at the

sides of the factoryclimate control

and remove the factory climate con-

trol. (

Figure C)

Cut and remove obstructions in dash

cavity. (Be careful not to cut into har-

nesses or electronic components)

(

Figure D)

Continue to kit assembly.

FORD F-150 2004 HERITAGE/F-150 1997-2003

EXPEDITION 1997-2002/

F650 2005-2008/

LINCOLN NAVIGATOR 1997-2002/BLACKWOOD 2001-2003

95-5818 KIT/FINAL ASSEMBLY

DOUBLE DIN/STACKED ISO MOUNT

UNIT(S) PROVISION

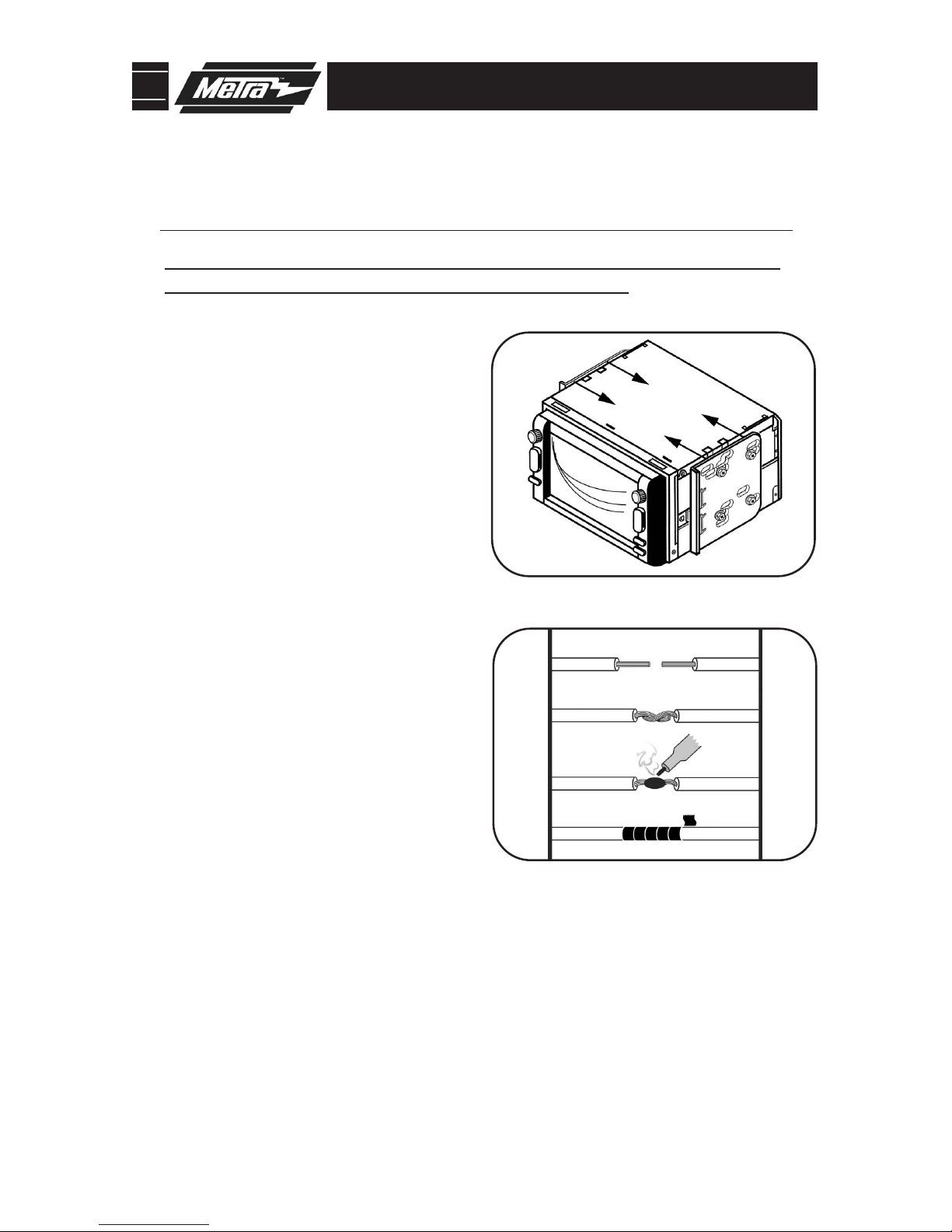

Attach the double DIN brackets to

the double DIN or stacked ISO Mount

unit(s) using the screws supplied

with the unit(s).

(Figure A)

*Note: Refer also to the instructions included with the aftermarket radio.

NOTE: Major sub dash modifications arenecessaryto use this dash kit. You will

need to trim the sub dash to gain suitable depth and height.

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter and mak-

ing the connections as shown.

(Isolate and individually tape off the

ends of any unused wires to prevent

electrical short circuit).

(Figure B)

Re-connect the negative batteryter-

minal and test the unit for proper

operation.

Continued on page 3.

95-5818 KIT/FINAL ASSEMBLY

FINAL ASSEMBLY

Reassemble the rest of the dash in

reverse order of disassembly.

Makewiring connections using the EIA color code chart shown belowand the instructions

included with the head unit. Metra recommends making connections shown below; Strip, Splice,

Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short

circuit.

FINAL WIRING CONNECTIONS

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna............Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer.................Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE:

When a Blackwireis not present, ground radio to vehicle chassis. All colors may not be

present on all leads due to manufacturer’sspecifications.

Enjoy your newly installed radio!

NOTE: Major sub dash modifications arenecessaryto use this dash kit. You will

need to trim the sub dash to gain suitable depth and height.

Slide the double DIN radio or stacked

ISO Mount unit assembly into the mod-

ified sub dash until it clicks into place.

Attach the appropriate double DIN trim

plate using the top 2 screw positions

of the climate control.

(Figure C)

Continued from page 2.

NOTES

95-5818

NOTES

95-5818

95-5818 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
