INSTALLATION INSTRUCTIONS FOR PART 95-5820
95-5820
KIT FEATURES
•Double DIN Radio Provision
•Stacked ISO Mount Units Provision
•A) Double DIN Radio Housing • B) Double DIN Radio Housing Brackets
•C) Radio Housing Trim Panel • D) (6) U Style Panel Clips
KIT COMPONENTS
1-800-221-0932
©COPYRIGHT 2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
A
APPLICATIONS
FORD
F-150 2009
•Cutting Tool • Phillips Screwdriver • Socket Wrench • Torx Driver
•Panel Removal Tool
B
C
D
TOOLS REQUIRED:
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
Harness:
•Please see www.metraonline.com for
specific interface harness
Antenna Adapter:
•40-CR10 - Chrysler antenna adapter 02-up
Dash Disassembly
-
FORDF-1502009 .................................
. 1,2
Kit Preparation
-
FORDF-1502009 ...................................
.3
Kit Assembly
-Double DIN Radio Provision / Stacked ISO Mount Units Provision .... 4
Final Assembly .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
TABLE OF CONTENTS
95-5820
*Note:
Refer also to the instructions included with the aftermarket radio.
K
NOWLEDGE IS
P
OWER
Enhanceyour installation and fabrication skillsby
enrolling in the most recognizedandrespected
mobile electronics school in our industry.
Log onto www.installerinstitute.comor call
800-354-6782 for more informationandtake steps
toward abetter tomorrow.
95-5820 DASH DISASSEMBLY
FORD F-150 2009
A
B
C
D
1
1
Remove the rubber pad at the top of
the radio trim panel then remove the
(2) 9/32” screws exposed. (
Figure B)
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
3
Unclip and remove the switch panel
to the right of the cigarette lighter
then remove the (1) 9/32” screw
exposed. (
Figure A)
2
Unclip and pull the side panels con-
taining the a/c vents away from the
radio trim panel. Note: It is not nec-
essary to remove the panels com-
pletely. (
Figure C)
4
Unclip and remove the radio trim
panel. (
Figure D)
5
Continued on page 2.
95-5820 DASH DISASSEMBLY
FORD F-150 2009
E
F
G
FACTORY RADIO TRIM PANEL-REAR VIEW
2
Remove (4) Torx screws securing the
factory climate control to the radio
trim panel. (
Figure G)
8
Unclip and remove the cigarette
lighter socket from the radio trim
panel. (
Figure F)
7
Remove (4) 9/32” screws to remove
the factoryradio.
9
Unclip and remove the hazard/airbag
switchassembly from the factory
radio trim panel. (
Figure E)
6
Continue to final preparation.
95-5820 KIT PREPARATION
FORD F-150 2009
A
B
C
KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW
D
KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW
3
Secure the climate control into the
radio housing using the factory
hardware in the same location as
the factory radio trim panel. (
Figure C)
3
Clip the cigarette lighter socket into
the radio housing in the same loca-
tion as the factory radio trim panel.
(
Figure B)
2
Attachthe (6) U style panel clips to
the radio housing in the same
location as the factory radio trim
panel. (
Figure D)
4
Clip the hazard/airbag switch
assembly into the radio housing in
the same location as the factory
radio trim panel. (
Figure A)
1
Continue to kit assembly.

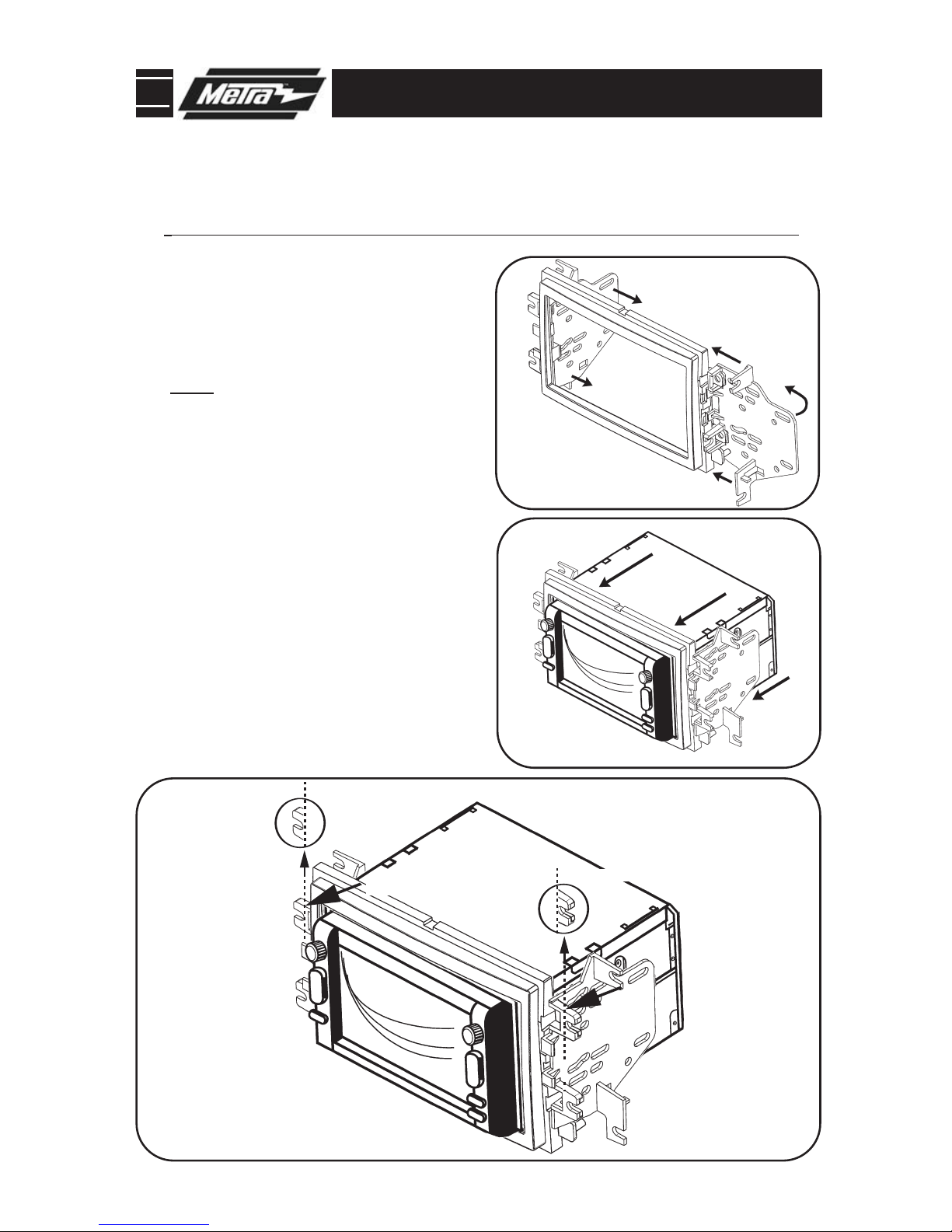

95-5820 KIT ASSEMBLY
4
DOUBLE DIN RADIO PROVISION OR
STACKED ISO MOUNT UNIT(S) PROVISION
Slide the appropriate side bracket
over the mounting legs of the Double
DIN trim plate aligning the holes in
the trim plate and the bracket and
rotate inward.
Note: The notch in the housing
should be on top.
(Figure A)
1
Slide the Double DIN or stacked ISO
mount units into the bracket/radio
housing assembly and secure the
Double DIN or stacked ISO mount
units to the assembly using the
screws supplied with the Double DIN
or stacked ISO mount units.
(Figure B)
2
Cut and remove half of the top (2)
mounting legs with the brackets
attached.
(Figure C)
3
Continue to final assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
CUT HERE -
CUT HERE
TOP LEG ONLY
TOP LEG ONLY
CUT
CUT
B
C
A
95-5820 FINAL ASSEMBLY
FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factorywiring harness in the dash. Metra recommends using the proper mating
adapter and making the connections as shown. (Isolate and individually tape off the ends of
any unused wires to prevent electrical short circuit).
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly using the
95-5820 radio housing in place of the factory radio trim panel.
1
2
3
Make wiring connections using the EIA color code chart shown below and the instructions
included with the head unit. Metra recommends making connections shown below; Strip, Splice,
Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short
circuit.
5
FINAL WIRING CONNECTIONS
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground..................Black*
Power Antenna. . . . . . . . . . . . Blue
AmpTurn-On.............Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE:
When a Blackwireis not present, ground radio to vehicle chassis. All colors may not be
present on all leads due to manufacturer’sspecifications.
95-5820 INSTRUCTIONS
1-800-221-0932
REV.05/07/09 © COPYRIGHT 2009 METRA ELECTRONICS CORPORATION INST95-5820
www.metraonline.com
