INSTALLATION INSTRUCTIONS FOR PART 95-7504
95-7504
Mazda 3 2004-2009
KIT FEATURES
•Double DIN Radio Provision
•Stacked ISO Mount Units Provision
•Bonus Display Replacement Pocket
•A) Radio Housing • B) Double DIN Brackets • C) Double DIN Trim plate
•D) Display Replacement Pocket • E) Display Retention Brackets
•F) (2) 3/8” #10 Bolts and (2) #10 Nuts • G) (2) PC-7503 Panel Clips
KIT COMPONENTS
A
1-800-221-0932
©COPYRIGHT 2008-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
BC
D
TOOLS REQUIRED:
APPLICATIONS
E
F
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
•70-7903 - Mazda harness 2001-up
Antenna Adapter:
•Not required
Small Flat Blade Screwdriver/ Panel Removal Tool
•Phillips Screwdriver
G
Dash Disassembly
-
Mazda32004-2009.........................
. . . . . . . . 1
Kit Assembly
-Display Brackets/Pocket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
-Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
-Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final Assembly ......................................... 5,6
TABLE OF CONTENTS
95-7504
*Note:
Refer also to the instructions included with the aftermarket radio.
K
NOWLEDGE IS
P
OWER
Enhanceyour installation and fabrication skillsby
enrolling in the most recognizedandrespected
mobile electronics school in our industry.
Log onto www.installerinstitute.comor call
800-354-6782 for more informationandtake steps
toward abetter tomorrow.

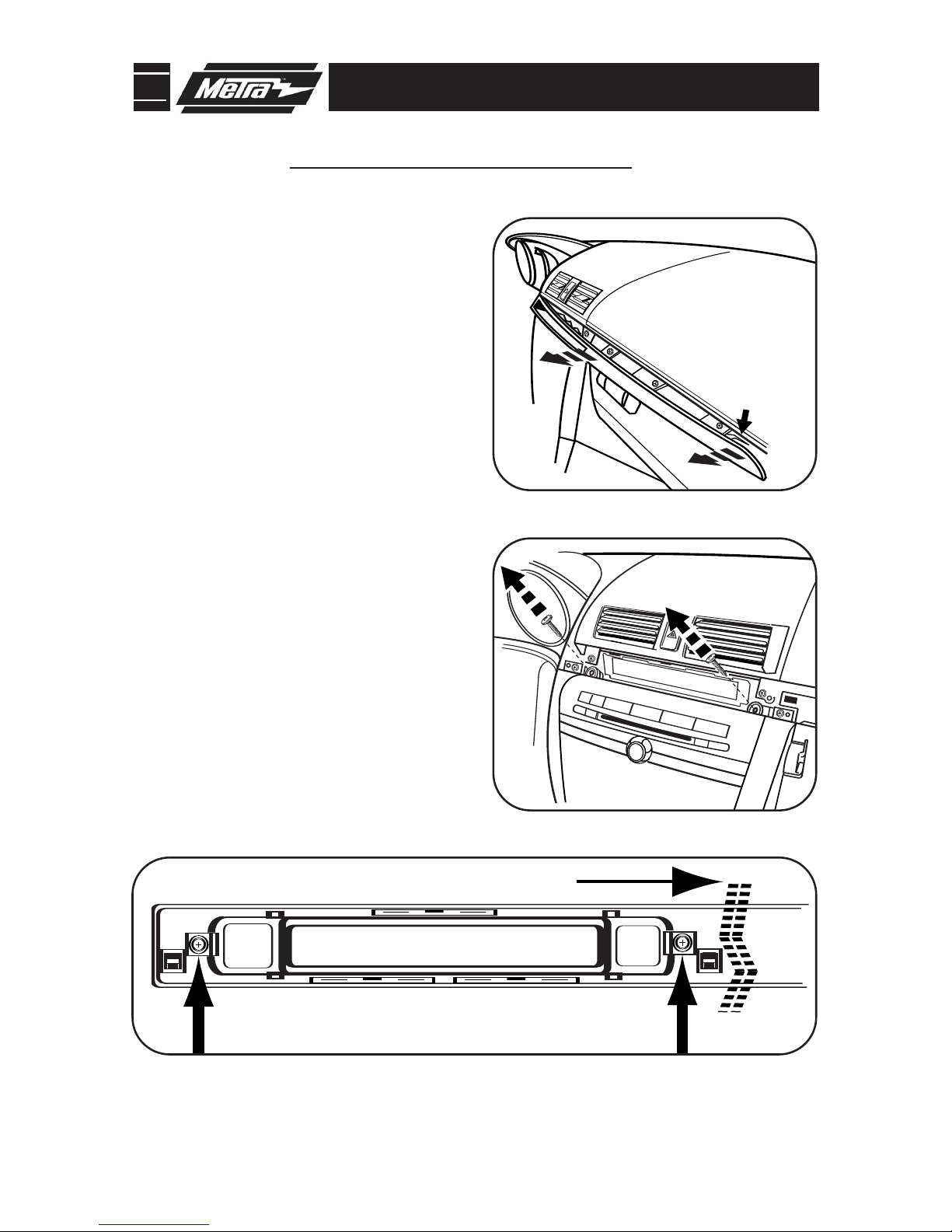

95-7504 DASH DISASSEMBLY
MAZDA 3 2004-2009
A
CLOCK
SET
LOAD
FM1/2
AMCD
TAPE/MD
HOOK
B
REAR VIEW - DISPLAYTRIM PA N EL
C
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unclip and remove display trim panel
above radio. Tip: Open glove box and
start in middle of panel working
towards drivers side first because last
connection on far passenger side is a
hook. (
Figure A)
2
Remove (2) Phillips screws exposed
at top of radio then unclip and
remove radio. Note: Display is
attached to radio brackets and will be
removed at same time as radio.
(Figure B)
3
Remove (2) Phillips screws on back of
display trim panel securing display
trim then unclip and remove.
(Figure C)
4
Continue to display/pocket assembly.

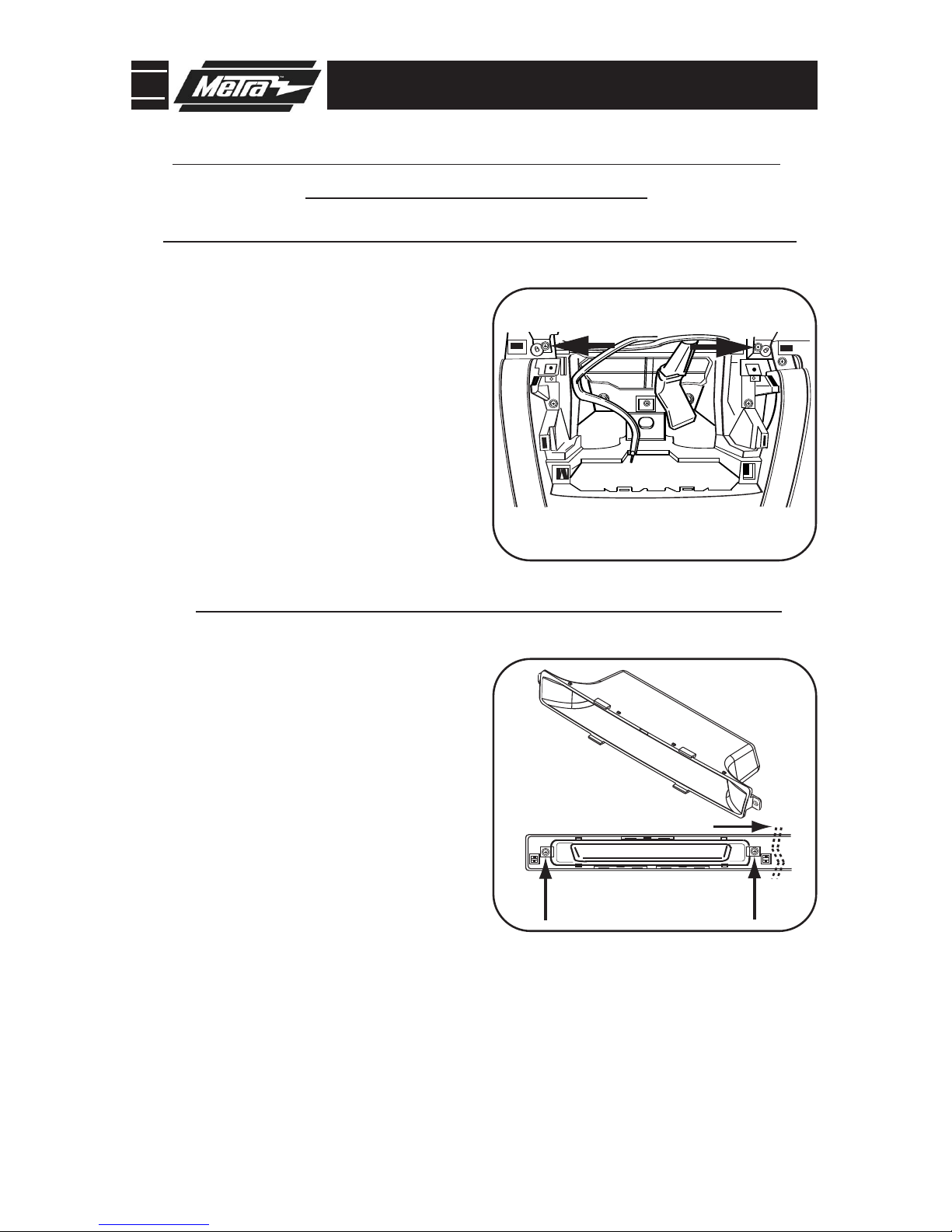

95-7504 DISPLAY POCKET ASSEMBLY
DISPLAYBRACKETS/POCKET ASSEMBLY
MAZDA 3 2004-2009
A
B
REAR VIEW - DISPLAYREPLACEMENT PANEL
DISPLAY REPLACEMENT POCKET
MOUNTED IN DISPLAYTRIM PA N EL
2
Using the (2) 3/8” #10 bolts and (2)
#10 nuts attach the display retention
brackets to the display unit.
1
Using the (2) Phillips screws removed
in step 4 of Dash Disassembly secure
the display replacement pocket to the
back of the display trim panel.
(
Figure B)
1
Remove the (2) Phillips screws in the
sub dash. (
Figure A)
2
Secure the display unit into the sub
dash using the screws removed in the
previous step.
3
Continue to kit assembly.
AUTOMATIC CLIMATE CONTROL VEHICLES
MANUAL CLIMATE CONTROL VEHICLES
3

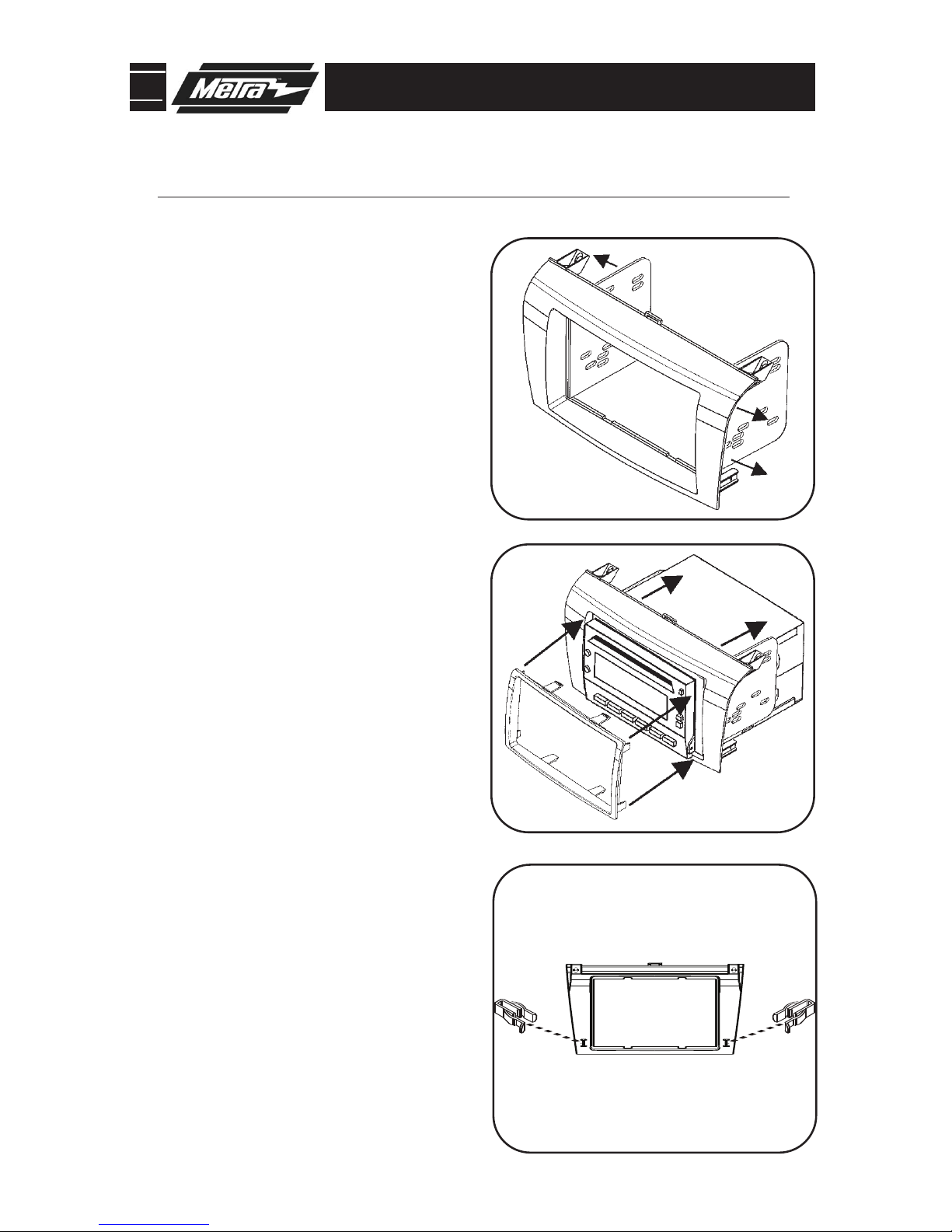

95-7504 KIT ASSEMBLY
A
B
C
DOUBLE DIN RADIO PROVISION
Slide the Double DIN radio into the
bracket/radio housing assembly and
securethe radio to the assembly using
the screws supplied with the radio.
Snap the trim plate onto the front of
the radio housing.
(Figure B)
2
Attach the (2) PC-7503 panel clips to
the rear of the radio housing.
(Figure C)
3
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
Snap the Double DIN brackets to the
inside edge of the radio housing.
(Figure A)
1

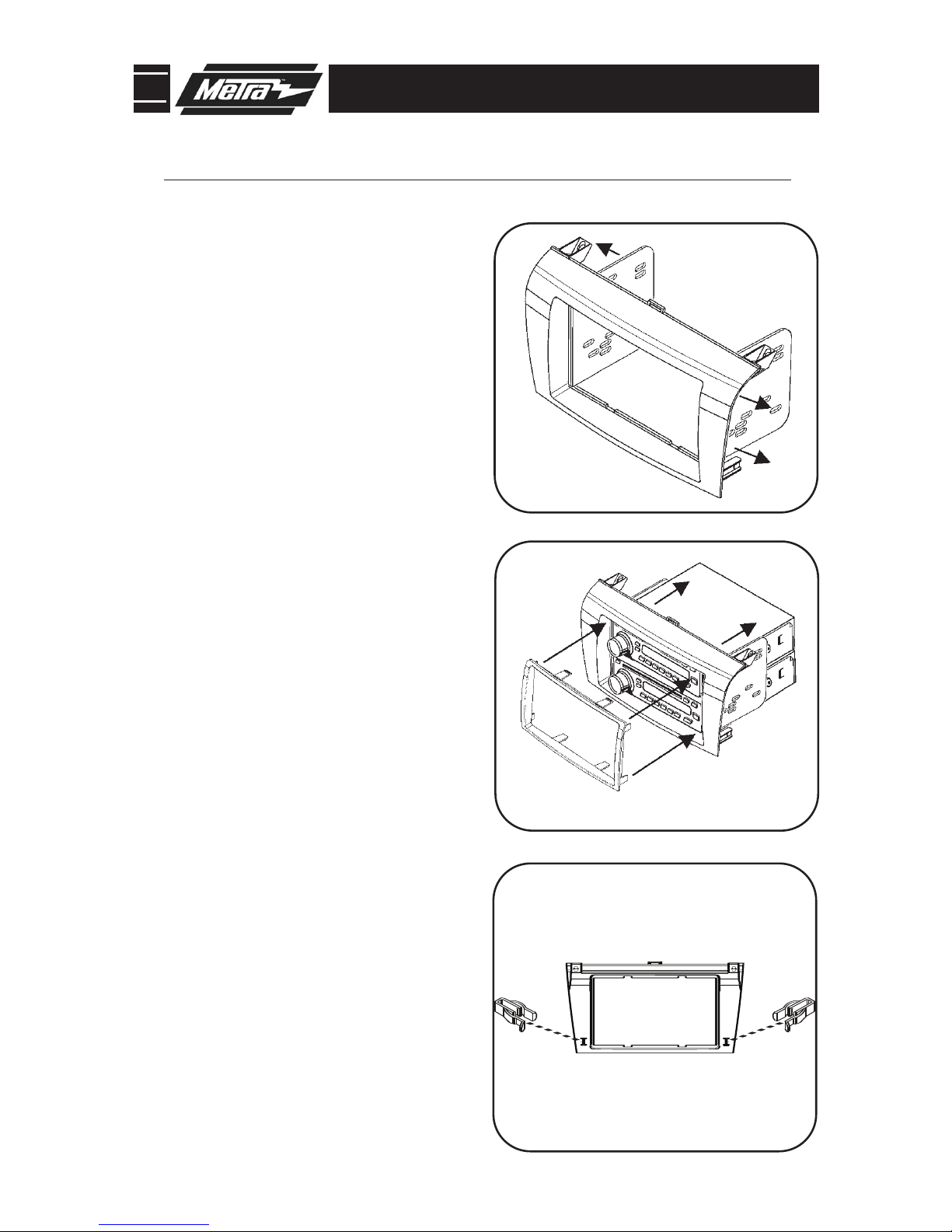

95-7504 KIT ASSEMBLY
4
A
B
STACKED ISO UNITS PROVISION
Snap the Double DIN brackets to the
inside edge of the radio housing.
(Figure A)
1
Slide the stacked ISO units into the
bracket/radio housing assembly and
secure the units to the kit using the
screws supplied with the units. Snap
the trim plate onto the front of the
radio housing.
(Figure B)
2
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
C
Attach the (2) PC-7503 panel clips to
the rear of the radio housing.
(Figure C)
3
Note: When inserting the 99-7504 into the sub dash be aware of the locations
pointed out in
Figure B
.
If the 99-7504 does not snap in correctly the result will be a noticeable gap on each
side of the installation kit.
(Figure C)

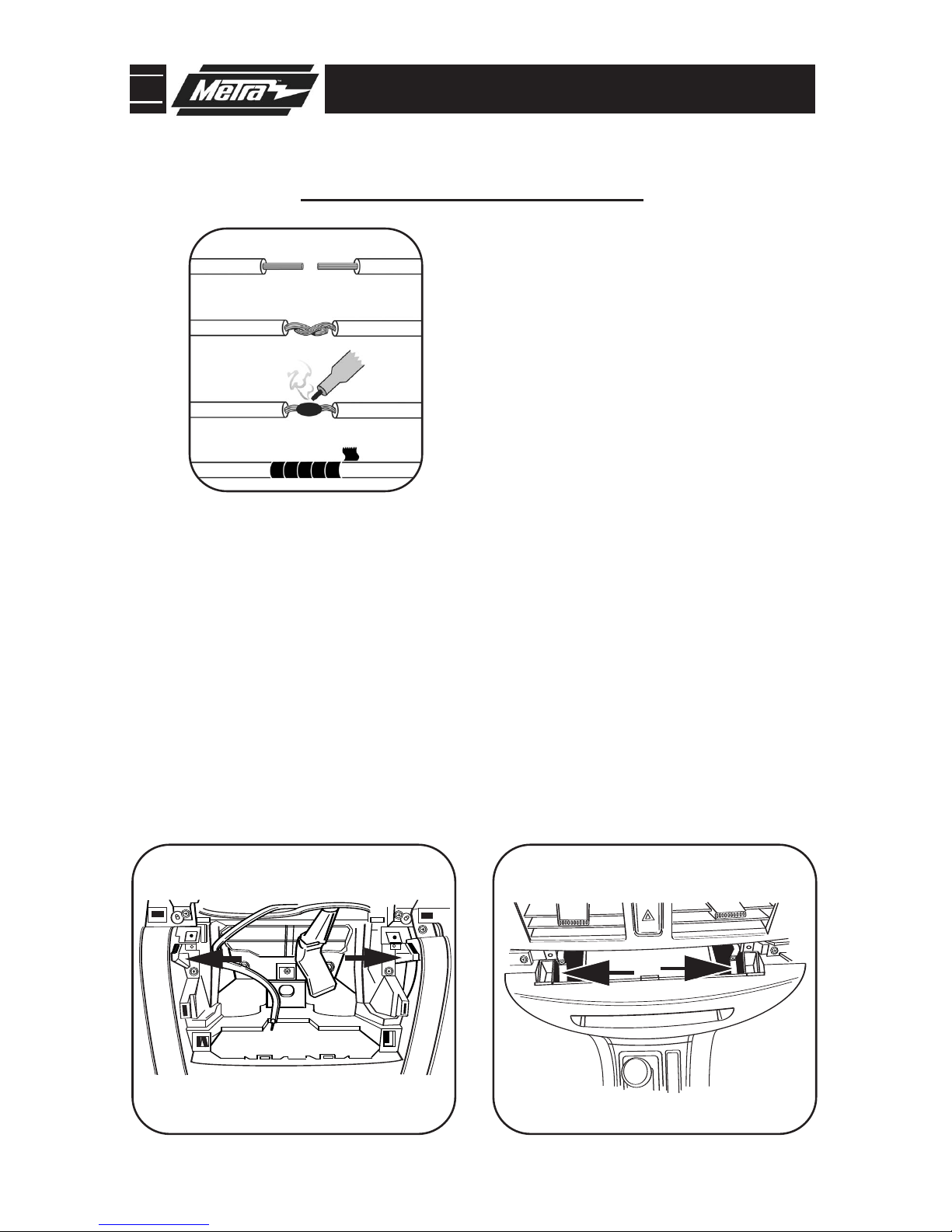

95-7504 FINAL ASSEMBLY
FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individ-
ually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
1
2
3
B C
5
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown below and the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna. . . . . . . . . . . . Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
1-800-221-0932
REV. 05/29/09 © COPYRIGHT 2008-2009 METRA ELECTRONICS CORPORATION INST95-7504
www.metraonline.com
