Metra Electronics 95-5025 Bedienungsanleitung

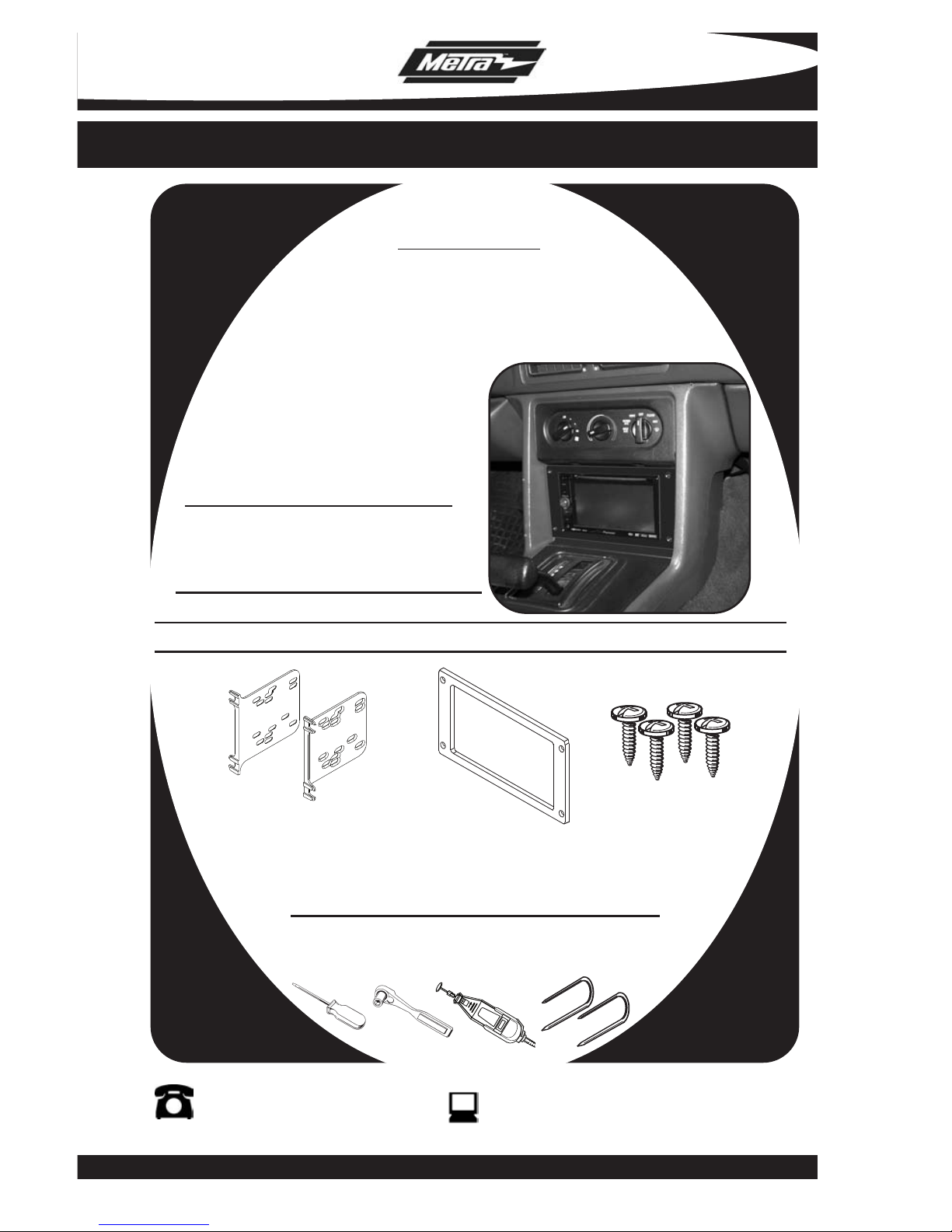

INSTALLATION INSTRUCTIONS FOR PART 95-5025

95-5025

KIT FEATURES

•Double DIN Head Unit Provision

•ISO Stacked Head Unit Provision

A) Double DIN Brackets • B) Double DIN Trim plate • C) (4) # 8 X 1” Phillips Screws

KIT COMPONENTS

•Phillips Screwdriver • Socket Wrench • Rotary Cutting Tool

•Radio Removal Tools (Part # 86-5618)

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

FORD Mustang

1987-1993

WIRING ANDANTENNA CONNECTIONS (Sold Separately)

•70-1770 - Fordharness - 1985-2004

Dash Disassembly

-FordMustang1987-1993 .........................................1

Kit Assembly

-DoubleDINHeadUnitProvision................ ....................2

-ISOStackedHeadUnitProvision ...................................2

TABLE OF CONTENTS

95-5025

*Note:

Refer also to the instructions included with the aftermarket radio.

KNOWLEDGE IS POWER

Enhanceyour installation and fabrication skills

by enrolling inthe most recognized andrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.com

or call 800-354-6782 formore information

and take stepstoward abetter tomorrow.

95-5025 DASH DISASSEMBLY

FORD MUSTANG 1987-1993

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Using Metra's 86-5618, pull the

factory head unit from the dash and

disconnect the wiring.

(Figure A)

Continue to kit assembly.

ALSO REMOVE (2) THREADED STUDS FROM UNDER BRACKET

7/16” (2)

HEX BOLTS

RADIO SUB-DASH BRACKET

Remove two 7/16” hex bolts from inside the dash cavity and remove the radio

sub-dash bracket. (See recommended tool list on front cover)

Note: The threaded studs from under this bracket will also need to be removed for

the aftermarket Double DIN radio to clear.

(Figure B)

95-5025 KIT ASSEMBLY

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

Attach the Double DIN brackets to the

Double DIN radio or stacked ISO head

units using the screws supplied with

the radio.

(Figure A)

Mount the head unit/ kit assembly to

the dash using the four supplied # 8 x

1” Phillips screws.

(Figure B)

DOUBLE DIN HEAD UNIT PROVISION/

ISO STACKED HEAD UNIT PROVISION

1-800-221-0932

www.metraonline.com
