INSTALLATION INSTRUCTIONS FOR PART 95-7418

Flat Blade Screwdriver I Phillips Screwdriver

1-800-221-0932 www.metraonline.com

KIT FEATURES

•DDIN Head Unit Provision

•STACKED ISO DIN Head Unit Provision

A) Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

95-7418

APPLICATIONS

2002-2004 Nissan Altima

Dash Disassembly ............................................................................ 1

Kit Assembly ................................................................................. 2-3

Final Assembly ................................................................................. 4

95-7418

TABLE OF CONTENTS

95-7418

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the trim panel

surrounding the climate controls.

(Figure A)

2002-2004 NISSAN ALTIMA

Remove (1) Phillips screw (bottom

right side of panel) securing the

panel surrounding the radio then

unclip and remove the panel.

(Figure B,C)

Remove (4) Phillips screws securing

radio to remove.

(Figure D)

Remove the screws securing the

factory brackets to the radio and

remove brackets. (Retain brackets

for re-use during kit assembly.)

DASH DISASSEMBLY

95-7418

KIT ASSEMBLY

Snap the 95-7418 trim plate into the

radio trim panel.

(Figure A)

Install from rear

Slide the DDIN radio unit into the

factory brackets and secure the unit

to the brackets using the screws

supplied with the head unit.

(Figure

DOUBLE DIN HEAD UNIT PROVISION

Slide the stacked ISO DIN units into

the factory brackets and secure the

units to the brackets using the

screws supplied with the head unit.

(Figure B)

STACKED ISO DIN HEAD UNIT PROVISION

95-7418

KIT ASSEMBLY

Install from rear

Snap the 95-7418 trim plate into the

radio trim panel.

(Figure A)

FINAL ASSEMBLY

Locate the factory wiring harness in the dash and make the connection as shown.

Metra recomends using the proper mating adapter and making the connections as

shown. (Isolate and individually tape off the ends of any unused wires to prevent

electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

95-7418

FINAL ASSEMBLY

Make wiring connections using the EIA color code chart shown below and the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-). . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’sspecifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

95-7418

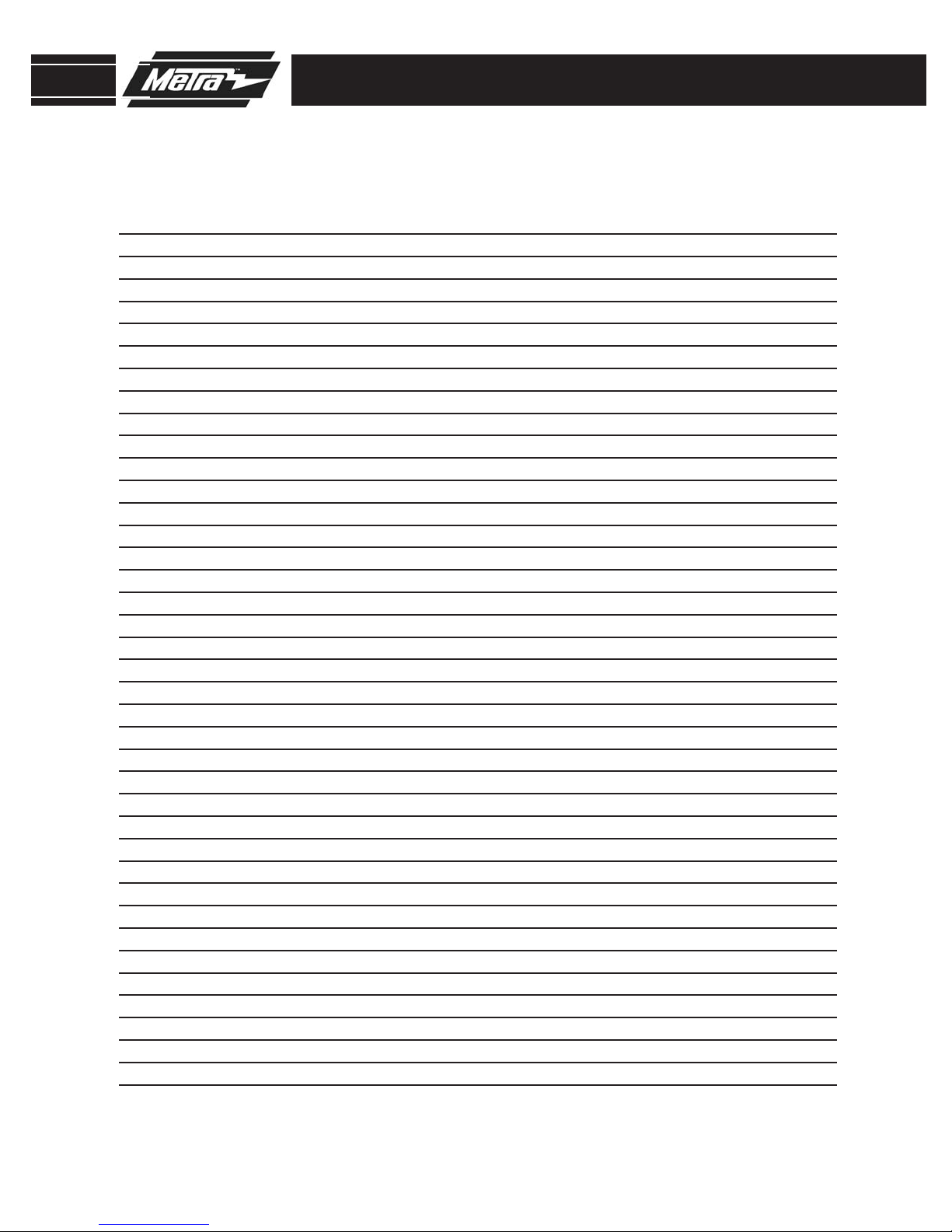

NOTES

95-7418 INSTRUCTIONS

1-800-221-0932 www.metraonline.com

REV. 09/06/07
