INSTALLATION INSTRUCTIONS FOR PART 98-9306

BMW

3 SERIES 2006-2010

(Not for models with Factory Navigation)

98-9306

Relocates Heated Seat Switches•

(Used For Heated Seat Models When

Using The 95-9306B)

• A) Pocket • B) Heated Seat Switch Trim Panel • C) Extension Harness

• Phillips Screwdriver • Panel Removal Tool • Small Flat Blade Screwdriver

• Torx Screwdriver

ABC

TABLE OF CONTENTS

DASH DISASSEMBLY

•BMW 3 Series 2006-10 . . . . . . . . . . . . . . . . . . . 1-2

KIT ASSEMBLY

•BMW 3 Series 2006-10 . . . . . . . . . . . . . . . . . . . 3-4

*NOTE: Refer also to the instructions included with the aftermarket radio.

CAUTION: Metra recommends disconnecting the negative battery terminal

before beginning any installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before reconnecting the battery

or cycling the ignition.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP certified

technicians

INSTALLATION INSTRUCTIONS FOR PART 98-9306

BMW 3 SERIES 2006-2010

98-9306 DASH DISASSEMBLY

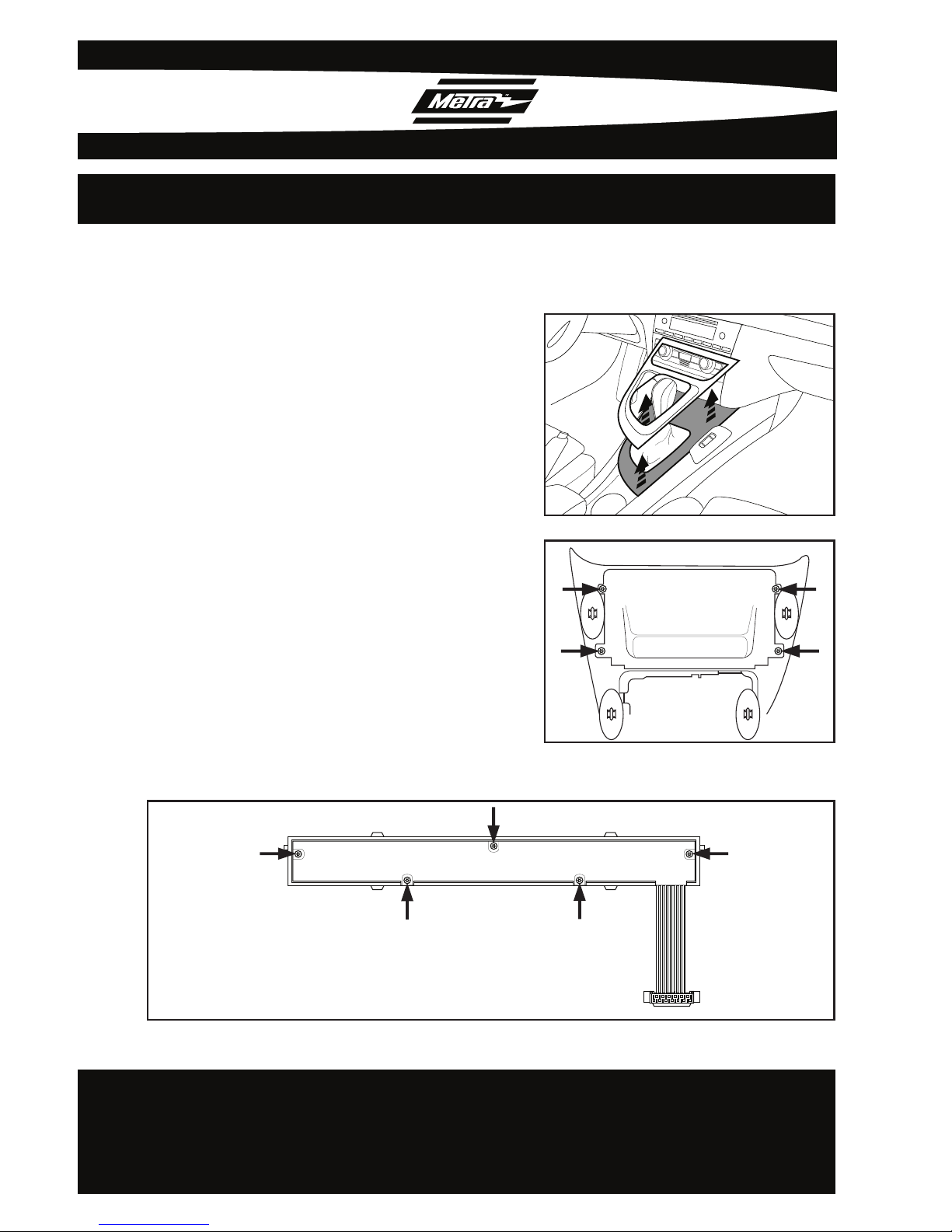

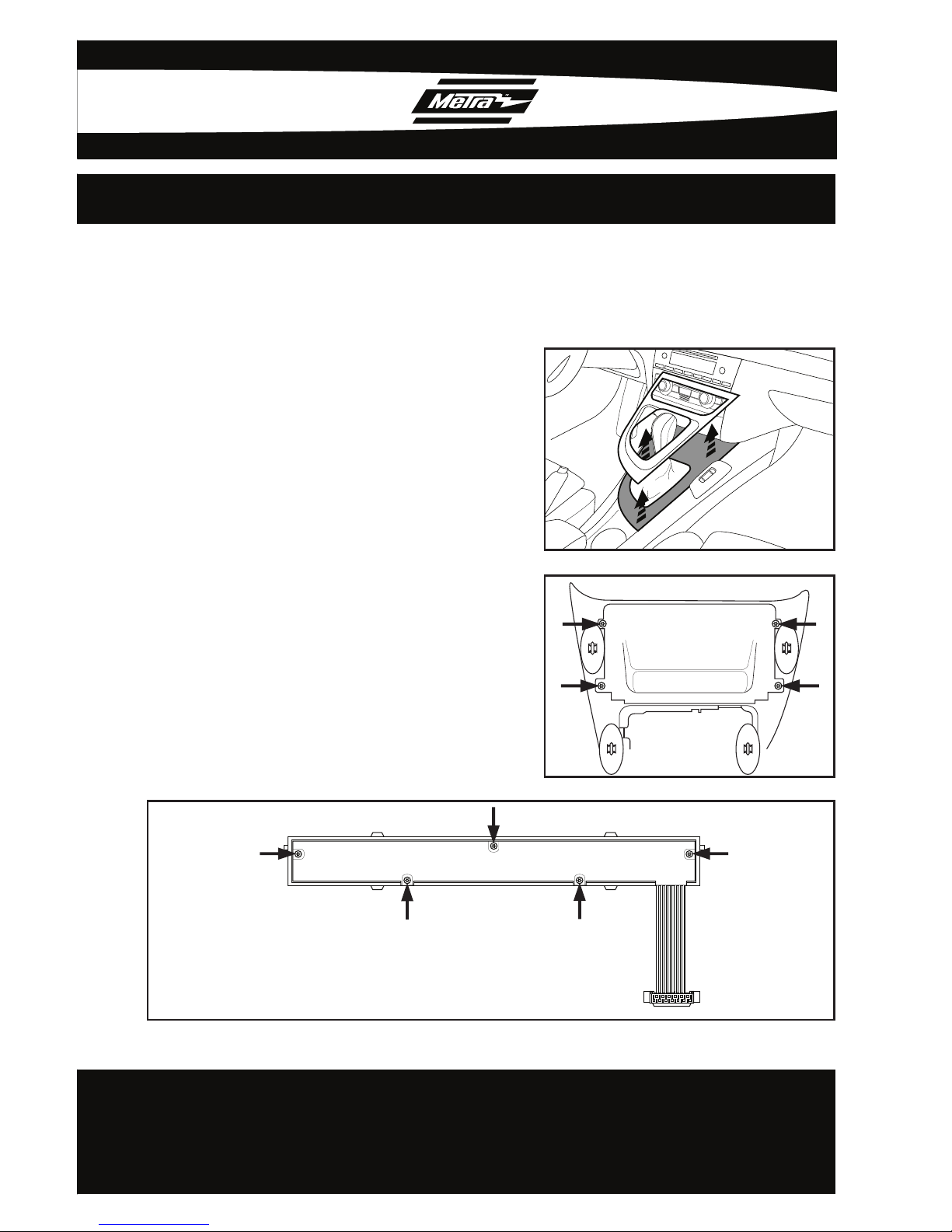

Carefully unclip and remove the

shifter trim panel. (Fig. A)

Remove (4) Torx screws securing

the pocket or ash tray assembly to

the shifter trim panel. (Fig. B)

Unclip and remove the heated seat

switch assembly from the climate

control panel.

Remove (5) Torx screws securing

the back cover on the heated seat

switch assembly. (Fig. C)

Continue to PG.2...........................

Continue to Kit Assembly..............

98-9306 DASH DISASSEMBLY

Remove the circuit board and unplug the factory harness. (Fig. D)

BMW 3 SERIES 2006-2010

98-9306 KIT ASSEMBLY

BMW 3 SERIES 2006-2010

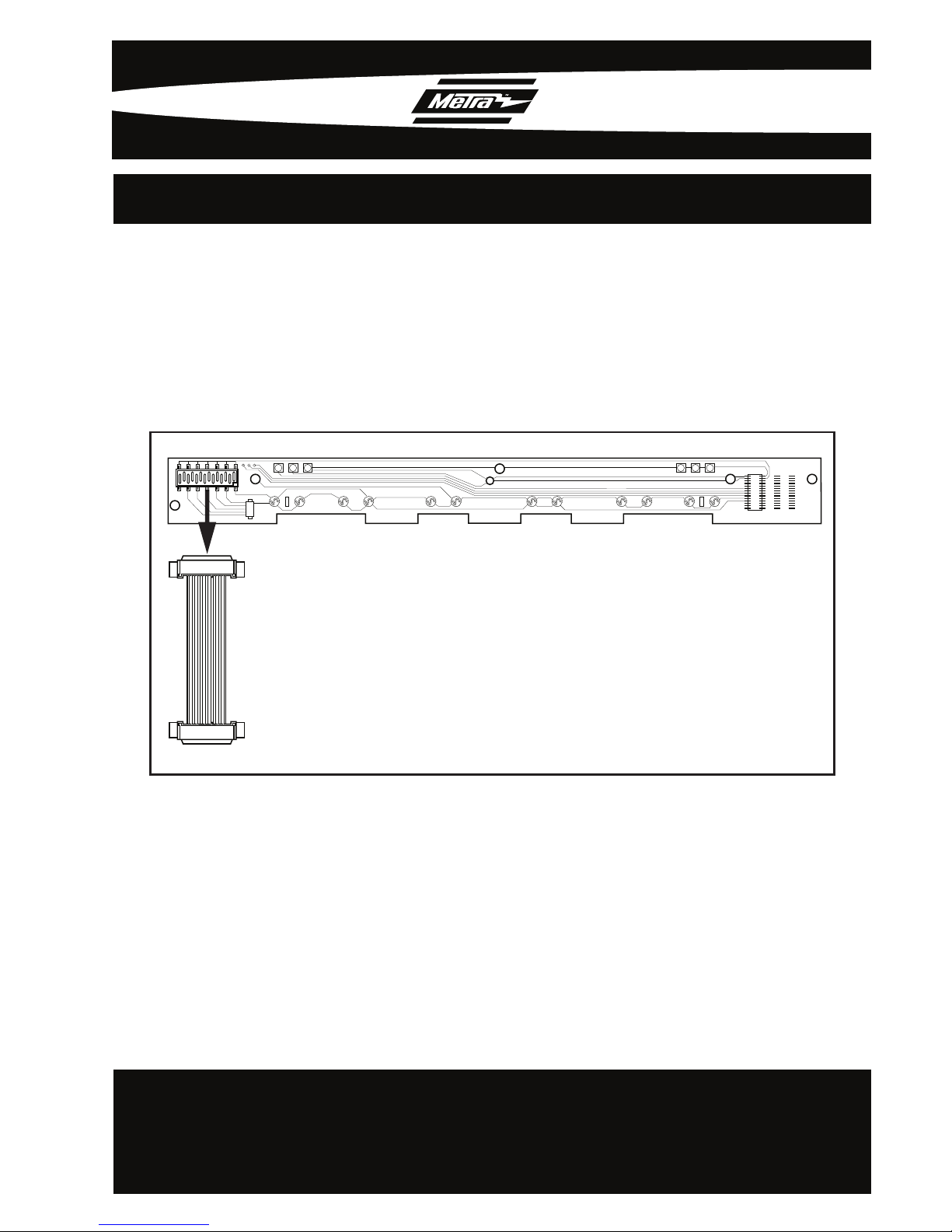

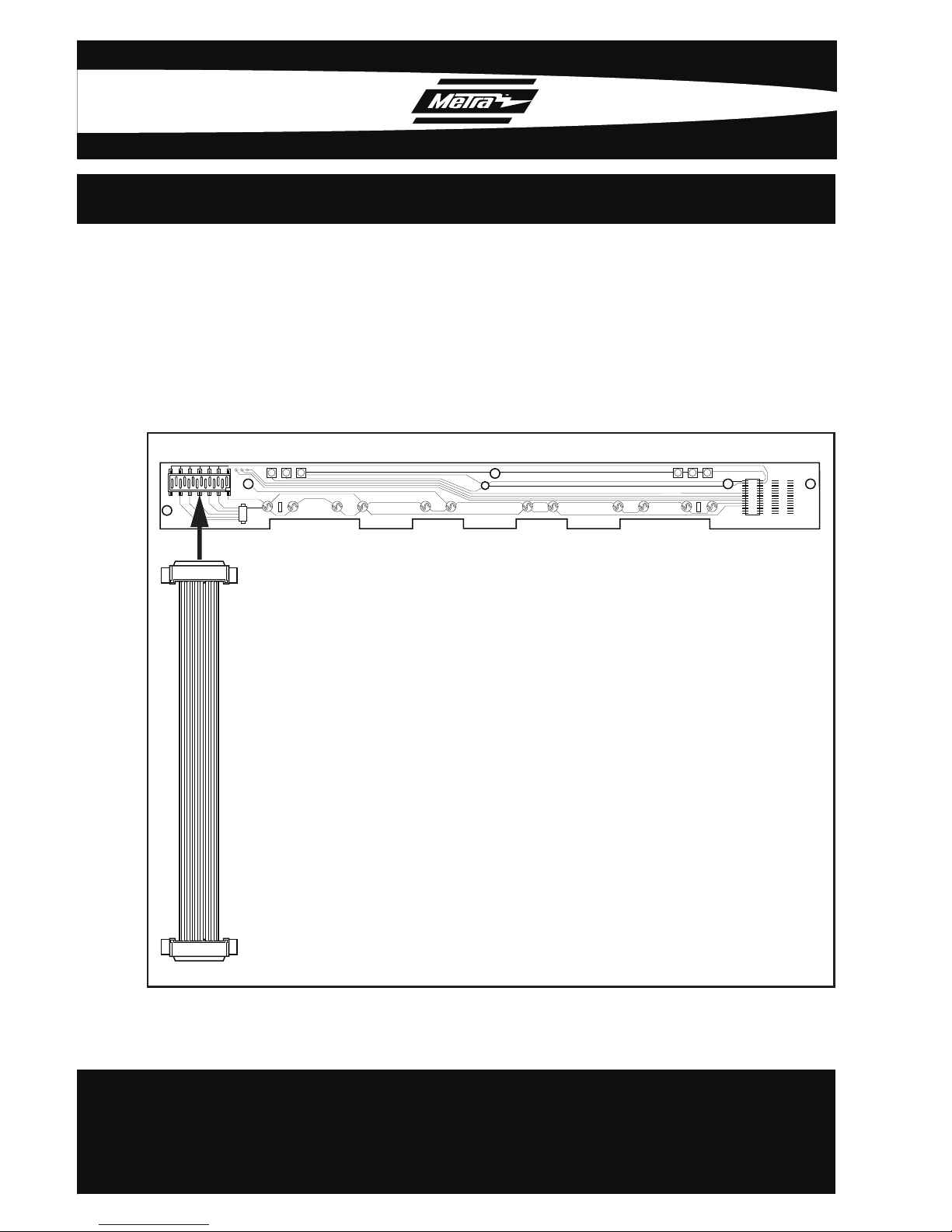

Plug the extension harness onto the circuit board. Then reassemble the

heated seat switch assembly. (Fig. A)

Continue to PG.4...........................

98-9306 KIT ASSEMBLY

BMW 3 SERIES 2006-2010

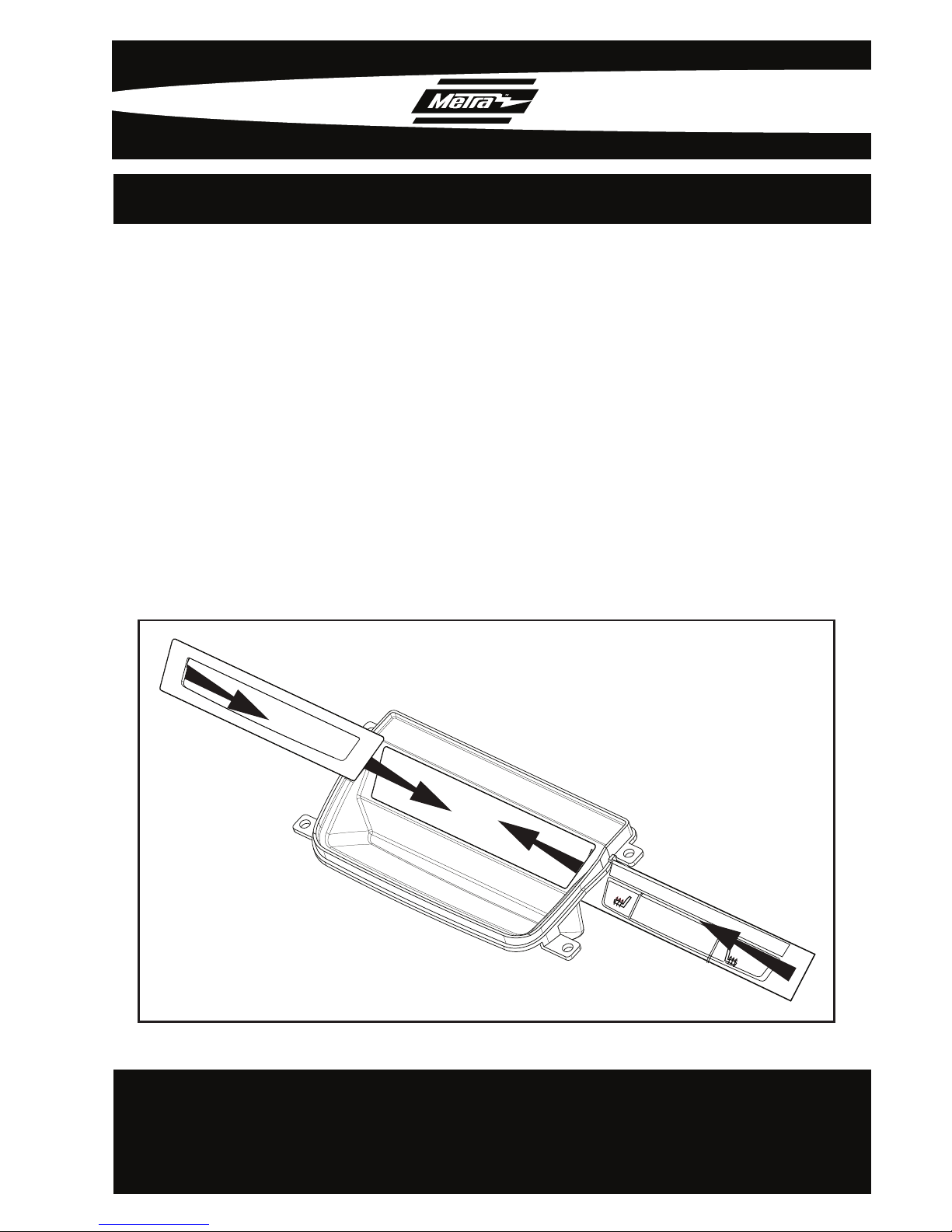

Clip the heated seat switch trim panel into the pocket. (Fig. B)

Clip the heated seat switch assembly into the pocket/trim panel assembly. (Fig. B)

Reattach the 98-9306 pocket assembly to the shifter trim panel using the

factory hardware.

Route the extension harness through the left side of the dash cavity and plug

it into the climate control.

APLICACIONES

CARACTERÍSTICAS DEL KIT

COMPONENTES DEL KIT

HERRAMIENTAS REQUERIDAS

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932 metraonline.com

INSTRUCCIONES PARA LA INSTALACIÓN DE PARTE 98-9306

BMW

SERIE 3 2006-2010

(No apto para modelos con navegación de fábrica)

98-9306

• Reubica interruptores del asiento con

calefacción

(Empleado para los modelos de asiento con

calefacción cuando se utiliza el 95-9306B)

• A) Bolsillo • B) Panel de terminación con interruptor para el asiento con calefacción

• C) Extension Harness

• Destornillador Phillips • Destornillador Torx • Herramienta para retirar paneles

• Destornillador de hoja plana pequeño

ABC

PÁGINA DE ÍNDICE

DESMONTAJE DEL TABLERO

•BMW Serie 3 2006-2010 . . . . . . . . . . . . . . . . . 1-2

MONTAJE DEL KIT

•BMW Serie 3 2006-2010 . . . . . . . . . . . . . . . . . 3-4

* NOTA: Consulte también las instrucciones incluidas con la radio del mer-

cado de accesorios.

Precaución: Metra recomienda desconectar el terminal negativo de la

batería antes de comenzar cualquier instalación. Todos los accesorios,

interruptores y, especialmente, las luces indicadoras de airbag deben estar

enchufados antes de volver a conectar la batería o comenzar el ciclo de

ignición.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP certified

technicians

INSTRUCCIONES PARA LA INSTALACIÓN DE PARTE 98-9306

BMW SERIE 3 2006-2010

98-9306 DESMONTAJE DEL TABLERO

Desenganche y retire con cuidado el

panel de terminación de la palanca

de velocidades. (FIg. A)

Retire (4) tornillos Torx que sujetan

el conjunto del bolsillo o del cenicero

en el panel de terminación de la

palanca de velocidades. (FIg. B)

Desenganche y retire el conjunto

del interruptor del asiento con

calefacción del panel de control de

clima.

Retire (5) tornillos Torx que sujetan

la cubierta posterior sobre el

conjunto del interruptor del asiento

con calefacción. (FIg. C)

Continuar con la PG.2 .........................

Continuar con la Asamblea Kit......

Retire el tablero de circuitos y desenchufe el arnés de fábrica. (Fig. D)

98-9306 DESMONTAJE DEL TABLERO

BMW SERIE 3 2006-2010
