APPLICATIONS
1-800-221-0932 metraonline.com
INSTALLATION INSTRUCTIONS FOR PART 99-8234
REV. 7/13/2012 INST99-8234
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1761 Toyota harness 1987-Up
Antenna Adapter:
• Not required
• Panel removal tool • Phillips screwdriver • 10 mm socket wrench
TOOLS REQUIRED
Scion IQ 2012-up
99-8234
• A) Radio Housing • B) Brackets • C) ISO Snap-In Brackets • D) Trim Plate
KIT FEATURES
KIT COMPONENTS
B CA
• DIN head unit provision with pocket
• ISO DIN head unit provision with pocket
D
Table of Contents
Dash Disassembly
–Scion IQ 2012-up ............................................................................................................. 3
Kit Assembly
–DIN head unit provision with pocket.................................................................................. 4
–ISO DIN head unit provision with pocket ........................................................................... 5
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
99-8234
CAUTION: Metra recommends disconnecting the negative battery terminal before
beginning any installation. All accessories, switches, and especially air bag indicator
lights must be plugged in before reconnecting the battery or cycling the ignition.
Note: Refer to the instructions included with the aftermarket radio.

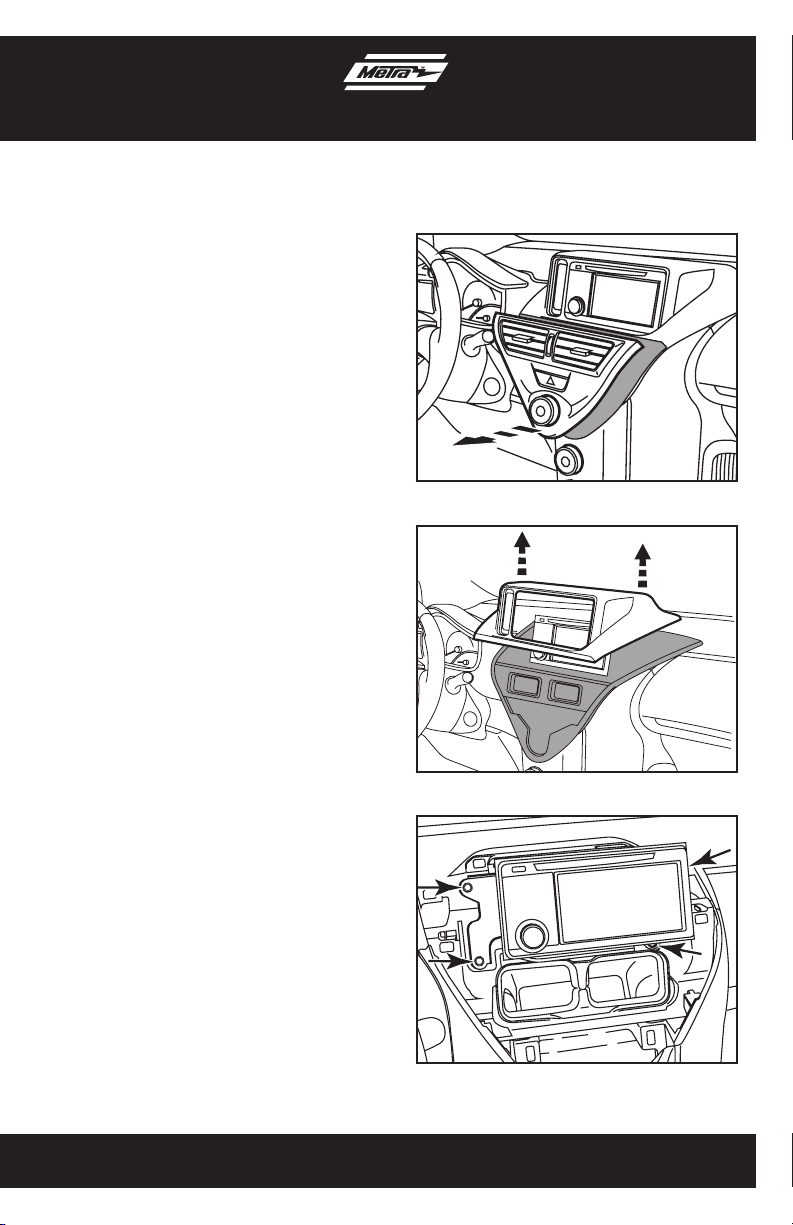

1. Unclip and remove the climate control
panel. (Figure A)
2. Unclip and remove the panel from
around the radio. (Figure B)
3. Remove four 10 mm bolts and remove
factory radio. (Figure C)
Continue to kit assembly
3
Scion IQ 2012-up
Dash Disassembly 99-8234
(Figure A)
(Figure C)
(Figure B)
4
Kit Assembly 99-8234
DIN head unit provision

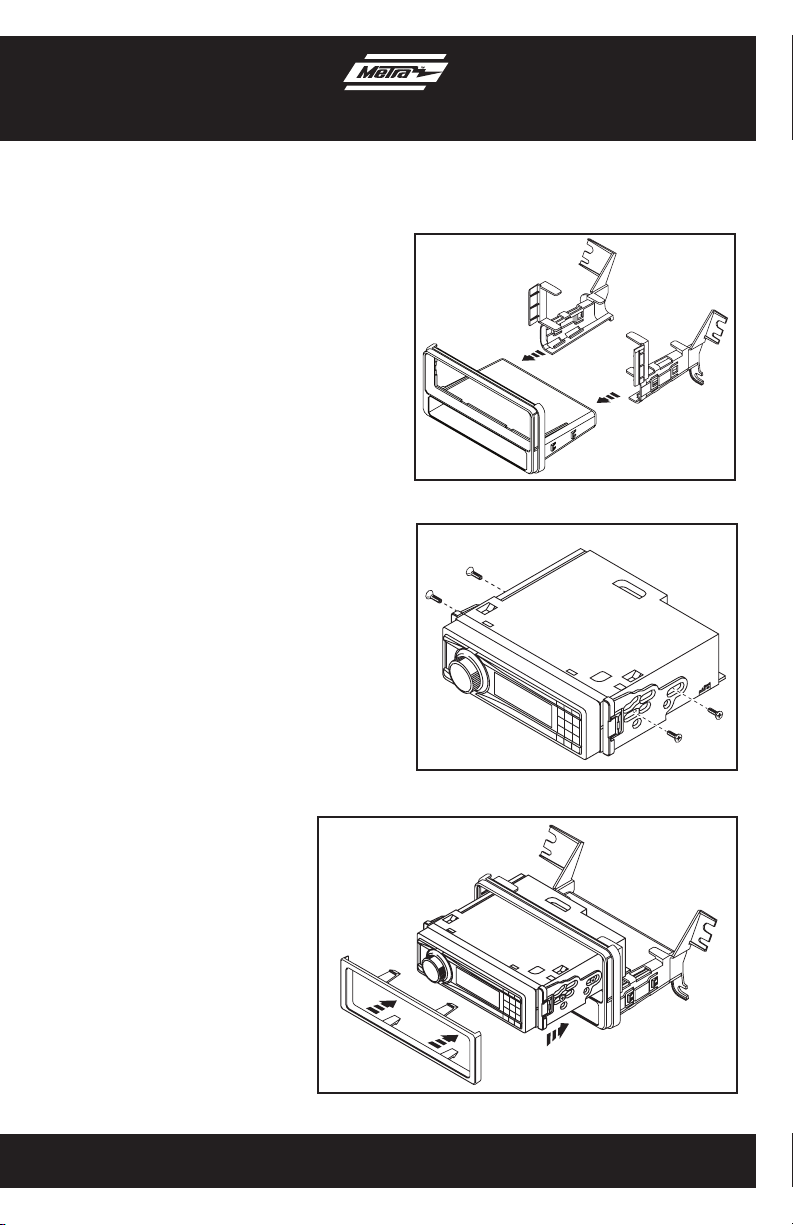

1. Slide the mounting brackets onto the
sides of the radio housing until the side
clips engage. Note: Tabs are marked
Left and Right. (Figure A)
2. Slide the DIN cage into the radio
housing and secure by bending the
metal locking tabs down. (Figure B)
3. Slide the aftermarket head unit into
the cage and secure. (Figure C)
4. Snap the trim plate into the
radio housing. (Figure C)
5. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
6. Reassemble dash in reverse order
of disassembly.
(Figure A)
(Figure B)
(Figure C)
(Figure A)
(Figure B)
(Figure C)
5
Kit Assembly 99-8234
1. Slide the mounting brackets onto the
sides of the radio housing until the side
clips engage. Note: Tabs are marked
Left and Right. (Figure A)
2. Mount the ISO brackets to the head unit
with the screws supplied with the unit.
(Figure B)
3. Slide the head unit into the radio
opening until the side clips engage.
(Figure C)
4. Snap the trim plate into the
radio housing. (Figure C)
5. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
6. Reassemble dash in reverse order
of disassembly.
ISO DIN head unit provision
Notes
Notes
METRA. THE WORLD’S BEST KITS.™
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
1-800-221-0932 metraonline.com
INSTALLATION INSTRUCTIONS FOR PART 99-8234
REV. 7/13/2012 INST99-8234
METRA. THE WORLD’S BEST KITS.™
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
APLICACIONES
1-800-221-0932 metraonline.com
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-8234
REV. 7/13/2012 INST99-8234
• Herramienta para quitar paneles • Destornillador Phillips • Llave de tubo de 10 mm
HERRAMIENTAS REQUERIDAS
Scion IQ 2012 y mas
99-8234
• A) Carcasa del radio • B) Soportes • C) Soportes de presión ISO • D) Placa de moldura
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
B CA
• Provisiones de unidad central DIN con cavidad
• Provisión de unidad central ISO DIN con cavidad
CABLEADO Y CONEXIONES DE ANTENA (se venden por separado)
Arnés de cableado:
• 70-1761 para Toyota 1987 y más recientes
Adaptador de antena:
• No se requiere
D
Indice
Desmontaje del tablero
–Scion IQ 2012 y mas ........................................................................................................ 3
Ensamble del kit
–Provisiones de unidad central DIN con cavidad ................................................................. 4
–Provisión de unidad central ISO DIN con cavidad .............................................................. 5
99-8234
PRECAUCIÓN: Metra recomienda desconectar el terminal negativo de la batería antes de
comenzar cualquier instalación. Todos los accesorios, interruptores y, especialmente, las luces
indicadoras de airbag deben estar enchufados antes de volver a conectar la batería o comenzar
el ciclo de ignición.
Nota: Remítase a las instrucciones incluidas con el radio de posventa.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recomienda técnicos con
certificación del Programa de
Certificación en Electrónica Móvil
(Mobile Electronics Certification
Program, MECP).
EL CONOCIMIENTO ES PODER
Mejore sus habilidades de instalación y fabricación
inscribiéndose en la escuela de dispositivos
electrónicos móviles más reconocida y respetada de
nuestra industria. Regístrese en www.installerinstitute.
com o llame al 800-354-6782 para obtener más
información y avance hacia un futuro mejor.
