Metra Electronics 99-3304 Bedienungsanleitung

INSTALLATION INSTRUCTIONS FOR PART 99-3304

Socket Wrench • Flat Blade Screwdriver • Phillips Screwdriver

1-800-221-0932 www.metraonline.com

KIT FEATURES

•DIN Head Unit Provisions with Pocket

•ISO DIN Head Unit Provisions with Pocket

A) Radio Housing • B) ISO Brackets • C) Trim Plate

KIT COMPONENTS

99-3304

APPLICATIONS

Buick Terraza 2005-2008

Chevrolet Corvette 2005-2010

Chevrolet Uplander 2005-2008

Hummer H3 2006-2009

Pontiac Montana (SV6 only) 2005-2007

Saturn Relay 2005-2007

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

•GMOS-01 - GM Interface 2002-up

•GMOS-04 - GM Amplified Interface 2002-up

Antenna Adapter:

•40-GM10 - GM antenna adapter 1988-up

TOOLS REQUIRED:

99-3304

Dash Disassembly ........................................................................ 1-3

Kit Assembly ................................................................................. 4-5

Final Assembly ................................................................................. 6

TABLE OF CONTENTS

99-3304

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove trim panel around

radio and a/c control.

(Figure A)

CHEVY UPLANDER, PONTIAC MONTANA

SV6, BUICK TERRAZA 2005-2008/

SATURN RELAY2005-2007

Remove (8) 9/32” screws to extract

radio and a/c control from sub dash.

(Figure A)

DASH DISASSEMBLY

99-3304

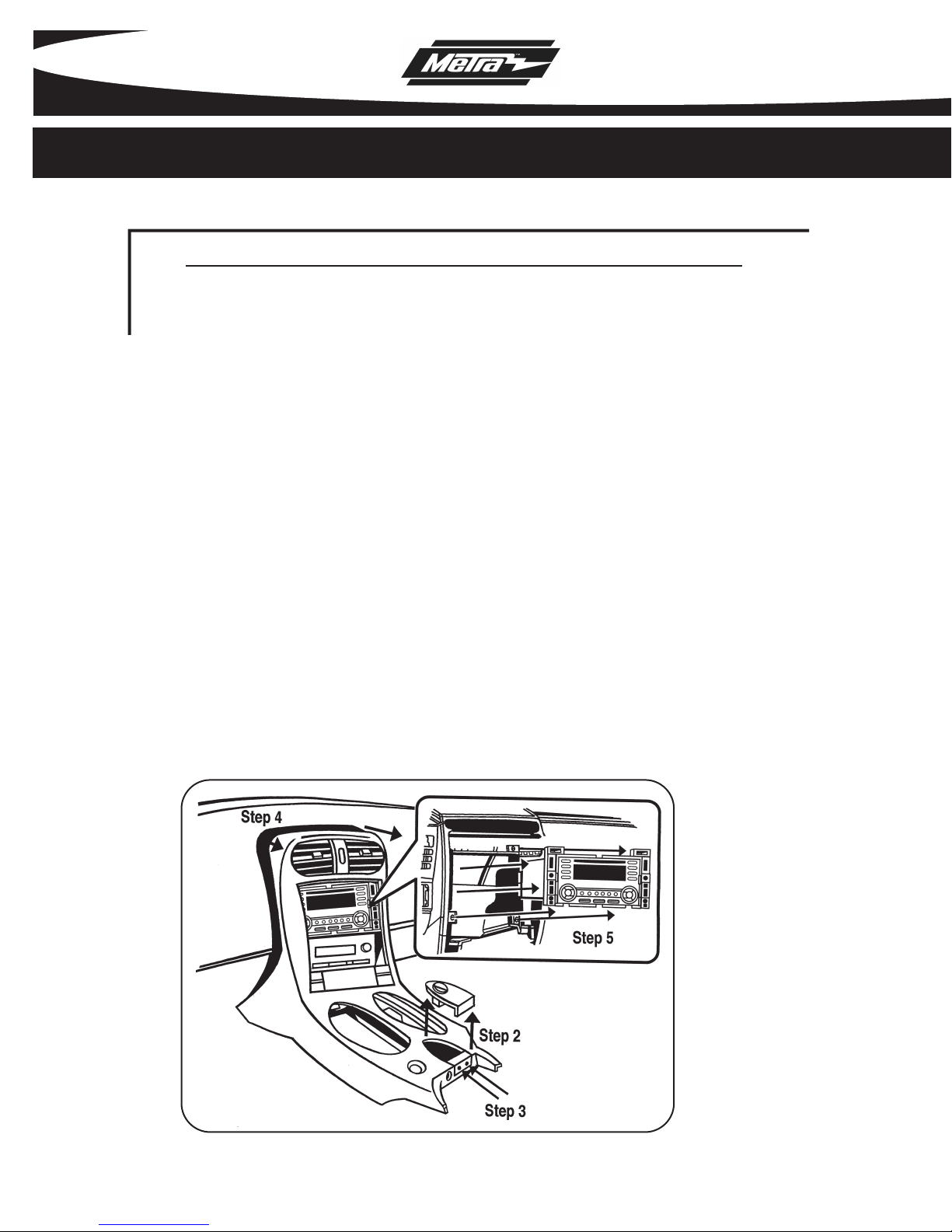

DASH DISASSEMBLY

CHEVROLET CORVETTE 2005-2010

Disconnect the negative battery terminal to

prevent an accidental short circuit.

Unclip and remove ride control switch/blank

plate at front edge of center console lid.

(Figure A)

Remove (2) 9/32” screws from under plate

removed in step 2.

(Figure A)

Unclip and remove entire panel surrounding

radio and including a/c controls.

(Figure A)

Remove (4) 9/32” screws securing radio to

extract from sub dash.

(Figure A)

DASH DISASSEMBLY

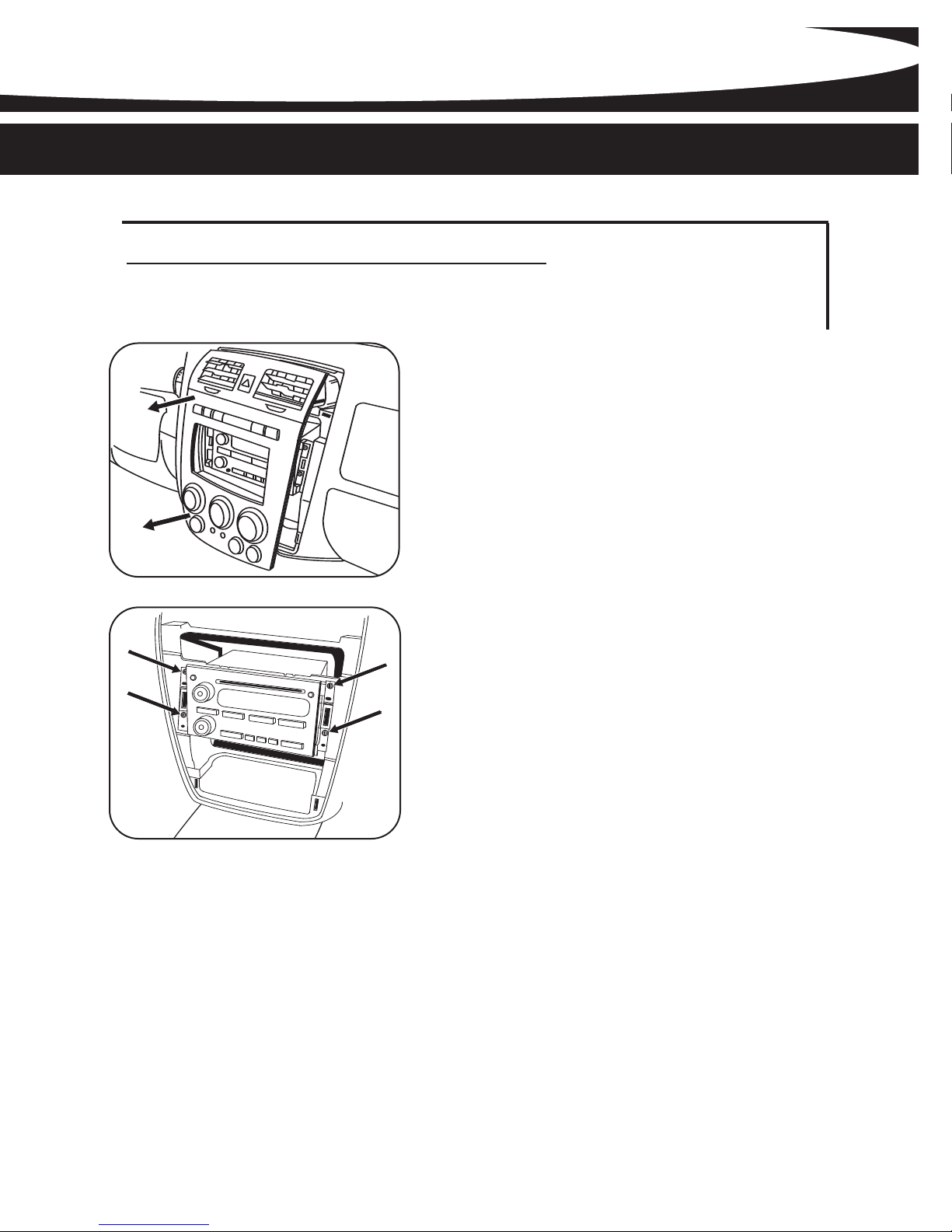

HUMMER H3 2006-2009

99-3304

12:04 95.9

Unclip and remove trim panel around

radio and a/c controls.

(Figure A)

Remove (4) 9/32” screws securing

radio.

(Figure B)

Unplug and remove radio.

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

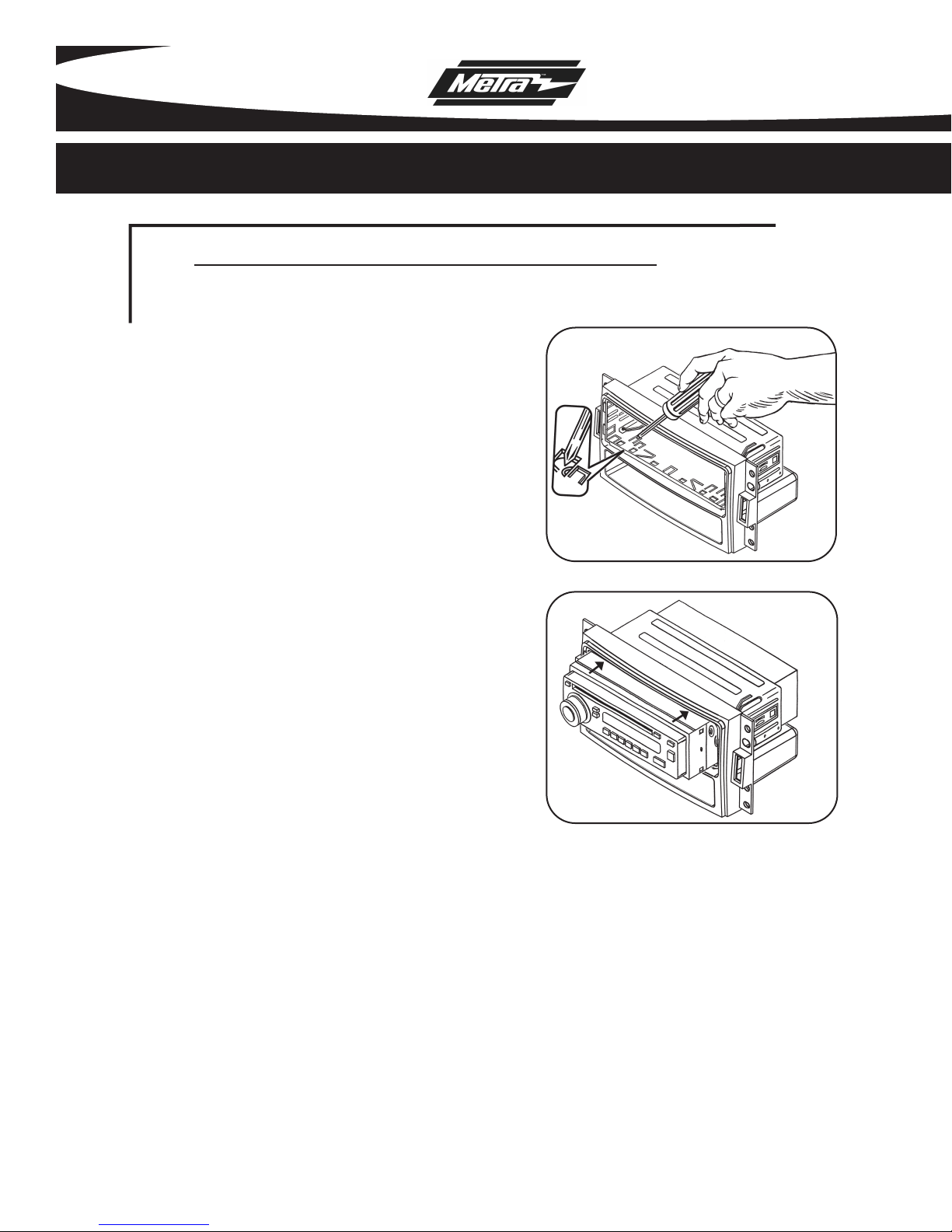

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down.

(Figure A)

Slide the aftermarket head unit into

the cage and secure.

(Figure B)

99-3304

KIT ASSEMBLY

DIN HEAD UNIT PROVISIONS

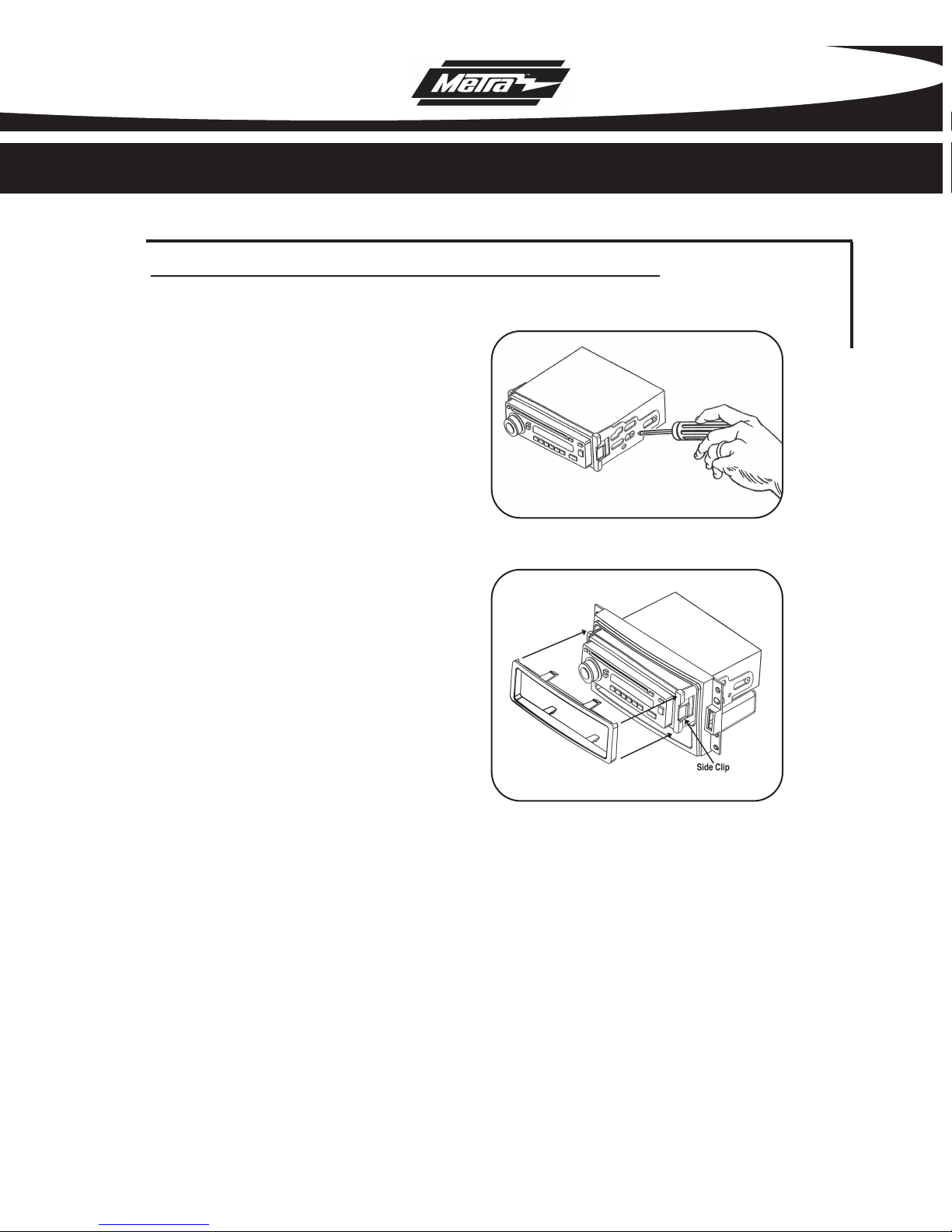

Mount the ISO Brackets to the head

unit with the screws supplied with

the unit.

(Figure A)

Slide the head unit into the radio

opening until the side clips engage.

(Figure B)

Snap the Trim plate into the Radio

Housing.

(Figure B)

KIT ASSEMBLY

ISO DIN HEAD UNIT PROVISION

99-3304

FINAL ASSEMBLY

Locate the factory wiring harness in the dash and make the connection as shown.

Metra recomends using the proper mating adapter and making the connections as

shown. (Isolate and individually tape off the ends of any unused wires to prevent

electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

99-3304

FINAL ASSEMBLY

Make wiring connections using the EIA color code chart shown below and the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-). . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

1-800-221-0932 www.metraonline.com
