INSTALLATION INSTRUCTIONS FOR PART 99-5816

99-5816

APPLICATIONS

FORD Focus

2008-2009

KIT FEATURES

•DIN Radio Provision with Pocket

•ISO Mount Radio Provision with Pocket

• Double DIN Radio Provision

•Stacked ISO Mount Units Provision

• Painted To Match Factory Dash

•A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets

•E) Double DIN Trim Plate • F) Pocket • G) (2) Top Clips and (4) Middle Radio Housing Clips

KIT COMPONENTS

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver • Socket Set • Cutting Tool

1-800-221-0932

www.metraonline.com

(2) TOP CLIPS (4) MIDDLE CLIPS

SIDE VIEW SIDE VIEW

Dash Disassembly

FordFocus2008-2009. ...........................

.. 1,2

Kit Assembly

-Kit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

-DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . .4

-ISO Mount Radio Provision with Pocket. . . . . . . . . . . . . . . . . . . . . . . . 5

-Double DIN /Stacked ISO Mount Units Radio Provision . . . . . . . . . . . . .6

Final Assembly ...........................................7

TABLE OF CONTENTS

99-5816

Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

FORD FOCUS 2008-2009

95-5816 DASH DISASSEMBLY

Disconnect the negative battery termi-

nal to prevent an accidental short cir-

cuit.

Unclip and remove the trim panel sur-

rounding the shifter and including the

cup holders.

(Figure A)

Remove (2) 9/32” screws facing up

above the gauge cluster then unclip

and remove the trim panel surrounding

the gauge cluster.

(Figure C)

Unclip and remove the trim panel

above the glove box.

(Figure D)

Continue on page 2.

Remove (2) 9/32” screws from the bot-

tom edge of the factory radio trim

panel.

(Figure B)

PA S S

AIRBAG

OFF

PAS S

AIRBAG

OFF

PAS S

AIRBAG

OFF

95-5816 DASH DISASSEMBLY

Continue to kit preparation.

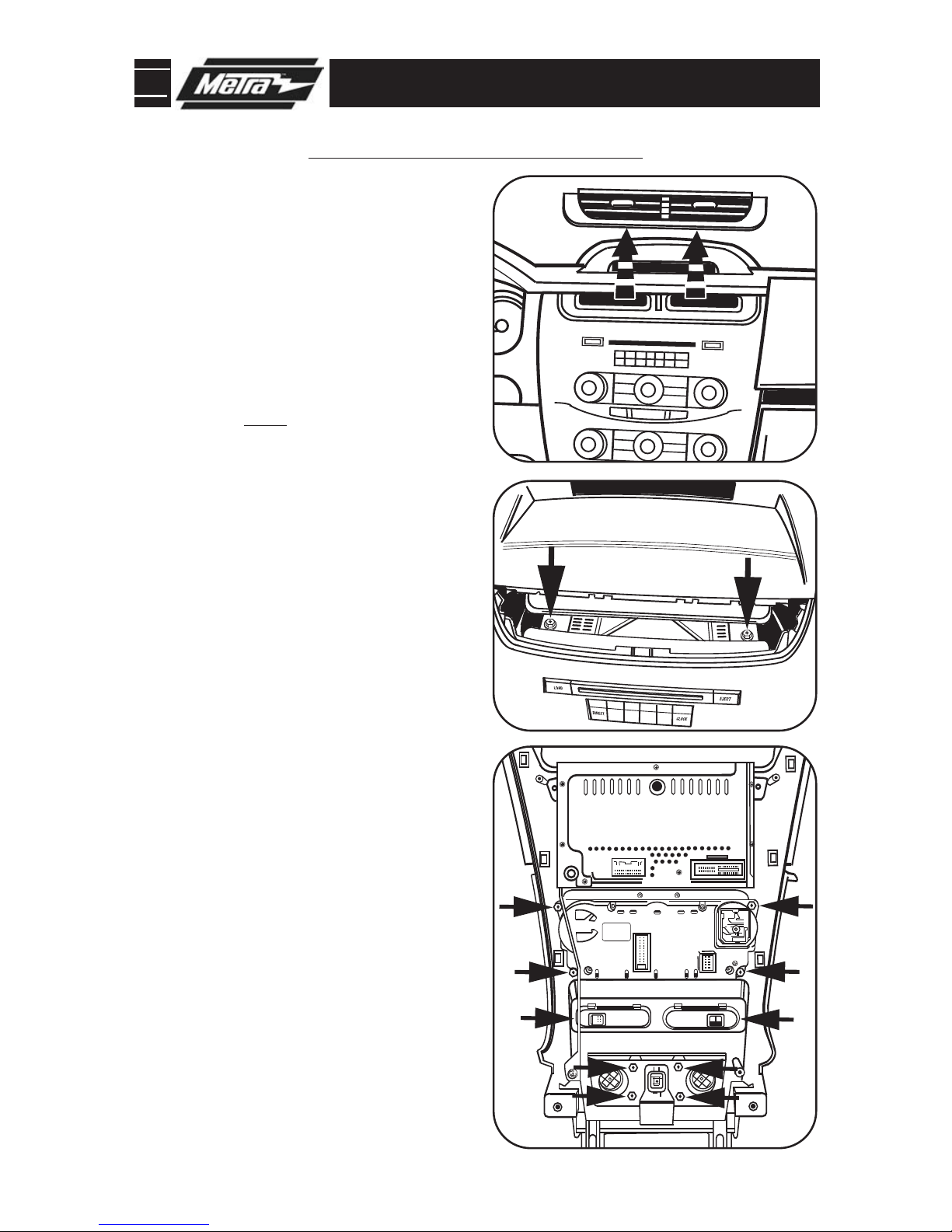

Unclip and remove the vent panel at

the top of the factory radio trim panel.

(Figure E)

Remove (4) T-20 Torx screws securing

the climate controls to the factory

radio trim panel assembly and

remove the controls from the assem-

bly. (Retain the screws and climate

controls for re-use during kit prepara-

tion.)

(Figure G)

Remove (4) T-20 Torx screws securing

the accessorysocket panel to the

factory radio trim panel assembly and

remove the socket panel from the

assembly. (Retain the screws and

accessorysocket panel for re-use

during kit preparation.)

(Figure G)

Unclip and remove the passenger air

bag light and the switchpanel blank

plates. (Retain the air bag light and

blank plates for re-use during kit

preparation.)

(Figure G)

Unclip the factory radio trim panel

assembly. Unplug and remove the

assembly. Note: Some early models

had a ground strap attached to the

radio chassis and the sub dash with

an 8 MM bolt. You will need to unbolt

this strap to remove the factory radio

trim panel assembly.

Remove (2) 9/32” screws behind the

vent panel removed in step 6.

(Figure F)

FORD FOCUS 2008-2009

12345

7890

PA S S

AIRBAG

OFF

99-5816 KIT ASSEMBLY

KIT PREPARATION

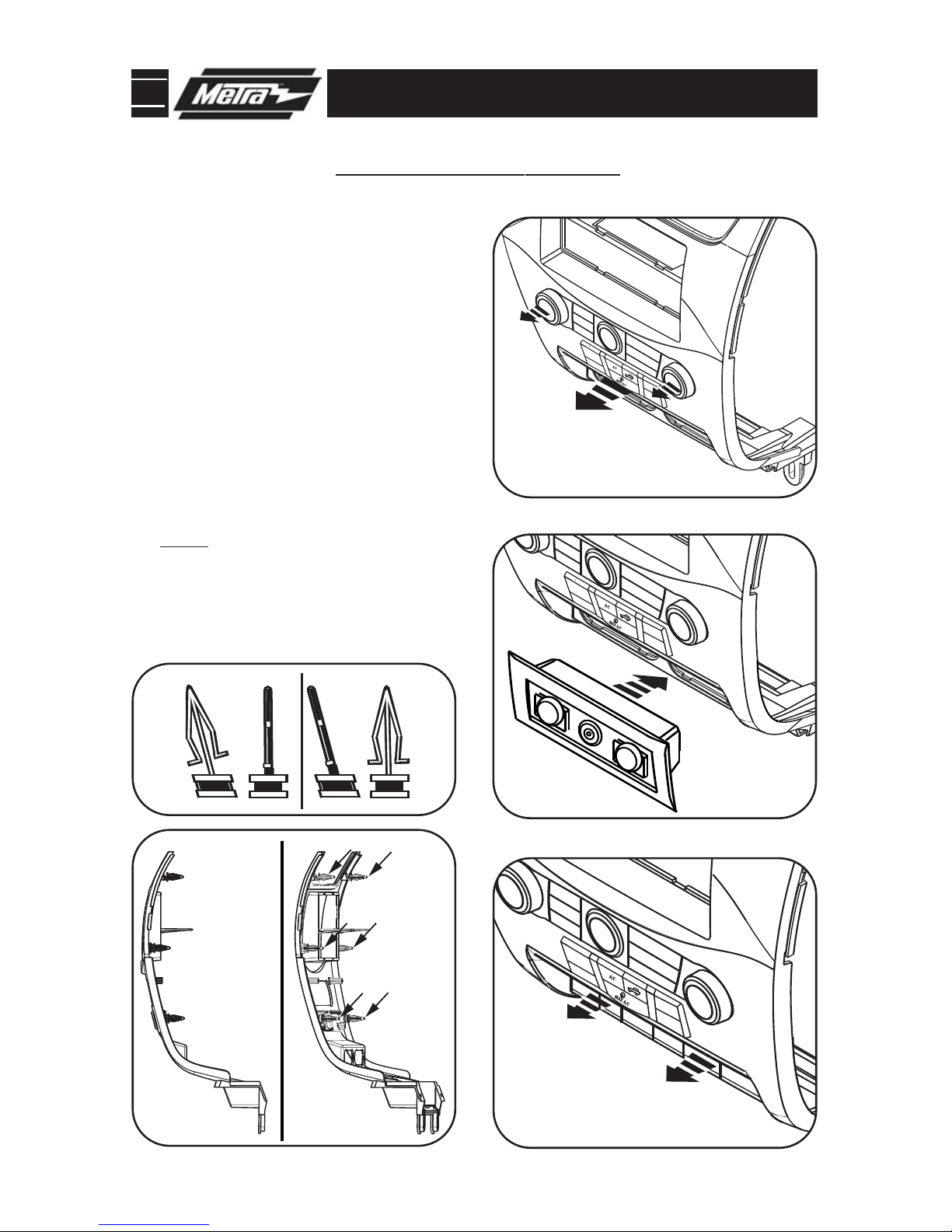

Secure the climate control into the

radio housing using the factory hard-

ware. (

Figure A)

Secure the accessory socket panel to

the radio housing using the factory

hardware. (

Figure B)

Clip the passenger air bag light and

the switch panel blank plates in to

the radio housing. (

Figure C)

Attach Top and Middle Radio Housing

Clips to the backof the radio housing.

(

Figure D,E)

NOTE: When the clips are properly

attached they should be on a 90

degree angle with the radio housing.

(

Figure E)

Continue to kit assembly.

(4) MIDDLE CLIPS

SIDE VIEW

(2) TOP CLIPS

SIDE VIEW FRONT VIEW FRONT VIEW

99-5816 KIT ASSEMBLY

DIN MOUNT RADIO PROVISION WITH POCKET

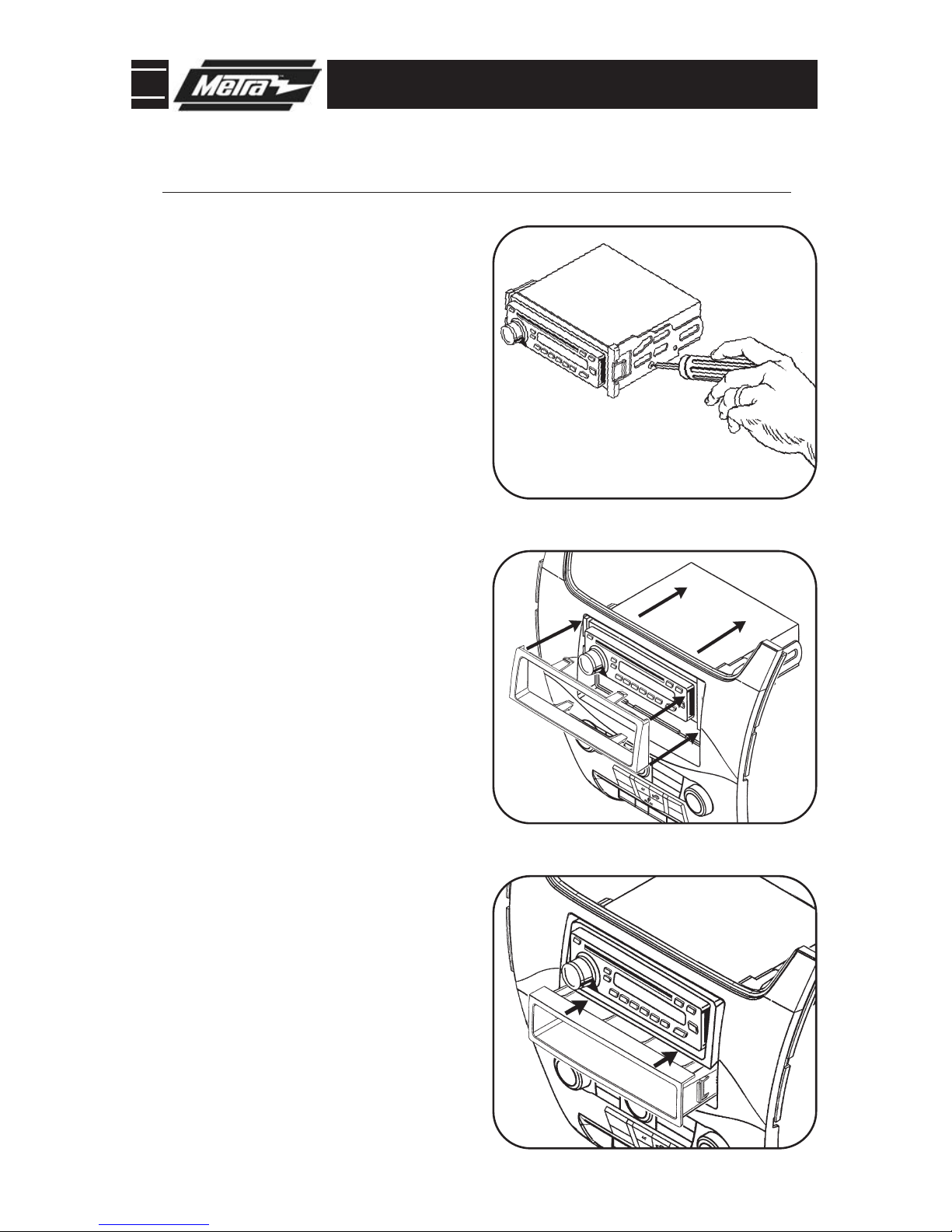

Slide the DIN cage into the radio hous-

ing and secureby bending the metal

locking tabs outward.

(Figure A)

Slide the aftermarket radio into the DIN

cage and until it snaps into place.

(Figure B)

Snap the pocket into the radio housing.

(Figure C)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

99-5816 KIT ASSEMBLY

ISO MOUNT RADIO PROVISION WITH POCKET

Mount the ISO Brackets to the radio

using the screws supplied with the

radio.

(Figure A)

Slide the radio into the radio housing

until it snaps into place.

(Figure B)

Snap the trim plate onto the front of

the Radio Housing.

(Figure B)

Snap the Pocket into the radio

housing.

(Figure C)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

99-5816 KIT ASSEMBLY

DOUBLE DIN/STACKED ISO MOUNT

UNITS RADIO PROVISION

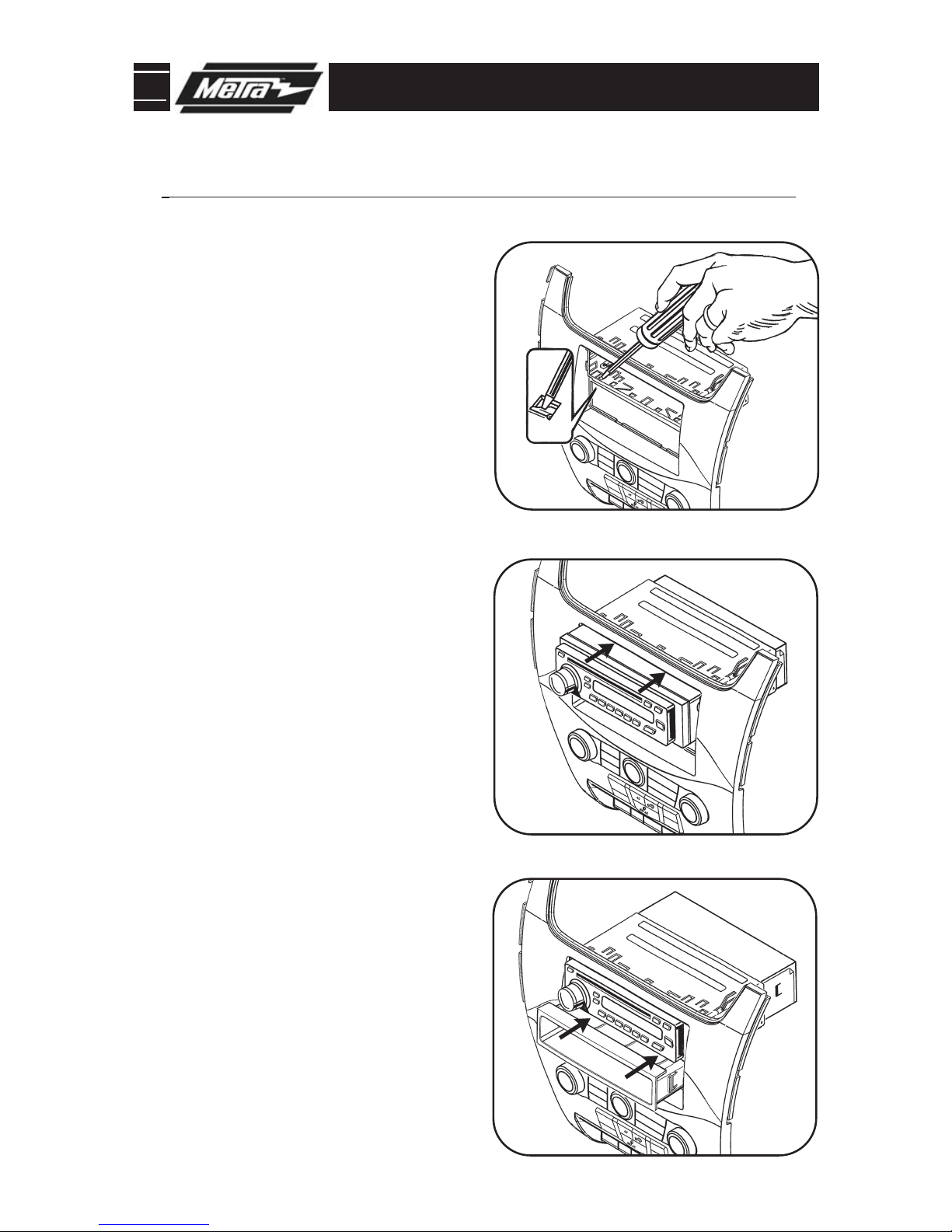

Cut and remove the center bar from

the radio housing.

(Figure A)

Snap the Double DIN brackets to the

inside edge of the radio housing.

(Figure B)

Slide the Double DIN or stacked ISO

mount unit(s) into the bracket/radio

housing assembly and secure the

unit(s) to the assembly using the

screws supplied with the unit(s).

(Figure C)

Snap the double DIN trim plate onto

the front of the radio housing.

(Figure C)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

99-5816 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown belowand the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground..................Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground..............Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer.................Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) .............Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) ..............Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

NOTES

99-5816
