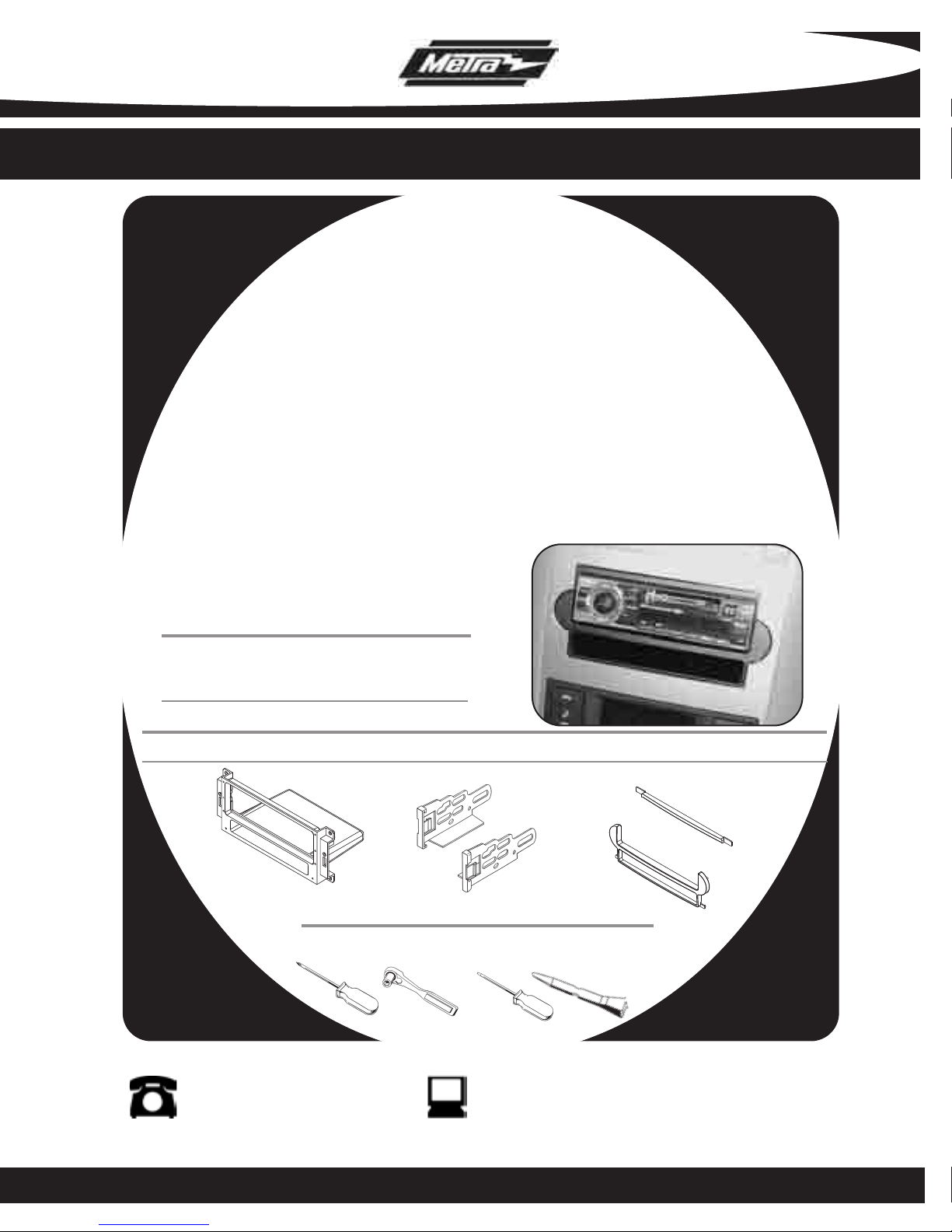

INSTALLATION INSTRUCTIONS FOR PART 99-6507

Phillips Screwdriver • Socket Wrench •

1-800-221-0932 www.metraonline.com

KIT FEATURES

Chrysler

300 2005-2007

Aspen 2007

PT Cruiser 2006-2007

Jeep

Commander 2006-2007

Compass 2007

Grand Cherokee 2005-2007

Patriot 2007

•DIN Radio Provision with Pocket

•ISO DIN Radio Provision with Pocket

TOOLS REQUIRED:

99-6507

APPLICATIONS

Small Flat Blade Screwdriver or

Panel Removal Tool

A) Radio Housing I B) ISO Snap-In Brackets I C) Trim Plates (upper & lower)

KIT COMPONENTS

Lower Trim Plate

Upper Trim Plate

Dodge

Caliber 2007

Charger 2005-2007

Dakota 2005-2007

Durango 2004-2007

Magnum 2005-2007

Ram 2006-2007

Mitsubishi

Raider 2006-2007

Dash Disassembly

-Chrysler Aspen 2007 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

-Dodge Dakota 2005-2007 . . . . . . . . . . . . . . . . . . . . . . . . . . 1

-Dodge Durango 2004-2007 . . . . . . . . . . . . . . . . . . . . . . . . . 1

-Dodge Charger 2005-2007 . . . . . . . . . . . . . . . . . . . . . . . . . 2

-Dodge Magnum 2005-2007 . . . . . . . . . . . . . . . . . . . . . . . . 2

-Chrysler 300 2005-2007 . . . . . . . . . . . . . . . . . . . . . . . . . . .3

-Dodge Ram 2006-2007 (Without Center Console) . . . . . . . . 4

-Dodge Ram 2006-2007 (With Mini Center Console) . . . . . . 5

-Dodge Ram 2006-2007 (With Full Center Console) . . . . . . . 6

-Dodge Caliber 2007 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

-Jeep Compass 2007 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

-Jeep Patriot 2007 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

-Jeep Grand Cherokee 2005-2007 . . . . . . . . . . . . . . . . . . . . 8

-Jeep Commander 2006-2007 . . . . . . . . . . . . . . . . . . . . . . . 9

-Chrysler PT Cruiser 2006-2007 . . . . . . . . . . . . . . . . . . . . . .10

-Mitsubishi Raider 2006-2007 . . . . . . . . . . . . . . . . . . . . . . 11

Kit Assembly

-DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . .12

-ISO Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . 13

Final Assembly ....................................14

TABLE OF CONTENTS

99-6507

99-6507 DASH DISASSEMBLY

DODGE DAKOTA2005-2007

CHRYSLER ASPEN 2007

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Remove (2) 7MM screws from the inside

of the pocket facing upward. (Figure A)

Unclip and remove the entire trim panel

surrounding the radio and climate controls.

(Figure B)

Remove (4) 7MM screws securing radio.

Unplug and remove radio.(Figure C)

Continue to kit assembly.

DODGE DURANGO 2004-2007

99-6507 DASH DISASSEMBLY

DODGE MAGNUM 2005-2007

DODGE CHARGER 2005-2007

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Unclip and remove entire panel surrounding

radio and climate controls, including a/c

vents. (Figure A)

Remove (4) 7MM screws securing radio.

Unplug and remove radio. (Figure B)

Continue to kit assembly.

99-6507 DASH DISASSEMBLY

CHRYSLER 300 2005-2007

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Unclip and remove entire panel surround-

ing radio and climate controls, including

a/c vents and clock. (Figure A)

Remove (4) 7MM screws securing radio.

Unplug and remove radio. (Figure B)

Continue to kit assembly.

99-6507 DASH DISASSEMBLY

DODGE RAM 2006-2007

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Open cup holder and remove (2) Phillips

screws facing up on front edge of

radio/climate control panel. (Figure A)

Unclip and remove entire panel sur-

rounding radio and climate controls,

including a/c vents. (Figure B)

Remove (4) 7MM screws securing radio.

Unplug and remove radio.

WITHOUT CENTER CONSOLE

Continue to kit assembly.

99-6507 DASH DISASSEMBLY

DODGE RAM 2006-2007

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Remove center console inserts, if present.

(Figure A)

Unclip and remove entire panel sur-

rounding radio and climate controls,

including a/c vents. (Figure E)

Remove (4) 7MM screws securing radio

to dash and remove radio.

If vehicle has floor shifter, remove shifter

knob.

WITH MINI CENTER CONSOLE

Remove screws securing the rear center

console to the floor panel. Lift up on the

rear center console to clear the gear shift

lever, if present. (Figure B)

Remove screws securing the front center

console to the floor panel. Unclip and

remove the front center console.

(Figure C)

Remove two phillips head screws atbottom

of dash. Unsnap and remove lower panel.

Remove (2) Phillips screws facing up on

front edge of radio/climate control panel.

(Figure D)

Continue to kit assembly.

99-6507 DASH DISASSEMBLY

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Unsnap and remove console front top

cover (closest to the dash). (Figure A)

Unclip and remove entire panel surrounding

radio and climate controls, including a/c

vents. (Figure E)

Remove (4) 7MM screws securing radio

to dash and remove radio.

If vehicle has floor shifter, remove shifter

knob.

Remove two 8 mm screws from under

console cover (previously removed).

Remove front section of console.

(Figure B)

5Loosen two 8 mm screws atbottom of

dash. Unsnap lower panel.

Remove (2) Phillips screws facing up on

front edge of radio/climate control panel.

(Figure D)

Continue to kit assembly.

DODGE RAM 2006-2007

WITH FULL CENTER CONSOLE

99-6507 DASH DISASSEMBLY

DODGE CALIBER 2007

JEEP COMPASS 2007

JEEP PATRIOT 2007

1234 56

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Unsnap and move shifter trim to the side.

(Figure A)

Remove (4) 7MM screws securing radio.

Unplug and remove radio.

Continue to kit assembly.

Unsnap center dash trim panel (do not

remove until climate controls are

removed). (Figure A)

5Remove (4) Phillips screws holding

climate control panel to backside of

the center dash panel.

3(Compass and Patriot only) Unspap and

remove top center dash panel above AC

vents.

99-6507 DASH DISASSEMBLY

JEEP GRAND CHEROKEE 2005-2007

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Unsnap and remove panel from around

radio including the vent on each side.

(Figure A)

Remove (4) 7MM screws securing radio.

Unplug and remove radio. (Figure B)

Continue to kit assembly.
