Metra Electronics 107-MZ1B Bedienungsanleitung

INSTALLATION INSTRUCTIONS

107-MZ1B

U.S. Patent Pending

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT FEATURES

• ISO DDIN radio provision †

• Pioneer modular DDIN radio provision ‡

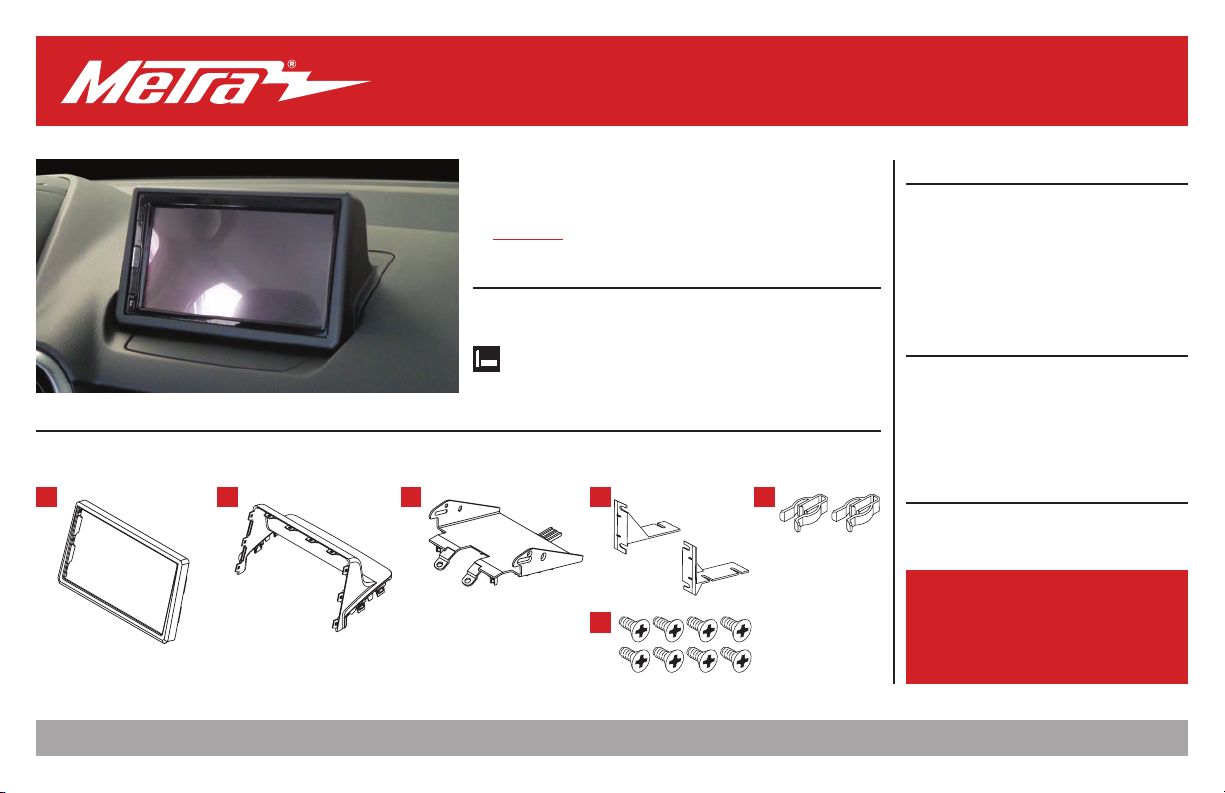

KIT COMPONENTS

• A) Trim panel • B) Back panel • C) Radio bracket • D) Pioneer brackets • E) Panel clips (2) • F) Flat-head radio screws (8)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 10mm Socket wrench

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly

–ISO DDIN radio provision .................................4-5

–Pioneer modular DDIN radio provision ......... 6-7

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wire harness: 70-7903L, 70-7905

Antenna adapter: 40-HD10L

Steering wheel control:

Go to AXXESSINTERFACES.COM for options

A B C D

Mazda CX-3 2016-2020

Toyota Yaris 2019-2020

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

† Kit designed for “L” shaped aftermarket radio, with chassis at bottom

‡ Pioneer radios DMH-C2550NEX and DMH-C2500NEX

1.800.221.0932

MetraOnline.com

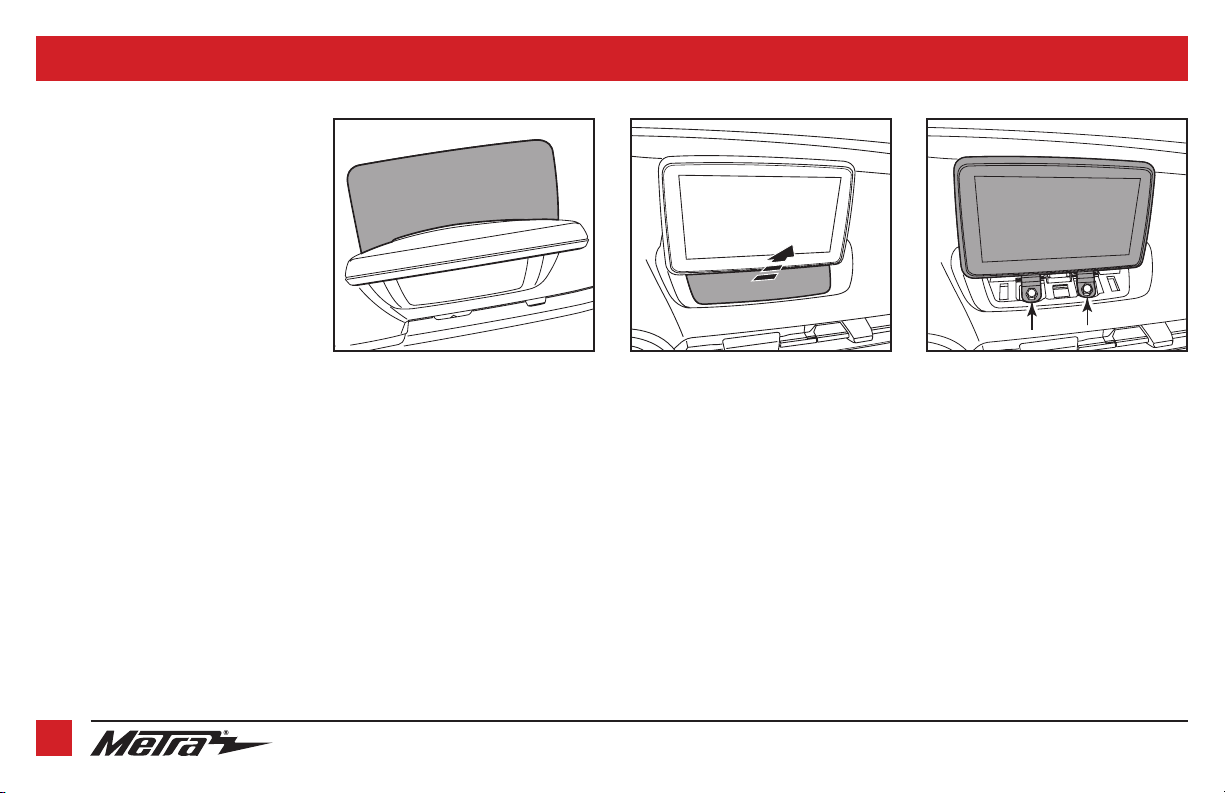

1. Unclip and remove the panel on the top

of the dash behind the radio display.

(Figure A)

2. Unclip and remove the panel on the top

of the dash in front of the radio display.

(Figure B)

3. Remove (2) 10mm bolts securing the

radio. Slide the radio out, then unplug

and remove. (Figure C)

Continue to Kit Preparation

DASH DISASSEMBLY

(Figure A) (Figure B) (Figure C)

REV. 9/17/2020 INST107-MZ1B 3

(Figure A)

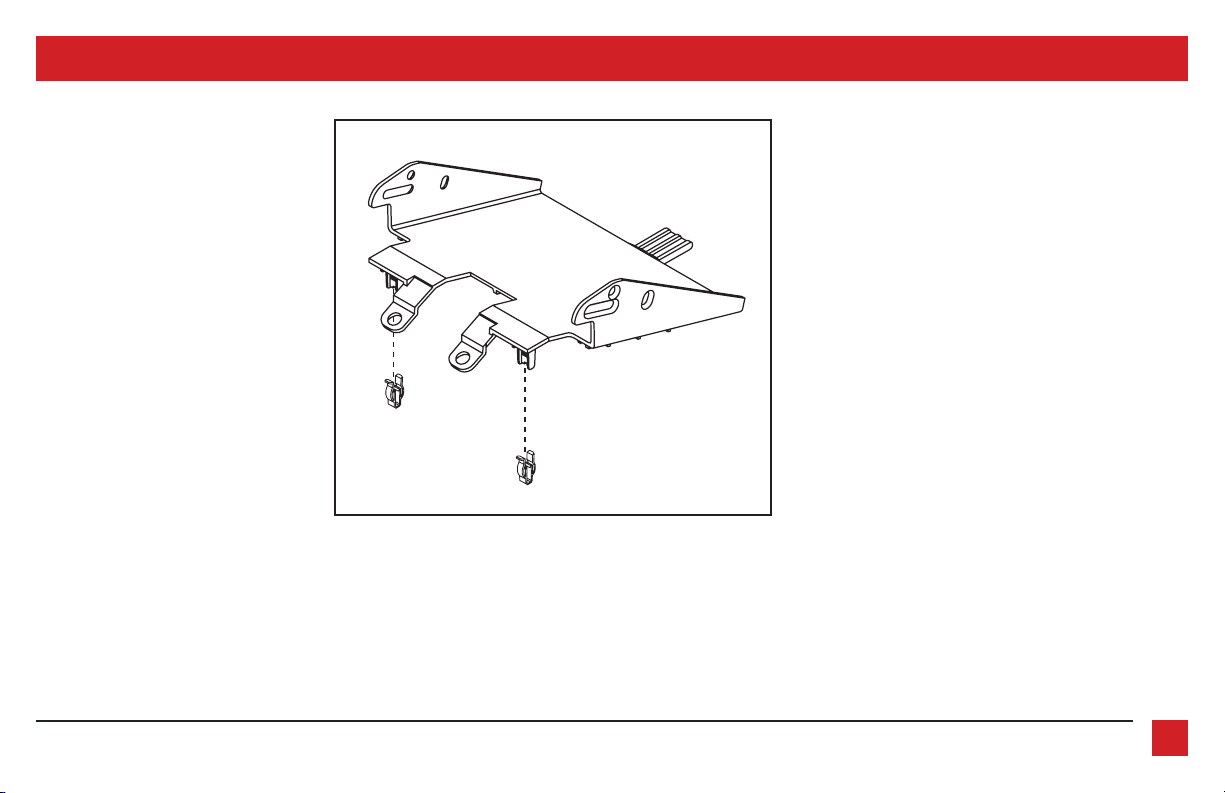

KIT PREPARATION

1. Attach (2) panel clips provided to the

radio bracket. (Figure A)

Continue to Kit Assembly

1.800.221.0932

MetraOnline.com

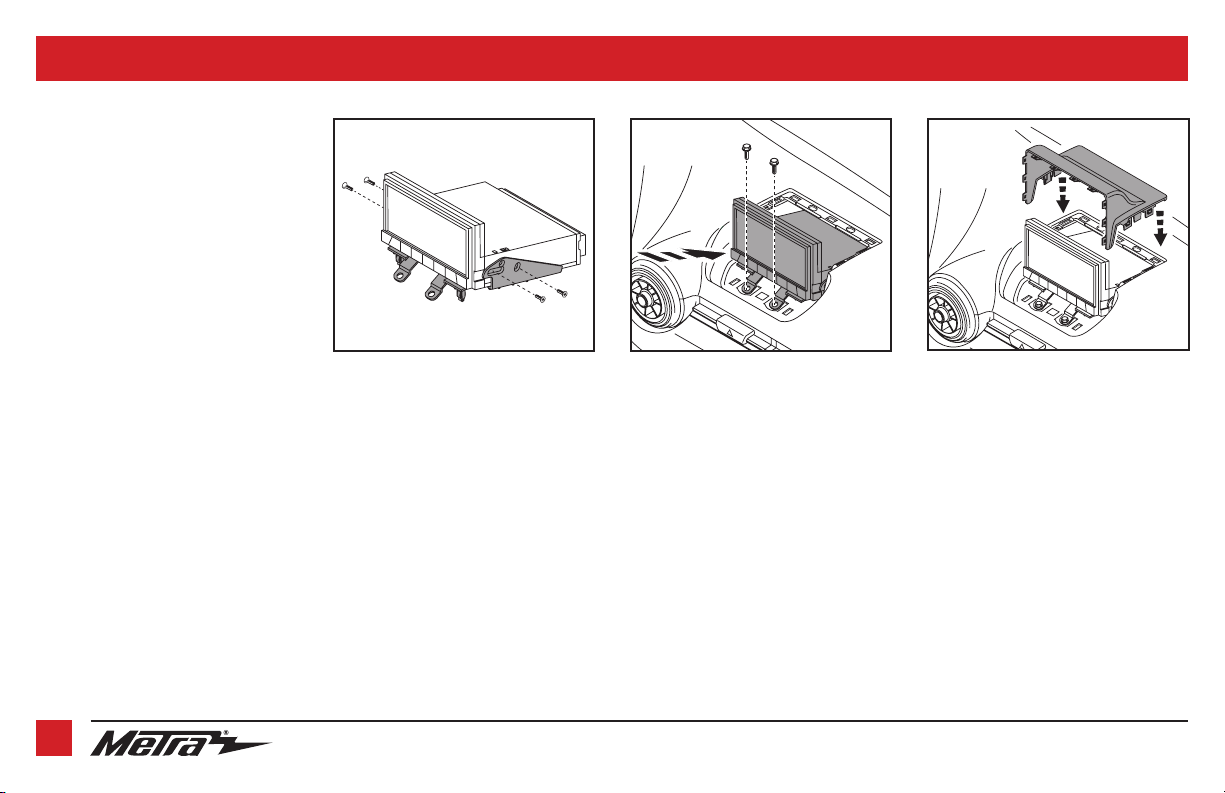

ISO DDIN radio provision

1. Secure the radio bracket to the radio using

screws supplied with the radio. (Figure A)

Note: Radio chassis screws must be ﬂush.

Screws are provided if needed.

2. Slide the radio bracket assembly into

the dash opening. The rear of the bracket

should go into the rear support slot in

the dash. (Figure B)

3. Secure at the front with the factory

hardware. (Figure B)

4. Clip the back panel over the radio.

(Figure C)

Continued on the next page

KIT ASSEMBLY

(Figure A) (Figure B) (Figure C)

REV. 9/17/2020 INST107-MZ1B 5

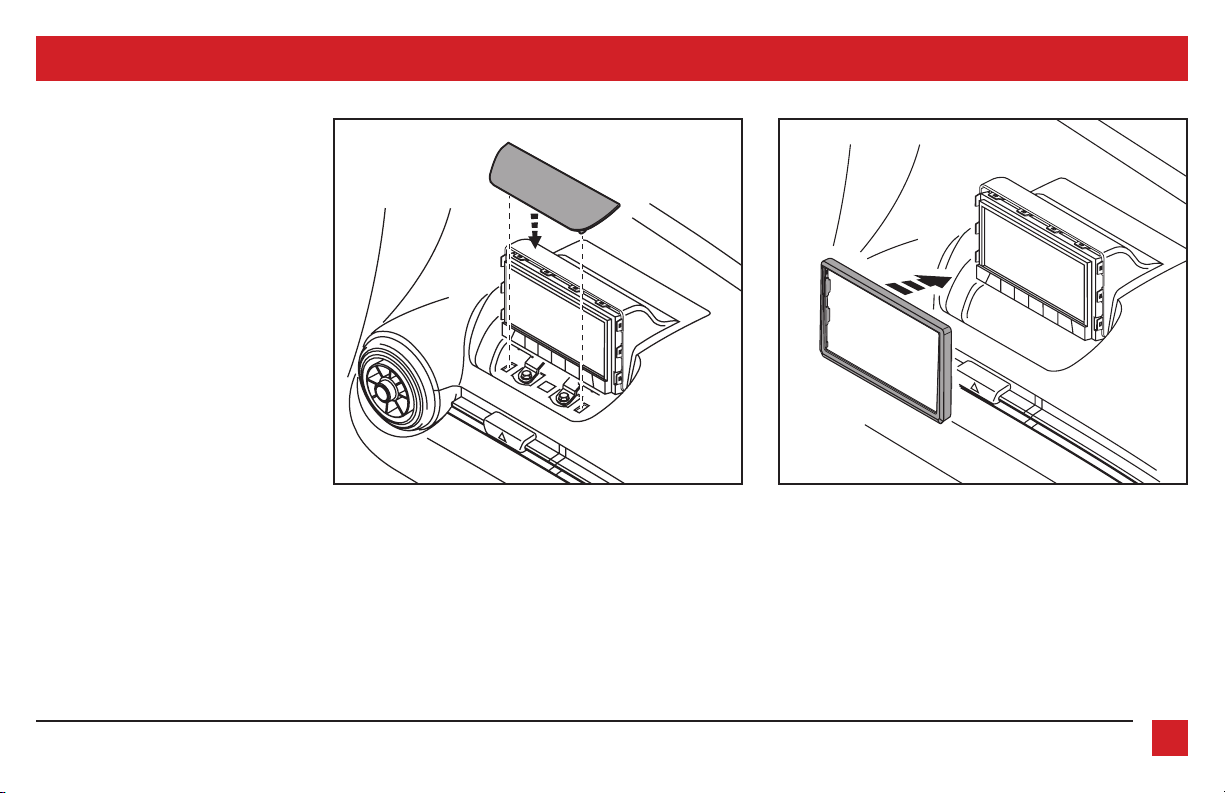

KIT ASSEMBLY (CONT.)

(Figure D) (Figure E)

5. Clip the panel in front of the radio to the

dash. (Figure D)

6. Clip the trim panel to the back panel over

the face of the radio. (Figure E)

1.800.221.0932

MetraOnline.com

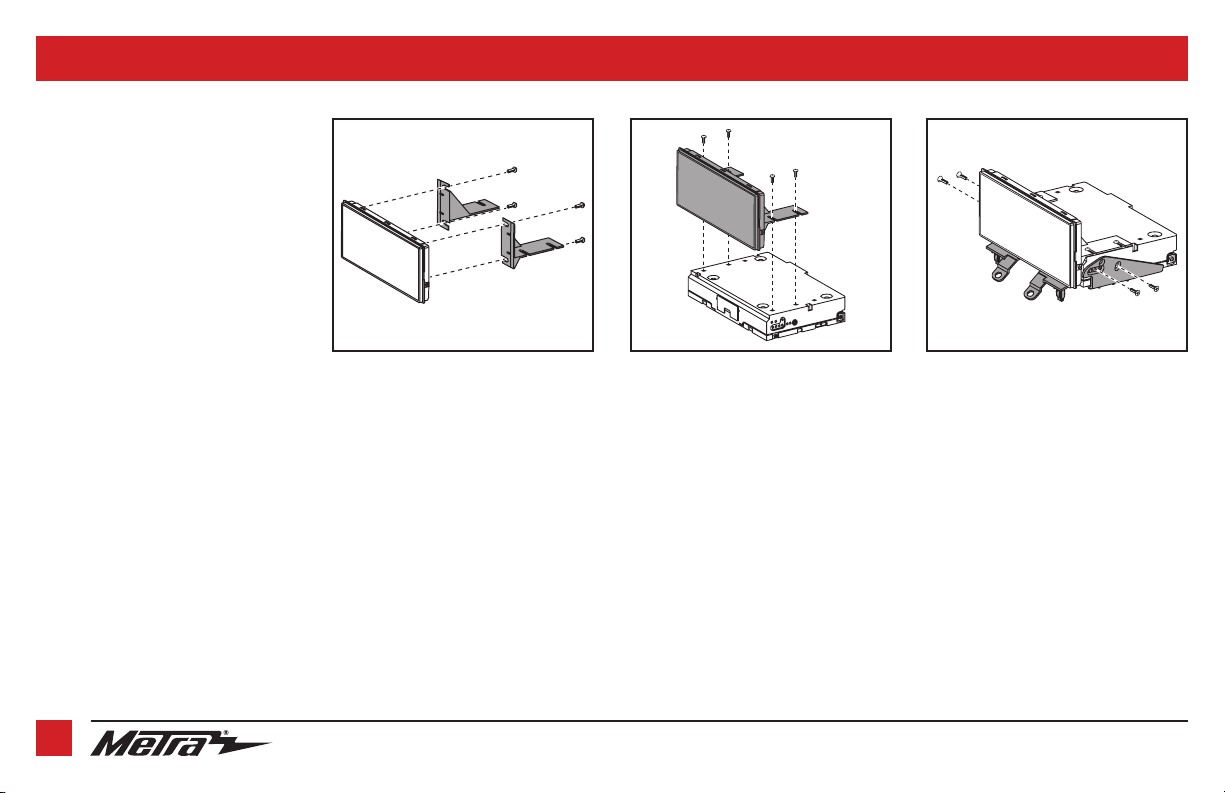

Pioneer Modular DDIN radio provision

Note: For step 1 reference the installation

manual provided with the radio for which

hardware to use. The display screen and radio

chassis use two different types of screws.

1. Secure the Pioneer chassis and display

screen to the Pioneer brackets using (8)

screws supplied with the radio.

(Figures A and B)

2. Connect the RGB extension cable to the

display and chassis.

3. Secure the radio bracket to the radio using

screws supplied with the radio. (Figure C)

Note: Radio chassis screws must be ﬂush.

Screws are provided if needed.

Continued on the next page

KIT ASSEMBLY

(Figure C)(Figure B)(Figure A)

REV. 9/17/2020 INST107-MZ1B 7

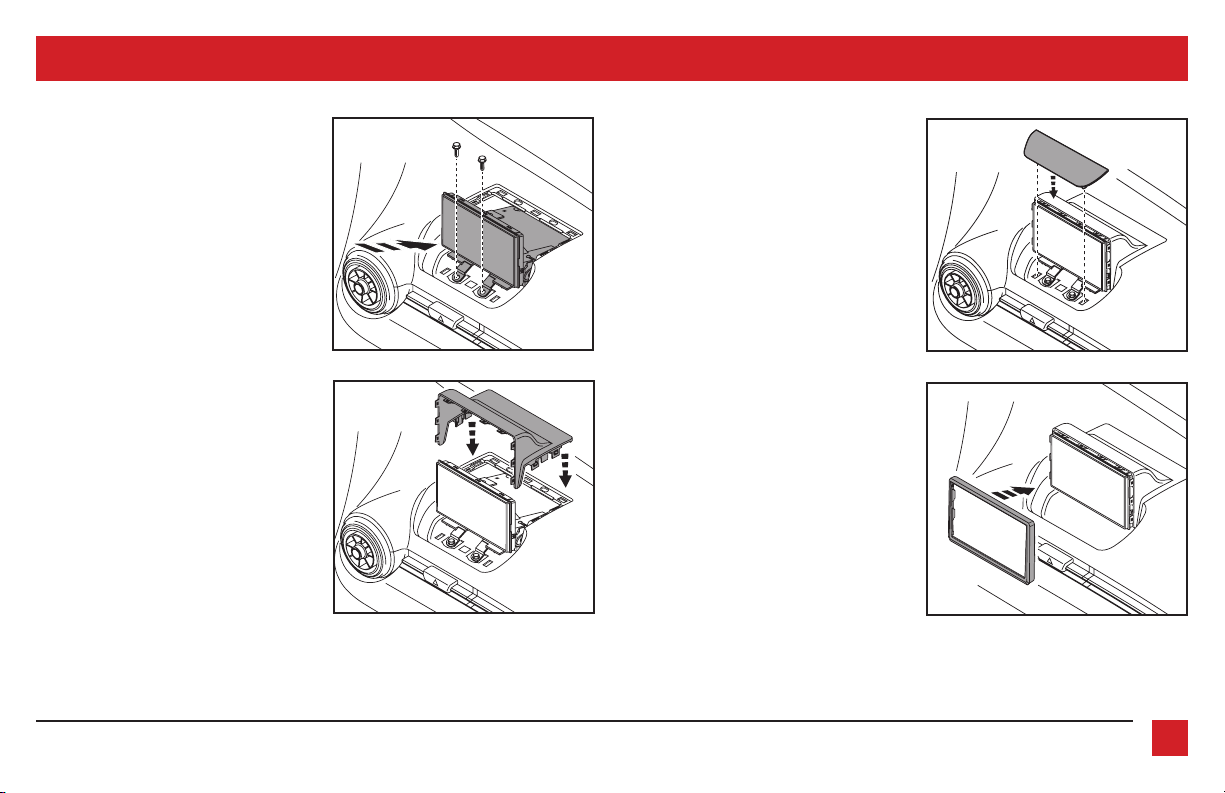

KIT ASSEMBLY (CONT.)

(Figure D) (Figure F)

(Figure E) (Figure G)

4. Slide the radio bracket assembly into the

dash opening. The rear of the bracket

should go into the rear support slot in

the dash. (Figure D)

5. Secure at the front with the factory

hardware. (Figure D)

6. Clip the back panel over the radio.

(Figure E)

7. Clip the panel in front of the radio to

the dash. (Figure F)

8. Clip the trim panel to the back panel over

the face of the radio. Clip the panel in front

of the radio to the dash. (Figure G)

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS

107-MZ1B

Having difﬁculties? We’re here to help.

Contact our Tech Support line at:

386-257-1187

Or via email at:

techsupport@metra-autosound.com

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM
