INSTALLATION INSTRUCTIONS FOR PART 99-7319

Phillips Screwdriver I Small Flat Blade Screwdriver

1-800-221-0932 www.metraonline.com

KIT FEATURES

•DIN Head Unit Provision

•ISO DIN Head Unit Provision

A) Radio Housing B) A/C Control Brackets C) ISO Brackets D) Trim plate

KIT COMPONENTS

TOOLS REQUIRED:

99-7319

APPLICATIONS

2004-2006 Kia Amanti

Dash Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1, 2

Kit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3, 4

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

TABLE OF CONTENTS

99-7319

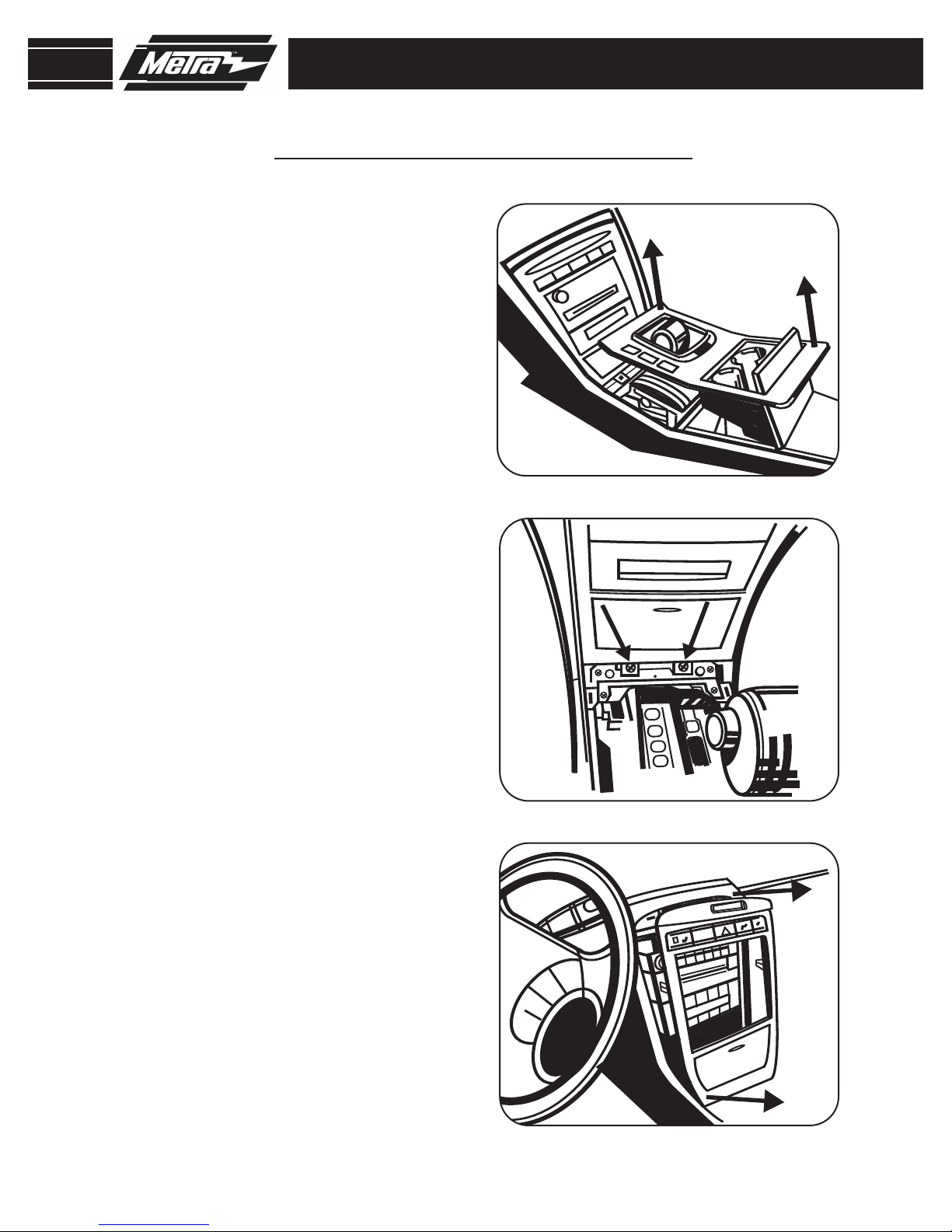

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove panel surround-

ing shifter including cup holders.

(Figure A)

Unclip and remove panel surround-

ing radio and a/c control.

(Figure C)

2004-2006 KIA AMANTI

Remove (2) Phillips screws at base

of panel surrounding radio and a/c

controls.

(Figure B)

DASH DISASSEMBLY

ESP

99-7319

DASH DISASSEMBLY

Remove (6) Phillips screws securing

radio and a/c control.

(Figure D)

Remove (4) Phillips screws securing

factory a/c control to bracket assem-

bly.

(Figure E)

2004-2006 KIA AMANTI

VOL

LOAD

2 Phillips screws on each side

99-7319

KIT ASSEMBLY

2004-2006 KIA AMANTI

Slide the DIN cage into the radio

housing and securebybending the

metal locking tabs down.

(Figure B)

Attach the corresponding a/c control

bracket to the factory a/c control

using the factory hardware.

(Figure A)

Slide the aftermarket head unit into

the cage and secure.

(Figure C)

DIN HEAD UNIT PROVISION

Note: The radio housing must be

installed first beforethe a/c control.

99-7319

KIT ASSEMBLY

2004-2006 KIA AMANTI

Mount the ISO bracket to the head

unit with screws supplied with the

unit.

(Figure B)

Slide the head unit into the radio

opening until the side clips engage.

(Figure C)

ISO DIN HEAD UNIT PROVISION

Snap the trim plate into the radio

housing.

(Figure C)

Attach the corresponding a/c control

bracket to the factory a/c control

using the factory hardware.

(Figure A)

Note: The radio housing must be

installed first beforethe a/c control.

99-7319

FINAL ASSEMBLY

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown.

(Isolate and individually tape off the ends of any unused wires to prevent

electrical short circuit.)

Re-connect the negative batteryterminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly

installing the radio housing first and then the a/c control.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Make wiring connections using the EIA color code chart shown belowand the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . Gray

Right Front (-). . . . . . Gray / Black

Left Front (+) . . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

99-7319 INSTRUCTIONS

1-800-221-0932 www.metraonline.com
