INSTALLATION INSTRUCTIONS FOR PART 99-7339

APPLICATIONS

HYUNDAI GENESIS COUPE 2.0

2010

KIT FEATURES

•ISO Head Unit Provision with Pocket

•Painted to match factory finish

99-7339B=Black 99-7339S=Silver

A) Trim Panel B) ISO Brackets C) Pocket D) (6) PC-7503 Panel Clips E) (4) 3/8” Phillips Screws

KIT COMPONENTS

TOOLS REQUIRED:

•Small Flat Blade Screwdriver • Phillips Screwdriver

•Panel Removal Tool • Socket Wrench

1-800-221-0932

www.metraonline.com

99-7339S

99-7339B

BCD

METRA. THE WORLD’S BEST KITS.™

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

•70-7303 - Kia/Hyundai Harness 2009 -up

Antenna Adapter:

•40-KI11 - Kia/Hyundai Antenna Adapter 2007-up

Dash Disassembly

-Hyundai Genesis Coupe 2010 . . . .

..........................

Kit Preparation

-Hyundai Genesis Coupe 2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Kit Assembly

-ISO DIN Head Unit Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TABLE OF CONTENTS

99-7339

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

Metra recommends MECP certified

technicians.

99-7339 DASH DISASSEMBLY

HYUNDAI GENESIS COUPE 2010

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove the shifter trim

panel. (

Figure A)

Unclip and remove the radio/climate

control trim panel.

(Figure B)

Unclip and remove the display trim

panel above radio.

(Figure C)

Remove (4) Phillips screws securing

the radio.

Remove (4) Phillips screws securing

the climate control to the factorytrim

panel.

99-7339 KIT PREPARATION

KIT PREPARATION

Continue to kit assembly

HYUNDAI GENESIS COUPE 2010

Attach the climate control to the 95-

7336S trim plate using the factory

hardware. (Figure A)

Attach the (6) panel clips to the 95-

7336S trim plate. (Figure B)

99-7339 KIT ASSEMBLY

Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

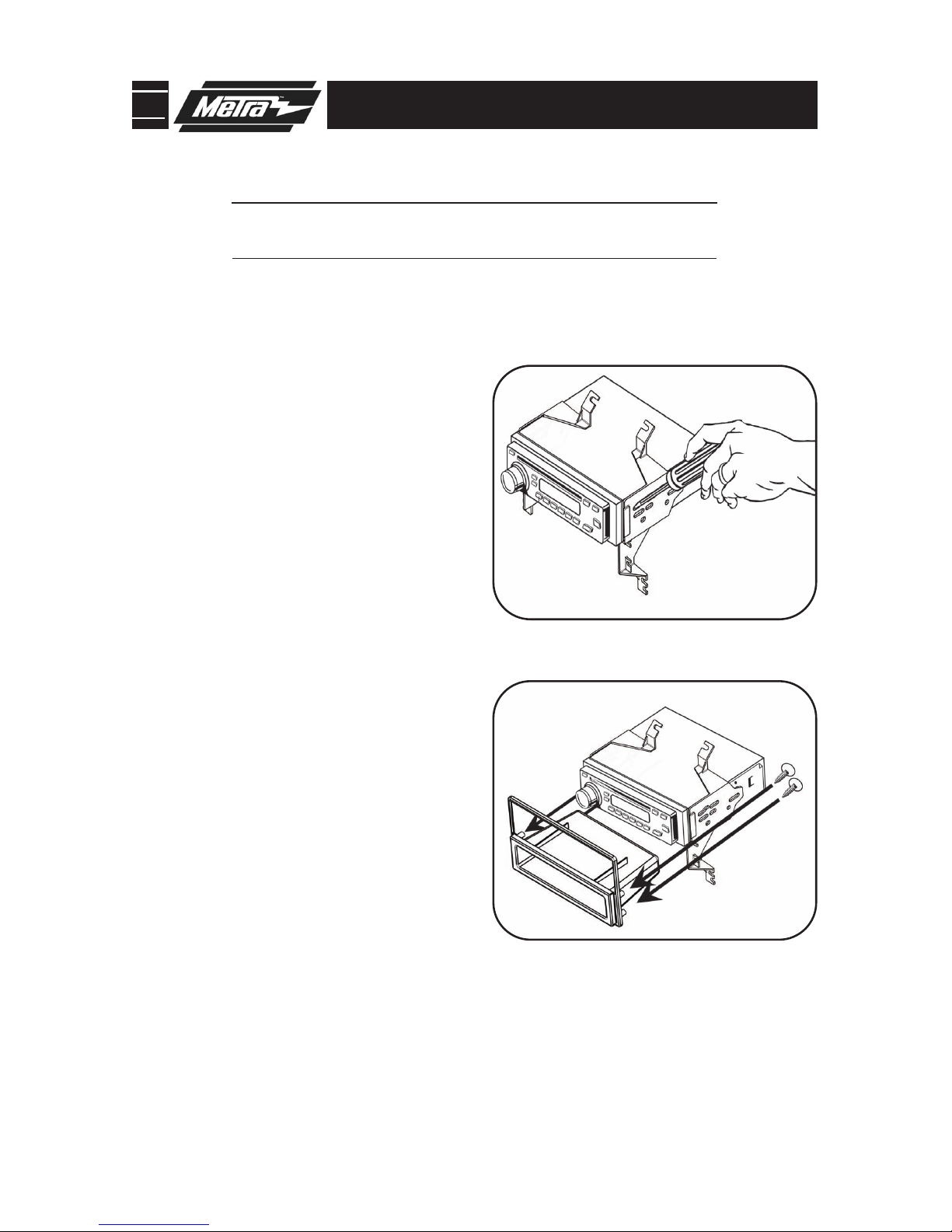

Attach the ISO brackets to the after-

market radio (figure A), then secure

the assembly to the pocket using the

(4) supplied Phillips screws (figure B).

Mount the assembly into the sub

dash.

Reassemble dash in reverse order of

disassembly using the 99-7339 trim

panel instead of the factory trim

panel.

HYUNDAI GENESIS COUPE 2010

ISO DIN HEAD UNIT PROVISION

NOTES

99-7339

NOTES

99-7339

306

INSTRUCTIONS

1-800-221-0932

www.metraonline.com

99-7339 INSTRUCTIONS

METRA. THE WORLD’S BEST KITS.™
