Metra Electronics 99-7410 Bedienungsanleitung

99-7410

INSTALLATION

INSTRUCTIONS

APPLICATIONS

CAR PAGE

NISSAN

200SX 1995-98........................................................1-3

Sentra 1995-99........................................................1-3

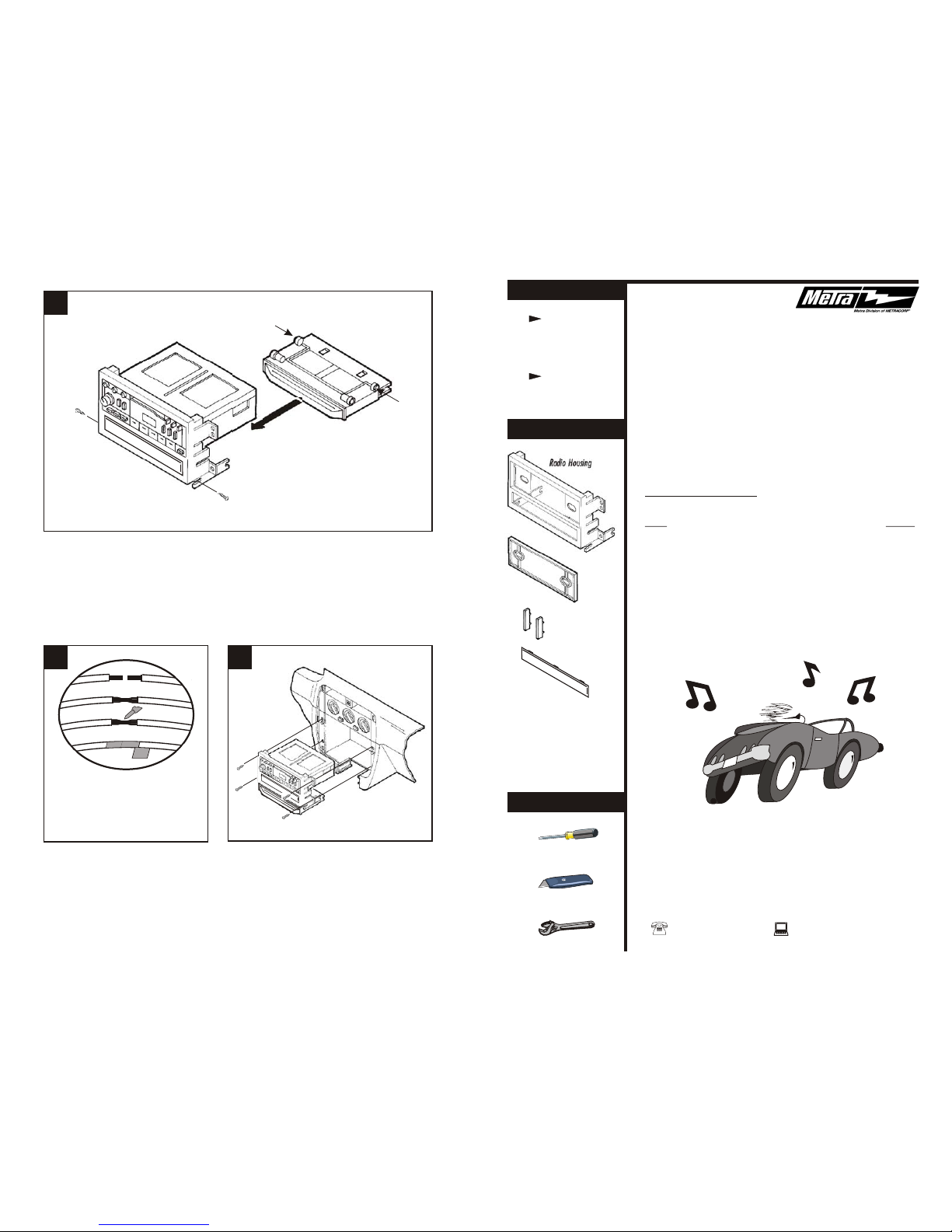

KIT COMPONENTS

TOOLS REQUIRED

Cutting tool

Adjustable wrench

Phillips screwdriver

Spacer

Snap Spacers

Equalizer

Dummy Plate

Radio Housing

KIT FEATURES

Shaft and

DIN unit

provisions

Equalizer

provisions

5 6

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

Re-connect the battery terminal and test the unit

for proper operation. Mount the head unit/kit

assembly to the sub-dash with (4) Phillips screws

previously removed in step #1.

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

"A"

"A" "B"

"B"

Mount the factory cupholder to the bottom of the Radio Housing with (2) Phillips screws

previously removed in step #1 ("A") and (2) locating pins ("B").

1-800-221-0932 www.metraonline.com

rev. 250701

Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip the

dummy plate from the center of the switch panel (above the radio opening). Unclip the radio

trim bezel and remove. Remove (4) Phillips screws securing the factory head unit and

disconnect the wiring. Remove (2) Phillips screws securing the factory cupholder and remove.

2-SHAFT HEAD UNITS: Attach the Spacer* to the Radio Housing. Slide the aftermarket

head unit into the mounted kit and secure with shaft nuts. (see Fig. A)

the metal locking tabs down. Slide the aftermarket head unit into the cage until secure. (see

Fig. A). For an intermediate-mount installation, cut and remove the shaft supports from the

Radio Housing. Attach the Snap Spacers to the inner walls of the radio opening. Slide the

DIN cage into the kit and secure by bending the metal locking tabs down. Slide the aftermarket

head unit into the cage until secure. (see Fig. B). For a flush-mount installation, cut and

remove the shaft supports from the Radio Housing. Slide the DIN cage into the kit and secure

by bending the metal locking tabs down. Slide the aftermarket head unit into the cage until

secure. (see Fig. C)

DIN HEAD UNITS: For a

surface-mount installation,

cut and remove the shaft

supports from the Spacer*

and Radio Housing. Place

the Spacer into the Housing.

Slide the DIN cage into the

kit and secure by bending

ALL VEHICLES

*OPTIONAL

Fig. A

IF AN EQUALIZER WILL BE INCLUDED: Slide the aftermarket equalizer into the back of the

Radio Housing. Using the hardware included with the equalizer, mount the unit to the kit.

(see Fig. A)

IF AN EQUALIZER WILL NOT BE INCLUDED: Snap the Equalizer Dummy Plate into the

Radio Housing. (see Fig. B)

*OPTIONAL

Fig. B

Fig. C

Fig. A

Fig. B
