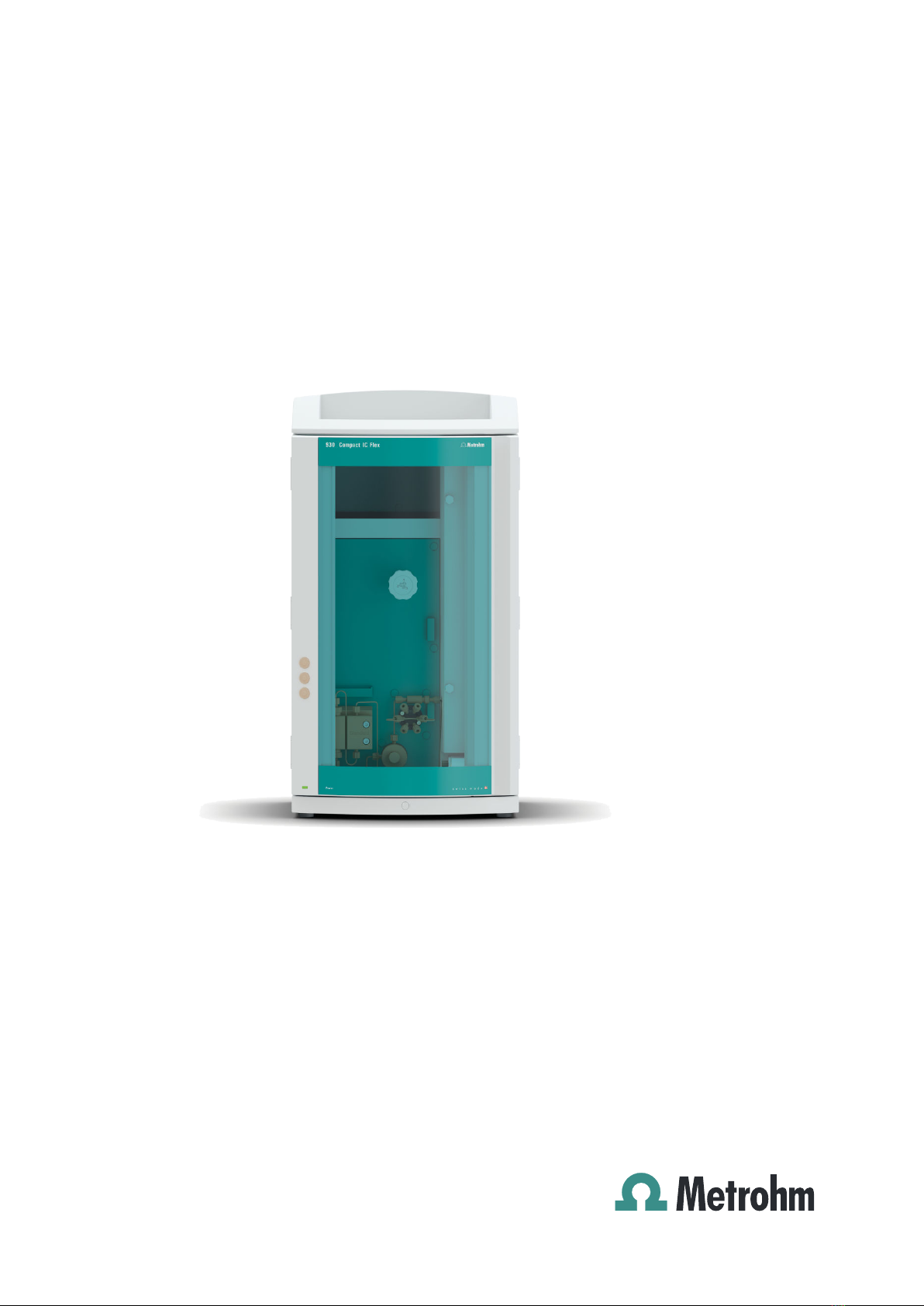

Metrohm 930 Compact IC Flex Oven/ChS Bedienungsanleitung

930 Compact IC Flex

930 Compact IC Flex Oven/ChS

Manual

8.930.8013EN / 2017-07-31

Metrohm AG

CH-9100 Herisau

Switzerland

Phone +41 71 353 85 85

Fax +41 71 353 89 01

[email protected]

www.metrohm.com

930 Compact IC Flex

930 Compact IC Flex Oven/ChS

2.930.2200

Manual

8.930.8013EN / 2017-07-31 zst

Technical Communication

Metrohm AG

CH-9100 Herisau

[email protected]

This documentation has been prepared with great care. However, errors

can never be entirely ruled out. Please send comments regarding possible

errors to the address above.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents

930 Compact IC Flex Oven/ChS (2.930.2200) ￭￭￭￭￭￭￭￭ III

Table of contents

1 Introduction 1

1.1 Instrument description ......................................................... 1

1.2 Intended use ......................................................................... 3

1.3 Safety instructions ................................................................ 3

1.3.1 General notes on safety ........................................................... 3

1.3.2 Electrical safety ........................................................................ 3

1.3.3 Tubing and capillary connections ............................................. 4

1.3.4 Flammable solvents and chemicals ........................................... 5

1.3.5 Recycling and disposal ............................................................. 5

1.4 Symbols and conventions .................................................... 5

2 Overview of the instrument 7

2.1 Front ...................................................................................... 7

2.2 Rear ........................................................................................ 8

2.3 Feed-throughs for capillaries and cables .......................... 10

3 Installation 13

3.1 Setting up the instrument .................................................. 13

3.1.1 Packaging .............................................................................. 13

3.1.2 Checks .................................................................................. 13

3.1.3 Location ................................................................................ 13

3.2 Capillary connections in the IC system ............................. 13

3.3 Removing transport locking screws .................................. 16

3.4 Connecting the drainage tubing and leak sensor ............ 17

3.4.1 Installing the drainage tubing ................................................ 17

3.4.2 Connecting the leak sensor .................................................... 19

3.5 Column oven ....................................................................... 19

3.6 Connecting the eluent bottle ............................................. 20

3.7 Installing the high-pressure pump .................................... 24

3.8 Installing an inline filter ..................................................... 25

3.9 Installing the pulsation absorber ...................................... 25

3.10 Injection valve ..................................................................... 26

3.11 Metrohm Suppressor Module (MSM) ............................... 28

3.11.1 Inserting the rotors ................................................................ 29

3.11.2 Connecting the Metrohm Suppressor Module (MSM) ............. 32

3.12 Installing the conductivity detector .................................. 36

Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

IV ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/ChS (2.930.2200)

3.13 Installing the amperometric detector ............................... 37

3.14 Connecting the instrument to a computer ....................... 38

3.15 Connecting the instrument to the power grid ................. 39

3.16 Initial start-up ..................................................................... 40

3.17 Connecting and rinsing the guard column ....................... 42

3.18 Connecting the separation column ................................... 44

3.19 Conditioning ........................................................................ 47

4 Operation 49

5 Operation and maintenance 50

5.1 IC system ............................................................................. 50

5.1.1 Operation .............................................................................. 50

5.1.2 Care ...................................................................................... 50

5.1.3 Maintenance by Metrohm Service .......................................... 50

5.1.4 Shutting down and recommissioning ..................................... 51

5.2 Capillary connections ......................................................... 52

5.3 Servicing the door .............................................................. 52

5.4 Column oven – Replacing the capillaries .......................... 52

5.5 Handling the eluent ............................................................ 54

5.5.1 Manufacturing eluent ............................................................ 54

5.5.2 Changing the eluent .............................................................. 55

5.6 Notes on operating the high-pressure pump ................... 55

5.7 Servicing the high-pressure pump .................................... 56

5.8 Servicing the inline filter .................................................... 69

5.9 Servicing the pulsation absorber ...................................... 72

5.10 Injection valve ..................................................................... 72

5.11 Metrohm Suppressor Module (MSM) ............................... 72

5.11.1 Notes for operating the Metrohm Suppressor Module

(MSM) ................................................................................... 72

5.11.2 Taking care of the suppressor housing ................................... 73

5.11.3 Servicing the Metrohm Suppressor Module (MSM) ................. 73

5.12 Servicing the detector ........................................................ 81

5.13 Rinsing the sample path .................................................... 81

5.14 Separation column ............................................................. 83

5.14.1 Separating efficiency .............................................................. 83

5.14.2 Protecting the separation column .......................................... 83

5.14.3 Storing the separation column ............................................... 83

5.14.4 Regenerating the separation column ...................................... 83

5.15 Quality management and qualification with Metrohm ... 84

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents

930 Compact IC Flex Oven/ChS (2.930.2200) ￭￭￭￭￭￭￭￭ V

6 Troubleshooting 85

6.1 ............................................................................................. 85

7 Technical specifications 89

7.1 Reference conditions .......................................................... 89

7.2 Instrument ........................................................................... 89

7.3 Ambient conditions ............................................................ 89

7.4 Housing ............................................................................... 90

7.5 Weight ................................................................................. 90

7.6 Leak sensor ......................................................................... 90

7.7 Column oven ....................................................................... 90

7.8 High-pressure pump ........................................................... 91

7.9 Injection valve ..................................................................... 92

7.10 Metrohm Suppressor Module (MSM) ............................... 92

7.11 Detector ............................................................................... 92

7.12 Power connection ............................................................... 92

7.13 Interfaces ............................................................................. 93

8 Accessories 94

Index 95

Table of figures ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

VI ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/ChS (2.930.2200)

Table of figures

Figure 1 Front ................................................................................................. 7

Figure 2 Rear .................................................................................................. 8

Figure 3 Feed-throughs on the door .............................................................. 10

Figure 4 Openings for capillaries and cables .................................................. 11

Figure 5 Ducts for capillaries ......................................................................... 12

Figure 6 Removing the transport locking screws ............................................ 16

Figure 7 Installing the eluent bottle cap ........................................................ 20

Figure 8 Installing tubing weighting and aspiration filter ................................ 22

Figure 9 High-pressure pump with purge valve .............................................. 24

Figure 10 Inline filter ....................................................................................... 25

Figure 11 Pulsation absorber ........................................................................... 26

Figure 12 Exchanging the sample loop ............................................................ 27

Figure 13 Metrohm Suppressor Module (MSM) – Connection capillaries .......... 32

Figure 14 Column oven .................................................................................. 53

Figure 15 High-pressure pump – Parts ............................................................. 56

Figure 16 High-pressure pump – Cross-section ................................................ 63

Figure 17 Tool for piston seal (6.2617.010) ..................................................... 64

Figure 18 Removing the piston cartridge from the pump head ........................ 64

Figure 19 Inserting the piston seal into the tool ............................................... 65

Figure 20 Parts of the piston cartridge ............................................................ 66

Figure 21 Inline filter – Removing the filter ...................................................... 70

Figure 22 Parts of the Metrohm Suppressor Module (MSM) ............................ 73

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction

930 Compact IC Flex Oven/ChS (2.930.2200) ￭￭￭￭￭￭￭￭ 1

1 Introduction

1.1 Instrument description

The 930 Compact IC Flex is a robust ion chromatograph. It is distinguished

by:

￭Its intelligence: All of the functions are monitored, optimized and docu-

mented in an FDA-compatible manner. Intelligent components, such as

iColumns, save important data onto a chip.

￭Its compact design: It has a small footprint.

￭Its transparency: All components are easily accessible and located for

simple visibility and can be monitored during operation through a large

window.

￭Its safety: The wet end and the electronics are physically separated,

thereby preventing fluids from coming into contact with the electronics

to a large extent. A leak sensor is integrated into the wet end.

￭Its environmental compatibility.

￭Its low noise emission.

￭The intelligent MagIC Net software.

The 930 Compact IC Flex is operated using the MagIC Net software. A

USB cable is used to connect the instrument to a computer with

MagIC Net installed. The intelligent software detects the instrument auto-

matically and checks its functionality. The software controls and monitors

the instrument, evaluates the measured data and manages it in a data-

base.

The 930 Compact IC Flex Oven/ChS consists of the following modules:

Housing

The sturdy housing contains the instrument's electronic components,

including their interfaces and one connector for a separation column. In

addition, the housing provides space for a conductivity detector or an

amperometric detector. Capillaries and cables can be fed into and out of

the instrument through several openings.

Leak sensor

The leak sensor detects leaking liquid that collects in the instrument's base

tray. Liquid that leaks in the instrument is routed to the base tray using

drainage tubing and detected there.

1.1 Instrument description ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

2￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/ChS (2.930.2200)

Column oven

The column oven regulates the temperature for the separation column

and the eluent, thereby providing stable measuring conditions. There is a

column holder with chip reader in the column oven.

High-pressure pump

The intelligent and low-pulsation high-pressure pump pumps the eluent

through the IC system. It is equipped with a chip where its technical speci-

fications and "life history" (operating hours, service data, etc.) are stored.

Inline filter

Inline filters protect the separation column reliably from potential contami-

nation from the eluent. The filter pads with 2 µm pore size can be

replaced quickly and easily. They remove particles from the solutions, such

as bacteria and algae.

Pulsation absorber

The pulsation absorber protects the separation column from damage

caused by pressure fluctuations, e.g. when the injection valve is switched,

and reduces interfering pulsations during highly sensitive measurements.

Injection valve

The injection valve connects the eluent path to the sample path. By a

quick and precise switching of the valve, a quantity of sample solution

defined by the size of the sample loop is injected and flushed to the sepa-

ration column with the eluent.

Metrohm Suppressor Module (MSM)

The chemical suppressor MSM consists of the suppressor drive, a rotor

and, where applicable, an adapter. The suppressor drive gives you the flex-

ibility to use different rotors according to the principle "one drive – many

rotors". Suppression rotors with different capacities and construction or a

rotor for sample preparation (SPM Rotor) are readily interchangeable with

appropriate adapters as needed. The rotors are not included in the instru-

ment's scope of delivery. The rotor required for the application and any

adapter that is required must be ordered separately.

Detector

Metrohm offers a series of different detectors for various analysis tasks. A

suitable detector type must be ordered as a separate device.

Separation column

The intelligent separation column separates different components accord-

ing to their interactions with the column. Metrohm separation columns

are equipped with a chip where their technical specifications and history

(start-up, operating hours, injections etc) are stored.

Inhaltsverzeichnis

Andere Metrohm Laborausrüstung Handbücher

Metrohm

Metrohm 888 Titrando Bedienungsanleitung

Metrohm

Metrohm 806 Bedienungsanleitung

Metrohm

Metrohm OMNIS 2.1006.0010 Bedienungsanleitung

Metrohm

Metrohm 902 Titrando Bedienungsanleitung

Metrohm

Metrohm 730 Bedienungsanleitung

Metrohm

Metrohm 736 GP Titrino Bedienungsanleitung

Metrohm

Metrohm 942 Extension Module Vario Prep 2 Bedienungsanleitung

Metrohm

Metrohm 762 IC Interface Bedienungsanleitung

Metrohm

Metrohm 761 SD Compact IC Bedienungsanleitung

Metrohm

Metrohm Combustion-IC-System Bedienungsanleitung

Metrohm

Metrohm 942 Extension Module Vario LQH Bedienungsanleitung

Metrohm

Metrohm Autosampler plus 919 IC Bedienungsanleitung

Metrohm

Metrohm 802 Stirrer Bedienungsanleitung

Metrohm

Metrohm 6.2841.120 Bedienungsanleitung

Metrohm

Metrohm 916 Ti-Touch Bedienungsanleitung

Metrohm

Metrohm OMNIS 6.03004.210 Bedienungsanleitung

Metrohm

Metrohm 869 Bedienungsanleitung

Metrohm

Metrohm 930 Compact IC Flex Oven/ChS/Deg Bedienungsanleitung

Metrohm

Metrohm 862 Bedienungsanleitung

Metrohm

Metrohm 892 Professional Rancimat Bedienungsanleitung

Metrohm

Metrohm 858 Bedienungsanleitung

Metrohm

Metrohm 774 Bedienungsanleitung

Metrohm

Metrohm 751 GPD Titrino Bedienungsanleitung

Metrohm

Metrohm Inline Ultrafiltration 2 Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung
