Metrologic MK1690-61A38 Bedienungsanleitung

Metrologic’s Focus is a high performance hand-

held area imager. This omnidirectional scanner

decodes all of today’s standard bar codes

including 1D, RSS, PDF417, microPDF,

EAN/UCC Composite, Matrix and Postal Codes

regardless of orientation. Where image capture is

concerned, Focus combines a high-resolution

CMOS sensor with an extremely powerful

processor to provide a wide array of outputs at

high rates of speed.

For years, Metrologic has been designing and

manufacturing fixed position industrial imaging

www.metrologic.com/MS1690

• FirstFlash®

• Omnidirectional scanning

• Linear illumination

• CodeSelectTM

• Illumination forward design

Increases productivity in all applications by scanning virtually all standard bar codes

Eliminates need to orientate device to a bar code

Facilitates laser-like menu scanning with an area imager

Scans up to 7 bar codes in a single flash and outputs data in any predetermined order

Ability to scan at contact, consistent scan performance throughout DOF, no dead zone

FFooccuuss™™pprroovviiddeessuusseerrsswwiitthhiinnccrreeaasseeddtthhrroouugghhppuutt

ffoorrvviirrttuuaallllyyaallll11DDaanndd22DDbbaarrccooddeerreeaaddiinngg

aapppplliiccaattiioonnss--iinncclluuddiinnggppoooorrllyypprriinntteeddoorr

ddaammaaggeeddbbaarrccooddeess--bbyyiinnccoorrppoorraattiinngghhiigghh

rreessoolluuttiioonniimmaaggiinngg,,FFiirrssttFFllaasshh®®ssccaannnniinngg

tteecchhnnoollooggyy,,aannddttrruueeccoonnttaaccttrreeaaddiinnggiinnttooaann

aaffffoorrddaabblleessoolluuttiioonn..

MS1690 FocusTM

systems that are used by some of the world’s

leading parcel handling companies, distribution

centers, and postal services. That core technology

combined with optical design expertise produced

the Focus, a hand-held device built to endure

today’s toughest work environments, packed with

the most complete set of features, ease of use,

and stylish, modern design.

Focus can be utilized in a variety of applications

such as; retail, healthcare, shipping/receiving and

supply chain management. Its laser like reading

of 1D codes and omni-directional reading of 2D

codes combined with a competitive price make it

the obvious solution to a broad array of applications.

With its arsenal of features, Focus is the all-in-

one scanner.

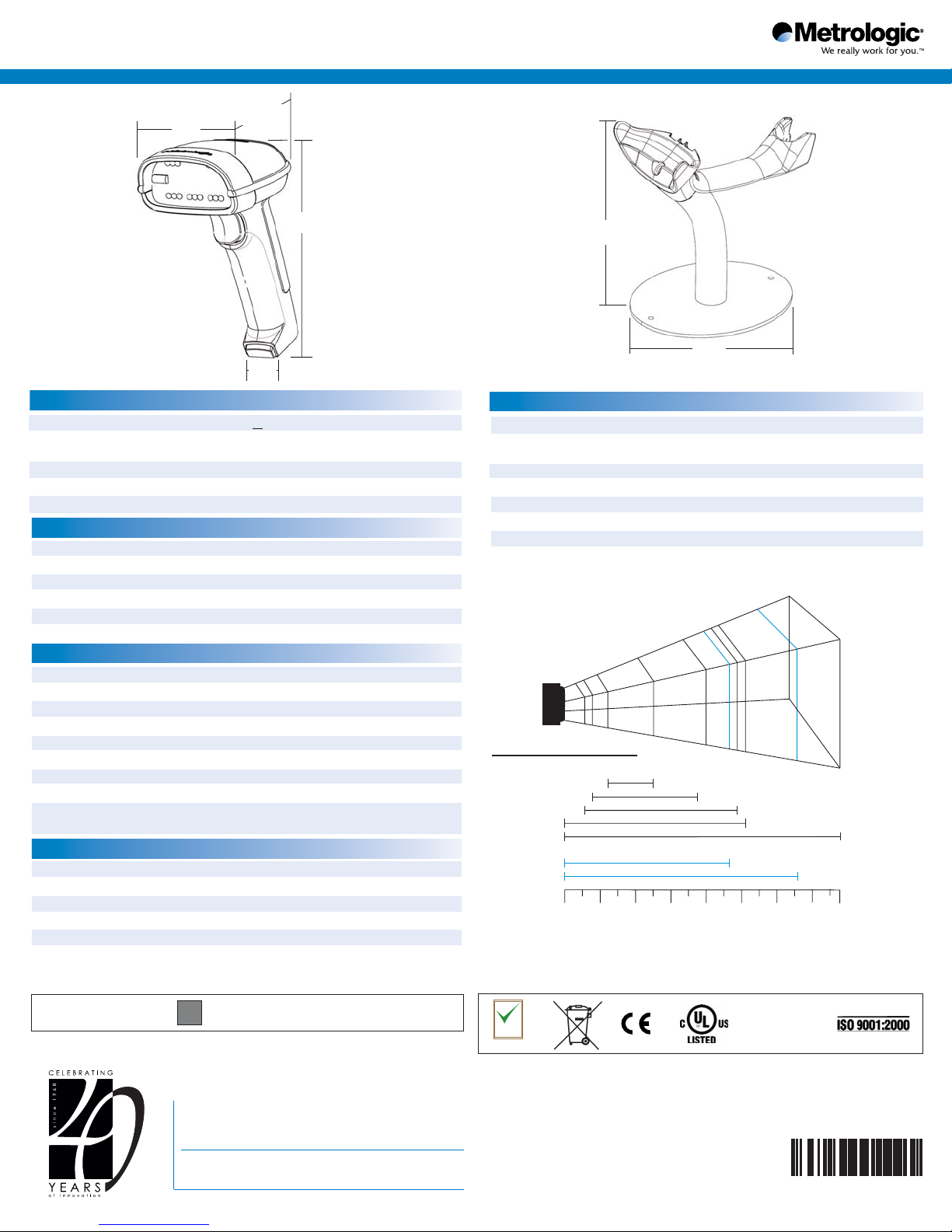

OPERATIONAL

MECHANICAL

ELECTRICAL

Height 183 mm (7.2”)

Depth 124.5 mm (4.9”)

Width Handle - 30 mm (1.2”); Head - 79 mm (3.1”)

Weight 225 g (8 oz)

Termination 10 pin modular RJ45

Cable Standard 2.7 m (9’) coiled; optional 2.1 m (7’) straight

SCAN PERFORMANCE

Light Source LED 645 nm + 7.5 nm

Decode Capability Autodiscriminates all standard 1-D, RSS, PDF417, microPDF, MaxiCode,

Data Matrix, QR Code, UCC, EAN Composites, Postals, Aztec

System Interfaces PC Keyboard Wedge, RS232, Stand Alone Keyboard, USB, IBM

Beeper Operation 7 tones or no beep

Indicators (LED) Blue=unit powered, ready to scan; White=good read; Yellow=in stand

MMSS11669900is available in a variety of other

colors with minimum quantity purchase

MS1690 FocusTTMM

Bar Code Minimum Element

0.132 mm (5.2 mil)

0.190 mm (7.5 mil)

0.264 mm (10.4 mil)

0.330 mm (13 mil)

0.533 mm (21 mil)

PDF

0.254 mm (10 mil)

0.381 mm (15.9 mil)

0 mm 100 mm 200 mm 300 mm

(0”) (4”) (8”) (12”)

Scan Area

30 mm

(1.2”)

79 mm

(3.1”)

124.5 mm

(4.9”)

183 mm

(7.2”) 182 mm

(7.16”)

145 mm

(5.70”)

DS1690

Input Voltage 5 V

Power - Operating 2 W (peak)

Power - Standby 800 mW

Current - Operating 400 mA (peak)

Current - Standby 160 mA

DC Transformers 5 V @ 650 mA

EMC FCC Class A, IEC60825-1 LED Safety

ESD Protection Functional after 100 15kV discharges

LED Class Class 1; IEC60825-1:1993/A1:1997+A2:2001

Class 1; EN60825-1:1994/A11:1996+A2:2001

ENVIRONMENTAL

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -40°C to 60°C (-40°F to 140°F)

Humidity 0% to 95% relative humidity, non-condensing

Light Levels Up to 100,000 Lux (9,290 footcandles)

Shock Designed to withstand 1.5 m (5’) drops

Contaminants Sealed to resist airborne particulate contaminants

Depth of Field (programmable) 0 mm - 254 mm (0” - 10”) for 0.33 mm (13 mil) bar codes

Field of View 49 mm W x 19 mm H (1.9” W x 0.8” H) @ 20 mm (0.8”);

264 mm W x 106 mm H (10.4” W x 4.2” H) @ 280 mm (11”)

Minimum element width, 1D 0.127 mm (5 mil)

Minimum element width, 2D 0.254 mm (10 mil)

Resolution 1280 x 512

Print Contrast 20% minimum reflectance difference

Pitch, Skew 75°, 75°

Product Colors Available

RoHS

2002/95/EC

SSuunnrriissee22000055

CCoommpplliiaanntt

Revision: All

AAssiiaannHHeeaaddqquuaarrtteerrssEEuurrooppeeaannHHeeaaddqquuaarrtteerrssTThheeAAmmeerriiccaassHHeeaaddqquuaarrtteerrss

Tel. 65.6842.7155 Tel. 49.89.89019.0 Tel. 1.800.ID.METRO

[email protected] [email protected] [email protected]

Metrologic Instruments, Inc. |WWoorrllddwwiiddeeHHeeaaddqquuaarrtteerrss

90 Coles Road |Blackwood, NJ 08012-4683 |[email protected]

Telephone 856-228-8100 |Fax 856-228-6673 | www.metrologic.com

DDaarrkkGGrreeyy
