Metrologic MS 1690 Focus Series Bedienungsanleitung
METROLOGIC INSTRUMENTS, INC.
MS1690 Focus™
Area Imaging Bar Code Scanner
Installation and User’s Guide
00-02098_Cover_Quark_March_2005.qxd 3/11/2005 9:31 AM Page 1
Copyright
© 2005 by Metrologic Instruments, Inc. All rights reserved. No part of this
work may be reproduced, transmitted, or stored in any form or by any means
without prior written consent, except by reviewer, who may quote brief
passages in a review, or provided for in the Copyright Act of 1976.
Products and brand names mentioned in this document are trademarks of
their respective companies.
ii
TABLE OF CONTENTS
Introduction ............................................................................................................1
Scanner and Accessories ..................................................................................2
Scanner Components ........................................................................................4
The PowerLink Cable ........................................................................................5
Labels ................................................................................................................6
Maintenance ......................................................................................................6
Installing the Scanner to the Host System
RS232 MS1690-14 ............................................................................................7
Keyboard Wedge MS1690-47 ...........................................................................8
Stand Alone Keyboard MS1690-47 ...................................................................9
IBM MS1690-11...............................................................................................10
Full Speed USB MS1690-40 (Integrated)........................................................11
Low Speed USB MS1690-38 (Integrated) .......................................................11
Stand Kits
Stand Components, MLPN 46-00147..............................................................12
Hard Mounting the Stand.................................................................................13
Assembling the Stand......................................................................................14
Scanner Operation
Two Default Modes of Operation.....................................................................15
Audible Indicators ............................................................................................16
Visual Indicators ..............................................................................................17
Failure Modes ..................................................................................................18
Depth of Field by Minimum Bar Code Element Width .....................................19
IR Activation Range .........................................................................................20
Troubleshooting Guide ........................................................................................21
Design Specifications ..........................................................................................25
Applications and Protocols ..................................................................................27
Default Settings – Communication Parameters...................................................28
Configuration Modes............................................................................................32
Upgrading the Flash ROM Firmware ...................................................................33
iii
TABLE OF CONTENTS
Scanner and Cable Terminations
Scanner Pinout Connections .......................................................................... 34
Cable Connector Configurations .................................................................... 36
Limited Warranty ................................................................................................ 38
Product Safety
Notices ........................................................................................................... 39
Cautions ......................................................................................................... 40
Patents ............................................................................................................... 41
Index .................................................................................................................. 42
Contact Information and Office Locations........................................................... 45
1
INTRODUCTION
The MS1690 Focus is a high performance hand-held area imaging bar code
scanner that utilizes high-resolution CMOS imaging sensors for superior image
quality. Focus utilized Omniplanar, Inc.’s Swiftdecoder™ software, for reliable
decoding of both 1D and 2D bar code symbologies. Sharp images can be
captured and transmitted in a variety of outputs including: .jpg, .bmp, and .tiff.
Omnidirectional scanning capabilities and an extended depth of field width
provides aggressive scanning of all standard 1D, RSS, PDF417, microPDF,
Composite, Matrix and Postal Codes symbology types. Firmware updates are
easily loaded via Flash ROM.
Focus provides an extended depth of field width and a built in object detection
sensor (IR) that instantly turns on the scanner when an object is presented within
the scanner’s field of view. Automatic in-stand detection switches the scanner to
a “presentation” mode for convenient in-stand scanning. Focus incorporates
Metrologic’s patented CodeGate®technology for accurate menu style scanning
and on command data transmission.
Focus™Interface
MS1690 – 11 IBM 468X/469X, RS232-TXD, RXD, RTS, CTS
MS1690 – 14 RS232 (TX, RX, RTS, CTS, DTR)
MS1690 – 38 Low Speed USB
MS1690 – 40 Full Speed USB
MS1690 – 47 Keyboard Wedge, Stand-Alone Keyboard and
RS232 Transmit/Receive
2
INTRODUCTION
Scanner and Accessories
BASIC KIT
Part # Description
MS1690 Focus Area Imaging Bar Code Scanner
00-02544 MetroSelect®Single-Line Configuration Guide*
00-02065 Supplemental Configuration Guide*
00-02098 MS1690 Focus Area Imaging Bar Code Scanner
Installation and User’s Guide*
* Available on the Metrologic website - www.metrologic.com
OPTIONAL ACCESSORIES
Part # Description
AC to DC Power Transformer - Regulated 5.2VDC @ 650 mA output.
45-45593 120V United States
45-45591 220V-240V Continental European
45-45592 220V-240V United Kingdom
46-46803 220V-240V Australia
46-46983 220V-240V China
53-53000-3 RS232 PowerLink Cable with Built in Power Jack
2.7 m (9 ft.) coiled cord, long strain relief, black
53-53002-3 Keyboard Wedge PowerLink Cable with Adapter Cable
2.7 m (9 ft.) coiled cord, long strain relief, black
53-53020-3 Stand Alone Keyboard PowerLink Cable
2.7 m (9 ft.) coiled cord, long strain relief, black
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s Customer Service Department at
1-800-ID-METRO or 1-800-436-3876.
3
INTRODUCTION
Scanner and Accessories
OPTIONAL ACCESSORIES
Part # Description
53-53213x-N-3 USB Power/Communication Cable,
2.7 m (9 ft.) coiled cord, long strain relief, black
53-53214x-N-3
USB Power/Communication Cable,
4.5 m (15 ft.) coiled cord, long strain relief, black
This cable is for use with full speed
USB (-40) interface only.
53-53235x-N-3 Low Speed USB Non-Locking Communication Cable
2.7 m (9 ft.) coiled cord, long strain relief, black
MVC-2MPC-IB9 Metrologic Voltage Converter (MVC) Cable*
±12VDC to +5.2VDC
* Contact a Metrologic customer service representative for additional
information on the MVC cable series and the host connections available.
00-02001 MS1690 Focus Stand (46-00147) Installation Guide
46-00147 Modular Presentation Stand
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s Customer Service Department at
1-800-ID-METRO or 1-800-436-3876.
4
INTRODUCTION
Scanner Components
Figure 1. Scanner Components
Item Description
1 Yellow LED See Visual Indicators (on page 17)
2 White LED See Visual Indicators (on page 17)
3 Blue LED See Visual Indicators (on page 17)
4 Speaker See Audible Indicators (on page 16)
5 Trigger
6 Red Window LED Aperture
7 Cable Release See The PowerLink Cable (on page 5)
8 Cable Connection 10-pin RJ45, Female Socket,
See Scanner Pinout Connections (on page 34)
5
INTRODUCTION

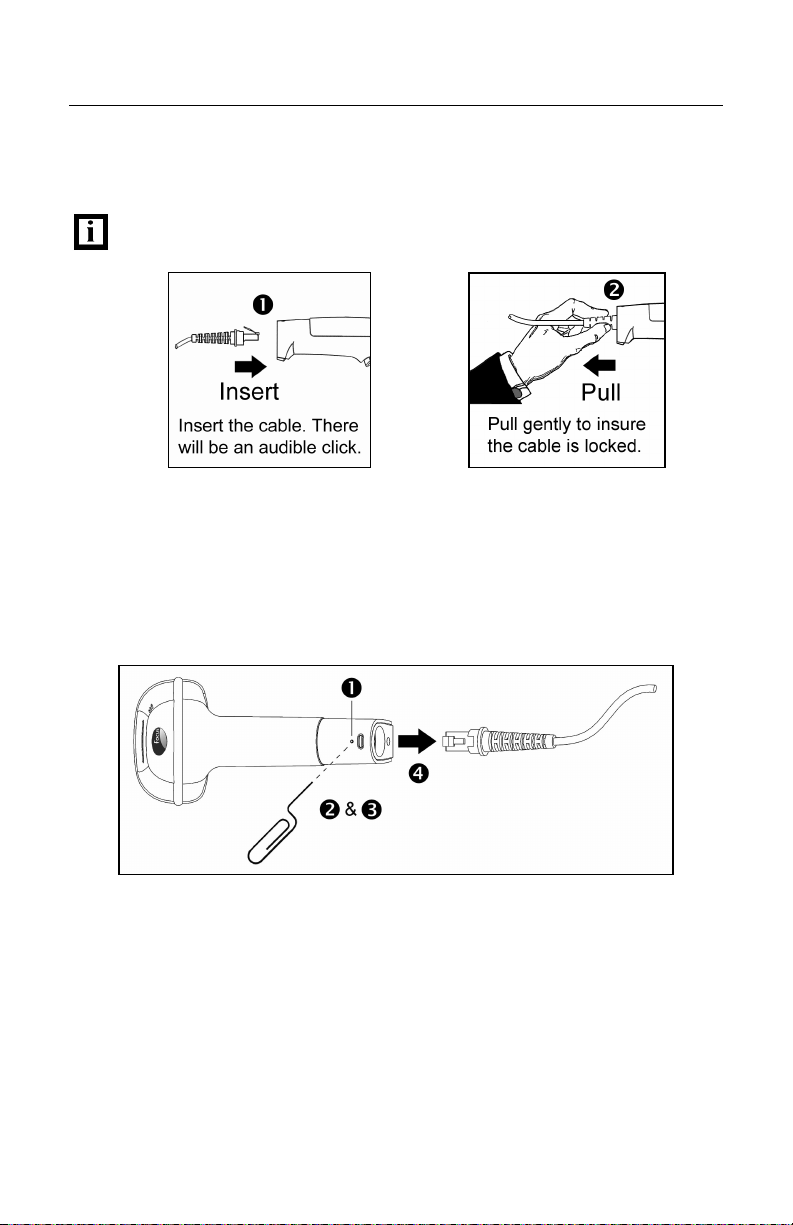

THE POWERLINK CABLE
CONNECTING
Important: If the PowerLink cable is not fully ‘latched’ the unit can
power intermittently.
Figure 2. Figure 3.
DISCONNECTING
Before removing the cable from the scanner, Metrologic recommends that the
power on the host system is off and the power supply has been disconnected
from the PowerLink cable.
Figure 4. Releasing the PowerLink Cable
1. Locate the small ‘pin-hole’ on the handle of the unit near the cable.
2. Bend an ordinary paperclip into the shape shown above.
3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.
4. You will here a faint ‘click’. Pull gently on the strain-relief of the
PowerLink cable to remove the cable from the unit.
6
INTRODUCTION
Labels
Each scanner has a label located on the underside of the head. This label
provides the unit’s model number, date of manufacture, serial number, CE and
caution information. The following figure gives an example of the label and its
location.
Figure 5. Label Samples and Location
Maintenance
Smudges and dirt can interfere with the proper scanning of a bar code.
Therefore, the output window will need occasional cleaning.
1. Spray glass cleaner onto lint free, non-abrasive cleaning cloth.
2. Gently wipe the scanner window.
