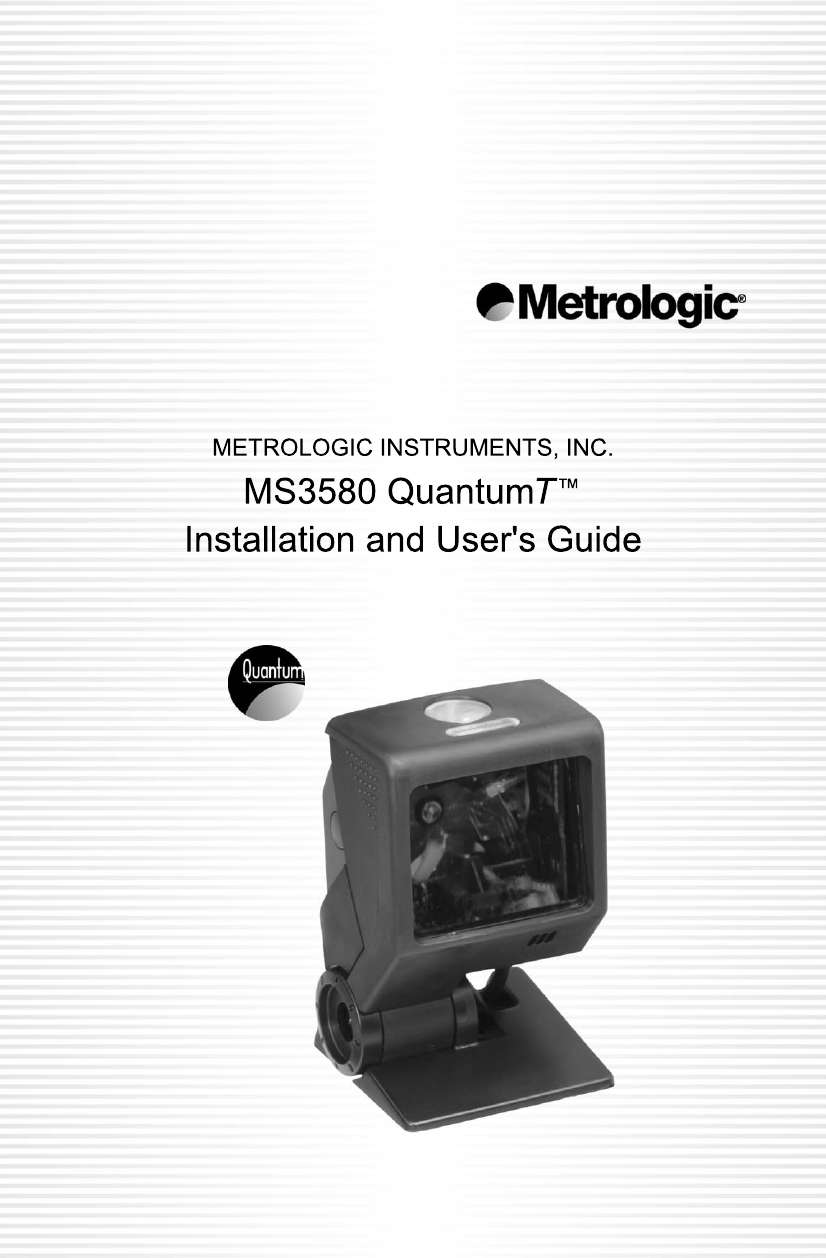

Metrologic QuantumT MS3580 Bedienungsanleitung

METROLOGIC INSTRUMENTS, INC.

MS3580 QuantumT™

Installation and User's Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of

their respective companies.

TABLE OF CONTENTS

Introduction

Product Overview ............................................................................................. 1

Scanner and Accessories................................................................................. 2

Scanner Components....................................................................................... 4

Caution and Serial Number Labels................................................................... 5

Cable Removal................................................................................................. 5

Maintenance..................................................................................................... 5

Mounting Specifications and Stand Assembly.................................................. 6

Installation

RS232, RS232 TTL, Light Pen or Laser Emulation .......................................... 8

IBM 46xx or OCIA ............................................................................................ 9

Keyboard Wedge............................................................................................ 10

Stand-Alone Keyboard Wedge....................................................................... 11

Full Speed or Low Speed USB (Integrated) ................................................... 12

Scanner Operation

Configurable Primary and Secondary Scan Pattern Modes ........................... 13

Configurable Button Functions ....................................................................... 13

Indicators

Audible ....................................................................................................... 19

Visual ......................................................................................................... 20

Failure ........................................................................................................ 21

Depth of Field Specifications

Normal Scan Zone ..................................................................................... 22

Reduced Scan Zone................................................................................... 23

Depth of Field by Bar Code Element Width

Normal Scan Zone ..................................................................................... 24

Reduced Scan Zone................................................................................... 25

IR Activation Range

Normal........................................................................................................ 26

Reduced..................................................................................................... 26

iii

TABLE OF CONTENTS

Troubleshooting Guide ....................................................................................... 27

Design Specifications ......................................................................................... 31

Applications and Protocols ................................................................................. 33

Default Settings - Communication Parameters................................................... 34

Upgrading the Flash ROM Firmware.................................................................. 39

Scanner and Cable Terminations ....................................................................... 40

Scanner Pinout Connections .......................................................................... 40

Cable Connector Configurations (Host End) .................................................. 42

Laser and Product Safety................................................................................... 44

Limited Warranty ................................................................................................ 46

Patents ............................................................................................................... 47

Index .................................................................................................................. 48

Contact Information and Office Locations........................................................... 50

INTRODUCTION

The QuantumT™is a hands-free, omnidirectional bar code scanner with optional

single-line scanning capabilities. It utilizes the powerful Metrologic QuantumE™

scan engine to provide an outstanding scan performance on all standard 1D

barcode symbologies, including RSS. This fully enclosed scanner includes large

easily visible LEDs and a rugged protective boot with an adjustable stand. The

QuantumTcan be mounted to a countertop, wall or be left free standing for

handheld scanning.

Key Product Features

•Fully Automatic Scanning Operation

•Single-Line Mode for Menu Reading

•Custom Configurable Scan Pattern

•User-Replaceable Single Cable Interface to Host (PowerLink Compatible)

•Decoding of All Standard 1D, RSS-14, RSS Limited and Expanded RSS

Bar Codes

•7 Beeper Tones

•Configurable Depth of Field

•Flash - Upgradeable Firmware

•OPOS and JPOS System Compatible

•CodeGate®

•Sunrise 2005 Compliant

QUANTUMTINTERFACE

MS3580-9 OCIA and RS232 Transmit/Receive

MS3580-11 IBM 46xx and Full RS232

MS3580-38 RS232 Low Speed USB,

Keyboard Emulation Mode or Serial Emulation Mode*

MS3580-40 Full Speed USB

MS3580-41 RS232/Light Pen Emulation

MS3580-47 Keyboard Wedge, Stand-Alone Keyboard and

RS232 Transmit/Receive

MS3580-104 RS232 TTL, Laser Emulation

* Configurable for Keyboard Emulation Mode or Serial Emulation Mode.

Default setting is Keyboard Emulation Mode.

INTRODUCTION

Scanner and Accessories

BASIC KIT COMPONENTS

Part No. Description

MS3580 QuantumTOmni \ Single-Line Scanner

00-02026 QuantumTOmni \ Single-Line Scanner

Installation and User’s Guide *

00-02407 MetroSelect®Configuration Guide *

* Guides also available for download at www.metrologic.com.

OPTIONAL ACCESSORIES

Part No. Description

AC to DC Power Transformer - Regulated 5.2VDC @ 650 mA output.

45-45593 120V United States and Canada

45-45591 220V-240V Continental European

45-45592 220V-240V United Kingdom

46-46803 220V-240V Australia

46-46983 220V-240V China

54-54000x -3 RS232 PowerLink Cable with Built in Power Jack

2.1 m (7 ft.) straight cord, short strain relief

MVC** Metrologic Voltage Converter Cable ±12VDC to +5.2VDC

** Contact a Metrologic customer service representative for additional

information on the MVC cable series and the host connections available.

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s customer service department at

1-800-436-3876.

INTRODUCTION

Scanner and Accessories

OPTIONAL ACCESSORIES

Part No. Description

54-54002x-3 Keyboard Wedge PowerLink Cable

2.1 m (7 ft.) straight cord, short strain relief

54-54020x-3 Stand Alone Keyboard PowerLink Cable

2.1 m (7 ft.) straight cord, short strain relief

54-54213x-N-3 USB Full Speed Cable, Locking Plus-Power™Type A

3 m (10 ft.) straight cord, short strain relief

54-54214x-N-3

USB Full Speed Cable, Locking Plus-Power™ Type A

5 m (17 ft.) straight cord, short strain relief

This cable is for use with full speed

USB (-40) interface only.

54-54235x-N-3 USB Low Speed Communication Cable, Type A

2.8 m (9.2 ft.) straight cord, short strain relief

54-54249x-N-3 Communication Cable, Host End Not Terminated

203 mm (8") straight cord, short strain relief

46-00288 Flex Stand (3")

46-00289 Flex Stand (6")

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s customer service department at

1-800-436-3876.

INTRODUCTION

Scanner Components

Figure 1. Scanner Components

ITEM NO. DESCRIPTION

1 Red Output Window (Laser Aperture)

2 Pin Hole for Cable Release

3 10-Pin RJ45, Female Socket

4 Speaker

5 Blue and White LED Indicators

6 Button

Protective Boot and Stand Connection

Never remove the protective boot from the MS3580.

Removing the protective boot will expose electrical

components of the scanner that are highly susceptible to

electrostatic discharge (ESD).

Pedestal Stand

The type of stand provided is dependent on the specific

MS3540 kit purchased.

INTRODUCTION

Caution and Serial Number Labels

Figure 2.

Cable Removal

1. Locate the small ‘pin-hole’ on the side of

the QuantumTnear the cable.

2. Bend an ordinary paperclip into the shape

shown.

3. Insert the paperclip (or other small metallic

pin) into the small ‘pin-hole’.

4. You will hear a faint ‘click’ when the cable

lock is released. Pull gently on the strain-

relief of the PowerLink cable to remove it

from the scanner.

Figure 3.

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code.

Therefore, the output window will need occasional cleaning.

1. Spray glass cleaner onto a lint free, non-abrasive cleaning cloth.

2. Gently wipe the scanner window.

INTRODUCTION

Mounting Specifications and Stand Assembly

Pedestal Stand

Figure 4. Pedestal Stand Assembly

Optional Flex Stand

Figure 5. Assembly Components for Optional Flex Stand

Item Description Qty. Item Description Qty

1 MS3580, QuantumT1 6 Flexible Shaft* 1

2 Pivot Cylinder 1 7 Base Plate Cover 1

3 Bearing Plate 1 8 #8 x 1.00" Wood Screw 4

4 Pole Mount Adapter 1 9 Base Plate 1

5 Flexible Shaft Cover* 1

10 Cable (Not Shown) 1

* Length of the Flexible Shaft and Shaft Cover are Kit Dependent

Kit Number Length of Flexible Shaft and Flexible Shaft Cover

46-00288 3 inches

46-00289 6 inches
