MicroNet SP906GK Bedienungsanleitung

User’s Manual

Wireless LAN PCI Adapter

Model No.: SP906GK

http://www.micronet.info

CONTENTS

1INTRODUCTION...................................................................... 1

1.1 Features................................................................................................... 1

1.2 Specifications........................................................................................... 1

1.3 Package Contents.................................................................................... 2

2HARDWARE INSTALLATION.................................................. 3

3CONFIGURATION UTILITY ..................................................... 6

3.1 Site Survey .............................................................................................. 9

3.2 Profile....................................................................................................... 9

3.2.1 Configure the Profile ....................................................................11

3.2.1.1 Base Configuration...............................................................11

3.2.1.2 Wireless network security.....................................................12

3.2.1.3 802.1x Setting-Certification ..................................................16

3.2.1.4 802.1x Setting-CA Server.....................................................17

3.3 Advanced............................................................................................... 19

3.4 Status..................................................................................................... 21

3.5 Statistics................................................................................................. 22

3.6 Easy Config ........................................................................................... 22

3.7 Turbo Mode............................................................................................ 22

4TROUBLESHOOTING............................................................ 24

- 1 -

1 Introduction

Thank you for purchasing the SP906GK. It complies with IEEE 802.11g standard and

supports up to 54Mbps high-speed wireless network connections. It can also work

with IEEE 802.11b devices. When SP906GK is connected to 11b devices, the link

speed will be up to 11Mbps.

It enables higher data throughput than the IEEE 802.11g standard (up to 54Mbps) and

supports specific ways to increase the data transfer rate for a time by compressing the

data and decreasing the waiting time to send the next data to the Routers or APs in

Turbo Mode. When SP906GK is connected to the Routers or APs with the proprietary

Turbo Mode feature, the wireless network will be even more efficient.

For WLAN security issues, SP906GK supports 64/128-bit WEP data encryption that

protects your wireless network from eavesdropping. It also supports WPA (Wi-Fi

Protected Access) feature that combines IEEE 802.1x and TKIP (Temporal Key

Integrity Protocol) technologies. Client user authorization is required before accessing

to APs or AP Routers, and the data transmitted in the network is encrypted/decrypted

by a dynamically changed secret key. Furthermore, SP906GK supports AES function,

offering a stronger encryption mechanism, which is often required by corporate and

government users.

SP906GK power consumption is also very low. SP906GK has several levels of power

saving modes, allowing user to customize from portable or handheld devices the way

he/she wishes to save power.

With its various features and ability to support advanced technology, SP906GK is the

most cost-effective solution to build your wireless network.

- 1 -

1.1 Features

•Comply with the IEEE 802.11b and IEEE 802.11g standards.

•High-speed wireless transfer data rate - up to 54Mbps.

•Provide high level of security with 64/128-bit WEP, WPA (TKIP with IEEE

802.1x), WPA2 (AES with IEEE 802.1x) functions

•Provide automatic fallback for greater data security and reliability.

•Supports Windows 98SE/Me/2000/XP operating systems

•Supports 32-bit PCI interface.

1.2 Specifications

•Standard: IEEE 802.11b/g

•Interface: 32-bit PCI

•Frequency Band: 2.4000 ~ 2.4835GHz (Industrial Scientific Medical

Band)

•Modulation: OFDM with BPSK, QPSK, 16QAM, 64QAM (11g)

•BPSK, QPSK, CCK (11b)

•Data Rate: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback

•Security: 64/128-bit WEP Data Encryption, WPA (TKIP with IEEE

802.1x), WPA2 (AES with IEEE 802.1x) Note: WPA2 is only enabled in

Windows 2000/XP.

•Antenna: Printed Antenna with Diversity System

•Drivers: Windows 98SE/Me/2000/XP

•LEDs: Link, Activity

•Transmit Power: 16dBm~18dBm

•Dimension: 8(H) x 118(W) x 54(D) mm

•Temperature: 32~131°F (0 ~ 55°C)

•Humidity: Max. 95% (NonCondensing)

•Certification: FCC, CE

- 2 -

1.3 Package Contents

Before you begin the installation, please check the items in your package. The package

should include the following items:

•Micronet SP906GK Wireless LAN PCI Adapter

•Driver and Manual CD

•Quick Installation Guide

•Detachable Antenna

If any of the above items is missing, contact your supplier as soon as possible.

- 3 -

2 Hardware Installation

Before you proceed with the installation, please read the following notes carefully:

Note1: Please do not install SP906GK into your laptop computer before installing the

software program from the CD.

Note2: The following installation was performed under Windows XP. (Procedures are

similar for Windows 98SE/Me/2000.)

Note3: If you have installed the SP906GK Wireless PCI Adapter driver & utility before,

please uninstall the old version first.

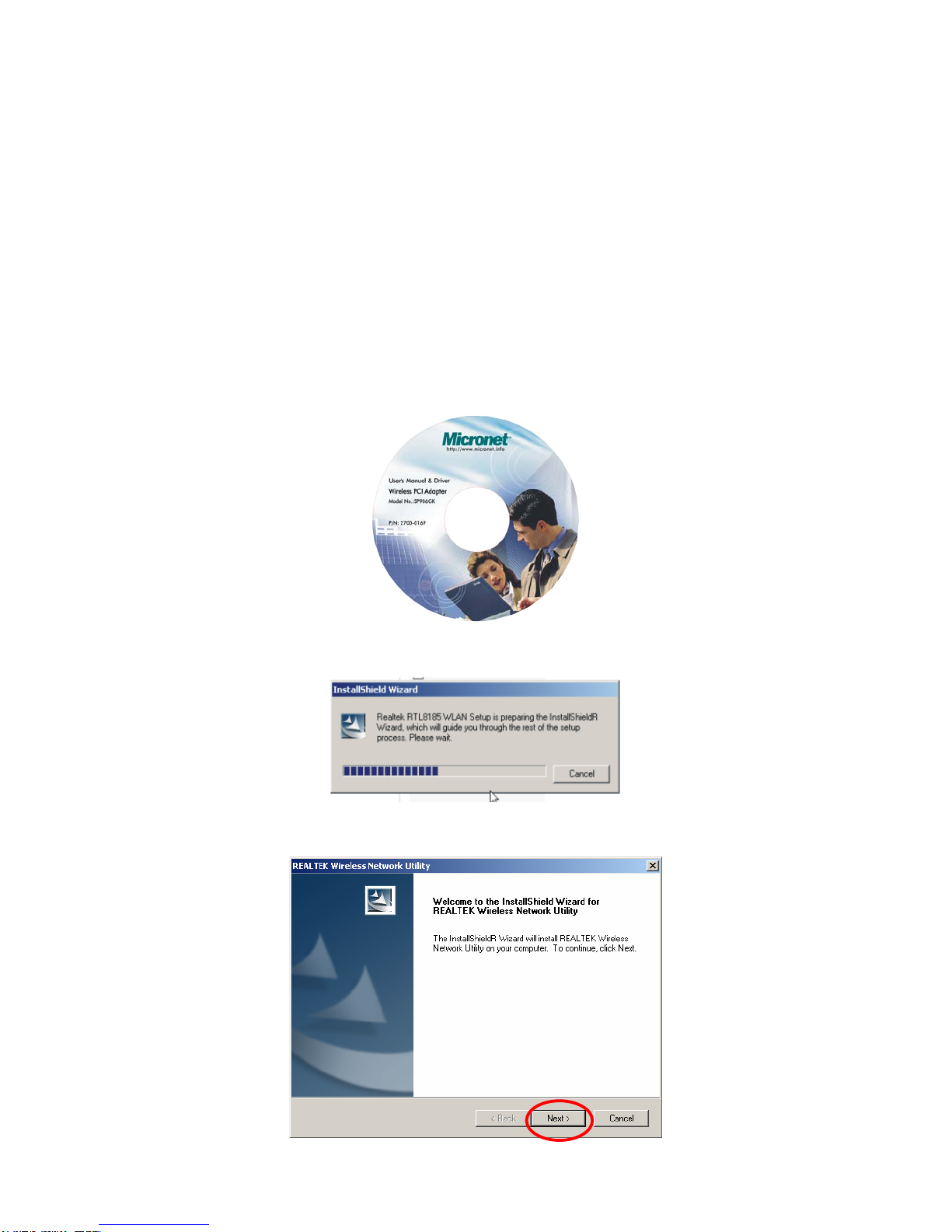

A. Insert the Installation CD to your CD-ROM Drive. Execute the “setup” program.

(/Utility and Driver/setup.exe)

B. The “Installshield Wizard” will start automatically.

C. Click “Next” to install utility.

- 4 -

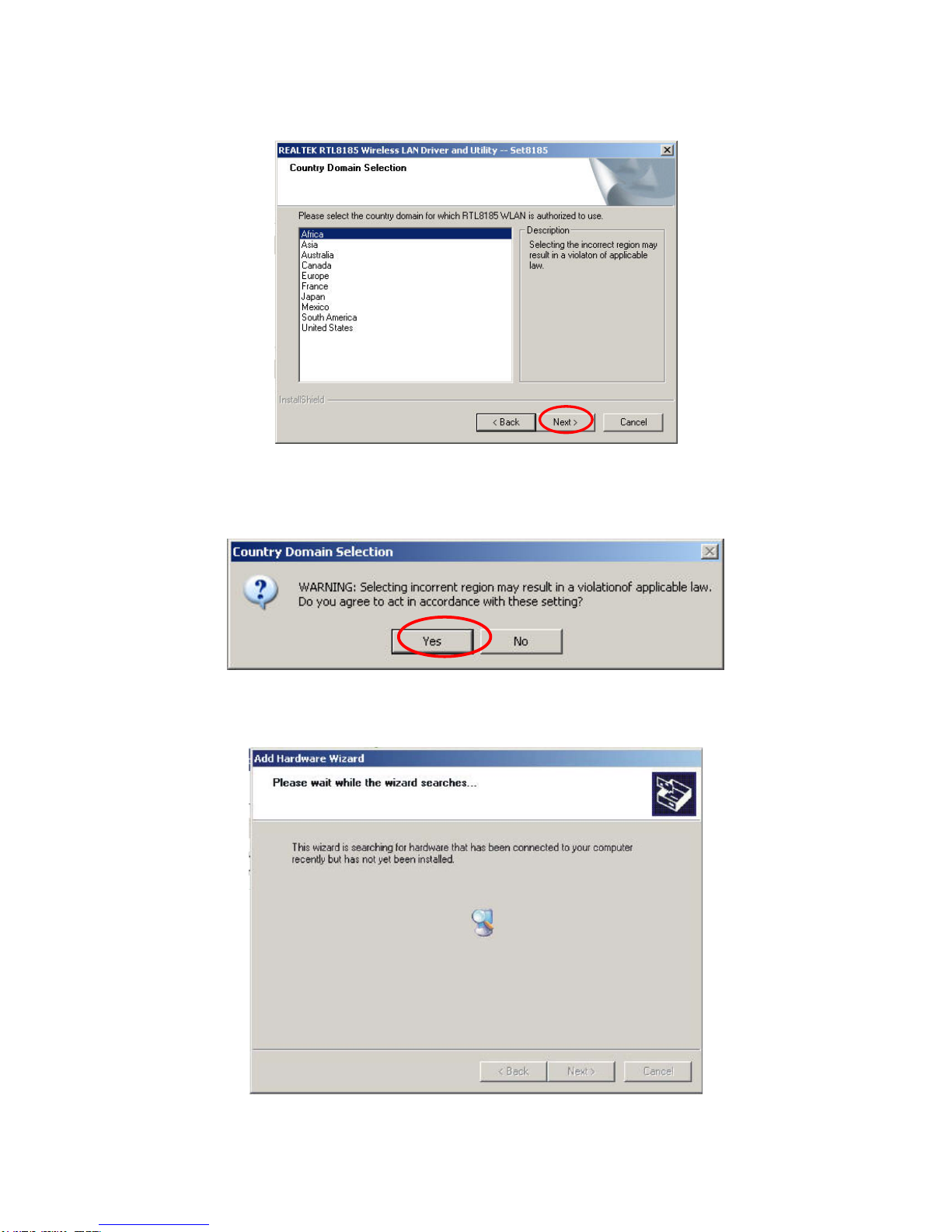

D. After selecting the country domain, click “Next” to process the installation..

E. Warning: Selecting incorrect region may result in a violation of applicable law

dialog window will pop-up. If you have selected the correct region, click “Yes”

continue the process.

F. The system will start to install the software of SP906GK . Follow the instruction of

the program and plug in SP906GK into the PCI slot of your desktop computer.

- 5 -

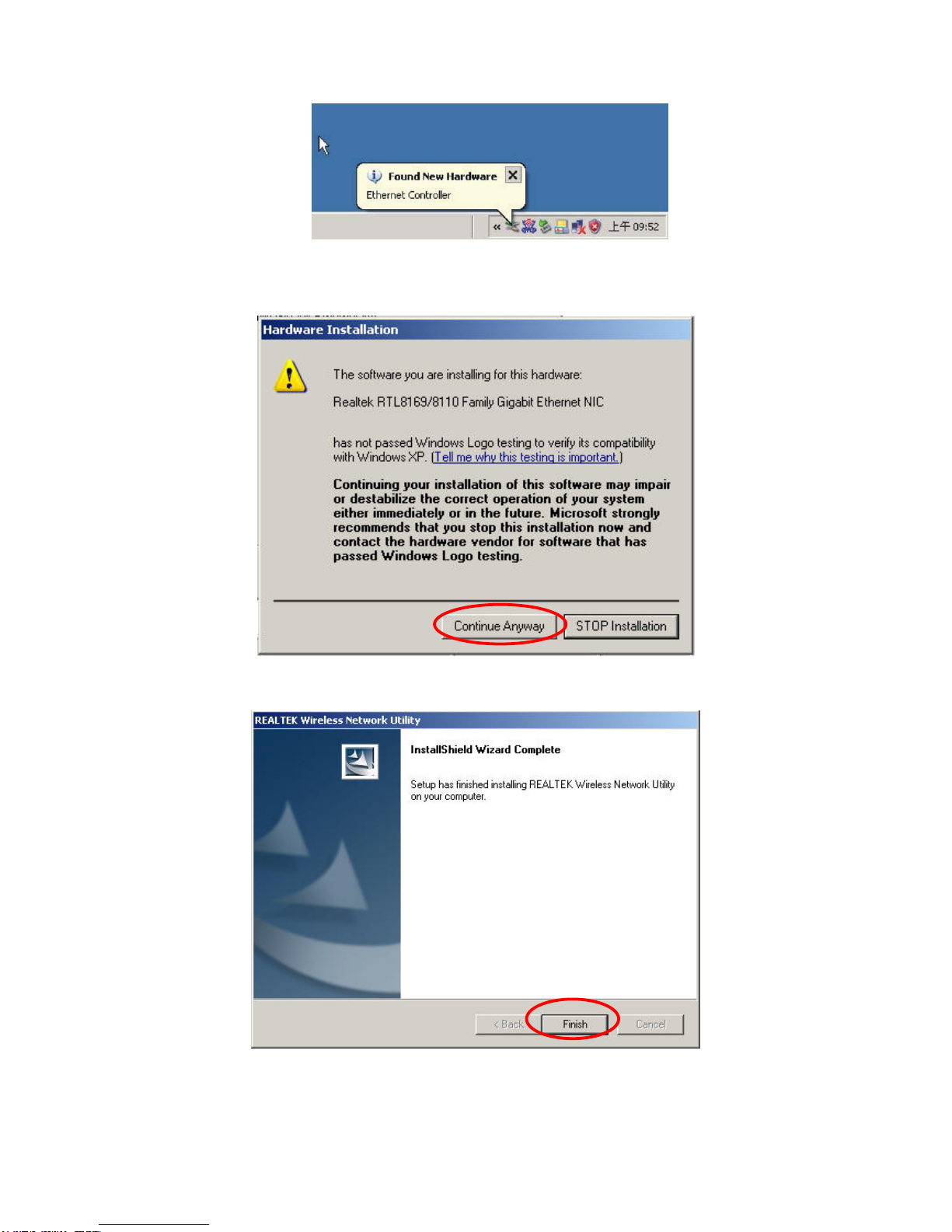

G. The system will automatically detect SP906GK and display the “Hardware

Installation” screen. Click “Continue Anyway” to continue.

H. Click “Finish” to complete the installation.

- 6 -

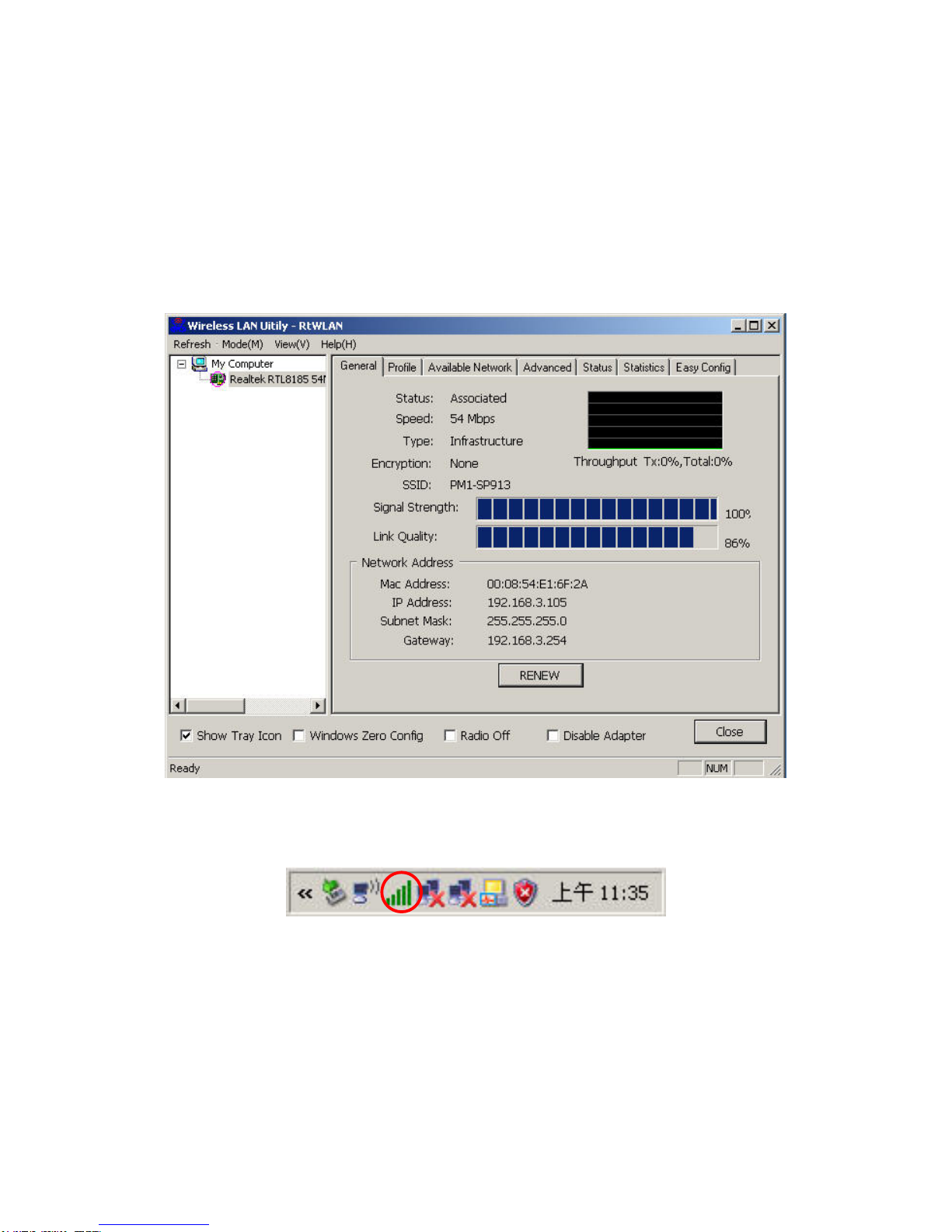

3 Configuration Utility

The Configuration Utility is a powerful application that helps you configure SP906GK and

monitor the link status and the statistics during the communication process.

If SP906GK is installed successfully, the configuration utility will automatically pop up. It

will automatically connect to the wireless device, which has better signal strength and no

wireless security setting.

The Configuration Utility appears as an icon on the system tray of Windows while

SP906GK is running. You can double-click on the icon to open the utility.

- 7 -

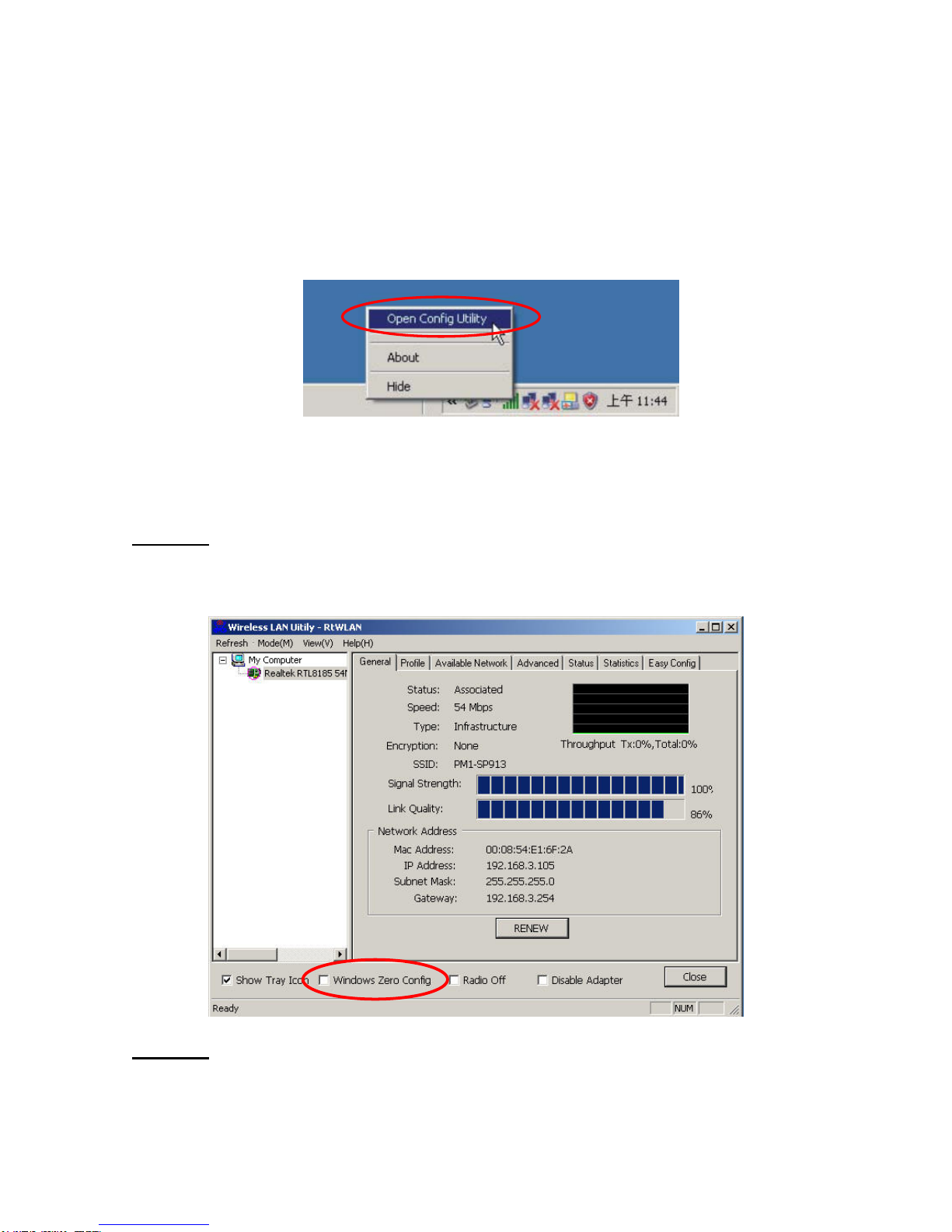

Right click the icon to find the items in configuration utility for you to perform.

zLaunch Config Utilities

Select “Open Config Utility” to open the Configuration Utility tool.

zUse Zero Configuration as Configuration Utility

zSelect “About” to describe the Wireless Card information.

zHide

Select “Hide” to hide the Configuration Utility tool.

In Windows XP, there is a “Windows Zero Configuration Tool” for you to set up

wireless clients. By default, this “Windows Zero Configuration Tool” is enabled. You

can use the Utility for the card by one of the following methods:

Method 1

Double click the icon in the system tray and disable “Window Zero Config”.

Method 2

A. Right-click the icon and select “View Available Wireless Networks”.
