Service Manual

Vacuum Cleaner

VCS35B15KC

Midea LOGO

Contents

1Specifications…………………………………………………………1-2

2 Electrical Diagram…………..…………………………….…………..3

3 Schematic Diagram……………………………..…………………….4

4 Repair of Main Parts…………………………………….……………5

5 Trouble Shooting Chart……………………………………..…….10

6 Replacement Parts List…………………………………………….11

7 Packing Instruction……………………………………………….…12

(备注：黄色部分根据实际机型调整)

Follow caution information wherever you see this symbol.

1．Spcifications

Model

VCS35B15KC

Power Source

AC220V~240V,50/60Hz

Motor Power Max.

700W

Air Power

≥120W

Dust Capacity

1.2L

Cord Length

Weight(Main Body)

6Kg

Mimension(WxLxH)

360*247*305

Attachments

Multi Surface Floor Nozzle,

Hose,Extension Wand

2.Electrical Diagram

3．Schematic Diagram

见爆炸图

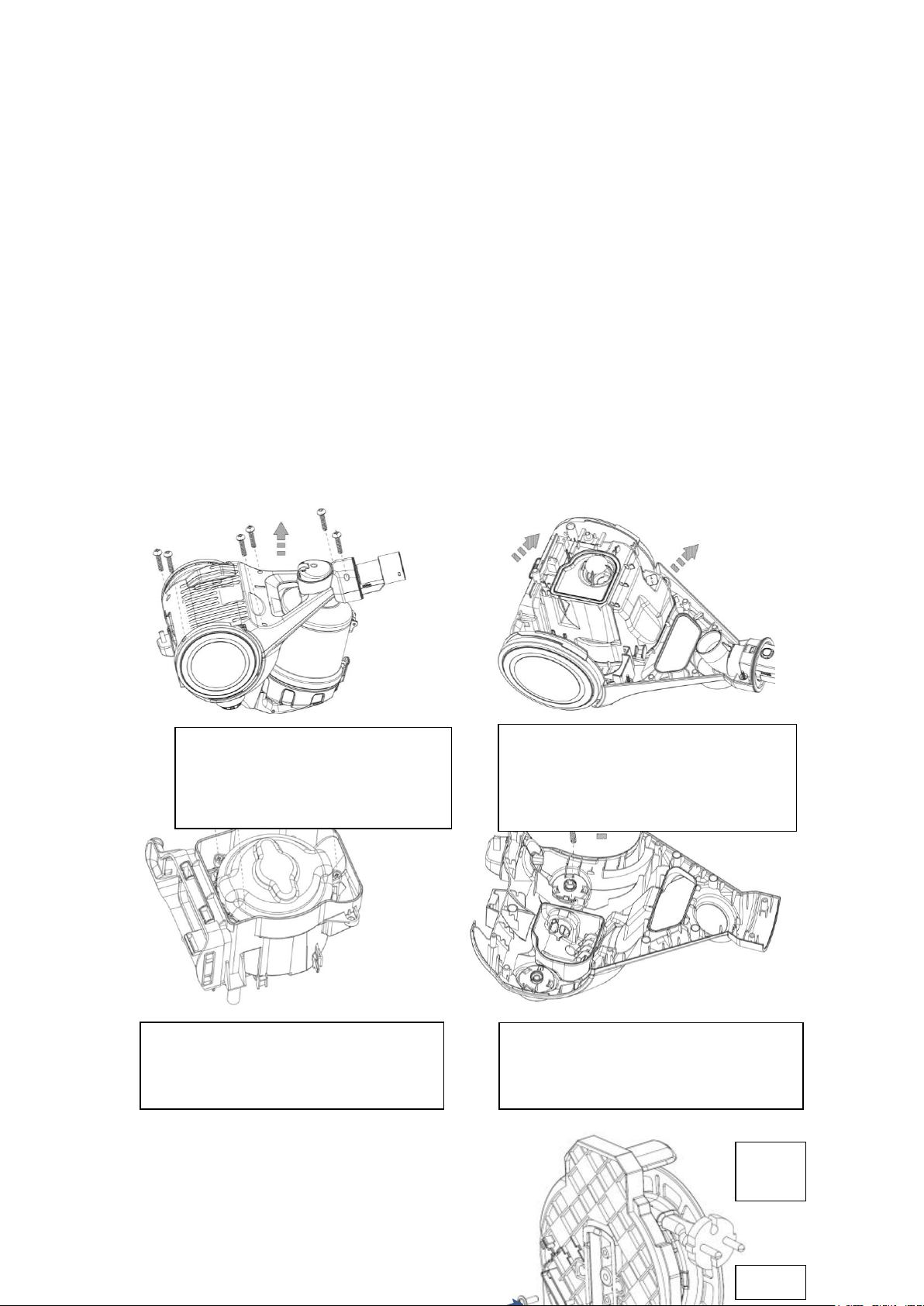

4 Repair of Main Parts

4.1 Upper、Lower Body、Motorcover、Protector、

Rewinder、Hose

Removing

3. 4.

5．

Remove the 7 screws from the

body. Then take the middle

cover away.

Remove the screws（pointing

out）from the motorcover. Then

take the motor cover and

rewinder away.

Remove the screw from the

middlecover. Then take the

airinlet cover away.

Rewinder

frame

Plug

Remove the 3 screws inside of

the motorcover. Then take the

motor away.

5 Trouble Shooting Chart

Trouble

Possible Causes

Countermeasure

The vacuum cleaner can

not start operation

1.The plug is not plugged in

2.The power switch didn't open.

3.Internal wiring of loose

4.The motor burned out

1.Re plug

2.Press the power switch

3.Re connect the internal

wiring

4.Repair or replacement of the

new machine

The suction become

smaller

1.The channel blocked suction

head

2. Poor ventilation dust bag

3. Air inlet and

outlet filter blocked

4. Motor problems

1.Clean the suction

head channel

2.Clean up the dust bag

3.Cleaning filter

4. Repair replacement of

the motor

Full dust indicator of

adverse action

1. The dust suction channel block

2. The buoy stuck

3. Spring is broken

1.Clean up the dust absorption

channel

2. Repair full dust indicator

3. Repair full dust indicator

6 Replacement Parts List

No.

Part Name

Part Code

Specs.

QTY

AIRINLET HEPA

CORD REWIND

ASSEMBLY

According to the

power cord

AIROUT HEPA

AIROUTLET PLATE

Color！

SWITCH

According to the

Pull the entire plug out smoothly

and press the rewinder frame to

take all the cord in to test whether it

works well.

required Specification

Hose

Color！

Main Brush

Color！

Plastic Tube

Wires

Protector

According to the

required Specification

7 Packing Instruction
