Minuteman V14 PRO Bedienungsanleitung
Excellence Meet s Clean
User Manual
2 Motor Upright
2
This manual is furnished with each new V14 PRO. This provides the necessary operating and preventive maintenance
instructions. Operators must read and understand this manual before operating or servicing this machine.
This machine was designed to give you excellent performance and efficiency. For best result and minimal cost,
please follow the general guidelines below:
· Operate the machine with reasonable care.
· Follow the manufacturer’s suggested maintenance instructions as provided in this booklet.
· Use original Minuteman supplied parts.
32”
(800 mm)
8.4” (210 mm)15” (360 mm)
3
Model V14 PRO
Model No. V14115P
Current Max
Vacuum motor power
Traction motor power
Working surface
Weight
Noise level
Voltage
Electronic card, motor blocking
Transmission
Air flow
Dust bag
Cable
Protection
Suction
14”
9.5 Amps
1150 W
150 W
14” (350 mm)
14.8 Amps
68 dB(A)
120 / 60 Hz
Provided
Poly V Belt
106 cfm (50 l/s)
61 cu.in. (6.5 l)
50 ft (15 m)
3-wire ground
104” of water (26 kpa)
Technical Specifications
4
5
Safety instructions ................................................................. 6
Unpacking instructions ......................................................... 7
Machine overview .................................................................. 8
Connecting the hose ............................................................. 9
Telescoping extension ........................................................... 10
Starting the brush .................................................................. 11
Checking the brush ............................................................... 12
Filter full indicator ................................................................. 13
Replacing the filter bag ......................................................... 14
Replacing the filter ................................................................ 15
Replacing the Hepa filter ...................................................... 16
Removing debris from the outer duct ................ 17
Removing debris from the inner duct ................ 18
Accessories provided ............................................................ 19
For safety during operation .................................................. 20
Warning ................................................................................... 21
Minuteman International Limited Warranty .................... 22-23
Table Of Contents
6
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
Operators must read and understand this manual before operating or maintaining this machine.
Do not operate this machine in flammable or explosive areas.
This machine is designed solely for vacuuming dirt and dust in an indoor environment. Minuteman does not recommend using this machine
in any other capacity.
The following information below may cause a potential hazard to the operator and equipment. Read this manual carefully and be aware
when these conditions can exist. Take necessary steps to locate all safety devices on the machine and train the personnel operating the
machine. Report any machine damage or faulty operation immediately. Do not use machine if it is not in proper operating condition.
FOR SAFETY DURING OPERATION
Keep hands and feet clear of moving parts while machine is in operation.
Make sure all safety devices are in place and operate properly. All covers, doors and latches must be closed and fastened before use.
During operation, attention should be paid to other persons in the work area and especially if small children are present.
Electric motors and components can cause an explosion when operated near explosive materials or vapor. Do not operate this machine
near flammable materials such as solvents, thinners, fuels, grain dust, etc.
Store or park this machine on a level surface only.
This machine is not suitable for picking up hazardous dusts.
FOR SAFETY WHEN SERVICING or MAINTAINING MACHINE
Stop on level surface.
Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts.
SAVE THESE INSTRUCTIONS
7
Unpacking Instructions
INSPECTION
Carefully unpack and inspect your V14 PRO for shipping damage. Follow unpacking instructions on
shipping pallet. Each unit has been tested and thoroughly inspected before shipment. Any damage is the responsibility of the
delivery carrier who should be notified immediately.
Operator Responsibility
Read this manual carefully before operating this machine.
The operator is responsible for taking care of the daily maintenance and inspection of the machine to keep it in good
working condition. The operator must inform the service mechanic or supervisor when the scheduled maintenance intervals
are required as stated in the MAINTENANCE section of this manual.
8
Machine Overview
Machine Overview
A Ergonomic handle
B Power cord
C Hose
D Telescoping extension
E ON/OFF switch
F HI/LO vac motor switch
G Carrying handle
H Upper cord winding device
L Lower cord winding device
M Dust bag cover
N Vent grid
O Container
P Electric vac motor housing
Q Electric brush
R Base
A
F
R
H
G
E
N
B
C
D
Q
M
L
P
O
9
Machine Overview

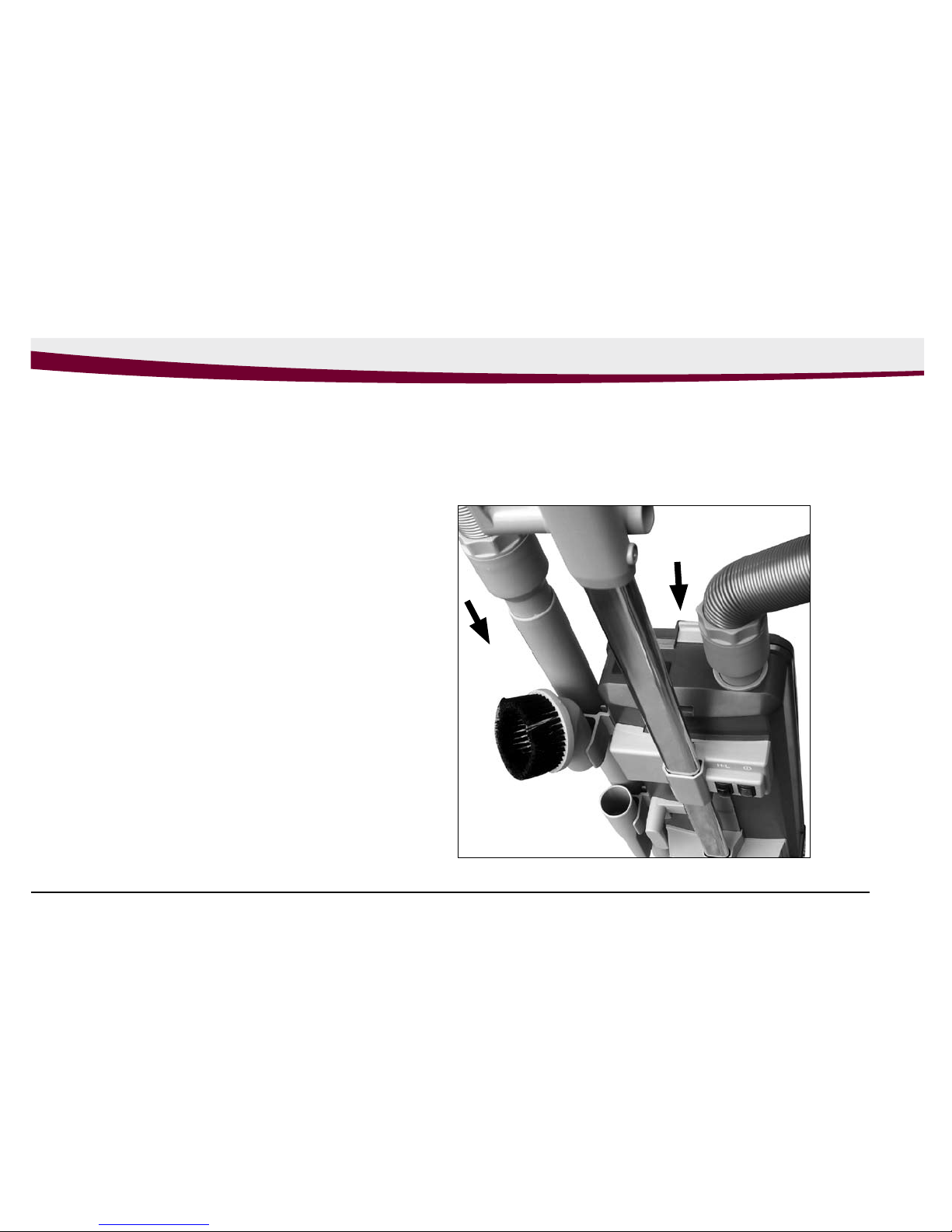

Connecting the hose
Insert the swivel cuff into the bag-holding
sleeve, insert the other end of the swivel cuff
into the telescoping element, and hook the
hose to the handle.
10
Machine Overview
Operating the telescoping extension
Extend the telescoping extension by pulling
it; lock it by turning the dedicated ring nut
counter-clockwise.
