INSTALLATION & MAINTENANCE MANUAL

GUSPBK / GUSPGR

These instructions should be read carefully and retained after installation by the end user for

future reference and maintenance.

These instructions should be used to aid installation of the following products:

GUSPBK / GUSPGR

GENERAL INSTRUCTIONS

• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)

and current Building Regulations. If in any doubt, consult a qualiﬁed electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is ﬁtted) does not exceed the rating of the

circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for installation

• This product is Class I and must be earthed

• This product is IP65 rated

SAFETY

Note - If this luminaire is being used in conjunction with an external PIR or sensor, please conﬁrm with the

manufacturer of the sensors that they are compatible with LED luminaires.

This product is compatible with GU10 base LED lamps only (10W maximum). Maximum lamp length 83mm

• Provide power to the required point of installation (refer to BS7671 for correct cabling methods). Suitable

IP rated junction boxes should be used where required

• The power source connections should be local and accessible via a suitable IP rated enclosure

• Choose a position for the luminaire ensuring the ground is suitable to ﬁrmly hold the spike and luminaire

in position. Check the ground is not liable to ﬂooding and the spike does not infringe with any underground

pipes or cables

INSTALLATION

• The body of the product should not rest directly on the ground

• The pre-installed cable supplied is for above-ground use only. Cables that are to be routed within walls or

below ground must be protected by means of suitable conduit or trunking

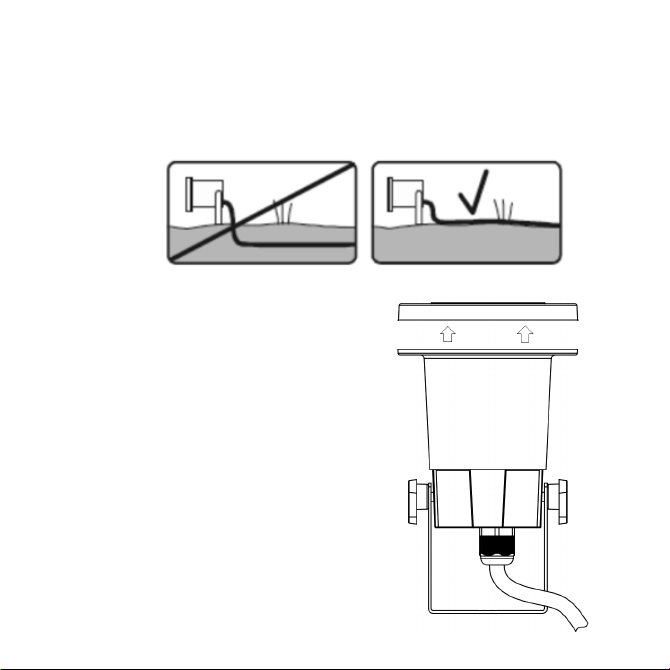

(see Fig. 1)

Fig. 1

• For wall mounting installation, unscrew the spike from

the luminaire. Mark and drill the hole for the mounting

bracket ensuring it does not infringe with electrical

cables, or water / gas pipes

• Connect the mains supply, Live (brown), Neutral (blue)

and Earth (green/yellow)

• Remove the four screws on top of the ﬁtting and pull

the bezel away from the ﬁtting (see Fig. 2)

Fig. 2

• Insert a GU10 LED lamp into the lamp holder. Align the pins and turn 45° clockwise to secure the lamp

(a suction cup is provided to aid insertion/removal of lamp where required)

• Replace the bezel on the ﬁtting, insert the four screws and tighten ensuring the gasket is in place and a

tight seal is maintained

• Switch on and check for correct operation

• If the protective glass gets cracked or damaged it should be replaced immediately

• This ﬁtting must not be used without the protective glass installed

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do

not use aggressive cleaning products or solvents which may damage the product

Do not use any source of high pressure washers to maintain or clean this product

This product is not suitable for installation in or near a coastal or marine environment

This product is dimmable dependent on lamp type

This product should be recycled in the correct manner when it reaches the end of its life. Check local

authorities for where facilities exist

GENERAL

This product has a warranty of 1 year from date of purchase. Failure to install this product in accordance

with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch

codes will invalidate the warranty. If this product should fail within its warranty period, it should be returned

to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for

any installation costs associated with the replacement product. Your statutory rights are not affected. ML

Accessories reserve the right to alter product speciﬁcation without prior notice.

WARRANTY

DCJUN21_V3

ML Accessories Limited LU5 4LT

www.mlaccessories.co.uk

130

INTERNATIONAL

CONTACT DETAILS
