Monark Energy 736 Bedienungsanleitung

INSTRUCTION MANUAL

Monark Energy model 736

CONTENTS

Assembly instructions 5-8

Brake belt contact surface – Brake belt 11

Chain 12-13

Crank bearing 14

Flywheel bearing 15

General 4

General about exercise 15-17

Operation instructions 9

Replacement of brake belt 10

Service routine check 14

Warranty 4

CONGRATULATIONS!!

Congratulations on your decision to purchase a product manufactured by Monark Exercise AB in Vansbro,

Sweden. Monark has been the world´s leading manufacturer of high quality ergometers and exercise

cycles for almost 40 years.

GENERAL

It is important that you keep your exercise cycle clean and properly lubricated. Periodically wipe the surface

with rust preventive, especially when it has been cleaned and the surface is dry. Most important is to protect

the chromed and zinc parts but also painted parts benefit from the same protection.

When cleaning and lubricating be sure to check that all screws and nuts are properly tightened.

Ensure that all the moving parts are operating/movingsmoothly such as the pedals pedal crank and flywheel,

and that there is no excess play. Excessive play is liable to cause undue wear on moving parts.

Please note: The production number of your exercise cycle is placed according to fig 2, page 6.

WARRANTY

Monark products and parts are guaranteed against defects in material and workmanship for a period of one

year from the initial date of purchase of the unit. Parts found to need replacement due to normal wear and

tear, such as brake belts, pedal straps, are not covered. This guarantee covers parts only, not labour costs

associated with the repair.

This guarantee does not apply to cases of abuse or vandalism, nor does it extent to any injury or loss to

person or property caused directly or indirectly by any Monark products. In the event of a defect material or

workmanship during the warranty period, Monark will repair or replace (at its option) the product. Monark

will do so at its expense for the cost of material but not for the labour or shipping.

As with any quality product there may be an exceptional fault due to material and manufacture. If such a

fault should arise on your exercise cycle, please return to the place of purchase for necessary repair.

THE PARTS SHOWN BELOW ARE NOT ASSEMBLED:

ASSEMBLED INSTRUCTIONS.

See pages 5-8.

HANDLEBAR

PEDAL, LEFT

PEDAL, RIGHT

SUPPORT TUBE, FRONT

SUPPORT TUBE, REAR

ADJUSTMENT WHEEL

Tip the cycle forward. Assemble the rear support

tube with two bolts and two nuts.

Note: Use the accompanying spanner. See fig. 1.

Tip the cycle backwards. Assemble the front support

tube with two nuts onto the two fastened bolts

Note: Use the accompanying spanner. See fig 2.

The saddle post is back to front when packed and

needsrotating180degrees.Positionthesaddlefacing

forwards on the saddle post. Check the saddle clip is

tight and that the saddle is at correct angle and facing

centrally. If the saddle clip is not tightened and the

saddle is central to the clip the constant pressure of

users will cause the saddle to slip and wear the saddle

clip unnecessarily.

Adjust saddle/saddle post to desired height by

loosening the saddle post bolt. To adjust the saddle

forward/backwards loosen the upper locking knob.

Note: Tighten firmly after adjustment. See fig 3.

Fig. 1

Fig. 2

Fig. 3

Production number

Screw in the adjustment wheel. See fig 4.

Insert the handlebar stem into the head tube

and tighten firmly by means of the wheel

lever. The handlebar stem can be set in five

different height positions. See fig 4.

The pedal marked R (Right) to be assembled on the right hand

side of the cycle (the chain wheel side). The pedal axle has a

right hand thread and must be threaded onto the crank

clockwise. Tighten firmly. See fig 5.

The pedal marked L (Left) to be assembled on the left

hand side of the cycle. The pedal axle has a left hand

thread and must be threaded onto the crank

counter clockwise. Tighten firmly. See fig 5.

Note: Check now and then that both pedals are still

firmly tightened. If not the threading will be

damaged.

Fig 4

Fig. 5

R Right

L Left

Loosen the brake belt and remove the tape from the flywheel. Assemble the brake belt as before. See

fig 6.

NOTE: It is very important that all of the tape is removed. Residue of the plastic tape

may cause an uneven operation.

Fig. 6

OPERATIONS INSTRUCTIONS

The Monark exercise cycle model 736 is provided with a brake system which can easily and quickly be

adjusted. The same lever is also the emergency brake.

When pedalling the user generates enormous kinetic energy to the flywheel. The kinetic energy is reduced

by means of a brake belt, which runs around the bigger part of the brake surface of the flywheel. The

reststance is adjusted by increasing or decreasing the tension of the brake belt against the flywheel.

DUE TO THE FORCES BUILT UP IN THE BIKE IT IS ESSENTIAL THAT THE USER IS

AWAREOFTHECORRECTOPERATIONOFTHEBRAKE,ANDISSAFELY SECURED INTO

THE PEDALS BEFORE USING THE BIKE.

The height of the saddle is adjusted so that, when you sit comfortably with your foot exactly above the

pedal axle and with the pedal in its down position, your knee is only slightly bent.

The adjustment of the handlebar should give a comfortable ride. Adjust the height accordingly.

REPLACEMENT OF BRAKE BELT

Remove the rear chain guard by undoing the mounting

screw (M5x6.5mm) at the top and unclipping the white

guard holder underneath. Move the chain guard

backwards to remove it.

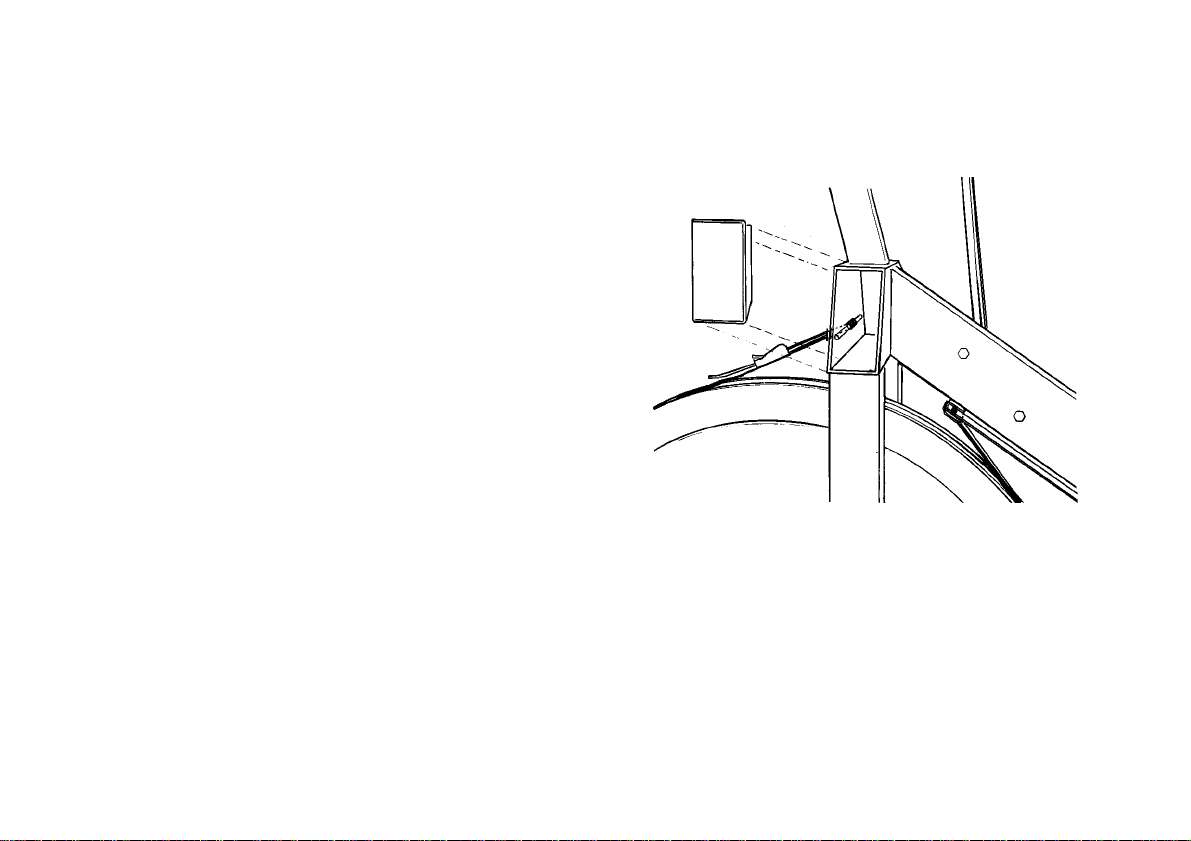

Remove the end cap at the top of the front forks. Slide

out the brake belt-retaining pin. Remove the braking

system from the frame to access the holding nut and

bolt. Remove the belt from the spring.

Attach the new brake belt and assamble the bike in

reverse order.

ADJUSTMENT BRAKE BELT

Screw up the tension lever so that the pointer is stan-

ding at the beginning of the scale. Adjust the brake belt

using the black adjusting clip at the front of the bike so

a slight braking effect is obtained.

Fig. 7
