Monoprice Harmony XL Bedienungsanleitung
Monoprice HarmonyXL Bluetooth Wireless Speaker
User Guide
P/N
33826
PACKAGE CONTENTS
1. Bluetooth Speaker x 1 pc
2. Micro USB cable x 1 pc
3. 3.5mm Audio cable x 1 pc
4. User manual x 1 pc

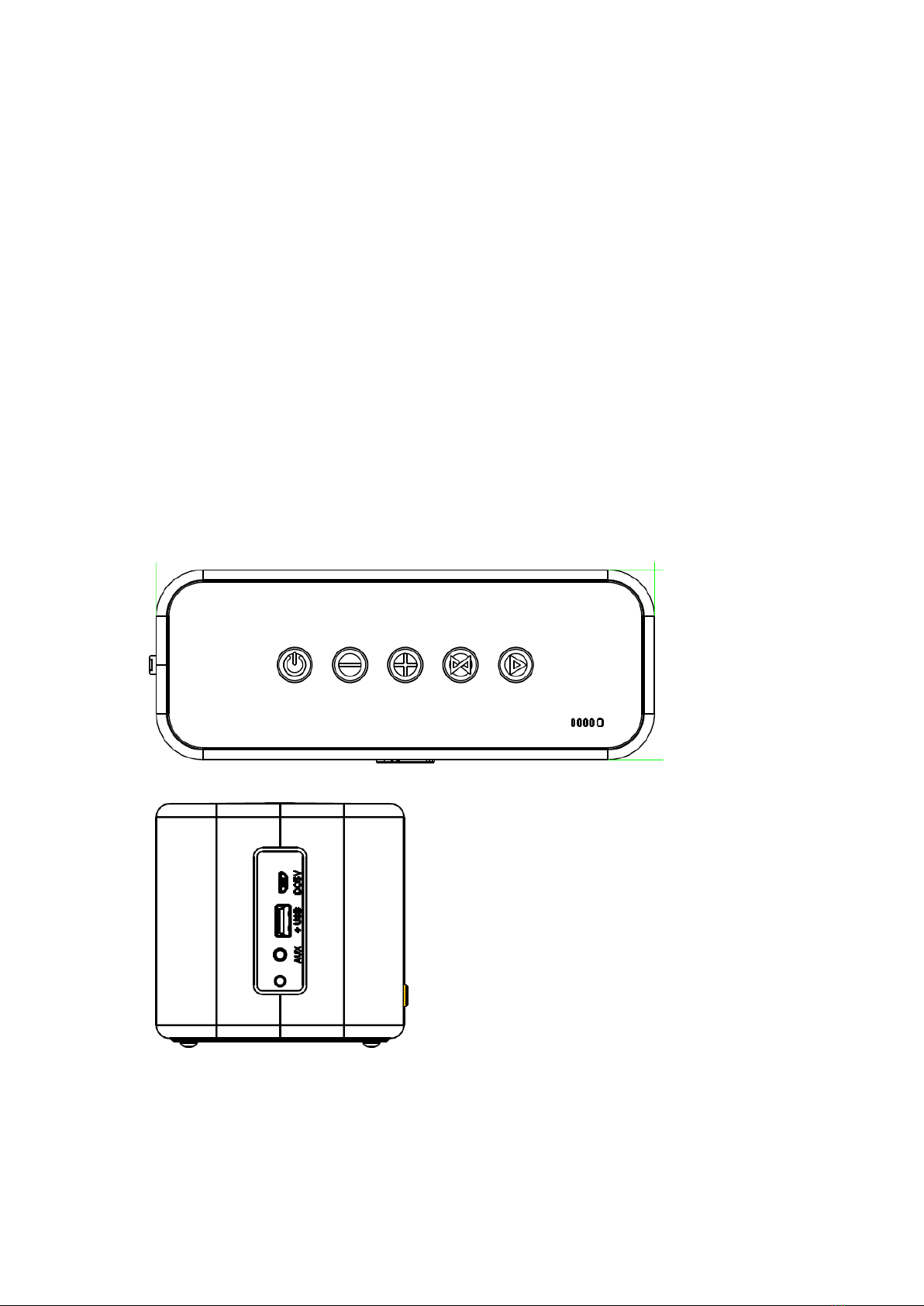

FUNCTIONS PANEL
1. : Power ON/Power OFF
2. : Volume Down/ Last Track
3. : Volume Up/Next Track
4. : Play/Pause/Hands Free
5. :BT disconnect /Switch Modes
6. : DC 5V IN Charging Port
7. : Aux in
8. ：5V, 2A USB output
9. : Battery Power Indicator
BLUETOOTH MODE:
1. Press and hold to turn the speaker ON/OFF. The speaker will emit tones. The LED
light will flash white slowly.
2. Turn on the BT function of your mobile device and in your device’s Bluetooth settings pair
with “MP33826.” When connected, the LED indicator will turn to solid white. Press and hold
to disconnect Bluetooth.
3. Press to Pause or Play media.
4. Press to decrease volume; press and hold it to play the last track.
5. Press to increase volume; press and hold it to play the next track.
6. When there is an incoming call, press to answer it, then press it again to hang up.
Press and hold it to reject the incoming call.
AUX IN MODE:
1. After the speaker is turned on, you can connect your mobile device to the speaker via the
AUX port. When in AUX mode, the LED indicator light will be solid red.
2. Press button to Pause or Play media
3. Press button to decrease volume; turn to last track is not available
4. Press button to increase volume; turn to next track is not available
Note: Hands free function is not available in AUX mode.
TWS FUNCTION:
First time pairing Two speakers:
When you have 2 Harmony and/or HarmonyXL speakers and want to wirelessly pair them for
stereo sound, power on the 2 units.
Next, take the speaker you want to be the passive unit and press
On the other speaker, which will be the master speaker, double press , it will emit
tones to indicate that two-speaker pairing has been initiated. Wait about 3-5s for the units
to pair. When paired, the LED indicator on the passive speaker will turn to solid white, while
the master speaker will flash slowly.
Next pair the master speaker to your device by selecting “MP33826” (HarmonyXL) or
“MP33827” (Harmony), from the list of discovered Bluetooth devices in your Bluetooth
settings. Once connected, the master speaker will emit tones.
Press on one of the speakers to turn it off, the other will be powered of at the same
time.
Auto Re-pairing of the same two speakers:
Power on the two units, wait about 5 seconds and speaker will automatically re-pair to each
other. The master speaker will emit tones and LED indicator will turn to flash slowly, while
indicator on the other unit will turn solid blue. If your devise is on and within BT range, the
speakers will automatically reconnect to it. The master speaker will emit tones when
connected.
To un-pair speakers, double press on either speaker, the master speaker will emit
tones.
NOTE: This functionality is ONLY available with two speakers within a distance of 15ft from
each other. It only works when using Bluetooth as your audio source and does not work
with the Harmony Mini.
CHARGING:
The speaker has a built-in rechargeable battery. Before using the speaker for the first time,
please fully charge the battery via the USB cable. When charging, the LED light next to the
charging port will be red, and it will turn off when the speaker is full charged. It will take 3-4
hours to fully charge the speaker’s battery if fully depleted.
CAUTION:
Do not open the speaker’s housing or alter/attempt to fix internal components. This will put
you at risk for electric shock or burns. Do not expose the speaker to excessive amounts of
heat and do not store or operate near an open flame.
SPECIFICATIONS
BT Chipset Actions ATS2815
BT version V4.2+EDR
TWS yes
BT profile A2DP, AVRCP, HFP
BT Distance ≤10m
Driver power 15W x2
Driver size 3” x2
Impedance 4Ω
Response frequency 50Hz --20kHz
S/N ≥75dB
THD <1%
Built in Microphone yes
Charging indicator Red
Buttons and controls
Power
Last Track/V-
Next Track/V+
Play/Pause
TWS
Available modes BT/Aux in
Output power (at 10%
THD)
15W x2
Input 5V, 2A
Battery type lithium battery
Battery capacity 4000mAh/7.4V
Battery weight 89.8g
Playback time approx 6 hours @ 60% volume
Charging time 3-4h
Unit size 270*103*99mm
Unit weight 1680g
Accessories USB charging cable, Aux in cable
Connection jacks
AC/DC input jack DC 5V input jack
USB output jack Micro USB
Aux in jack yes
Others USB output for power bank
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice’s authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
