Monoprice MM-5 Bedienungsanleitung

MM-5/MM-5R Powered Multimedia Speakers with Bluetooth®

P/N 38619, 38620

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future reference.

This device is intended for indoor use only.

Do not expose this device to water or moisture of any kind. Do not place drinks or

other containers with moisture on or near the device. If moisture does get in or on

the device, immediately unplug it from the power outlet and allow it to fully dry

before reapplying power.

Do not touch the device, the power cord, or any other connected cables with wet

hands.

If operating this speaker in a humid environment, ensure that no condensation

occurs. Condensation could cause damage to the speaker cone and could cause a

short in the amplifier, which in turn could cause fire or severe electric shock.

Do not expose this device to excessive vibration.

Do not subject the product to extreme force, shock, or fluctuations in temperature

or humidity.

Do not expose this device to excessively high temperatures. Do not place it in, on,

or near a heat source, such as a fireplace, stove, radiator, etc. Do not leave it in

direct sunlight.

Prior to operation, check the unit and power cord for physical damage. Do not use if

physical damage has occurred.

Before plugging the unit into a power outlet, ensure that the outlet provides the

same type and level of power required by the device.

Unplug this device from the power source when not in use.

Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that the

power cord does not present a tripping hazard.

Never unplug the unit by pulling on the power cord. Always grasp the connector

head or adapter body.

Ensure that power is turned off and disconnected before making any electrical

connections.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

This device has no user serviceable parts. Do not attempt to open, service, or

modify this device.

FEATURES

5.25" paper cone woofer

1.5" silk dome tweeter (38619 only)

2.6"’ AMT tweeter (38620 only)

42Hz~20KHz frequency response (38619 only)

42Hz~22KHz frequency response (38620 only)

Dual class AB amplifiers with 2x 60 watts to the woofers and 2x 30 watts to the

tweeters

Bluetooth® version 4.2 radio with the Qualcomm® aptX™ HD audio codec

Subwoofer and 3.5mm headphone outputs

Stereo analog RCA, stereo analog 3.5mm TRS, digital optical (Toslink®), USB, and

Bluetooth® audio inputs

USB charging port (5 VDC, 2A)

Includes a pair of wooden isolation/elevation stands

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com or via email at [email protected]. Check the website for

support times and links.

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x Pair MM-5/MM-5R Powered Speakers

2x Wooden Isolation/Elevation Stands

2x Foot Mats

1x IR Remote Control

2x AAA Batteries

1x Speaker Interconnect Cable

1x 3.5mm Stereo Audio Cable

1x RCA Stereo Audio Cable

1x AC Power Cord

1x User's Manual

PRODUCT OVERVIEW

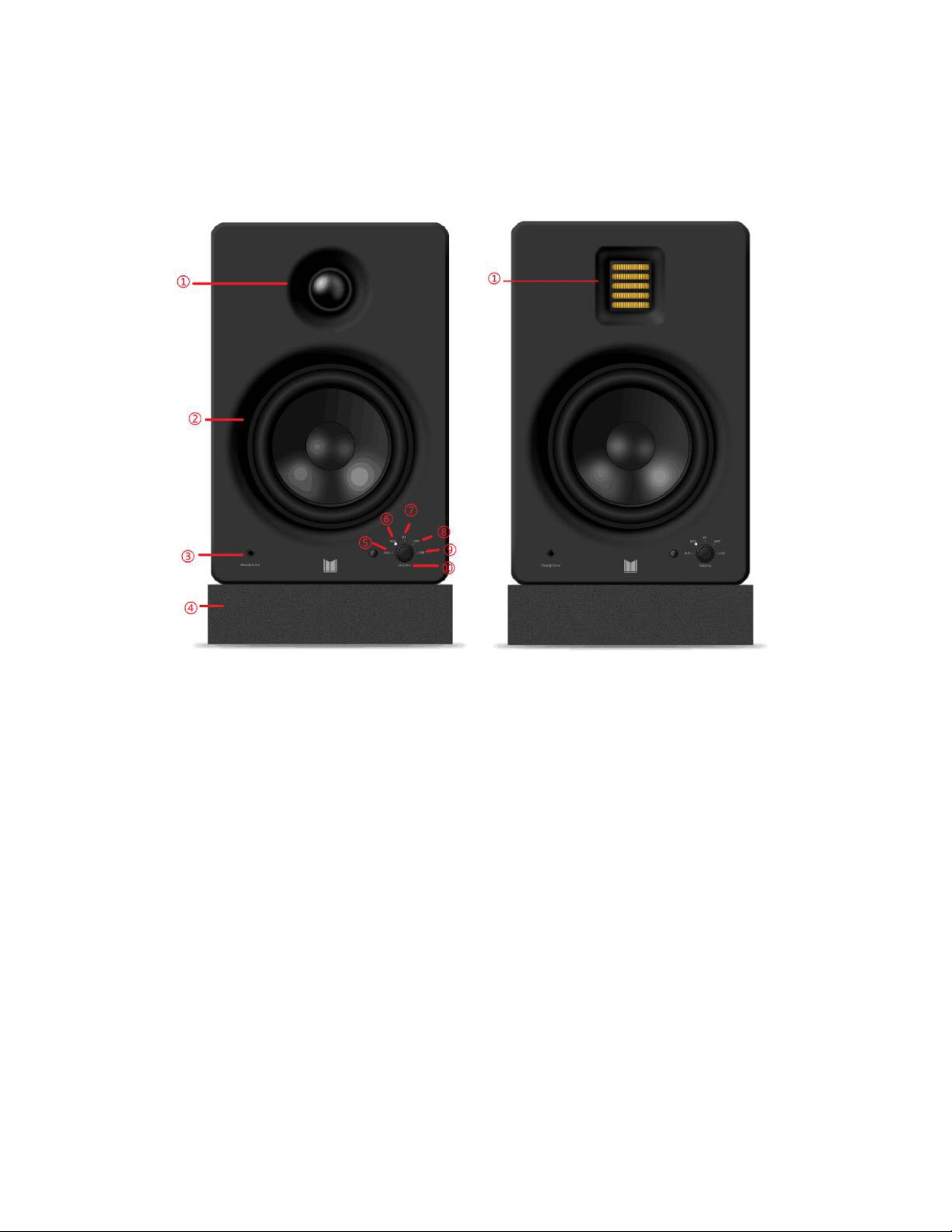

Front Panel

1. 1.5" Silk Dome Tweeter (38619 only) or 2.6" AMT Tweeter (38620 only)

2. 5.25" Paper Cone Woofer

3. 3.5mm Headphone Output

4. Wooden Isolation/Elevation Stands

5. AUX LED Indicator

6. RCA LED Indicator

7. Bluetooth® LED Indicator

8. Optical LED Indicator

9. USB LED Indicator

10. Multifunction Knob

Rear Panel

1. Digital Optical Input

2. USB Input

3. Auto On/Standby Switch

4. 3.5mm TRS Input

5. Stereo RCA Input

6. Subwoofer Output

7. USB Charging Port

8. Speaker Interconnect Output

9. Master Power Switch

10. AC Input

11. Speaker Interconnect Input

INSTALLATION

Perform the following steps to install these speakers.

1. Ensure that the Master Power Switch on the Master Speaker is in the OFF position.

2. Plug one end of the included Speaker Interconnect Cable into the Speaker

Interconnect Input on the Slave Speaker, then plug the other end into the Speaker

Interconnect Output on the Master Speaker.

3. (Optional) Plug one end of the included 3.5mm Stereo Audio Cable into the 3.5mm

TRS Input on the Master Speaker, then plug the other end into the 3.5mm output on

your mobile device or other audio source device.

4. (Optional) Plug one end of the included RCA Stereo Audio Cable into the Stereo

RCA Input on the Master Speaker, then plug the other end into the RCA output on

your audio source device.

5. (Optional) Plug one end of a Digital Optical Audio Cable (not included) into the

Digital Optical Input on the Master Speaker, then plug the other end into the

optical output on your audio source device.

6. (Optional) Plug one end of a USB Cable (not included) into the USB Input on the

Master Speaker, then plug the other end into the USB output on your PC or laptop.

7. Plug one end of the included AC Power Cord into the AC Input on the Master

Speaker, then plug the other end into a nearby AC power outlet.

8. Flip the Master Power Switch to the ON position.

OPERATION

With the speakers powered off, momentarily press the Multifunction Knob to turn

the speakers on. The LED of the last selected input will illuminate solid white.

With the speakers powered on, press and hold the Multifunction Knob for 2

seconds to put the speakers in standby mode. The LED will extinguish.

With the speakers powered on, momentarily press the Multifunction Knob to cycle

through the inputs. The cycle order is AUX (3.5mm), RCA, BT (Bluetooth®), OPT

(optical), and USB. The corresponding LED will illuminate solid white.

With the speakers powered on, rotate the knob clockwise to increase the volume

level.

With the speakers powered on, rotate the knob counterclockwise to decrease the

volume level.

After 30 minutes with no audio input, the speakers will automatically go into

standby mode. The LED of the last selected input will blink white slowly.

When the speakers go into standby mode, they will remember the last set volume

level and selected input.

If you want the speakers to automatically power on when audio is detected or to

automatically go into standby mode, place the Auto On/Standby Switch in the ON

position. Otherwise, place it in the OFF position.

BLUETOOTH PAIRING

Perform the following steps to pair these speakers with your mobile device.

1. Ensure that the Master Power Switch on the rear panel of the Master Speaker is in

the ON position.

2. Momentarily press the Multifunction Knob to turn the speakers on.

3. Momentarily press the Multifunction Knob until the BT LED Indicator starts to blink

white slowly.

4. Open the Bluetooth® settings on your phone, then locate and select the MM5 or

MM5R entry. If prompted for a passcode, enter 0000 (four zeroes). The BT LED

Indicator will cease blinking and will illuminate solid white.

Note that once paired with your mobile device, the speakers will remember the pairing. To

reconnect after the connection has been broken, open the Bluetooth settings on your

mobile device and select Connect.

TECHNICAL SUPPORT

Monoprice is pleased to provide free, live, online technical support to assist you with any

questions you may have about installation, setup, troubleshooting, or product

recommendations. If you ever need assistance with your new product, please come online

to talk to one of our friendly and knowledgeable Tech Support Associates. Technical

support is available through the online chat button on our website www.monoprice.com or

through email by sending a message to [email protected]. Check the website for

support times and links.

SPECIFICATIONS

Model

38619 or 38620

Input

3.5mm, RCA, Bluetooth®, Digital Optical, USB

Outputs

3.5mm headphones, Subwoofer

Woofer Driver

5.25" paper cone

Tweeter Driver (38619 only)

1.5" silk dome

Tweeter Driver (38620 only)

2.6" AMT ribbon

Amplifier Type

Dual Class AB

Woofer Amplifier Output Power

2x 60 watts

Tweeter Amplifier Output Power

2x 30 watts

Frequency Response (38619 only)

42 Hz ~ 20 kHz

Frequency Response (38620 only)

42 Hz ~ 22 kHz

Bluetooth Version

4.2 with Qualcomm® aptX™ audio codec

USB Charging Power

5 VDC, 2A

Dimensions

10.9" x 7.3" x 9.4" (277 x 185 x 240 mm)

REGULATORY COMPLIANCE

Notice for FCC

This device complies with Part 15 of the FCC rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

Modifying the equipment without Monoprice's authorization may result in the equipment

no longer complying with FCC requirements for Class B digital devices. In that event, your

right to use the equipment may be limited by FCC regulations, and you may be required to

correct any interference to radio or television communications at your own expense.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
