English

Installation Instruction

1

UNPACKING INSTRUCTIONS

!Carefully open the carton, remove contents and lay out on cardboard or other

protective surface to avoid damage.

!Check package contents against the Supplied Parts List in the next page to assure

that all components were received undamaged. Do not use damaged or defective

parts.

!Carefully read all instructions before attempting installation.

IMPORTANT SAFETY INFORMATION

!Install and operate this device with care. Please read this instruction before

installation, and carefully follow all instructions contained herein. Use proper safety

equipment during installation.

!Please call a qualified installation contractor for help if you don't understand these

directions or have any doubts about the safety of the installation.

Do not use this product for any purpose or in any configuration not explicitly specified

in this instruction. We hereby disclaims any and all liability for injury or damage

arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

2

CAUTION!

WARNING

!This monitor desktop mount must be securely

attached to the horizontal desk. If the mount is

not properly installed it may fall, resulting in

possible injury and/or damage.

Tools Required Phillips Screwdriver

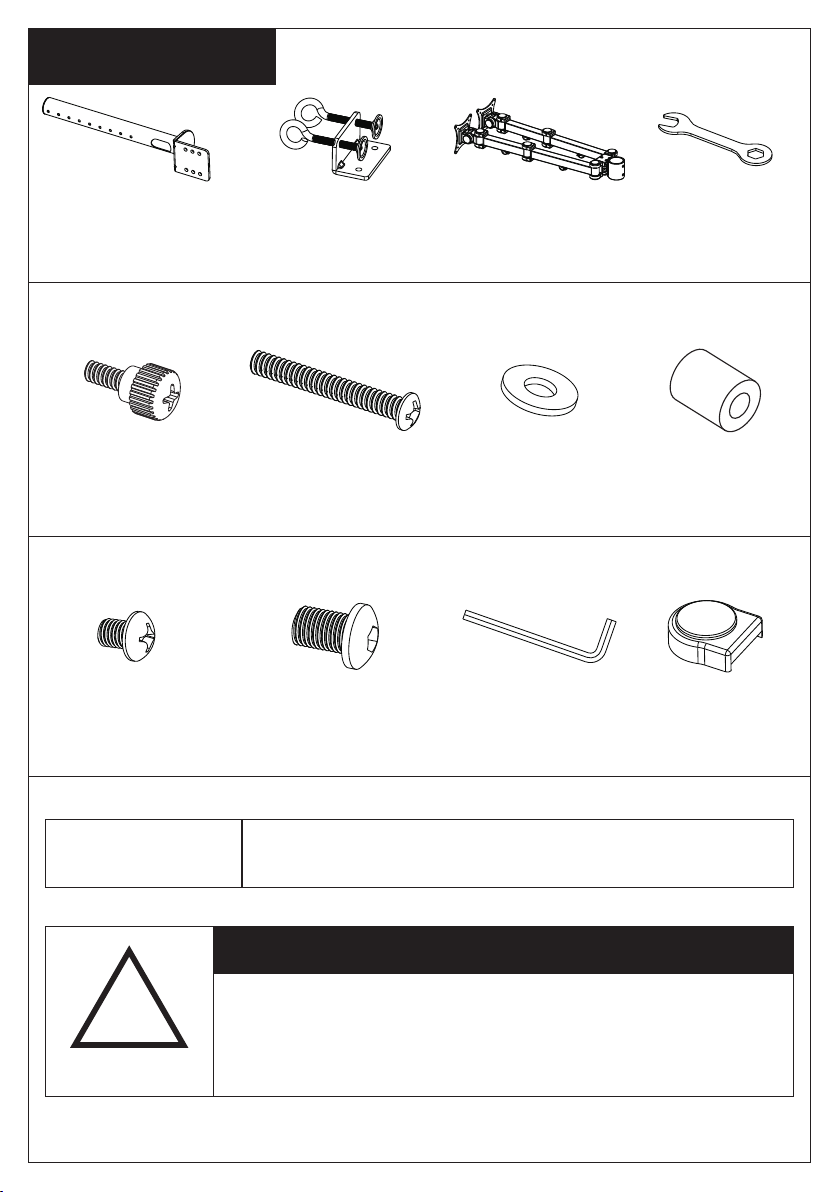

Supplied Par ts List

(16)M4 Space-g

(16)M4x12

Thumb Bolt-d (16)M4x30 Bolt-e (32)M4 Washer-f

(4)M8x10 Bolt-h (2)M10x15 Bolt-i (1)Allen Key-j (2)Spare Plastic

Cover-k

(1) 48mm Tube

Support-a

(2) VESA Plate with

Arm Assembled-c

(1) Disconnected

“C” Clamp-b (1)Wrench-l

Step 1 Install the “C” Clamp According to the Desktop Thickness

3

Step 2 Install Arm to the Tube Support

a

b

i

j

c

h

The depth of “C” clamp can be changed in

three positions. Choose the proper depth

according to the thickness of your

desktop. Connect it by 2pcs M10x15

bolts(i), using the supplied Allen Key(j).

Install arm to the tube support,

please make sure the wire clip

in the downside. Fasten the

bolt by screw driver.

4

Step 3 Mount the Monitor to VESA Plate

For Curved Back Monitor

e

f

g

Step 4

Step 5

Do the Necessary Adjustment

Manage the Wires

l

Remove the plastic cover,

t i g h t e n t h e n u t b y t h e

Wrench(l) to fix the tilt angle.

Fix the tilt angle

j

Remove the plastic cover, use

the Allen Key(j) to do the

necessary adjustment.

For Flat Back Monitor

d

f
