Circulation water baths

WBH-100/200

Operation manual

These units are circulation water baths for professional, industrial, or

educational use where the preparation or testing of materials is done at

approximately atmospheric pressure and no flammable, volatile or combustible

materials are being heated.

MRC LTD.

Hagavish 3 st.

HOLON 58817

ISRAEL

Tel (+972)-3-5595252

Fax (+972)-3-5594529

Email: [email protected] / [email protected]

Website: www.mrclab.com

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529

[email protected]

Section 1

INTRODUCTION

Thank you for choosing a circulation water bath. These units are not intended

for use at hazardous or household locations. Before you use the unit, read this

entire manual carefully to understand how to install, operate, and maintain the

unit in a safe manner. Your satisfaction with the unit will be maximized as you

read about its safety and operational features.

Keep this manual on-hand so it can be used by all operators of the unit. Be sure

all operators of the unit are given appropriate training before you put the unit in

service.

Note: Use the unit only in the way described in this manual. Failure to follow the

guidelines and instructions in this manual may be dangerous and illegal.

General Safety Considerations

Your water bath and its recommended accessories have been designed and

tested to meet strict safety requirements.

For continued safe operation of your water bath, always follow basic safety

precautions including:

•Read this entire manual before using the water bath.

•Be sure you follow any city, county, or other ordinances in your area

regarding the use of this unit.

•Use only approved accessories. Do not modify system components. Any

alterations or modifications to your water bath may be dangerous and will

void your warranty.

•Always plug the unit’s power cord into a grounded electrical outlet that

conforms to national and local electrical codes. If the unit is not grounded,

parts such as knobs and controls may conduct electricity and cause

serious injury.

•Do not connect the unit to a power source of any other voltage or

frequency beyond the range stated on the power rating overlay at the

rear of the unit.

•Do not modify the power cord provided with the unit. If the plug does not

fit an outlet, have a proper outlet installed by a qualified electrician.

•Avoid damaging the power cord. Do not bend it excessively, step on it,

place heavy objects on it. A damaged cord can easily become a shock or

fire hazard. Never use a power cord after it has become damaged.

•Do not position equipment in a manner that prohibits access to power

cord.

•Do not attempt to move the unit during operation or before the unit has

been allowed to cool.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529

[email protected]

Section 2

RECEIVING YOUR UNIT

Before leaving our factory, all units are packaged in high quality shipping

materials designed to provide protection from transportation related damage.

Once a unit leaves our factory, however, safe delivery becomes the

responsibility of the carrier who is liable for loss or damage to your unit. Damage

sustained during transit is not covered under your unit warranty.

When you receive your unit, inspect it for concealed loss or damage to its

interior and exterior. Should you find any damage to the unit, follow the carrier’s

procedure for claiming damage or loss.

Inspection Guidelines

Carefully inspect the shipping carton for damage. If the carton is damaged,

report the damage to the carrier service that delivered the unit.

If the carton is not damaged, open the carton and remove its contents.

Carefully check all packaging before discarding. Save the shipping carton until

you are sure everything is in order.

Returning Shipment

If you must return the unit for any reason, first contact your service

representative for authorization. You will be asked to provide the data plate

information. See Recording Data Plate Information.

Recording Data Plate Information

Once you have determined the unit is free from damage, locate the data label at

the back of the unit. The data label indicates your unit’s model number and

serial number.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529

[email protected]

Section 3

INSTALLATION

Your satisfaction and safety require a complete understanding of this unit. Read

the instructions thoroughly and be sure all operators are given adequate training

before attempting to put the unit in service.

This equipment must be used only for its intended application; any alterations or

modifications will void your warranty. Local city, county, or other ordinances may

govern the use of this equipment. If you have any questions about local

requirements, please contact the appropriate local agency. The end user may

perform installation.

Customer service should be contacted for operating conditions outside these

limits.

Environmental Conditions

Under normal circumstances these units are intended for use indoors, at room

temperatures between 18ºC and 40ºC, at no greater than 80% relative Humidity

(at 25ºC) and with a supply voltage that does not vary by more than

10% from the data plate rating. This equipment should not be operated at an

altitude exceeding 2000 meters.

Power Source

Check the data label for voltage, cycle, and ampere requirements. If matched to

your power source, plug the power cord into a grounded outlet.

Voltage should not vary more than ± 10% from the data label rating.

These units are intended for 50/60-HZ application. A separate circuit is

recommended to prevent damage to the unit due to overloading or circuit failure.

Location

In selecting a location, consider all conditions that might affect performance,

such as heat from radiators, ovens, autoclaves, etc. Avoid direct sun, fast-

moving air currents, heating and cooling ducts, and high traffic areas. Allow a

minimum of 10 cm between the unit and any walls or partitions that might

obstruct free airflow.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529

[email protected]

Lifting and Handling

These units can be heavy for some people and care should be taken to use

appropriate lifting devices that are sufficiently rated for these loads. Units should

only be lifted from their bottom surfaces. Handles and knobs are not adequate

for lifting or stabilization. The unit should be completely restrained from tipping

during lifting or transport.

All moving parts such as trays or covers should be removed during transfer to

prevent shifting and damage.

Cleaning and Decontamination

In the event hazardous material is spilled onto or into the equipment appropriate

decontamination must be carried out. If there is any doubt about the

compatibility of decontamination or cleaning agents with parts of the equipment

or with material contained, please contact the manufacturer.

Units are cleaned at the factory, but not sterilized. Remove any racks if

assembled and clean the bath with a disinfectant that is suitable for your

application. See Maintenance Section for cleaning instructions and

precautions.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529

[email protected]

Section 4

CONTROLS AND COMPONENTS

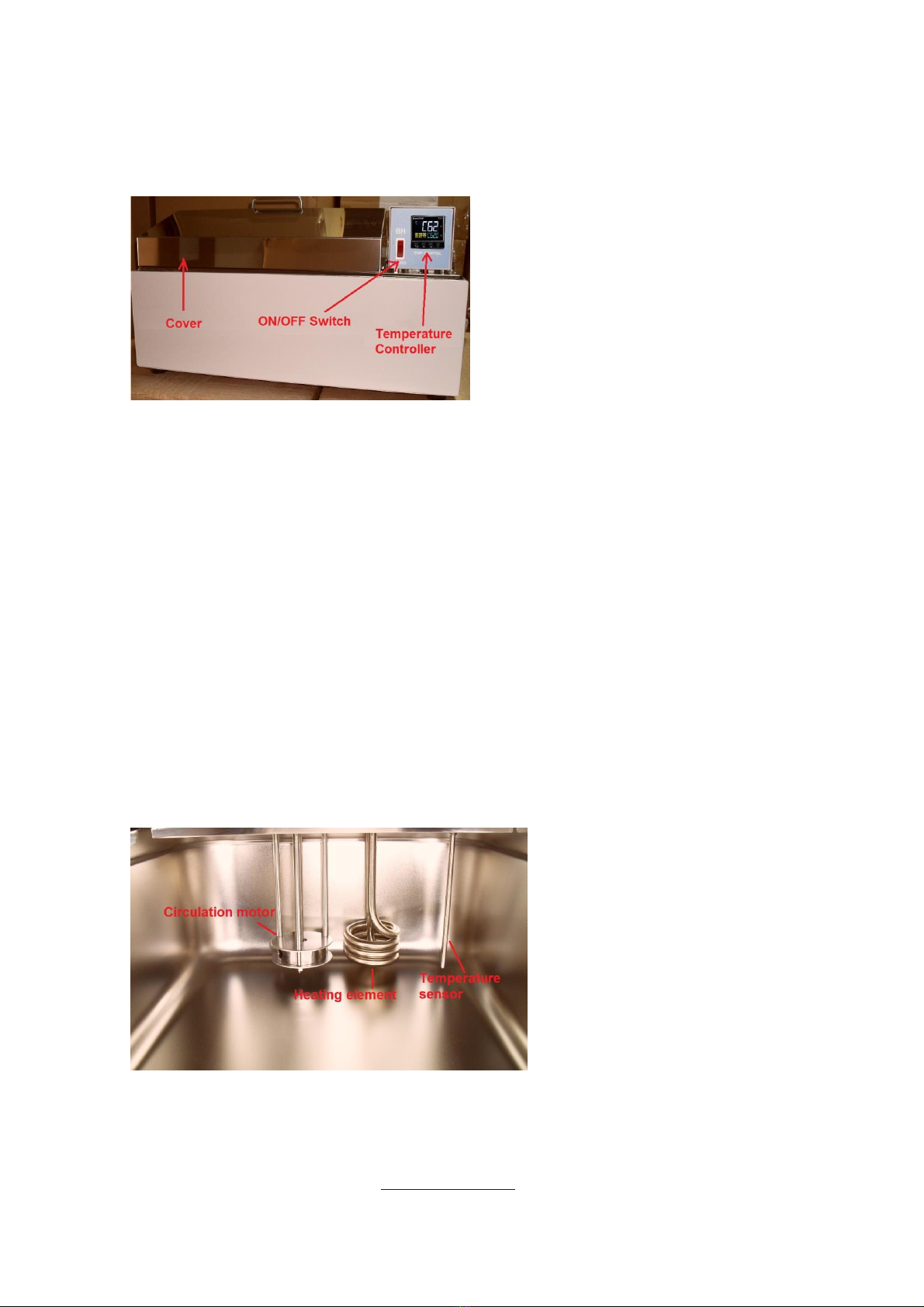

OVERVIEW

Power Switch

The Red (On/Off) power switch, located in the top right-hand corner of the

control panel, controls all power to the unit. It must be in the I position to be ON

and illuminated before any systems are operational. The on/off switch must

remain easily accessible at all times.

Bath Cover

Using the bath cover supplied with your accessories will accelerate heat-up time

and reduce evaporation.

The cover must be used to reach set points above 60ºC. The bath cover is not

designed to be airtight and create a pressurized environment.

Internal bath components

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529

[email protected]

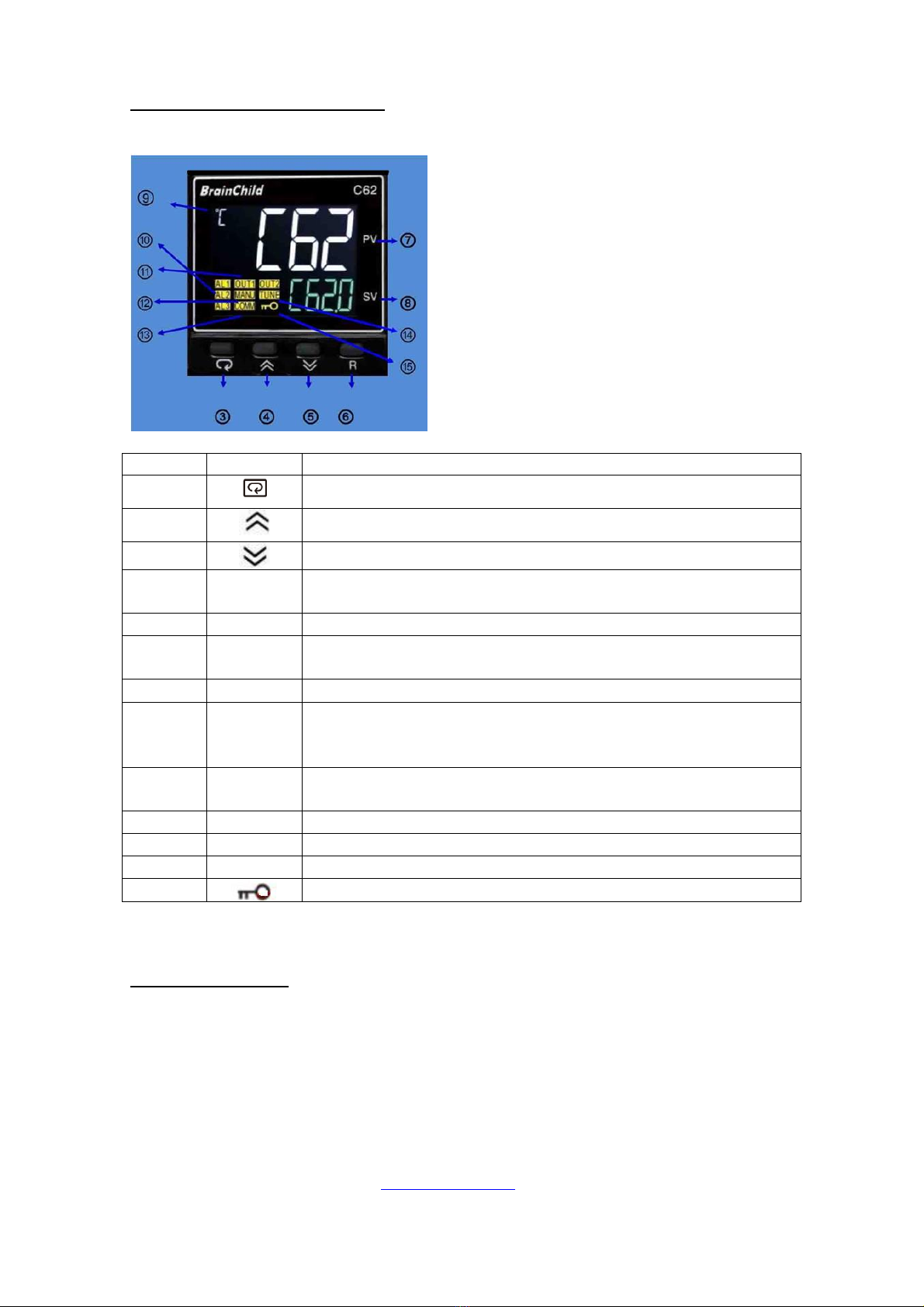

Main Temperature Controller

Number

Key

Description / Function

③

For setting and calling up parameters.

④

To increase the value of digits.

⑤

To decrease the value of digits.

⑥

Revert /STOP/Restart Timer (For machine with timer use

only)

⑦

To display process value, menu symbol and error code.

⑧

To display set point value, parameter value or control

output value.

⑨

Process Unit Indicator- Celsius

⑩

ALM 123

Indicator

Over-Heat Temperature.

Lights on when actual temperature over the set

temperature 5℃, and turns off the heater.

⑪

OUT 1 2

Control output lamp 1.

Light on when heater is activated

⑫

MANU

Lamp flashes during Manual Mode operates

⑬

COMM

Communication indicator

⑭

TUNE

Lamp flashes during auto-tuning operates

⑮

Lock indicator

Setting parameter

The PV display indicates the parameter symbol, and the SV display indicates

the selected value of the selected parameter.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529

[email protected]

Section 5

OPERATION

Warning: These baths are not intended for use as acid baths. Use as an acid

bath will cause severe damage to bath components and void your warranty. Do

not use deionized water, tap water, or chemicals. USE DISTILLED WATER

ONLY.

Turning On the Unit

To turn on the unit, perform the following steps:

1. Check power supply against unit serial plate; they must match.

2. Plug service cord into the electrical outlet. If supplied with a detachable

cordset, plug the female end into the unit inlet and the male plug into the power

supply. 3. Fill bath to your required depth with DISTILLED WATER.

DO NOT USE TAP WATER, DEIONIZED WATER, OR CHEMICALS. Normal

depth is 5 ½ inches (14 cm), but depth must be at least 4.7 inches (12 cm) over

the bottom of the rack. Check water level frequently, add water to appropriate

levels if needed. At higher operating temperatures, or under circumstances

where a cover cannot be used, it will be necessary to check the water level

more frequently.

4. Push the Main power switch to the ON position.

Bath Cover

Using the bath cover supplied with your accessories will accelerate heat-up time

and reduce evaporation.

The cover must be used to reach set points above 60ºC. The bath cover is not

designed to be airtight and create a pressurized environment.

Setting Main Temperature Control

Turn on the temperature controller/power switch. The temperature displays light

up and after a few seconds, the upper display shows the present value (PV)

temperature. The lower display shows the set value (SV) or set temperature.

To enter set point mode on the control, push and release either the UP or

DOWN arrow pad one time and the digital display will start to blink.

Press to increase temperature gradually.

Press to decrease temperature gradually.

While blinking, the digital display shows the set point that can be changed.

Allow at least two (2) hours for the temperature to stabilize.

Warning: If the tank boils dry while containing plastic ware, the plastic will melt.

If you intend to use test tube racks, remember that plastic coated wire racks

may wear and expose metal that can cause damage. Preferably, use all plastic

racks.

Note: The heating element of this bath does not contact the tank bottom and

burn out if the tank is allowed to run dry.

Never turn on the unit if the tank is empty from water or if the water level is

too low

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529

[email protected]

Auto-Tuning (only if needed)

Instrument has been set the best PID value; we suggest executing auto-

calculating when temperature is unstable. Enter auto-calculating:

Press and hold until appears on the display then release.

Press and hold at least 5 seconds. The TUNE indicator will begin to

flash and the auto-tuning procedure is beginning.

After the Auto-Tuning process is completed, the TUNE indicator will stop

flashing and the unit will revert to PID control by using its new PID values.

The PID values obtained are stored in nonvolatile memory.

Note: To enable auto-tuning the lock parameter should be set to 1000

User Calibration (only if needed)

Each unit is calibrated in the factory before shipment. The user can still modify

the calibration in the field.

There are two parameters: Offset Low (OFTL) and Offset High (OFTH) for

adjustment to correct an error in the process value.

Press and hold the key until the setup Menu page is obtained.

Then, press key to scroll to the parameter .

Press key several times to scroll to the parameter OFTL to calibration low

value. Send your low signal to the sensor input of the controller, then press and

release the key. If the process value (the upper display) is different from the

input signal, the user can use and to change the OFTL value (the lower

display) until the process value is equal to the value the user needs. Press and

hold the key for 5 seconds to complete the low point calibration. A similar

procedure is applied for high scale calibration.

The two points OFTL and OFTH construct a straight line. For the

purpose of accuracy, it is best to change the value same on the two points as

possible.

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529

[email protected]

Section 6

MAINTENANCE

Warning: Prior to any maintenance or service on this unit, disconnect the power

cord from the power supply and empty the water from the tank. Before

reattaching the unit to its power supply, be sure all volatile and flammable

cleaners are evaporated and dry.

Draining Tank

1. Position the left side of the water bath over a sink or appropriate receptacle

large enough to hold the quantity of water to be drained (10 liters for the WBH-

100 and 20 liters for the WBH-200)

Cleaning

1. Clean the water bath with mild soap and water solution. DO NOT USE

chlorine-based bleaches, as they will damage the tank interior. DO NOT USE

spray cleaners that may contain solvents, which could leak through openings

and cracks and harm electrical part coatings. Failure to do this may permanently

damage the unit.

2. Rinse the water bath with clean water and wipe dry with a soft cloth. Stainless

steel does not rust, but foreign materials in the tank may rust or leave rust spots.

If corrosion is seen, scrub out the stains with a mild abrasive, never steel wool.

Storage

If the unit is to be shut down for an extended period of time, the tank must be

emptied and cleaned as described above. No adjustments to controls should be

necessary when the unit is put back in service.

If you are shutting the unit down for transport, perform the following steps:

1. Turn the unit off.

2. Disconnect from the power supply.

3. Remove the bath cover.

4. Empty and clean the tank.

5. Please see Lifting and Handling for further instruction.

6. No maintenance is required on any of the electrical components.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere MRC Laborausrüstung Handbücher

MRC

MRC HSCD-10 Bedienungsanleitung

MRC

MRC WBH-060N Bedienungsanleitung

MRC

MRC SI-600 Bedienungsanleitung

MRC

MRC INE-112N-GC Bedienungsanleitung

MRC

MRC ROVAP Series Bedienungsanleitung

MRC

MRC 1425 Bedienungsanleitung

MRC

MRC INE-ZD-2 Bedienungsanleitung

MRC

MRC LOM-300 Bedienungsanleitung

MRC

MRC PCR-300 Bedienungsanleitung

MRC

MRC DFO-720 Bedienungsanleitung

MRC

MRC DPETTE Series Bedienungsanleitung

MRC

MRC INC-150-CO2-O2 Bedienungsanleitung

MRC

MRC SRI6PF Bedienungsanleitung

MRC

MRC PGI-550H Bedienungsanleitung

MRC

MRC LOM-150-UV Bedienungsanleitung

MRC

MRC UT-200A Bedienungsanleitung

MRC

MRC SI-100N Bedienungsanleitung

MRC

MRC Mini Roller ROL-01U Bedienungsanleitung

MRC

MRC TOU-H30 Bedienungsanleitung

MRC

MRC CCM-10 Bedienungsanleitung

MRC

MRC CENVCC-3 Bedienungsanleitung

MRC

MRC FH-12-DB Bedienungsanleitung

MRC

MRC Fuego SCS basic Bedienungsanleitung

MRC

MRC COL-3500 Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung
