Wireless Multifunctional CO2 Sensor

R718UBB Series

Wireless Multifunctional

CO2 Sensor

R718UBB Series

User Manual

This document contains proprietary technical information which is the property of NETVOX Technology. It shall be

maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written

permission of NETVOX Technology. The specifications are subject to change without prior notice.

Table of Content

1. Introduction..........................................................................................................................2

2. Appearance...........................................................................................................................3

3. Main Feature ........................................................................................................................3

4. Set up Instruction .................................................................................................................4

5. Data Report ..........................................................................................................................5

5.1 Example of ReportDataCmd..........................................................................................6

5.2 Example of ConfigureCmd............................................................................................ 7

5.3 Example of calibration configuration.............................................................................9

6. Information about Battery Passivation...............................................................................10

6.1 To determine whether a battery requires activation......................................................10

6.2 How to activate the battery ..........................................................................................10

7. Precautions for Outdoor Installation .................................................................................. 11

8. Important Maintenance Instruction ....................................................................................12

1. Introduction

R718UBB all-in-one series is a ClassAtype testing device based on LoRaWAN open protocol of Netvox, which can support multiple

combinations of temperature and humidity, CO2, vibration, atmospheric pressure and illumination sensors, and is compatible with

LoRaWAN protocol.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other

communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance. Widely

used in long-distance, low-data wireless communications. For example, automatic meter reading, building automation device,

wireless security systems, industrial monitoring. Main features include small size, low power consumption, transmission distance,

anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and

gateways from different manufacturers.

The specific model of R718UBB all-in-one is shown in the following table:

UBB represents the basic function of battery power CO2

“1” represents temperature and humidity,

“2” represents vibration

“3” represents air pressure

“5” represents light

Device Model Product functions

R718UBB CO2

R718UBB1 CO2, temperature and humidity

R718UBB12 CO2, temperature and humidity, vibration

R718UBB123 CO2, temperature and humidity, vibration, air pressure

R718UBB23 CO2, vibration, air pressure

R718UBB25 CO2, vibration, light

R718UBB125 CO2, temperature and humidity, vibration, light

R718UBB235 CO2, vibration, air pressure, light

R718UBB1235 CO2, temperature and humidity, vibration, air pressure, light

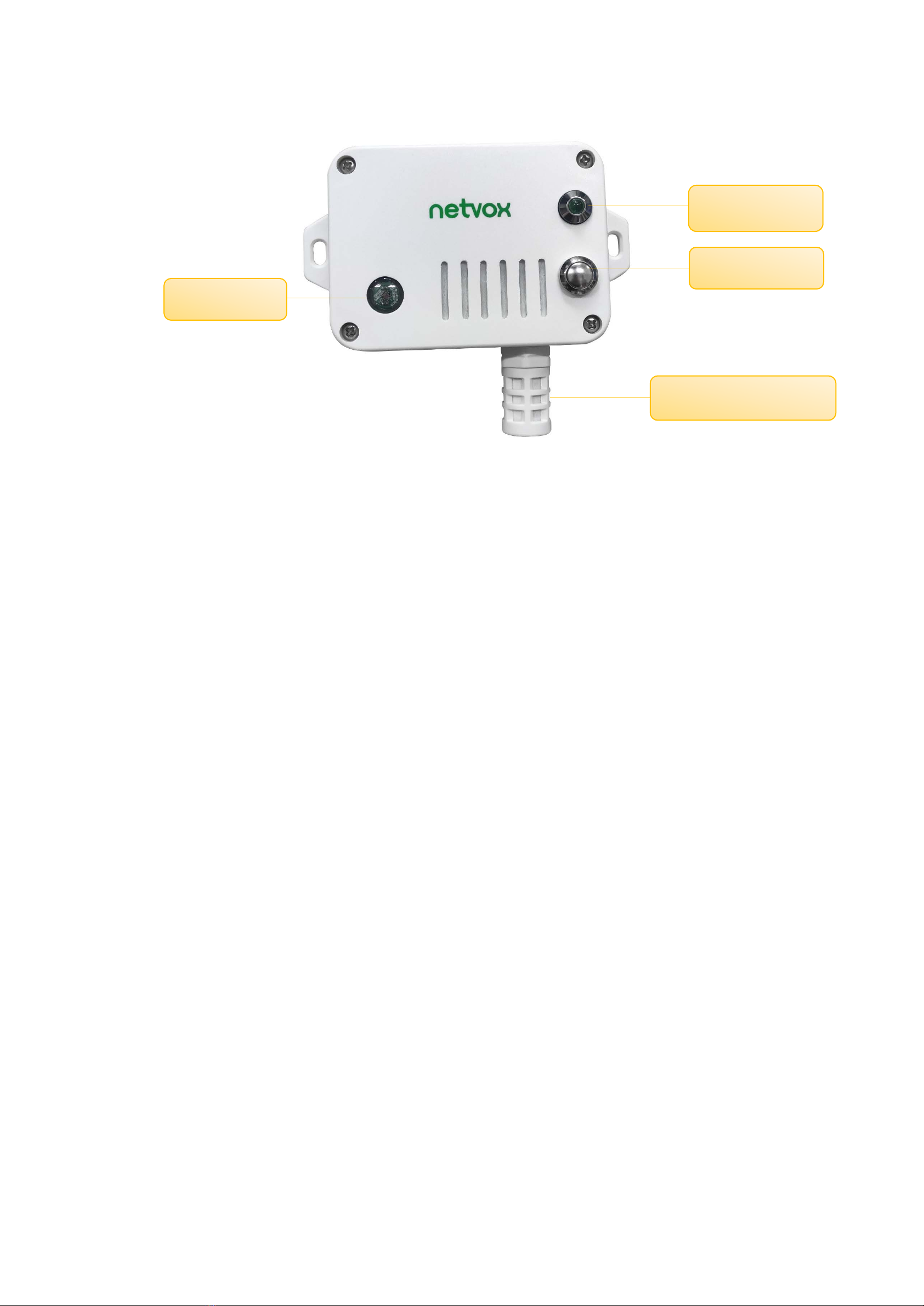

2. Appearance

3. Main Feature

Apply SX1276 wireless communication module

2 sections ER14505 3.6V Lithium AA size batteries

Detectable CO2 concentration

The base is attached with a magnet, which can be adsorbed on iron objects

Host Body Protection Level: IP65

Compatible with LoRaWANTM Class A

Frequency Hopping Spread Spectrum (FHSS) technology

Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via

SMS text and email (optional)

Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne

Low power consumption and long battery life

Note:

Battery life is determined by the sensor reporting frequency and other variables, please refer to

http://www.netvox.com.tw/electric/electric_calc.html. On this website, users can find battery life time for varied models at

different configurations.

Indicator

Function Key

Temperature and humidity

Light Sensor

4. Set up Instruction

On/Off

Power on Insert batteries. (users may need a screwdriver to open)

Turn on Press and hold the function key for 3 seconds till the green indicator flashes once.

Turn off (Restore to factory setting) Press and hold the function key for 5 seconds till green indicator flashes 20 times.

Power off Remove Batteries.

Note:

1. Remove and insert the battery; the device is at off state by default. Turn on the device to use

again.

2. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor

inductance and other energy storage components.

3. In the first 5 seconds after power on, the device will be in engineering test mode.

Network Joining

Never joined the network

Turn on the device to search the network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

(not at factory setting)

Turn on the device to search the previous network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Fail to Join The Network Suggest to check the device verification information on the gateway or consult your platform

server provider.

Function Key

Press and hold for 5 seconds

Restore to factory setting / Turn off

The green indicator rapidly flashes for 20 times: success

The green indicator remains off: fail

Press once The device is in the network: green indicator flashes once and sends a report

The device is not in the network: green indicator remains off

Sleeping Mode

The device is on and in the network

Sleeping period: Max Interval.

When the reportchange exceeds setting value or the state changes: send a data report according

to Max Interval.

Low Voltage Warning

Low Voltage

2V(after reporting low voltage, the device

may still work, but the CO2 data will be inaccurate.

Please replace the battery in time)

5. Data Report

When the device is powered on, it will immediately send a version package report and then report the device data.

Default setting:

Min interval = 10s (subject to factory setting)

Max interval = 15min (subject to factory setting)

R718UBB,R718UBB1,R718UBB12 reportcount=1

R718UBB123,R718UBB23,R718UBB25,R718UBB125,R718UBB235,R718UBB1235 reportcount=2

Data detection:

When the device is in a network state, the light flashes once after pressing the key, and then reads the data. When the time to

return the corresponding data or configure is up, it will also detect and return the corresponding data information.

(Note: The interval between multiple data packets is mintime)

Note:

1. Before any configuration, the device sends data according to the default configuration.

2. Do not send any configuration before turn on the device.

3. CO2 data will be unstable due to transportation relations, long storage time and other factors.

If the CO2 value which customers test is inconsistent ,or there is large discrepancy of the primary standard,

it can be recalibrated. For specific calibration methods,please refer to command 0x03 CalibrateType.

Refer to Netvox LoRaWan Application Command documents and for data analysis reported by the device

http://www.netvox.com.cn:8888/page/index Instruction parsing

The report configuration and sending time are as follows:

Min Interval (Unit: s) Max Interval (Unit: s)

Not 0 Mintime * reportcount ~ 65535

5.1 Example of ReportDataCmd

FPort：0x06

Bytes 1 1 1 Var(Fix=8 Bytes)

Version DeviceType ReportType NetvoxPayLoadData

Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version

DeviceType– 1 byte – Device Type of Device

The devicetype is listed in Netvox LoRaWAN Application Devicetype doc

ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype

NetvoxPayLoadData– Fixed bytes (Fixed =8bytes)

R718UBB 0xBB

0x01 Battery

(1Byte, unit:0.1V)

Temperature

(Signed2Bytes,unit:0.01°C)

Humidity

(2Bytes,unit:0.01%)

CO2

(2Byte ,1ppm)

ShockEvent (1Byte)

0x00_NoShock

0x01_ Shock

0x02 Battery

(1Byte, unit:0.1V)

AirPressure

(4Bytes,unit:0.01hPa)

Illuminance

(3Bytes,unit:1Lux)

R718UBB1235 report example:

# Report data 1: 01BB0124097A151F020C01

1st byte (01): Version

2nd byte (BB): DeviceType 0xBB －R718UBB Series

3rd byte (01): ReportType

4th byte (24): Battery－3.6v , 24(HEX)=36(DEC),36*0.1v=3.6v

5th 6th byte (097A): Temperature－24.6°C ,097A(HEX)=2426(DEC),2426*0.01°C =24.26°C

7th 8th byte (151F): Humidity－54.07% , 151F(HEX)=5407(DEC),5407*0.01%=54.07%

9th 10th byte (020C): CO2－524ppm , 020C(HEX)=524(DEC),524*1ppm=524ppm

11th byte (01): ShockEvent－1 , Shock

# Report data 2: 01BB02240001870F000032

1st byte (01): Version

2nd byte (BB): DeviceType 0xBB －R718UBB Series

3rd byte (02): ReportType

4th byte (24): Battery－3.6v , 24(HEX)=36(DEC),36*0.1v=3.6v

5th ~ 8th byte (0001870F): AirPressure－1001.11hPa, 0001870F(HEX)=100111(DEC),100111*0.01hPa=1001.11hPa

9th ~11th byte (000032): Illuminance－50 Lux ,000032(HEX)=50(DEC),50*1Lux=50Lux

Note:

Unsupported sensor detection item data is 0xFF/0xFFFF/0xFFFFFF/0xFFFFFFFF

5.2 Example of ConfigureCmd

FPort：0x07

Bytes 1 1 Var (Fix =9 Bytes)

CmdID DeviceType NetvoxPayLoadData

CmdID– 1 byte

DeviceType– 1 byte – Device Type of Device

NetvoxPayLoadData– var bytes (Max=9bytes)

ConfigReportReq

R718UBB

0x01

0xBB

MinTime

(2bytes Unit:s)

MaxTime

(2bytes Unit:s)

Reserved

(2Bytes,Fixed 0x00)

ConfigReportRsp 0x81 Status

(0x00_suBBess)

Reserved

(8Bytes,Fixed 0x00)

ReadConfigReportReq 0x02 Reserved

(9Bytes,Fixed 0x00)

ReadConfigReportRsp 0x82 MinTime

(2bytes Unit:s)

MaxTime

(2bytes Unit:s)

Reserved

(2Bytes,Fixed0x00)

CalibrateCO2Req 0x03

CalibrateType

(1Byte,

0x01_TargetCalibrate,

0x02_ZeroCalibrate,

0x03_BackgroudCalibrate,

0x04_ABCCalibrate)

CalibratePoint

(2Bytes,

Unit:1ppm)

Only valid in

targetCalibrate

Type

Reserved

(6Bytes,Fixed 0x00)

CalibrateCO2Rsp 0x83 Status

(0x00_success)

Reserved

(8Bytes,Fixed 0x00)

SetShockSensorSensitivityReq 0x04 ShockSensorSensitivity

(1Byte)

Reserved

(8Bytes,Fixed 0x00)

SetShockSensorSensitivityRsp 0x84 Status

(0x00_success)

Reserved

(8Bytes,Fixed 0x00)

GetShockSensorSensitivityReq 0x05 Reserved

(9Bytes,Fixed 0x00)

GetShockSensorSensitivityRsp 0x85 ShockSensorSensitivity

(1Byte )

Reserved

(8Bytes,Fixed 0x00)

(1)Configure the device parameter MinTime = 300s, MaxTime = 900s

Downlink: 01BB012C03840000000000

Device return:

81BB000000000000000000 (configuration successful)

81BB010000000000000000 (configuration failed)

(2) Read the device parameter

Downlink: 02BB000000000000000000

Device Return:

82BB012C03840000000000 (device current parameter)

(3) Set CO2 calibration

Downlink:

03BB0103E8000000000000 // Select Target-calibrations

(calibrate when the known CO2 concentration is 1000ppm (concentration optional))

03BB020000000000000000 // Select Zero-calibrations

(Calibration in an environment with a CO2 concentration of 0 ppm)

03BB030000000000000000 // Select Background calibrations

(calibration shall be carried out in a stable environment in fresh air, i.e. 400 ppm concentration)

03BB040000000000000000 // Select ABC calibrations

(self calibration is default when power on, and 8 days is a cycle of self calibration. The sensor must be exposed to

fresh air at least once (well ventilated) for calibration)

Device return:

83BB000000000000000000 (configuration successful)

// Successfully configured, (Target/Zero/Background/ABC-alignments)

83BB010000000000000000 (configuration failed)

//After calibration, the returned CO2 value is not within the error range

(4) SetShockSensorSensitivityReq:

The effective range of the configuration is 0x01~0x14, and the vibration function is turned off when it is set to 0xFF

Downlink: 04BB0A0000000000000000 //Set ShockSensorSensitivity = 10 (Dec)

Device return:

84BB000000000000000000 (device current parameter)

(5) GetShockSensorSensitivityReq:

Downlink: 05BB000000000000000000

Device return:

85BB0A0000000000000000 (device current parameter)

5.3 Example of calibration configuration

FPort：0x0E

Description CmdID Sensor

Type PayLoad(Fix =9 Bytes)

SetGlobal

CalibrateReq 0x01

See

below

Channel (1Byte)

0_Channel1

1_Channel2,etc

Multiplier

(2bytes,Unsigned)

Divisor

(2bytes,Unsigned)

DeltValue

(2bytes,Signed)

Reserved

(2Bytes,Fixed 0x00)

SetGlobal

CalibrateRsp 0x81

Channel (1Byte)

0_Channel1

1_Channel2,etc

Status

(1Byte,0x00_success)

Reserved

(7Bytes,Fixed 0x00)

GetGlobal

CalibrateReq 0x02

Channel (1Byte)

0_Channel1

1_Channel2,etc

Reserved

(8Bytes,Fixed 0x00)

GetGlobal

CalibrateRsp 0x82 Channel (1Byte)

0_Channel1

1_Channel2,etc

Multiplier

(2bytes,Unsigned)

Divisor

(2bytes,Unsigned)

DeltValue

(2bytes,Signed)

Reserved

(2Bytes,Fixed 0x00)

ClearGlobal

CalibrateReq 0x03 Reserved

(10Bytes,Fixed 0x00)

ClearGlobal

CalibrateRsp 0x83 Status

(1Byte,0x00_success)

Reserved

(9Bytes,Fixed 0x00)

SensorType - byte

The calibration sensor type corresponding to each sensortype:

0x01_Temperature Sensor, 0x02_Humidity Sensor, 0x03_Light Sensor, 0x06_CO2 Sensor, 0x35_Air PressSensor

The calibration channel corresponding to each sensortype:

CO2=0x00, temperature=0x01, humanity=0x02, light=0x03, air press=0x04

(1)Assume that the reported original value of CO2 is 500ppm, the calibration increases by 100ppm, and the reported value is

600ppm

SetGlobalCalibrateReq: Calibration increased by 100ppm，Multiplier =0x0001，Divisor = 0x0001，DeltValue = 0x0064

Downlink: 0106000001000100640000

Device return:8106000000000000000000 (configuration successful)

8106000100000000000000 (configuration failed)

(2)GetGlobalCalibrateReq：

Downlink:0206000000000000000000

Device return:8206000001000100640000

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere netvox Zubehör Handbücher

netvox

netvox RA0723 Bedienungsanleitung

netvox

netvox R718PQ Bedienungsanleitung

netvox

netvox R711 Bedienungsanleitung

netvox

netvox R718CN2 Bedienungsanleitung

netvox

netvox R718J Bedienungsanleitung

netvox

netvox Z808B Bedienungsanleitung

netvox

netvox R313WA Bedienungsanleitung

netvox

netvox R718PA2 Bedienungsanleitung

netvox

netvox R720FLT Bedienungsanleitung

netvox

netvox R72632A01 Bedienungsanleitung

netvox

netvox ZB11A1 Bedienungsanleitung

netvox

netvox R311B Bedienungsanleitung

netvox

netvox R311G Bedienungsanleitung

netvox

netvox RA0701 Bedienungsanleitung

netvox

netvox R718DB2 Bedienungsanleitung

netvox

netvox R718PE Bedienungsanleitung

netvox

netvox R718A Bedienungsanleitung

netvox

netvox R313M Bedienungsanleitung

netvox

netvox R718LB Bedienungsanleitung

netvox

netvox R718PG-AS923 Bedienungsanleitung

netvox

netvox R718PQA Bedienungsanleitung

netvox

netvox R718DB Bedienungsanleitung

netvox

netvox R718PB15 Bedienungsanleitung

netvox

netvox RA0716 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung

netvox R718UBB Series Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken
