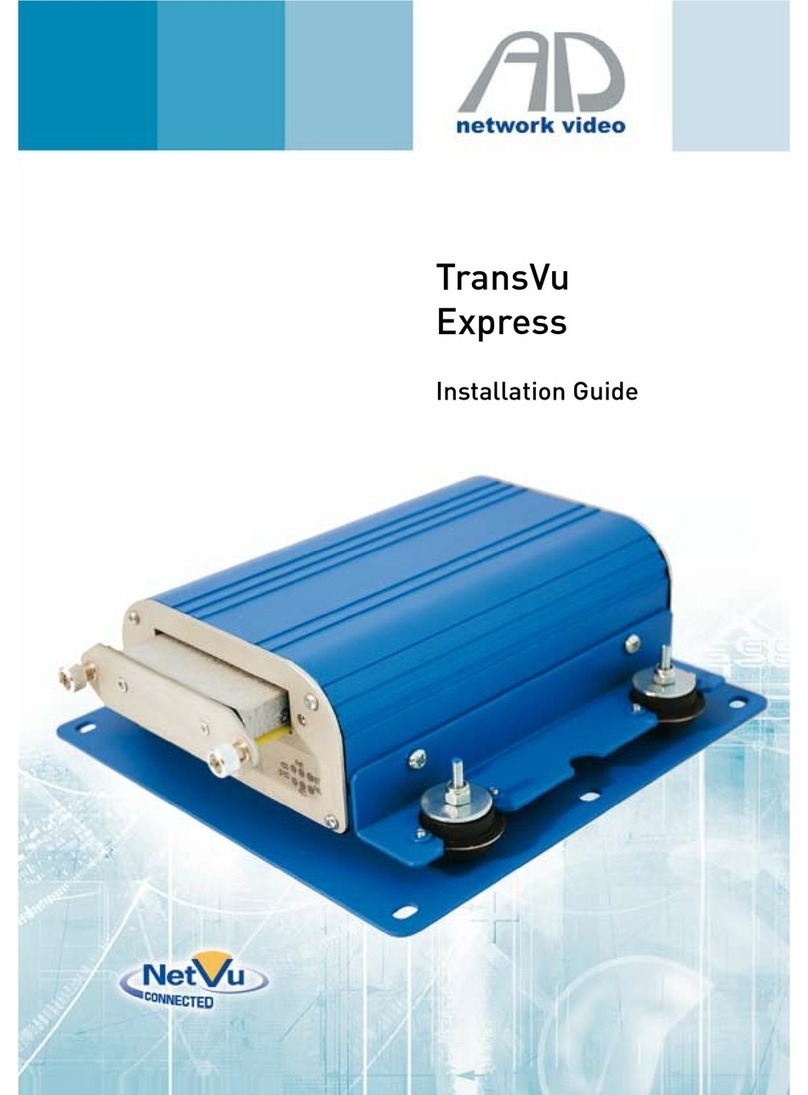

NetVu TransVu Bedienungsanleitung
TransVu
Installation Guide
AD network video ©2011
2
TransVu
Contents
Introduction .......................................................................... 3
Installation ............................................................................ 4
Cable Connections ............................................................. 10
Example Installations ......................................................... 19
Appendix A - Recommended Tools and Spares ................. 22
Appendix B - Telemetry ...................................................... 23
Appendix C - Technical Specication ................................. 24
AD network video ©2011 3
TransVu
Introduction
TransVu is a Digital Video Recorder specically designed for transport applications. With a ruggedised
design to withstand the often heavy vibrations generated by vehicles, TransVu is ideal for mobile
surveillance in all types of vehicle – such as taxis, vans, buses, trains and heavy goods vehicles.
Part of the NetVu Connected product range the TransVu is fully network capable and supports the Internet
standard TCP/IP protocol. As the TransVu is a mobile product the unit can be accessed via wireless LAN
or GSM / GPRS / CDPD. Supporting upto eight video inputs, two audio channels, panic alarm handling and
intelligent power handling the TransVu is a powerful transit recorder.
System Documentation
The Installation and Operation of the TransVu are detailed in the manual suite which consists of:
• Quick Start Guide - Initial steps to get the TransVu up an running to basic operation.
• Installation Guide - Full instructions to install the TransVu unit.
• Conguration and Operation Guide - Full conguration documentation for the TransVu.
AD network video ©2011
4
TransVu
Installation
This section is seperated into Physical Installation (tting the baseplate, shock absorbers etc.) and System
Installation (cable connections, etc.)
Physical Installation
Product Orientation
Although the TransVu can be mounted horizontally or vertically, it is recommended that it should be
mounted horizontally using the supplied mounting kit, with the multipole plug facing the rear of the vehicle.
This ensures the accelerometer gives the correct reading.
It is important that sufcient space be provided for the unit and cable connector.
Installation space required for the TransVu
The TransVu is xed to the vehicle via a mounting plate.
It should be mounted as low as possible within the vehicle, on a secure base free from resonance and
secondary vibrations.
The TransVu is xed to the mounting plate via four shock absorbing xings. This dramatically reduces the
vehicle vibrations and enables the TransVu to operate in harsh shock environments.
Vibration will cause the TransVu to move on the shock mounts. Therefore a reasonable clearance must be
allowed around the unit.
A suggested tment area of 350mm (13fl”) x 380mm (15”) x 140mm (5” ) is recommended.
140mm
(5”)
350mm
(13”)
AD network video ©2011 5
TransVu
Care in feeding cables
Ensure the cables feeding the multipole plug are clamped to avoid any vibration being transmitted along
them to the unit. Cable clamp posts are provided on the baseplate. The two clamps (highlighted) must be
used to prevent the cable vibrating loose.
380mm
(15”)
350mm
(13”)
FWD
Notes on installation space
Additional space is required around the plug to accomodate the disconnection of the cable from the unit.
AD network video ©2011
6
TransVu
Mounting the Baseplate
The TransVu baseplate should be secured to the vehicle using appropriate nuts, bolts and shakeproof
washers. The baseplate should be mounted horizontally. Ensure the correct orientation of the TransVu once
it is mounted on the baseplate. The Transvu multipole socket should face the rear of the vehicle, at the top
of the base plate, and the cable clamp should be on the right hand side.
These details cover installation using the Rev B metalwork.
Mounting restriction for correct G-force implementation
If the G force detectors are tted in the TransVu, the baseplate must be correctly orientated within the
vehicle.
Baseplate dimensions & measurements:
6mm (x8)
296mm
260mm
250mm
230mm
170mm
90mm
36mm
10mm
265mm
254mm
10mm
21mm
AD network video ©2011 7
TransVu
TransVu top view dimensions
30mm
11mm 11mm
195mm
250mm
130mm60mm 60mm
Holes
7mm x 13mm
233mm
30mm
Note: Early metalwork used smaller ange mounts for bolt xing suspension. The 7mm x 13mm holes
were aligned on a 145mm x 215mm square relative to the centre of the unit.
AD network video ©2011
8
TransVu
TransVu end view dimensions:
Note: The measurement from the baseplate to the base of the TransVu is a measured 18mm (¾ inch)
when the assembly is static. When the assembly is subject to vibration this measurement will alter
dynamically.
296mm
195mm
30mm 30mm 30mm
10mm
90mm
18mm
(static)
Fitting shock absorbers to the unit.
This procedure to mount the shock absorbers to the TransVu must be adhered to, this will ensure minimum
movement due to vibration:
AD network video ©2011 9
TransVu
Fitting the TransVu to the baseplate
The Transvu multipole socket should face the rear of the vehicle, at the top of the base plate, with the cable
clamp on the right hand side.
Note: The cable clamp is provided to reduce vehicle vibration being transmitted from the cable loom
through to the TransVu. Ensure that the cable loom between the clamp and the multipole socket
does not touch any part of the vehicle.
AD network video ©2011
10
TransVu
Cable Connections
Multipole Connector
All connections to the Transvu unit are made via a 55 way female multipole connector.
The connector is mated to the TransVu as follows:
1
2
3
