Nokia CK-7W Bedienungsanleitung

Advanced Car Kit CK-7W

User’s Guide

Installation Guide

9230221_CK-7_1_en.fm Page 1 Thursday, August 12, 2004 4:13 PM

DECLARATION OF CONFORMITY

We, NOKIA CORPORATION, declare under our sole responsibility that the

product HF-5 is in conformity with the provisions of the following

Council Directive: 1999/5/EC. A copy of the Declaration of Conformity

can be found at:

http://www.nokia.com/phones/declaration_of_conformity/.

Reproduction, transfer, distribution or storage of part or all of the

contents of this document in any form without the prior written

permission of Nokia is prohibited.

Nokia and Nokia Connecting People are trademarks or registered

trademarks of Nokia Corporation. Other products and company names

mentioned herein may be trademarks or tradenames of their respective

owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of continuous development. Nokia reserves the

right to make changes and improvements to any of the products

described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data

or income or any special, incidental, consequential or indirect damages

howsoever caused.

The contents of this document are provided “as is”. Except as required by

applicable law, no warranties of any kind, either express or implied,

including, but not limited to, the implied warranties of merchantability

and fitness for a particular purpose, are made in relation to the

accuracy, reliability or contents of this document. Nokia reserves the

right to revise this document or withdraw it at any time without prior

notice.

The availability of particular products and services may vary by region.

Please check with the Nokia dealer nearest to you.

9230221 / Issue 2

9230221_CK-7_1_en.fm Page 2 Thursday, August 12, 2004 4:13 PM

Contents

English

Contents

Contents ............................................................................................... 3

For your safety..................................................................................... 4

Introduction ......................................................................................... 5

Your Nokia Advanced Car Kit CK-7W.............................................................................. 5

Bluetooth wireless technology .......................................................................................... 6

Bluetooth passcode............................................................................................................... 6

1. Getting started................................................................................. 7

Overview .................................................................................................................................. 7

Use of enhancements........................................................................................................... 8

2. Installation ....................................................................................... 9

Safety information................................................................................................................ 9

Configuration........................................................................................................................ 11

Installing the Advanced Car Kit CK-7W........................................................................ 13

Function test......................................................................................................................... 16

3. Putting the Advanced Car Kit CK-7W into service..................... 17

Connecting a mobile phone using Bluetooth wireless technology....................... 17

Pairing using a Bluetooth passcode............................................................................... 17

Automatic pairing with a compatible mobile phone ................................................ 18

Connecting a mobile phone over the data cable ....................................................... 18

4. Operation........................................................................................ 19

Remote control button ...................................................................................................... 19

Switching the Advanced Car Kit CK-7W on/off ......................................................... 20

Operating the Advanced Car Kit CK-7W ...................................................................... 20

Care and maintenance....................................................................... 23

9230221_CK-7_1_en.fm Page 3 Thursday, August 12, 2004 4:13 PM

For your safety

Read these simple guidelines. Breaking the rules may be dangerous or

illegal. Further detailed information is given in this user’s guide.

Keep all miniature SIM cards and accessories out of the reach of small

children.

ROAD SAFETY COMES FIRST

Remember that the safety of operating a motor vehicle in

traffic requires the full attention of all motorists. Only use

your Advanced Car Kit CK-7W if traffic conditions permit safe

use and check if local laws/regulations restrict the use of

mobile phones while driving.

INTERFERENCE

All wireless phones may get interference, which could affect

performance.

QUALIFIED INSTALLATION AND SERVICE

Only a qualified professional may install or repair phone

equipment.

CONNECTING TO OTHER DEVICES

When connecting to any other device using Bluetooth

wireless technology, read the relevant user’s guide for

detailed safety instructions. Do not connect incompatible

products.

FUSE REPLACEMENT

Replace a blown fuse with a fuse of the same type and size.

Never use a fuse with a higher rating!

9230221_CK-7_1_en.fm Page 4 Thursday, August 12, 2004 4:13 PM

Introduction

English

Introduction

■Your Nokia Advanced Car Kit CK-7W

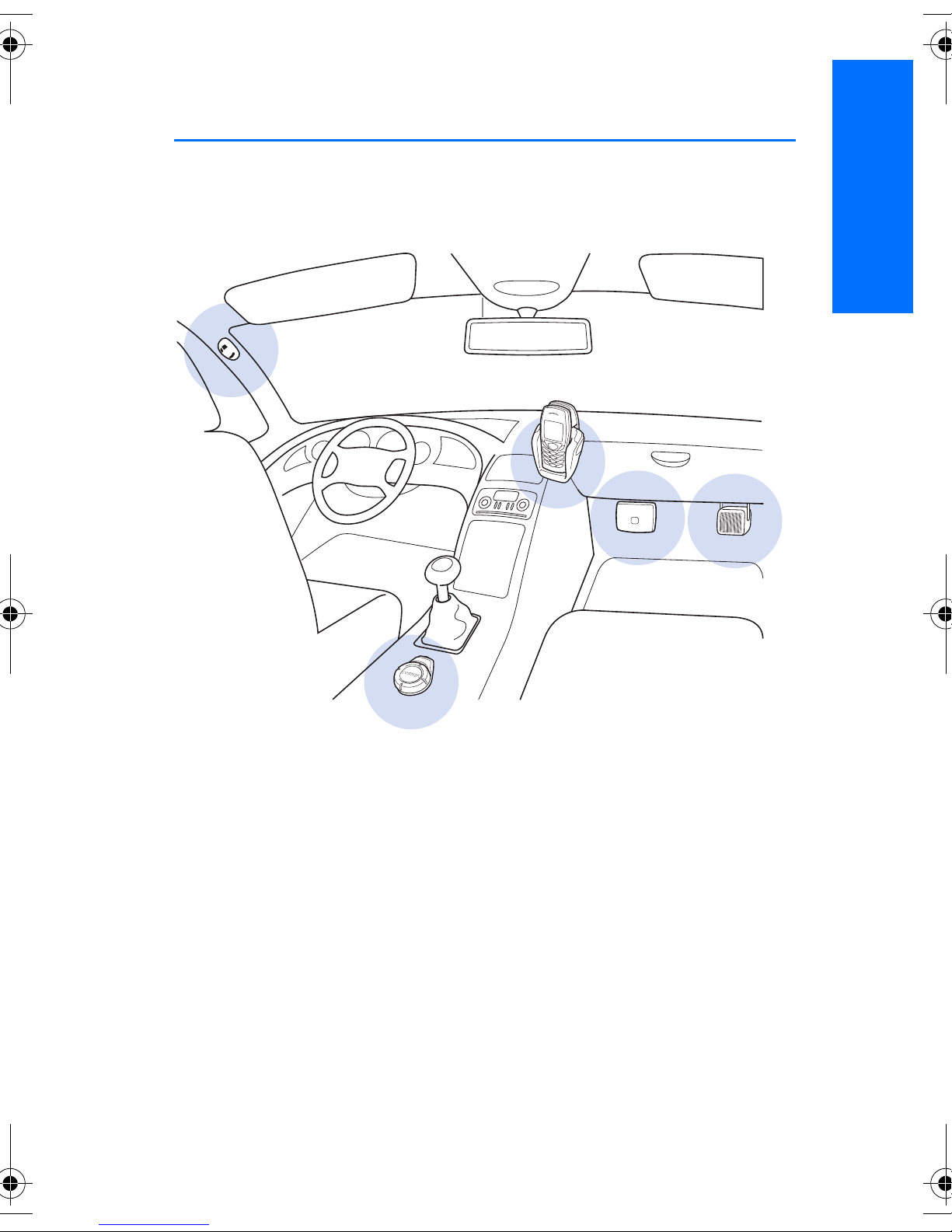

Advanced Car Kit CK-7W equipment installation in the cockpit

The Nokia Advanced Car Kit CK-7W was developed for installation in

motor vehicles to enable handsfree operation of mobile phones and use

of individual phone features.

A special emphasis was placed on quick and easy installation. A mobile

phone can be connected to the Advanced Car Kit in one of two ways:

using an optional phone holder with a cable or over a Bluetooth wireless

connection.

In some countries, use of the Advanced Car Kit may be restricted by law.

Please observe the applicable rules/regulations.

9230221_CK-7_1_en.fm Page 5 Thursday, August 12, 2004 4:13 PM

Introduction

■Bluetooth wireless technology

Bluetooth wireless technology is an international standard for short-

range wireless communication. It allows you to establish a wireless

connection within a range of 10 metres between your Advanced Car Kit

and a compatible device.

The Advanced Car Kit is intended for use with any mobile phone that

supports the Bluetooth Handsfree Profile (Bluetooth HFP).

The wireless connection between the compatible devices established

using Bluetooth technology is free of charge for the user. In some

countries, there may be restrictions on using Bluetooth devices. Check

with your local authorities.

■Bluetooth passcode

The first time you wish to establish a wireless connection to a

compatible device using Bluetooth technology, you will need to input a

passcode to pair the devices.

The passcode is 0000.

9230221_CK-7_1_en.fm Page 6 Thursday, August 12, 2004 4:13 PM

Getting started

English

1. Getting started

■Overview

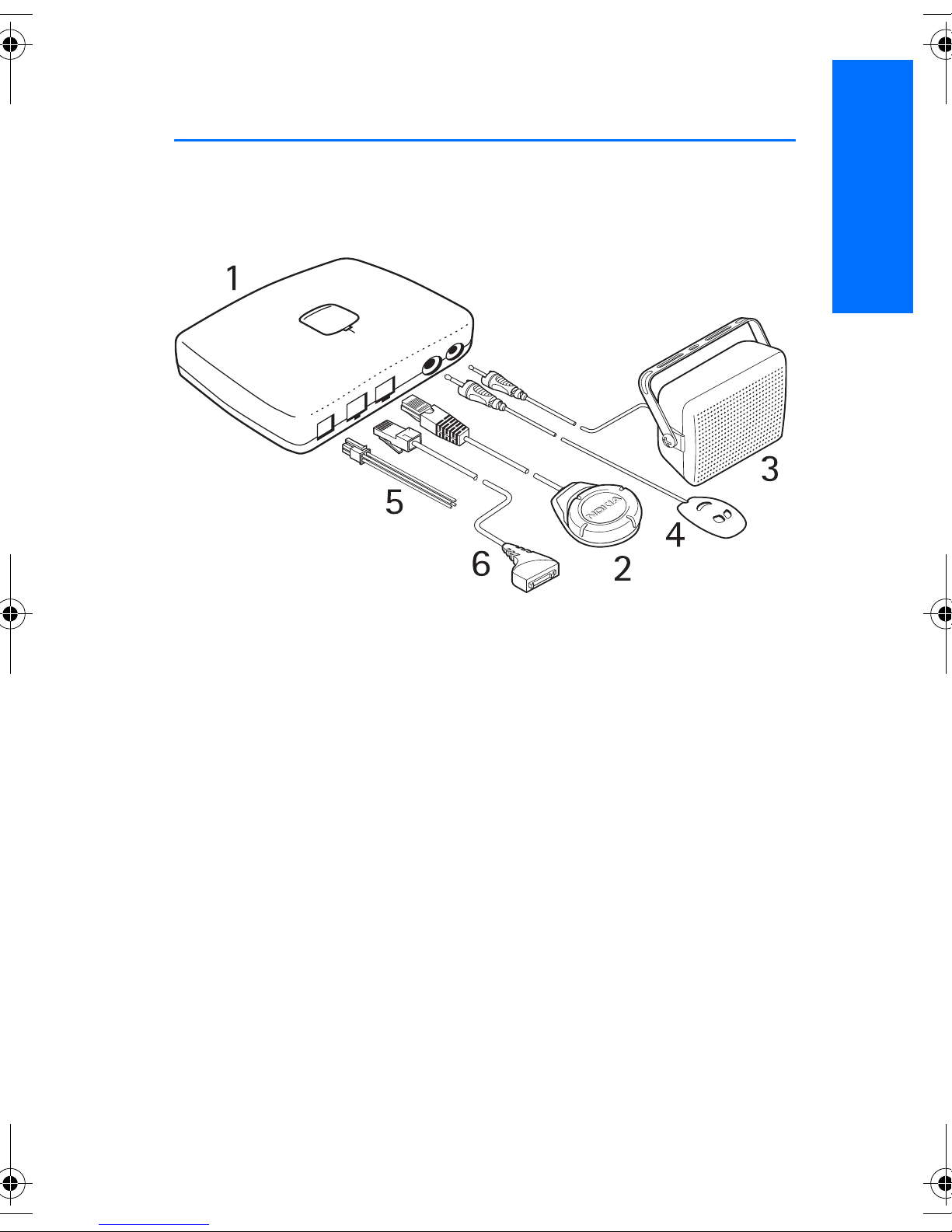

The Advanced Car Kit CK-7W includes the components shown above.

• 1 Handsfree unit HF-5 with mounting plate MK-2

• 2 Remote control button CU-7

• 3 Loudspeaker HFS-12

• 4 Microphone HFM-8

• 5 Cable set PCU-4

• 6 Data cable CA-27

9230221_CK-7_1_en.fm Page 7 Thursday, August 12, 2004 4:13 PM

Getting started

■Use of enhancements

Depending on the setup, a variety of optional enhancements are

available to extend your Advanced Car Kit. Before any installation work

is started, ask for professional advice on the enhancements that would

best suit your needs. Use only approved enhancements. Ensure that only

compatible products are connected to your Advanced Car Kit.

Phone holder

You will need a phone holder designed for a compatible mobile phone if

the mobile phone is to be connected direct to the handsfree unit using

the data cable.

Antenna coupler

An antenna coupler is required to connect an external antenna. A range

of antenna couplers are commercially available for the mobile phones

and phone holders on the market. An antenna coupler improves in-

vehicle reception of the mobile phone.

GSM antenna

A compatible GSM antenna enables optimised wireless connections.

If you have installed an external antenna, remember that in order to

comply with RF exposure requirements for mobile transmitting devices,

a minimum distance of 20 cm must be maintained between the antenna

and all persons.

9230221_CK-7_1_en.fm Page 8 Thursday, August 12, 2004 4:13 PM

Installation

English

2. Installation

■Safety information

The basic safety guidelines set out below are to be observed when

installing the Advanced Car Kit CK-7W.

Note:

• Only qualified personnel should service the Advanced Car

Kit CK-7W or install it in a vehicle. Faulty installation or

service may be dangerous and may invalidate any warranty

which may apply to the unit.

• The Advanced Car Kit CK-7W may only be installed by a

qualified service technician using the approved original

Nokia parts supplied in the sales package. End users should

remember that the Advanced Car Kit CK-7W comprises

complex technical equipment that requires professional

installation using special tools and expert know-how.

• Note that the instructions contained in this installation

guide are general guidelines which apply for the

installation of the Advanced Car Kit CK-7W in an

automobile. However, due to the wide variety of car types

and models available on the market, this guide cannot

consider the individual technical requirements relevant for

any particular vehicle. Contact the vehicle manufacturer

for further detailed information about the vehicle in

question.

• The Advanced Car Kit CK-7W is suitable for use only in

vehicles with a 12 volts negative grounding. Use on other

supply voltages all alternative polarity will damage the

equipment.

9230221_CK-7_1_en.fm Page 9 Thursday, August 12, 2004 4:13 PM

Installation

• Remember that modern automotive systems include on-

board computers where key vehicle parameters are stored.

Improper disconnection of the car battery may cause loss

of data, necessitating extensive effort for re-initialisation

of the system. If you have any concerns, contact your car

dealer before any installation work is done.

• Do not wire Advanced Car Kit CK-7W equipment to the

high-voltage lines of the ignition system.

• All equipment must be mounted so that it does not

interfere with the operation of the vehicle.

• Your service technician may be able to provide you with

information on alternatives for mounting the equipment

suitably in your vehicle without requiring boreholes.

• The mount for the phone holder is to be fixed to the

dashboard or to any other location in the cockpit area

where the display is clearly visible for the user but does not

impair control or operation of the vehicle. The keypad

should be within easy reach of the driver.

• Make sure not to impact the steering or braking systems or

other key systems essential for proper operation of the car

when installing Advanced Car Kit CK-7W equipment.

Check to make sure that deployment of the airbag is not

blocked or impaired in any way.

• Do not smoke when working on the car. Make sure that

there is no source of fire or flame nearby.

• Take care not to cause damage to electrical cables, fuel or

brake lines or safety equipment during installation work.

• RF signals may affect improperly installed or inadequately

shielded electronic systems in motor vehicles (e.g.

electronic fuel injection systems, electronic anti-skid

braking systems, electronic speed control systems, airbag

systems). Should you note a fault or change in the

operation of such a system, contact your car dealer.

9230221_CK-7_1_en.fm Page 10 Thursday, August 12, 2004 4:13 PM

Andere Handbücher für CK-7W

Inhaltsverzeichnis

Andere Nokia Autozubehör Handbücher

Nokia

Nokia HF-23 Handbuch

Nokia

Nokia HF-6W - Bluetooth hands-free Car Bedienungsanleitung

Nokia

Nokia CK-20W - Multimedia Car Kit Merkblatt

Nokia

Nokia Cark-112 Bedienungsanleitung

Nokia

Nokia 6090 Bedienungsanleitung

Nokia

Nokia CR-96 Bedienungsanleitung

Nokia

Nokia CAR KIT CK-100 Handbuch

Nokia

Nokia CR-200 Bedienungsanleitung

Nokia

Nokia CARK-91 Bedienungsanleitung

Nokia

Nokia CK-600 Merkblatt

Nokia

Nokia CK-100 Bedienungsanleitung

Nokia

Nokia HF-6W - Bluetooth hands-free Car Bedienungsanleitung

Nokia

Nokia CK-20W - Multimedia Car Kit Handbuch

Nokia

Nokia CK-1W Bedienungsanleitung

Nokia

Nokia CK-600 Handbuch

Nokia

Nokia HF-33W - Wireless Plug-in Car Handsfree Bedienungsanleitung

Nokia

Nokia CK-100 Bedienungsanleitung

Nokia

Nokia CK-100 Bedienungsanleitung

Nokia

Nokia Cellphone 3600 Bedienungsanleitung

Nokia

Nokia CK-300 Originalbetriebsanleitung

Nokia

Nokia HF-33W - Wireless Plug-in Car Handsfree Bedienungsanleitung

Nokia

Nokia CK-100 Bedienungsanleitung

Nokia

Nokia CARK134 Bedienungsanleitung

Nokia

Nokia CR-200 Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
