Norac UC5 Topcon X30 Bedienungsanleitung

Spray Height Controlle

John Deere Active Roll

(30 Series, 4720, 4710, 4700)

sta

n M

D08A

Printed in Canada

Reorder P/N: UC5-BC-JD08A-INST Rev D (JD Active Roll 30 Series, 4720, 4710, 4700)

NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without

the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information contained in this

manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents

1Introduction.............................................................................................................. 1

2General UC5 System Layout .................................................................................. 2

3Kit Parts.................................................................................................................... 3

4Pre-Install Checklist ................................................................................................ 9

5Ultrasonic Sensor Installation............................................................................... 10

6Target Installation and Alignment....................................................................... 15

7Module Installation................................................................................................ 18

8Connecting the Sensors to the CAN-Bus ............................................................. 24

9Hydraulic Installation............................................................................................ 25

10 Software Setup ....................................................................................................... 36

11 System Maintenance .............................................................................................. 37

12 Cable Drawings ...................................................................................................... 39

1 Introduction

Congratulations on your purchase of the NORAC UC5 Spray Height Controller. This system is

manufactured with top quality components and is engineered using the latest technology to

provide operating reliability unmatched for years to come.

When properly used the system can provide protection from sprayer boom damage, improve

sprayer efficiency, and ensure chemicals are applied correctly.

Please take the time to read this manual completely before attempting to install the system. A

thorough understanding of this manual will ensure that you receive the maximum benefit from

the system.

Your input can help make us better! If you find issues or have suggestions regarding the parts

list or the installation procedure, please don’t hesitate to contact us.

Phone: 1 800 667 3921 Canada (Toll Free)

1 866 306 6722 United States (Toll Free)

0 800 404 8389 United Kingdom (Toll Free)

(+1) 306 664 6711 All other regions

E-mail: [email protected]

Web: www.norac.ca

Every effort has been made to ensure the accuracy of the information contacted in this

manual. All parts supplied are selected to specially fit the sprayer to facilitate a complete

installation. However, NORAC cannot guarantee all parts fit as intended due to the

variations of the sprayer by the manufacturer.

Please read this manual in its entirety before attempting installation.

2 General UC5 System Layout

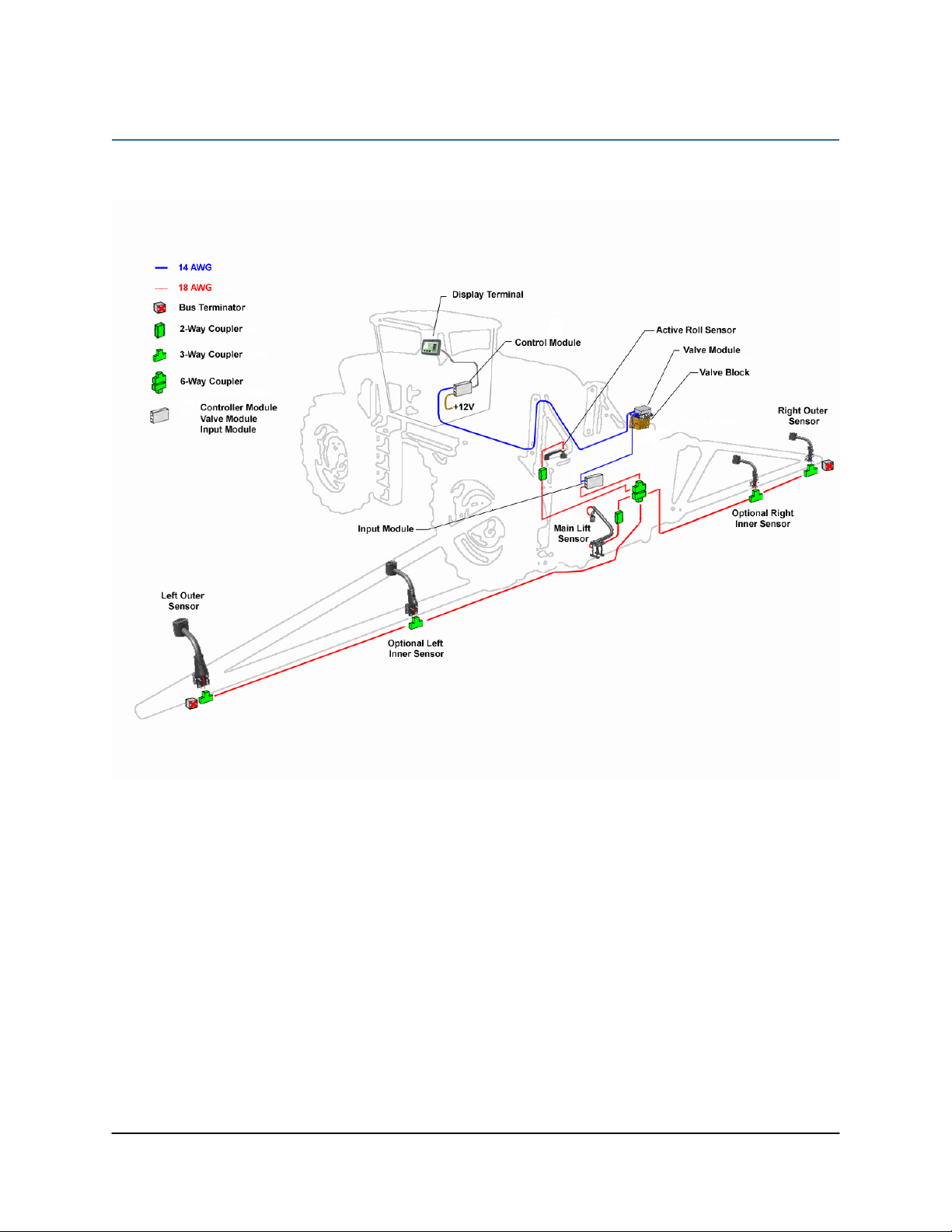

Figure 1 illustrates the general layout of the UC5 system components:

Figure 1: General UC5 System Layout

3 Kit Parts

3.1 Kit Overview

Figure 2: JD08A System Parts

3.2 Hydraulic Plumbing

Figure 3: JD08A Hydraulic Plumbing

3.3 List of Parts

Item Part Number Name Quantity

B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1

B07 44695-10 BRACKET SPRAYER FRAME TARGET ROLL BIAS CYLINDER REV C 1

B08 44741 MOUNTING BRACKET ROLL SENSOR TARGET UC4 1

B10 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2

B11 44740 MOUNTING BRACKET ROLL SENSOR UC4 REV C 1

B12 105415 CLAMP ROUND 2IN 4

B13 105416 CLAMP ROUND 1-1/4 IN 4

B14 44743 MOUNTING BRACKET MAIN LIFT SENSOR UC4 PLUS 1

C01 43220-10 CABLE UC5 NETWORK 14 AWG 10M 1

C02 43220-01 CABLE UC5 NETWORK 14 AWG 1M 2

C03 43210-03 CABLE UC5 NETWORK 18 AWG 3M 1

C04 43210-01 CABLE UC5 NETWORK 18 AWG 1M 1

C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2

C10 43230-04 CABLE UC5 VALVE 2PIN DT TO 2PIN DT 6

C20 43240-06 CABLE UC5 INTERFACE TILT JD 1

C21 43240-05 CABLE UC5 INTERFACE MAIN JD 1

C30 43250-07 CABLE UC5 BATTERY JD 1

E01 43710 UC5 CONTROLLER MODULE 1

E02 43720 UC5 VALVE MODULE 1

E03 43732 UC5 INPUT MODULE PASS THRU 1

E05 43750 UC5 ULTRASONIC SENSOR 4

E20 43760 UC5 NETWORK COUPLER 3-WAY 2

E11 43762 UC5 NETWORK COUPLER 6-WAY 1

E12 43764 UC5 NETWORK COUPLER 2-WAY 2

E11 43780 UC5 NETWORK TERMINATOR PLUG 2

H01 44862-05 HOSE ASSEMBLY 122R2-04 144 IN L 4FORX 4FORX 1

H02 44862-13 HOSE ASSEMBLY 122R2-04 36 IN L 4FORX 4FORX90 4

H03 44863-23 HOSE ASSEMBLY 122R2-06 32IN L 6FORX 6FORX 2

H10 44865-36 HYDRAULICS FITTING KIT - JD8 1

H70 44865-38 HYDRAULICS FITTING KIT - ACTIVE ROLL 1

H71 44864-04 HOSE ASSEMBLY 122R2-08 168 IN L 6FORX 12FORX 1

Item Part Number Name Quantity

H72 44862-11 HOSE ASSEMBLY 122R2-04 60 IN L 4FORX 4FORX 2

H75 105480 HYD CYLINDER ROLL BIAS 1.75IN BORE X 7.125IN STROKE REV A 1

H78 44864-03 HOSE ASSEMBLY 122R2-08 166 IN L 6FORX 6FORX 1

M02 UC5-BC-JD08A-INST MANUAL INSTALLATION UC5 JD ACTIVE ROLL (30 SERIES, 4720, 4710, 4700) 1

P01 106034 UC5 NETWORK 2 PIN PLUG 2

P02 106035 UC5 NETWORK 12 PIN PLUG (A-KEY) 1

P04 105882 UC5 NETWORK 6 PIN PLUG 1

V01 44933D VALVE BLOCK ASSEM UC5-BC 2-STATION CC/LS VARIABLE RATE DT 1

V70 44952D VALVE ASSEMBLY EXPANSION DPC PROP DT 1

3.4 Hydraulic Fitting Kit Details (P/N: 44865-36)

Item Part Number Name Quantity


F02 104691 TEE ADAPTER - 4FORXR 4MORT 5

F03 104586 TEE ADAPTER - 6FORXR 6MORT 3

F04 105226 MALE TO FEMALE ADAPTER - 4MOR 6FORX 1

F05 44917 MALE ADAPTER - 6MB-6MOR MACHINED ORB 4

F06 104693 MALE ADAPTER - 4MOR 4MB 1

F08 44928 ORIFICE INSERT .047 IN ONE WAY 4

F09 44916 MALE ADAPTER - 6MB 4MOR MACHINED ORB 4

6 M B - 6 M OR X 90

SIZE IN

1/16TH'S

GENDER: MALE

OR FEMALE

90° ANGLE

SWIVEL

TYPE

GENDER

SIZE

TYPE:

B - ORB

J - JIC

OR - FLAT

FACE

P - PIPE

Fitting Name

Example:
