01/13 Rev. 5.08-01 USER MANUAL

LTP-LTPV

Installation / Setup

Product description ....................................... 2

Product name ............................................ 2

Intended Use of System ............................ 2

Configurations ........................................... 2

System requirements ................................ 3

Functionality .............................................. 3

Technical data ........................................... 4

Component overviews ............................... 5

For your safety .............................................. 7

General safety notes ................................. 7

Connecting an interlocking guard .............. 8

Warning notes on the device ................... 10

Assembly .................................................... 11

Preparing the connection cable for the

interlock circuit ........................................ 11

Mounting to ALX 92x ................................12

Mounting to ALS 20x/256 .........................14

Installing the on-off valve .........................15

Compressed air .......................................16

Exchanging the pressure plate ................17

Settings .......................................................18

Parameter settings ...................................18

Punching the Vacuum Applicator Plate ...19

Positioning the pressure plate .................20

Sensors ....................................................22

Valves ......................................................23

Appendix .....................................................26

Pneumatic plans ......................................27

01/13 Rev. 5.08-01 USER MANUAL Installation / Setup

LTP - LTPV Product description

Product description

Product name

LTP/LTPV = Light Touch Pneumatic / Light Touch Pneumatic Vacuum

Light Touch Light Touch means that the applicator reverses shortly after it encounters resistance,

i.e. a product. This has the advantage that it also enables products of different heights

to be labeled without needing to adjust the applicator.

Pneumatic The LTP/LTPV is driven by compressed air.

Vacuum (LTPV only) The label is held to the plastic plate on the underside of the applicator by

suction and the air stream of a support air jet.

In the LTP, the suction onto the suction plate is generated by a blower that is mounted

at the top end of the applicator housing.

Intended Use of System

The LTP/LTPV applicator is a device for automatic attachement of self-adhesive

labels, which are supplied to the applicator by one of the following label dispensers or

print & apply machines.

Dispensers:

•ALS20x

•ALS256

Print & apply machines:

ALX 92x

The LTP/LTPV is firmly attached to the respective machine. In contrast to direct

dispensing from the dispensing edge of the machine onto the product, the LTP/LTPV

can bridge distances of up to 20 cm between dispensing edge and product. The „light

touch“ function enables the LTP/LTPV to attach labels on products with varying

heights.

Installation position Permissible installation positions for the LTP/LTPV are:

•Vertical, if application takes place from top to bottom (the product is located below

the printer/applicator); Application from bottom to top only if a dust protection,

specific to the application, is supplied by the integrator.

•Horizontal (the product is located next to the printer/applicator)

Configurations

The LTP/LTPV is available in both right-handed and left-handed versions. LTP/LTPV

and dispenser must be of the same handedness, that is both must be RH or LH ver-

sions.

Furthermore, the LTP/LTPV is available in two version:

• For mounting to the base plate of an ALX 92x

• For mounting to the dispensing edge holder for L-shape dispensing edges at the

following machines: ALS 20x/256

01/13 Rev. 5.08-01 USER MANUAL Installation / Setup

LTP - LTPV Product description

System requirements

Compressed air Compressed air connection with 4-6 bar must be available. If the pressure is higher, a

pressure reducer must be installed (available as accessory, article no. A9398).

ALX 92x • ALX 92x with standard dispensing edge and firmware version 3.40 or higher.

• Installed applicator interface (optional) with firmware version 1.03 or higher. If the

applicator interface was retrofittet, pay attention that the D-Sub 15 connector for

Avery applicators (top side of the front hood) is available.

ALS 20x • ALS 204, ALS 206 or ALS 256 with fixed L-dispensing edge and firmware version

1.10 or higher.

• Control by standard signal interface or by applicator interface (firmware version

1.18 or higher). The applicator interface is available optionally.

Displaying the firmware version: SERVICE DATA > MODULE FW VERS.

Displaying the firmware version of the applicator interface: SERVICE DATA > MODULE

FW VERS. > Applicator int.

Functionality

The LTP/LTPV applicator is an additional module to be mounted to one of the above

named label dispensers or print & apply machines (see chapter Intended Use of Sys-

tem on page 2). The device takes over self-adhesive labels from the dispensing

edge of the dispenser/print & apply machine, moves each of the labels to the product

in a linear movement and attaches it to the product.

The label is held by a pressure plate that is driven by a pneumatic cylinder between

home position and end position.

In home position, the label is taken over from the dispenser or the print & apply

machine. The arrival of the pressure plate in home position is detected by a sensor at

the pneumatic cylinder of the applicator. The label is peeled off the backing paper by

the dispensing edge and is pushed under the pressure plate, where it is sucked on by

a vacuum. Additionally, the label is blown onto the pressure plate by an air stream from

the support air nozzle. Afterwards, the pressure plate moves to the end position, whe-

re the label is attached to the product.

The arrival in the end position is detected by 4 sensors which are integrated in the

pressure plate. The sensors are activated, as soon as the pressure plate presses

slightly against the product. This „light touch“ function enables the LTP/LTPV to label

products with varying heights and especially sensitive products.

01/13 Rev. 5.08-01 USER MANUAL Installation / Setup

LTP - LTPV Product description

Technical data

Label stock

Performance data

Dimensions

Connections

Ambient conditions

Label type Self-adhesive (Papier, PE, PP, PVC, PA)

Label width LTP: 30-80 mm

LTPV: 12-80 mm

Label length LTP: 30-80 mm

LTPV: 12-80 mm

Labellling rate max. 100 / min a

a) At a stroke length of 20 mm and a dispensing speed of 40 m/min.

Stroke length max. 200 mm

Application tolerance ±1 mm

Application angle 90° ± 3°

Product speed max. 20 m/min

Weight 4.5 kg

WxHxD 100x250x450mm

Air pressure 4-6 bar (max. admissible: 8 bar)

Air consumption 0.3 liter/stroke

Power consumption 15 VA

Supply voltage 24 VDC

Operating temperature 5 to 40°C

Storage temperature 0 to 70°C

Humidity 30 to 80%, non condensing

Noise < 70 dB(A)

Protection class IP21

01/13 Rev. 5.08-01 USER MANUAL Installation / Setup

LTP - LTPV Product description

Component overviews

LTP - LTPV front side

[1] Front side LTP (A) and LTPV (B) (with mounting bracket for ALS 20xRH).

No. Designation

1 Mounting bracket for ALS 20x

2 Blower (LTP only)

3 Housing cover (LTPV only)

4Gaiter

5 Pressure plate (foarm, LTP only)

6 Pressure plate (plastic, LTPV only)

7 Support air nozzle

01/13 Rev. 5.08-01 USER MANUAL Installation / Setup

LTP - LTPV Product description

LTP - LTPV rear

[2] Rear view LTP (A) and LTPV (B) (with mounting bracket for ALS 20xRH).

No. Designation

1 Compressed air connection

2 Support air connection

3 Support air nozzle

4 Connection for interlock switch

5 Connector ALX/ALS

6 Pressure regulator

7 Pressure indicator

01/13 Rev. 5.08-01 USER MANUAL Installation / Setup

LTP - LTPV For your safety

For your safety

General safety notes

• Operating air pressure: 6 bar.

• The applicator must not be operated outdoors or in EX-areas.

• The applicator may only be installed and started up by authorized technicians.

• Lay cables and compressed air hoses in a way that nobody can stumble over it.

• Fix pneumatic hoses against lashing.

• Immediately replace defective pneumatic hoses.

• Only authorized technicians who are familiar with the associated hazards are per-

mitted to repair the applicator.

• Check the applicator regularly for faulty components. Immediately replace any

defective components with OEM parts! This reduces any safety hazards resulting

from the use of low quality parts.

• The on-off valve of the applicator must be set correctly. After switching on the com-

pressed air supply, the vacuum plate of the applicator must move slowly to the

home position. If the vacuum plate moves abruptly, the on-off valve must be

checked regarding a defect or a misalignment of the valve, see chapter Setting the

on-off valve on page 23.

• Never modify the design of the applicator (e.g., by installing a higher capacity

pneumatic cylinder). If the applicator is altered without authorization or used in an

unintended manner, all liabilities for damage and any other guarantees from the

manufacturer shall be rendered null and void.

WARNING!

Danger of cuts and crush injuries especially at the following points:

• Between moveable vacuum plate and dispensing edge.

• Between the guiding rods of the applicator.

• Between vacuum plate and conveyor belt, if present.

Never operate the applicator without the protective equipment. See chapter Con-

necting an interlocking guard on page 8.

Never remove or bypass the protective equipment.

Never touch the applicator while it is moving.

When adjusting the system, make sure that the applicator is not actuated unin-

tentionally.

01/13 Rev. 5.08-01 USER MANUAL Installation / Setup

LTP - LTPV For your safety

Connecting an interlocking guard

The illustrations in this chapter show exemplary a LTP at an ALS 20x RH labeller

(pictured without cables and hoses). The following instructions apply equally to all

other LTP/LTPV versions.

According to the EC machinery directive, the LTP/LTPV are partly completed

machines. In order that the completed machine matches the health and safety requi-

rements of the machinery directive, LTP/LTPV must be safeguarded against access

by an appropriate safeguarding device 1 (see [5]).

Connect the interlock switch [5[5D] of the safeguarding device to the connector [4]

delivered with the applicator.

Plug the connector to the LTP/LTPV [3].

Operation of the LTP/LTPV without the described safeguarding device shall be

regarded as abnormal use. Avery Dennison assumes no liability for damage due to

abnormal use of the printer.

[3] Connecting the interlock switch (A) of the safeguarding device (or an emergency-stop switch) to a LTP/

LTPV (at an ALS 20x).

[4] Plug that comes with the LTP/LTPV for connecting an interlock switch to the

LTP/LTPV (article number: A102076).

1) Movable interlocking guard according to EN ISO 12100-1, 3.25.4

01/13 Rev. 5.08-01 USER MANUAL Installation / Setup

LTP - LTPV For your safety

[5] Diagram of a movable interlocking guard:

AProtective guard closed. Interlock switch connected (C). Applicator is working.

BProtective guard open. Interlock switch not connected (D). Applicator stopped.

01/13 Rev. 5.08-01 USER MANUAL Installation / Setup

LTP - LTPV For your safety

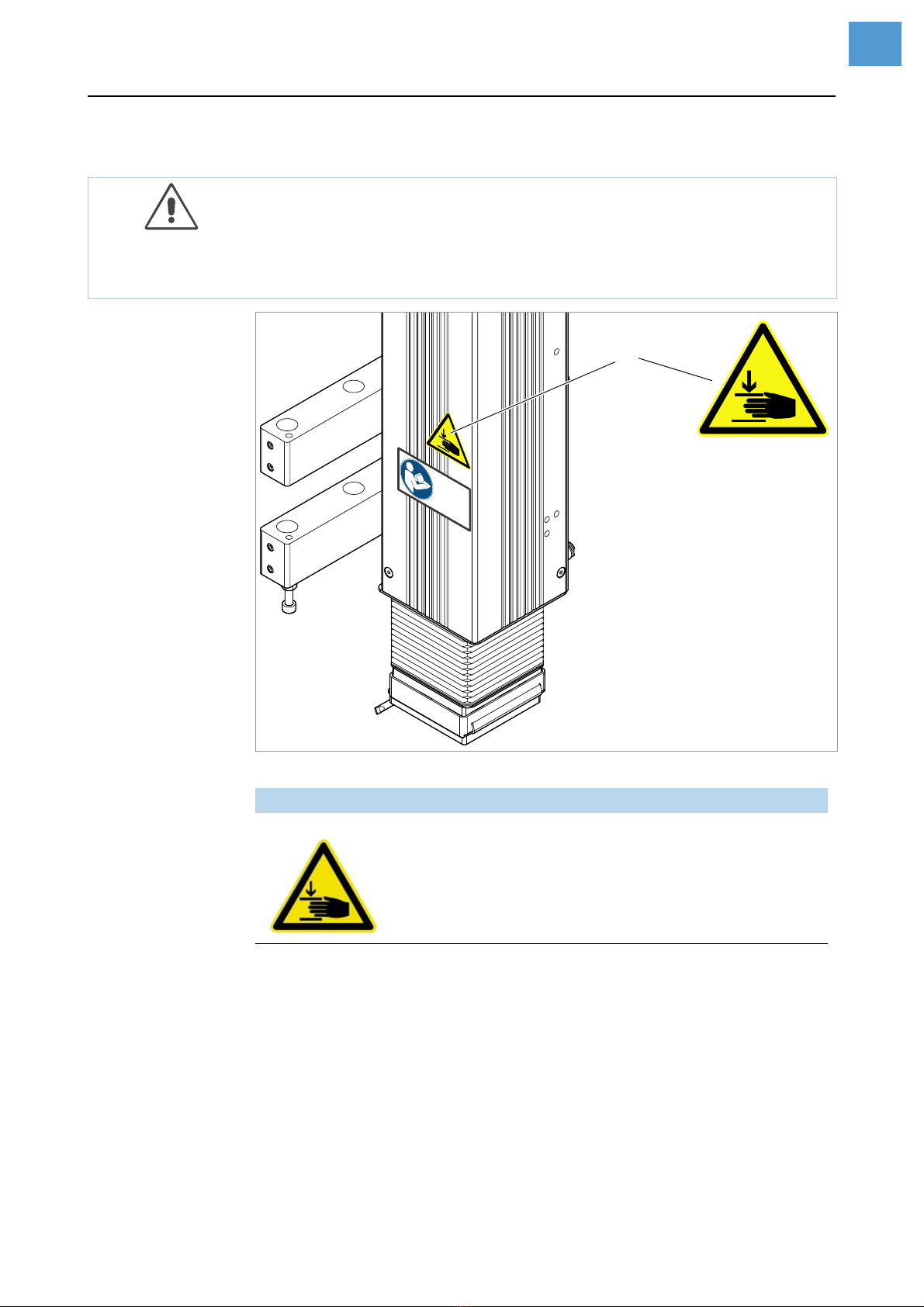

Warning notes on the device

[6] Warning note on the LTP/LTPV.

CAUTION!

Warning notes on the machine provide important information for the operating per-

sonnel.

Do not remove warning notes.

Replace missing or illegible warning notes.

Warning note Meaning Article no.

The warning note „pinch point“ warns you of

the danger posed by movements of the

machine; they can cause crush injuries.

A103530

[Tab. 1] Meaning of the warning notes.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Novexx Solutions Drucker Handbücher

Novexx Solutions

Novexx Solutions LA-BO Bedienungsanleitung

Novexx Solutions

Novexx Solutions ALX 73 Series Bedienungsanleitung

Novexx Solutions

Novexx Solutions DPM Bedienungsanleitung

Novexx Solutions

Novexx Solutions 64- series Bedienungsanleitung

Novexx Solutions

Novexx Solutions Label Maxx C Bedienungsanleitung

Novexx Solutions

Novexx Solutions LA-BO Bedienungsanleitung

Novexx Solutions

Novexx Solutions 64- series Bedienungsanleitung

Novexx Solutions

Novexx Solutions 64- series Bedienungsanleitung

Novexx Solutions

Novexx Solutions ALX 73 Series Bedienungsanleitung

Novexx Solutions

Novexx Solutions Cutter 2000 Fehlerbehebungshandbuch

Novexx Solutions

Novexx Solutions ALX 92 Series Bedienungsanleitung

Novexx Solutions

Novexx Solutions LA-TO Bedienungsanleitung

Novexx Solutions

Novexx Solutions 64- series Fehlerbehebungshandbuch

Novexx Solutions

Novexx Solutions ALS 30 Series Bedienungsanleitung

Novexx Solutions

Novexx Solutions ALX 73 Series Bedienungsanleitung

Novexx Solutions

Novexx Solutions EIDOS XTO2ce Bedienungsanleitung

Novexx Solutions

Novexx Solutions AP 4.4 Bedienungsanleitung

Novexx Solutions

Novexx Solutions ALX 73 Series Bedienungsanleitung

Novexx Solutions

Novexx Solutions 64- series Bedienungsanleitung

Novexx Solutions

Novexx Solutions U-RX Bedienungsanleitung

Novexx Solutions

Novexx Solutions U-RX Bedienungsanleitung

Novexx Solutions

Novexx Solutions LA-SO Bedienungsanleitung

Novexx Solutions

Novexx Solutions ALX 73 Series Bedienungsanleitung

Novexx Solutions

Novexx Solutions 64- series Bedienungsanleitung

Beliebte Drucker Handbücher anderer Marken

Lexmark

Lexmark 1400 Series Handbuch

Canon

Canon i70 Series Bedienungsanleitung

Evolis

Evolis Elypso Bedienungsanleitung

Kyocera

Kyocera FS-9530DN Bedienungsanleitung

Canon

Canon LASER SHOT LBP-1210 Bedienungsanleitung

Samsung

Samsung BIXOLON SRP-350plusF Bedienungsanleitung

Canon

Canon PIXMA PRO-1 Series Bedienungsanleitung

Canon

Canon PIXMA G3560 Einrichtungshandbuch

Dell

Dell Color Laser Printer 2130cn Bedienungsanleitung

Tektronix

Tektronix Phaser 840 Bedienungsanleitung

Epson

Epson ET-7750 Betriebsanleitung

Canon

Canon CLBR 460ps Bedienungsanleitung

Eltron

Eltron P210 Guide Bedienungsanleitung

Ricoh

Ricoh MD-P1 Bedienungsanleitung

Epson

Epson SC-F7100 series Bedienungsanleitung

Epson

Epson Stylus C40UX Bedienungsanleitung

Canon

Canon imagePASS-A2 Bedienungsanleitung

Canon

Canon S820D Bedienungsanleitung
