u s e r ’s m a n u a l

Applications client for mobile devices

NVR-3000 series NVR’s

Applications client for mobile devices for 3000 series NVR’s

- user manual ver.1.0

ATTENTION!

COPYING EITHER WHOLE OR PART OF THIS MANUAL WITHOUT WRITTEN PERMISSION

OF AAT HOLDING LTD. IS NOT ALLOWED.

Basic client application for NVR-3000 series NOVUS NVR is free of charge.

Depends of the mobile device system application is available respectively on Google Play or AppStore.

All services and products named in this manual may be trademarks or registered trademarks and

therefore may be a property of respective subjects.

In case of applications obtained via websites being property of other subjects or using their

assistance in obtaining them, please familiarize with their terms of usage and privacy rules.

IMPORTANT SAFEGUARDS AND WARNINGS

Applications client for mobile devices for 3000 series NVR’s

- user manual ver.1.0

CONTENTS

TABLE OF CONTENT ....................................................................................... 3

1. FOREWORD INFORMATION ..................................................................... 4

2. SOFTWARE INSTALATION AND OPERATION FOR

IPHONE CLIENT ............................................................................................ 5

2.1 Software installation ............................................................................ 5

2.2 Software operating ............................................................................... 7

3. SOFTWARE INSTALATION AND OPERATION FOR

ANDROID CLIENT....................................................................................... 11

3.1 Software installation ......................................................................... 11

3.2 Software operating ............................................................................. 12

Applications client for mobile devices for 3000 series NVR’s

- user manual ver.1.0

1. FOREWORD INFORMATION

The NOVUS 3000 series NVRs support mobile surveillance by IPhone or Android mobile phones.

There are several kinds of client applications, depending on operating system used in mobile phones.

This manual describes installation process of an application compatible with aforementioned models.

Wireless connection at local network:

Wireless connection using mobile phone networks and internet:

FOREWORD INFORMATION

NOVUS NVR SMARTPHONE

Router /Access Point

WiFiLAN

INTERNET

NOVUS NVR

SMARTPHONE

LAN

Router /Access Point

GPRS

UMTS

Applications client for mobile devices for 3000 series NVR’s

- user manual ver.1.0

2. SOFTWARE INSTALLATION AND OPERATION FOR IPHONE CLIENT

2.1 Software installation

In order to start software installation:

Open App Store application of the IPhone, and search for „IMSeye or IMSeyeHD”.

Please select the „IMSeye or IMSeyeHD” item from the program list and the application information

will appear, then click the icon.

Input password for the iTunes store and then click the OK. Software installation is then started

automatically.

Please enter user ID and password when logging to the iTunes, if there is no account created, user

needs to join the iTunes.

1. FOREWORD INFORMATION

The NOVUS 3000 series NVRs support mobile surveillance by IPhone or Android mobile phones.

There are several kinds of client applications, depending on operating system used in mobile phones.

This manual describes installation process of an application compatible with aforementioned models.

Wireless connection at local network:

Wireless connection using mobile phone networks and internet:

SOFTWARE INSTALLATION AND OPERATION FOR IPHONE CLIENT

Applications client for mobile devices for 3000 series NVR’s

- user manual ver.1.0

SOFTWARE INSTALLATION AND OPERATION FOR IPHONE CLIENT

2.2 Software operation

In order to run the application please select the icon like below:

Following window will appear:

To watch camera please select “Add New Device” button to add NVR to list.

Please choose Address in Login Mode and fill in necessary fields.

Name - Please input any name

IP Address - Please input NVR IP address

Port - provide TCP data connection port default 8000

User ID & Password

Applications client for mobile devices for 3000 series NVR’s

- user manual ver.1.0

SOFTWARE INSTALLATION AND OPERATION FOR IPHONE CLIENT

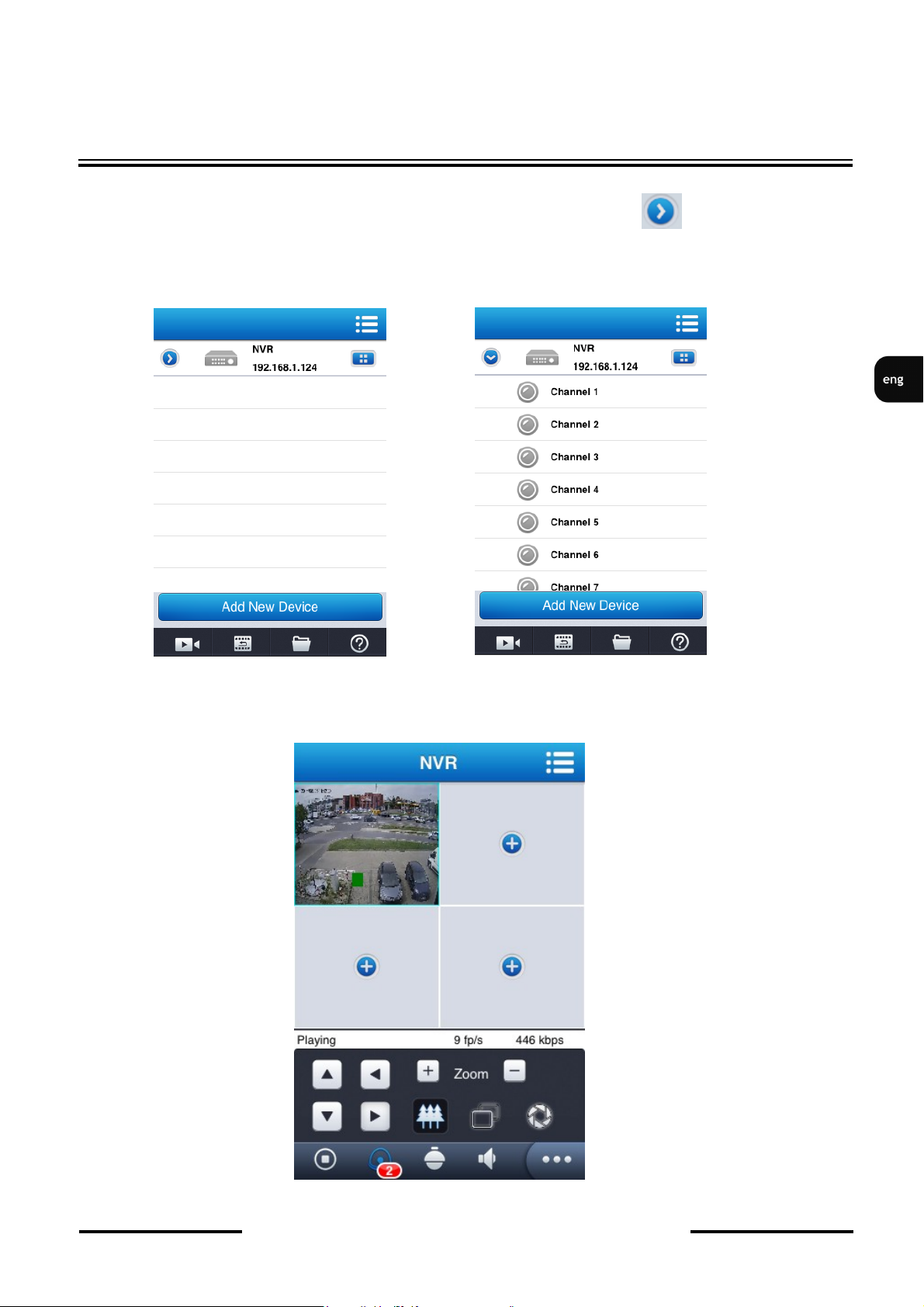

Select “OK” to confirm settings or press “Back” to return to the device list.

After providing settings NVR will be added to list. Please click on the button next to NVR

to expand available channels and select desired channel.

After establishing connection camera live monitoring will be shown.

Applications client for mobile devices for 3000 series NVR’s

- user manual ver.1.0

SOFTWARE INSTALLATION AND OPERATION FOR IPHONE CLIENT

To add additional camera to view press and choose desired channel to add.

To view live video form in single channel mode double click on displayed channel. To switch back to

split view double press on previewed image.

Single click on window set focus on window and highlights windows with green frame.

When displaying window the following buttons are available :

Start/stop image preview

Displays information about received alarms

Displays control panel for PTZ devices

Enable/disable audio listening

Display other control functions

Capture an image in jpg file to the device memory

Enable/disable video recording

Back to previus video option

Removing the added camera configuration for the active channel

After pressing the PTZ control the following icons are displayed :

Control for PTZ camera movements

Focus control

Zoom control

Aperture control

Applications client for mobile devices for 3000 series NVR’s

- user manual ver.1.0

Video playback

Clicking on button opens window for searching recoded videos in NVR. To start search choose

desired day, define time range an select channel for searching. Then press “Search’ to start searching.

If records are found files with recording are displayed on the list. To start video playback click on

desired file.

SOFTWARE INSTALLATION AND OPERATION FOR ANDROID CLIENT

Date selector

End of recodting

Start of recordings

Channel

Device selector

Record Type Search

Files found

Applications client for mobile devices for 3000 series NVR’s

- user manual ver.1.0

SOFTWARE INSTALLATION AND OPERATION FOR IPHONE CLIENT

The playback window displays the selected file. Use time bar to preview file It is possible to image

from replayed video into jpg file. To end replaying video press “Back” button.

Close video playback

Video progres bar

Start/Stop video replay Capture image to jpg
