GENERAL

Battery Charging

These devices are used indoors (ta 40 C) in

places where emergency luminaires are

needed. The luminaires GR-490/WP/ADR

and GR-492/WP/ADR are suitable for

corridors lighting and the GR-491/WP/ADR

and GR-493/WP/ADR for open area lighting.

Each device must be permanently connected

to mains power supply. In normal operation

the battery is charging. In case of a mains

power supply failure, the device enters

emergency mode and the illumination LED

turns on. When the mains power supply is

re st or ed th e d e v i c e t u r n s t o n or ma l

operation.

The battery charging is completely controlled

by microprocessor and is protected from

complete discharge and overcharge.

The luminaire enters in this mode when the

mains power supply fails and battery has lost

its energy. During this mode the luminaire

INSTALLATION

To install the luminaire follow the installation

instructions οn page 3.

Battery Cut-off

enters the idle state and battery consumption

is negligible, in order to be protected from

deep discharge.

This test can be done by using the A-1900

card as described on page 6. The light source

and the emergency circuit of the device are

tested. The manual test can be conducted

only if the mains power supply and the battery

are connected. During this test period the

LAMP TEST LED will blink.

Manual Test

Manual Autonomy Test

A duration test can be conducted by holding the

A-1900 card steadily for 5 to 10 seconds. In

order to be performed, the mains power supply

and the battery should be connected. The

luminaire enters emergency mode, the charge

LED is turned OFF and the Battery Fault led

starts to blink. The test is performed until the

battery is fully discharged.If at the end of the

test the autonomy is low then the Battery Fault

LED will be ON. If the result of the test is good

then the luminaire enters charging mode and

the Charge led starts to blink until the batteries

are fully charged.

ADDRESSABLE WATERPROOF SELF TESTING NON-MAINTAINED EMERGENCY CEILING MOUNTED LUMINAIRES

OPERATION TEMPERATURE RANGE

RELATIVE HUMIDITY

CONSTRUCTION MATERIAL

EXTERNAL DIMENSIONS

WEIGHT

GUARANTEE

OPERATION VOLTAGE

MAXIMUM POWER CONSUMPTION

BATTERY (Ni-Mh)

CHARGE TIME

INDICATIONS

BATTERY PROTECTION

MINIMUM DURATION

DEGREES OF COVER PROTECTION

PRODUCED IN ACCORDANCE WITH

EMERGENCY ILLUMINATION

LIGHT SOURCE

24 hours

LED Charge , Lamp Fault LED, Battery Fault LED / Magnetic Test Contanct

Deep discharge and overcharge protection

IP65

1 white power LED

5 to 40 C

Up to 95%

3 years (1 year for the battery)

EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3

3 hour

280lm 140lm

600gr.

220-240V AC / 50-60Hz

TECHNICAL CHARACTERISTICS (for LED MODULE specifications see page 6)

GR-490/WP/ADR GR-491/WP/ADR GR-492/WP/ADR GR-493/WP/ADR

ABS/PC, PC

158 x 158 x 60,4mm (without decorative bezel) - 195 x 195 x 60,4 (with decorative bezel)

Thank you for your trust in our products

Olympia Electronics - European manufacturer

4.8V/1.2 Ah

3.9W / 4.4VA

1.5 hour

Automatic Operational Test

This test includes all the operations that are

provided in manual test and is conducted

automatically every 15 days. In order to be

performed, the mains power supply and the

battery should be connected.

Automatic Autonomy Test

The Automatic Autonomy Test tests the

device’s back up operation and emergency

duration. This test is conducted automatically

every 6 months. In order to be performed, the

mains power supply should be connected and

the battery must be fully charged. If the

battery is not fully charged, the test is

postponed until the battery is completely

charged. If during this test, the autonomy is

less than nominal then the battery fault LED

will permanently be on and the battery must

be replaced.

Back Up Operation

The autonomy duration of battery during

emergency mode must be at least as the one

stated in the list of the technical

characteristics. During emergency mode, a

light source test is also performed.

Resetting Errors

Hold the A-1900 card in TEST position for 10

to 15 seconds in order to delete all LED

indicated errors. Then the device enters

regular operation mode.

ADDRESSABLE COMMUNICATION

The luminaire has the ability to be connected

to GR-6500 panel. In order to do so, the

luminaire’s address has to be unique in the

same bus. For more details see page 3

(installation instruction).

Οff: No battery (No charging current

ΑΤΤΕΝΤΙΟΝ!!!

5. I s not allowed to discard batteries in t i

to common trash bins, they must be

discarded only in battery recycling

points. Do not incinerate.

Indication LED status (mains on)

3. In case of battery or lamp replacement,

these must be replaced by parts with same

type, by the manufacturer or by a competent

person.

Blink (With Charge LED Off): Autonomy test

is performed.

Battery Fault

1. Operations for installation, maintainance

or testing must be done by authorized

personnel only.

Lamp Fault

Off: LED OK.

2. The device must be connected to the

mains power supply through a fuse that is

dependent on the total line’s power load.

4. In case of inactive use for a period

greater than 2 months, disconnect the

battery by pulling out the battery’s connector.

Charge

On: Fully charged.

or disconnected battery).

Blink: Charging.

Οn: Faulty LED.

Blink: Operational Test.

Οff: Battery OK.

ON (With Charge LED ON): Autonomy or

low battery problem (the battery must be

replaced).

Page 2 from 9

Battery

Fault

Lamp

Fault

Charge

Indicators

923493002_09_001

GR-490/WP/ADR, GR-492/WP/ADR GR-491/WP/ADR, GR-493/WP/ADR

Page 3 from 9

INSTALLATION INSTRUCTIONS

cable

entry

hole

Corridor

lighting

ATTENTION!!!

During installation follow this light

direction.

Open

area

lighting

1. Detach the front cover by applying pressure using a flat blade screw driver. Next, unfasten the four

retaining screws without removing them and remove the diffusor.

2. Install the battery connector to its corresponding connector on the main pcb.

4 Reinstall the diffusor and re-tighten the 4 screws in a diagonally manner with a torque of N*m. 0,9 .

3. Install the cable grommet in the open hole of the plastic base and open a hole in the center of the

grommet using a small screw driver. Pass the power cable through the hole in the grommet, connect the

cables as shown in the photograph. Open another cutout cable entry hole and install the second supplied

cable grommet. Use the supplied self adhesive pad and cable tie to anchor the cable. Pass the 2 signal

cables and connect them on the A, B terminals minding the correct polarity. Set the luminaire’s address

through the DIP switch. See table at pages 7 to 9

NOTE!! After finishing the installation you must power the luminaire for at least 24 hours in order

to completely charge the battery. The rated autonomy duration can be achieved after that time.

Initial installation

923493002_09_001

Required opening

14.5x14.5cm

wall plug wall plug

screwsscrews

plastic

mounting

bracket

luminaire’s

base

Page 4 from 9

MOUNTING IN SUSPENDED CEILING

5. Install the two supplied plaster board plugs by screwing them on the plaster board ceiling.

8. Use the supplied screws to fasten the luminaire to the plaster board plugs (figure 8) that were

retaining screws (figure 1) without removing them and remove the diffusor.

4. Mark the positions of the mounting holes on the brackets.

previously installed on the plaster board ceiling.

6.Open a cable entry cutout hole on the plastic base and follow step 3 in the “initial installation”

9. Finally, install the supplied decorative bezel (figure 9). The notch on the bezel must be

2. Install the supplied cable grommet from the inside of the plastic base (figure 2).

3. Install the two plastic brackets with the four screws (figure 3).

section.

7. Re-install the front cover that was removed in step 1.

located on the left side of the luminaire (figure 10).

1. Detach the front cover by applying pressure using a flat blade screw driver. Next, unfasten the four

923493002_09_001

Other

possible

cable entry

holes

Page 5 from 9

MOUNTING IN SUSPENDED CEILING

SURFACE MOUNTING

washer

rabber o-ring

3. Place the luminaire on the desired mounting location and mark and drill these 4 holes. Fit the

supplied 4 plastic mounting plugs to these drilled holes on the mounting location.

2. Use a drill with a 3,5mm bit to open the 4 mounting holes (figure 2) located in the plastic base..

4. If the cable entry hole is not suitable then use one of the supplied cables grommets to cover the

holes and open another cable entry cut out hole (figure 3). Follow step 3 of the “ initial installation

procedure”.

6. Re-install the cover that was removed in step 1.

1. Detach the front cover by applying pressure using a flat blade screw driver. Next, unfasten the four

retaining screws without removing them and remove the diffusor.

5. Mount the base to the desired location by using the supplied screws, washers and o-rings in

each mounting hole(figure 5).

923493002_09_001

LED MODULE CHARACTERISTICS

Olympia Electronics S.A.

65 °C max. across the board

2,8-2,9V DC3-3,1V DC

1W2W

0405183

GR-490/WP/ADR

GR-491/WP/ADR

GR-492/WP/ADR

GR-493/WP/ADR

E: With non-replaceable lamp(s)

NOTE: LED= Light Emitting Diode

LABELING EXPLANATION:X: Self contained

0: Non maintained (*)

A: Including test device

B: Including remote test mode

C: Including inhibiting mode

with IEC 61347-2-7 denoted EL-T

90: 1.5 hour duration

180: 3 hours duration

(*) Non Maintained operation: The luminaire turns on illumination source, only in case of power supply

failure.

F: Automatic test gear complying

fixed connection between main pcb and led module

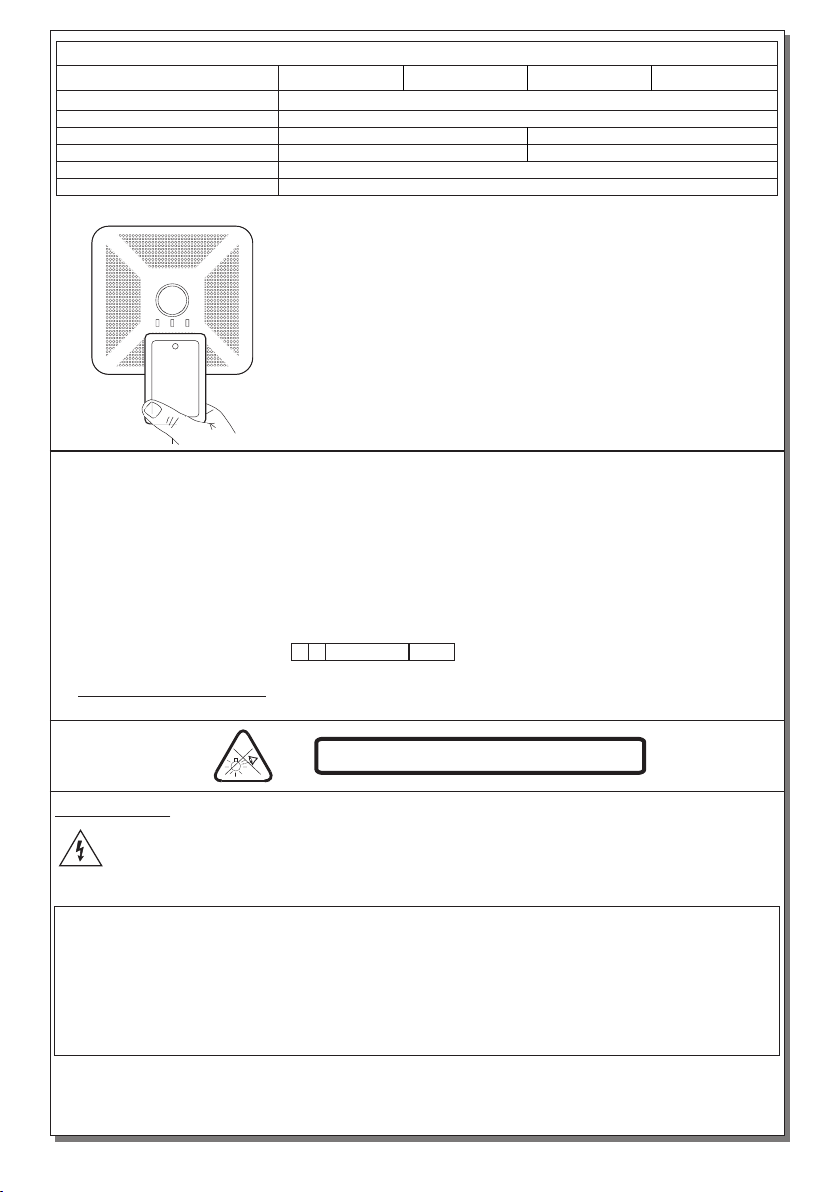

TEST

A-1900

For Autonomy Test, you must place the card in front of TEST

and hold it for 5 to 10 seconds.

Test and Faults Reset operations with the A-1900 card (not

included and available after request).

For lights test, you must place the card in front of the TEST

indicator and remove it immediately.

To reset errors you must place the card in front of TEST by

holding it for 10 to 15 seconds and removing it.

Page 6 from 9

the position of the old one.

1. Detach the front cover by applying pressure using a flat blade screw driver. Next, unfasten the four

Battery replacement

3. Disconnect the connector and remove the old battery.

4. Connect the new battery with the same type (step 2 of the installation instructions) and place it in

It can be done only by a competent person and after the mains interruption.

5. Replace the removed parts and power the device.

retaining screws without removing them and remove the diffusor.

Manufacturer

Model Number

Voltage Range

Connections

Nominal Power

Temperature (tc)

CAUTION : Do not view directly with bare eyes

X081 0A EB C F

The light source of this luminaire is not replaceable when the light source reaches its end of life

the whole luminaire shall be replaced.

ATTENTION!!!

923493002_09_001

Page 7 from 9

Address Address Address Address

Dipswitch

setting Dipswitch

setting

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

1 1 1

ON ON ON

ONON

2 2 2

3 3 3

4 4 4

5 5 5

6 6 6

7 7 7

8 8 8

923493002_09_001

Address Address Address Address

Dipswitch

setting Dipswitch

setting

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

1 1

ON ON

ONON

2 2

3 3

4 4

5 5

6 6

7 7

8 8

121

122

123

124

Page 8 from 9 923493002_09_001

Page 9 from 9

Address Dipswitch

setting

245

246

247

248

249

250

241

242

243

244

[email protected]

Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge the

buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or not the

buyer the transportation cost.

WARRANTY

72nd km. O.N.R. Thessaloniki-Katerini

HEAD OFFICE

Olympia Electronics guarantees the quality, condition and operation of the goods. The period of warranty

is specified in the official catalogue of Olympia Electronics and also in the technical leaflet, which

accompanies each product. This warranty ceases to exist if the buyer does not follow the technical

instructions included in official documents given by Olympia Electronics or if the buyer modifies the goods

provided or has any repairs or re-setting done by a third party, unless Olympia Electronics has fully

agreed to them in writing. Products that have been damaged can be returned to the premises of our

company for repair or replacement, as long as the warranty period is valid.

P.C. 60300 P.O. Box 06 Εginio Pierias Greece

www.olympia-electronics.gr

923493002_09_001

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere olympia electronics Laterne Handbücher

olympia electronics

olympia electronics GR-490/ADR Bedienungsanleitung

olympia electronics

olympia electronics WATERPROOF POWER LIGHT Series Bedienungsanleitung

olympia electronics

olympia electronics BAU LIGHT Series Bedienungsanleitung

olympia electronics

olympia electronics POWER LIGHT Series Bedienungsanleitung

olympia electronics

olympia electronics EASY LIGHT Series Bedienungsanleitung

olympia electronics

olympia electronics Slim Light Series Bedienungsanleitung

olympia electronics

olympia electronics GR-290 Bedienungsanleitung

olympia electronics

olympia electronics OLY-500 Bedienungsanleitung

olympia electronics

olympia electronics GR-900/30L/SC Bedienungsanleitung

olympia electronics

olympia electronics Double Easy Light GR-391/L Bedienungsanleitung

olympia electronics

olympia electronics GR-8/leds Bedienungsanleitung

olympia electronics

olympia electronics KLIN-20/ST Bedienungsanleitung

olympia electronics

olympia electronics GR-290/WP/M Bedienungsanleitung

olympia electronics

olympia electronics GR-938/15L Bedienungsanleitung

olympia electronics

olympia electronics GR-939/30L/LT Bedienungsanleitung

olympia electronics

olympia electronics WEATHER LIGHT Series Bedienungsanleitung

olympia electronics

olympia electronics GR-579/L/90/WP Bedienungsanleitung

olympia electronics

olympia electronics GR-270 Bedienungsanleitung

olympia electronics

olympia electronics POWER LIGHT Series Bedienungsanleitung

olympia electronics

olympia electronics OLY-1004/WP/ADR Bedienungsanleitung

olympia electronics

olympia electronics GR-108/12L/90 Bedienungsanleitung

olympia electronics

olympia electronics GR-796/ST/DUO/ADR Bedienungsanleitung

olympia electronics

olympia electronics GR-490/WP Bedienungsanleitung

olympia electronics

olympia electronics OLY-1024/WL Bedienungsanleitung

Beliebte Laterne Handbücher anderer Marken

KYOWA

KYOWA KW-9114 Bedienungsanleitung

Stahl

Stahl ECOLUX 6610 Series Bedienungsanleitung

SNOWJOE

SNOWJOE SUNJOE 24V-LGT500-CT Bedienungsanleitung

PRG

PRG VARI LITE VL5 Bedienungsanleitung

Raytec

Raytec VARIO2 series Bedienungsanleitung

ENSA

ENSA LEDBT18WS2 Bedienungsanleitung

LUG

LUG OFFICE LB LED N/T Bedienungsanleitung

GE Wallighter 250 Bedienungsanleitung

Draper

Draper RLEDL19/B Bedienungsanleitung

Green Lighting

Green Lighting TRI-SENSOR GL4612LU Bedienungsanleitung

Panasonic

Panasonic EY3741B57 Bedienungsanleitung

Clas Ohlson

Clas Ohlson LCC8T Bedienungsanleitung

Coolon

Coolon WDN-140 Bedienungsanleitung

Holiday Travel

Holiday Travel 834873 Bedienungsanleitung

BEGA

BEGA 84 036 Bedienungsanleitung

BEGA

BEGA 33 596 Bedienungsanleitung

Dale Tiffany

Dale Tiffany GT701162 Bedienungsanleitung

Wagan

Wagan Brite Nite Pop-Up USB Lantern Bedienungsanleitung

olympia electronics GR-490/WP/ADR Bedienungsanleitung

Beliebte Laterne Handbücher anderer Marken
