Optiview 4CH Bedienungsanleitung

USER MANUAL

4CH STANDALONE DVR

2005 JUNE

4CH STANDALONE DVR

-1-

CONTENT

1、FEATURE

2、SPECIFICATIONS

3、INSTALLATION

4、FRONT PANEL

5、OPERATING MANUAL

6、VIEW CONTROL

7、PLAYBACK CONTROL

8、RECORD CONTROL

9、NTSC/PAL SETUP

10、Keypad Lock-up Setup

11、4 CHANNEL RECORDING HOURS

12、DVR Viewer User Guide

13、Video Server Board Installation

、

(Option)

SXGA CARD FOR DVR USER MANUAL (Option)

4CH STANDALONE DVR

1、Definitely Standalone.

2、Real Time Refresh Rate.

3、Display While Recording.

4、Frame Recording & Quad Recording.

5、Compatible of NTSC/PAL format.

6、Advanced MJPEG.

7、Manual / Motion / Programmed / Sensor Recording.

8、4 Sensor by Time / Date.

9、Search by Time / Date.

10、Watch dog feature.

11、HDD Volume Indicator.

12、Can use USB to link PC, Player can search Time to Play、

saving and take photos functions.

13、Internal motion detect feature.

14、Auto switching function.

15、Looping Output.

16. Keypad Lock-up function.

1、FEATURE

-2-

4CH STANDALONE DVR

2、SPECIFICATIONS

OPERATION SYSTEM

Video Input

Video Input Channel

Video Output Channel

Display Frame

Recording Frame

Rate(QUAD)

Recording Frame

Rate(EACH)

Recording Mode

Resolution

Compression Format

HDD

Backup Device

Sensor

MOTION DETECT

LOSS DETECT

BUZZER OUTPUT

Brightness adjust

Contrast adjust

USB Output

Looping Output

Keypad Lock-up

System a monitor

Power supply

Dimension

Weight

LAN

AUTO SWITCHING

Embedded RTOS

NTSC/PAL

4CH Composite

2CH Composite (VCR OUT / MONITOR OUT)

400G X 2 (Max)

VCR

Time / Date / Event

YES

4 Input / 1 Output

YES

Power recover auto restore record mode

DC 12V / 4A(AC110V-240V 50/60HZ)

430mm x 300mm x 48mm (W x D x H)

3.5KG

10/100M

NTSC

PAL

NTSC Max

PAL Max.

NTSC M x. 7.5fps(30 fps/4)

PAL Max. 6.25fps(25 fps/4)

Motion Sensor

P L 720 x 576

Mode

Full screen

120 fps (4x30 fps)

100 fps (4x25 fps)

. 30 fps

25 fps

Continuous / / Programmed/

Display NTSC 720x480

Recording NTSC 640x224

PAL 640x272

Advanced Low 12K Bytes / Frame

MJPEG Normal 15K Bytes / Frame

High 20K Bytes / Frame

-3-

4CH STANDALONE DVR

3、INSTALLATION

REAR PANEL

(1) Cameras Video Input and Looping Output.

(2) Video Output : Corresponding to Monitor Video Input.

(3) Video Output : Corresponding to VCR Video Input.

(4) Sensor I / O：

1、Sensor Input of Camera #1

2、Sensor GND of Camera #1

3、Sensor Input of Camera #2

4、Sensor GND of Camera #2

5、Sensor Input of Camera #3

6、Sensor GND of Camera #3

7、Sensor Input of Camera #4

8、Sensor GND of Camera #4

9、Relay COM Output

10、Relay N/O Output

(5)Power Input : Please use the power supply attached

Adaptor : DC-12V / 4A

(6) VGA Output : Connect to VGA Monter (option)

(7)Ethernet RJ-45 (option)

-4-

MONITOR

VCR VIDEO

LOOP OUT

LAN

INIT

IN ALAR M OUT DC 12V

VGA

(1)(2)(3) (4) (5)(7)

(6)

4CH STANDALONE DVR

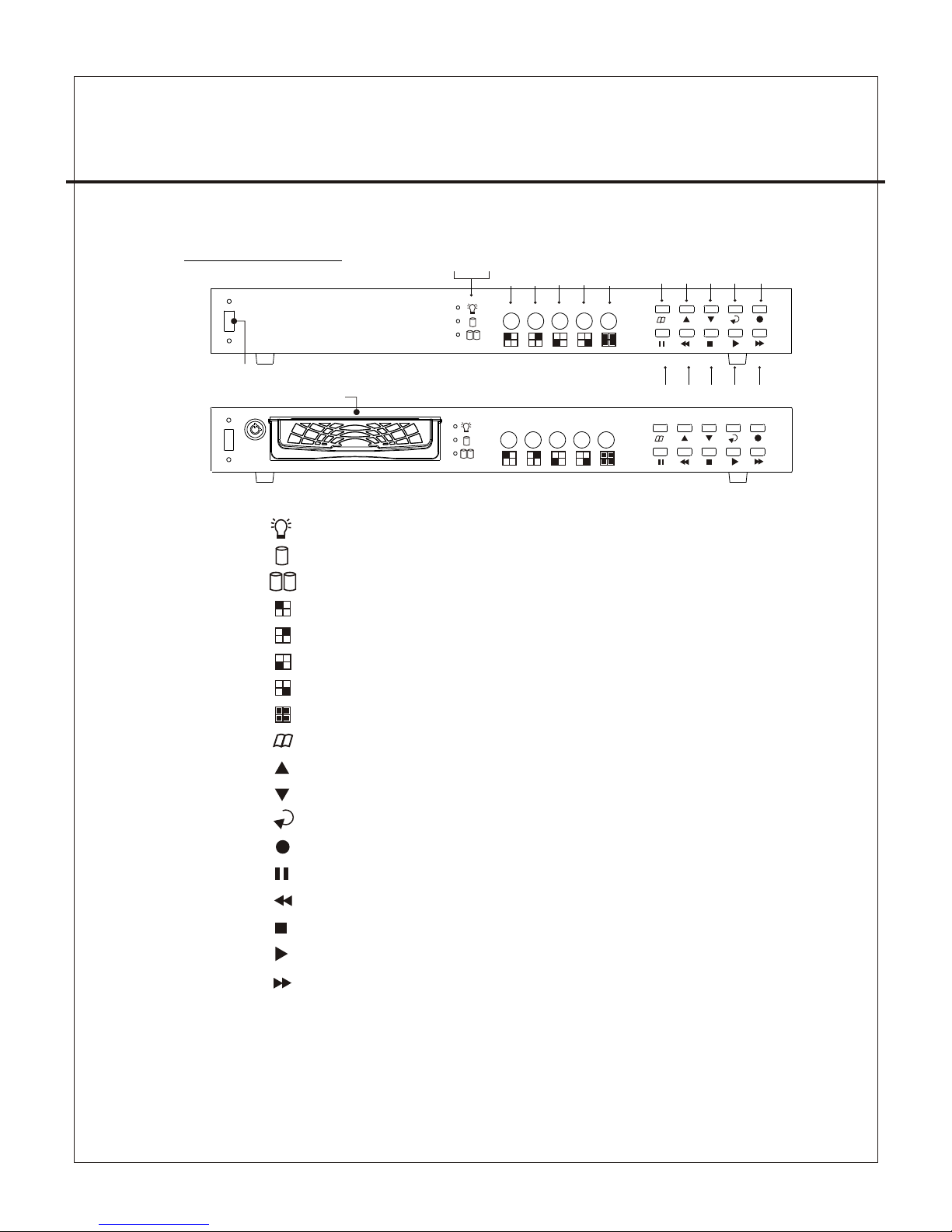

4、FRONT PANEL

(1) Record Indicator

(2) HDD #1 Indicator

(3) HDD #2 Indicator

(4) Camera #1 Display (Ch1)

(5) Camera #2 Display (Ch2)

(6) Camera #3 Display (Ch3)

(7) Camera #4 Display (Ch4)

(8) Quad Display (QUAD)

(9) MENU,

(10) UP

(11) DOWN

(12) SELECT

(13) RECORD

(14) PAUSE, Keypad Lock-up

(15) RF

(16) STOP

(17) PLAY

(18) FF

(19) USB Port

(20) HDD RACK (TYPE B)

、AUTO SWITCHING

Percentage of the Hard Drive recorded

-5-

(1) (2) (3)

(4) (5) (6) (7) (8) (9) (10) (11) (12) (13)

(14) (15) (16) (17) (18)

(19)

USB

TYPE B

TYPE A

USB

(20)

4CH STANDALONE DVR

5、OPERATING MANUAL(MAIN MENU)

MAIN MENU

SYSTEM SETUP

CAMERA SETUP

RECORD SETUP

RECORD SCHEDULE

HARD DRIVE SETUP

SYSTEM RESTORE

( ):SELECT ( ):SET ( ):EXIT

Press to select items, use to enter.

Press to exit

5-1 、SYSTEM SETUP

SYSTEM SETUP

BUZZER ALARM TIME :02 S

SENSOR ALARM TIME :05 S

LOSS ALARM :ON

MOTION ALARM :ON-OFF

SENSOR ALARM :ON

PASSWORD SETUP

TIME SETUP

( ):SELECT ( ):SET ( ):EXIT

(1)Buzzer Alarm Time Setup: 1-30 sec.

(2)Sensor Alarm Time Setup: 0-30 sec, CONT (Continue).

(3)Loss, Motion, Sensor Alarm：ON/OFF.

(4) Motion Alarm：ON-OFF(4 Type) ,front is Alarm, behind

is jump to alarm a picture.

-6-

4CH STANDALONE DVR

5-1-1 、PASSWORD SETUP

Select this item to change password :

OLD PASSWORD :______

NEW PASSWORD :______

PASSWORD CONFIRM :______

(1) When the new password is accepted, the board will flash the

following screen message.

“ PASSWORD CHANGING ”

(2) If the password was not accepted, you will receive a message

that inform you.

“ INCORRECT ”

*Use the view control button on the front panel to input

the umber.

is:"1" is:"2" is:"3" is:"4" is:"5"

5-1-2 、TIME SETUP

Select this item to set up current time.

TIME SET

2004/12/17 18:00:30

SHOW : UP 1

( ):SELECT ( ):SET ( ):EXIT

*Press to setup time. Use to increase value.

Press to exit and to save data.

Show Time setup:

UP 1 : Displayed on up-right corner of screen, date & time listed

in a rows.

UP 2 : Displayed on up-right corner of screen, date & time listed

in two rows.

DOWN1 : Displayed on down-right corner of screen, date & time

listed in a rows.

DOWN2 : Displayed on down-right corner of screen, date & time

listed in two rows.

-7-

4CH STANDALONE DVR

5-2 、CAMERA SETUP

CAMERA SETUP

CAMERA :CH1

RECORD SETUP :ON

BRI SETUP :05

CON SETUP :05

SENSOR SETUP :N-O

MOTION SETUP :ON

SENSITIVITY SETUP :05

( ):SELECT ( ):SET ( ):EXIT

AUTO SWITCHING :05 S

Press to select items. Use to change data.

Press to exit and to save data.

(1)Camera select (default value Ch1).

(2)Record Set up : yes or no record.

(3)Brightness / Contrast Set up : default value is 5.

(4)Sensor Setup: Three items, N-O (normal-open),

N-C(normal-close), ----(not installed).

(5)Motion Set up : motion detector, ON/OFF.

(6)Sensitivity Set up : sensitivity setup of motion detector.

(7) AUTO SWITCHING : Switching time set up.

5-3 、RECORD SETUP

RECORD SET

RECORD SETUP :EACH MODE

VIDEO QUALITY :NORMAL

RECORD FRAME RATE :30 fps

SENSOR REC. FRAME RATE :15 fps

SENSOR RECORD TIME :05 SEC

( ):SELECT ( ):SET ( ):EXIT

-8-
