Outback Diamond Hooded Bedienungsanleitung

Elite Series Barbecues

Assembly and Operating Instructions for Outback®

Diamond Hooded Gas Barbecues

0359

Photographs are not to scale.

Specifications subj ect to change

without prior notice.

WARNING

• For outdoor useonly.

• Read instructionsbeforeusing theappliance. Failure to followinstructions

could resultin death, seriousbodilyinjury, and/or propertyloss.

• Warning: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn offthegassupply at thegasbottle after use.

• Any modification oftheappliance, misuse, or failureto follow theinstructions

may bedangerousand will invalidate your warranty. Thisdoesnotaffect your

statutory rights.

• Retain these instructions for future reference.

•

Leak test your barbecueannually. Checkthehose connectionsaretightand

leak test each time you reconnect the gas bottle.

FOR YOUR SAFETY

If you smell gas:

1. Shutoffgasto theappliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. Ifodour continues, discontinueuse and

contact your local dealer.

FOR YOUR SAFETY

1. Do not storeor use petrol or other flammable

vapoursor liquidsin thevicinityof thisor any

other appliance.

2. Agas bottle notconnected for use shall notbe

stored in the vicinityofthisor anyother

appliance.

Parts List

Quantitiesvary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram’.

Pre-Assembled Component

Quantity varies accordi ng to model purchased

 Appear ance, size, and construction maydiffer according to model purchased

CODE PART QTY Diamond 3Burner Diamond 6Burner

HOOD

A1 Hood H andle 1  

A4 Hood (Pre-Assembled to Body) 1  

A5 Hood Panel 1  

A6 Heat Indicator and Nuts 1  

BODY

B1 Barbecue Body 1  

B2 Burner 3 6

B3 Burner Clip 3 6

B4 Control Panel 1  

B5 Knob 3 6

B6 DripTray 1  

B7 Drip Pan 1 

B8 Foil Liner 1 

B9 LavaRockBasket 2  

B10 Lava RockPack(inBasket) 2  

B11 Grill 2  

B12 Griddle 1  

B13 Hose/Regulator Assembly 1 

B14 Warming Basket 1  

TROLLEY

C1 L/H Side Shelf 1  

C2 Side Shelf Shi eld 1  

C3 Front Left Endcap 1  

C4 Rear Left Endcap 1  

C5 Utensil Tray 2  

C6 R/H Side Shelf 1  

C7 R/H Insert 1  

C8 Front Left Leg 1  

C9 Rear Left Leg 1  

C10 FrontRightLeg 1  

C11 Rear Right Leg 1  

C12 Bottom Slat Assembly 1  

C13 Base Tray 1  

C14 Gas Bottle Holder 1  

C15 TrolleyF oot 1  

C16 Hubcap 2  

C17 Wheel 2  

C18 Locknut 2  

C19 Axle 1  

C20 Retaining Rod 1  

C21 Gas Bottle Strap 1  

HARDWARE

D1 Countersunk Screw, M4x15 4  

D2 Screw, M6x15 24  

D3 Washer 4  

D4 Screw, M6x35 16  

D5 Screw, M5x10 4  

D6 Nut, M5 4  

ROTISSERIE

E1 RotisserieHandle 1  

E2 Fork 2  

E3 Spit Rod 1  

E4 Motor 1  

E5 L/H Bracket 1  

E6 R/H Bracket 1  

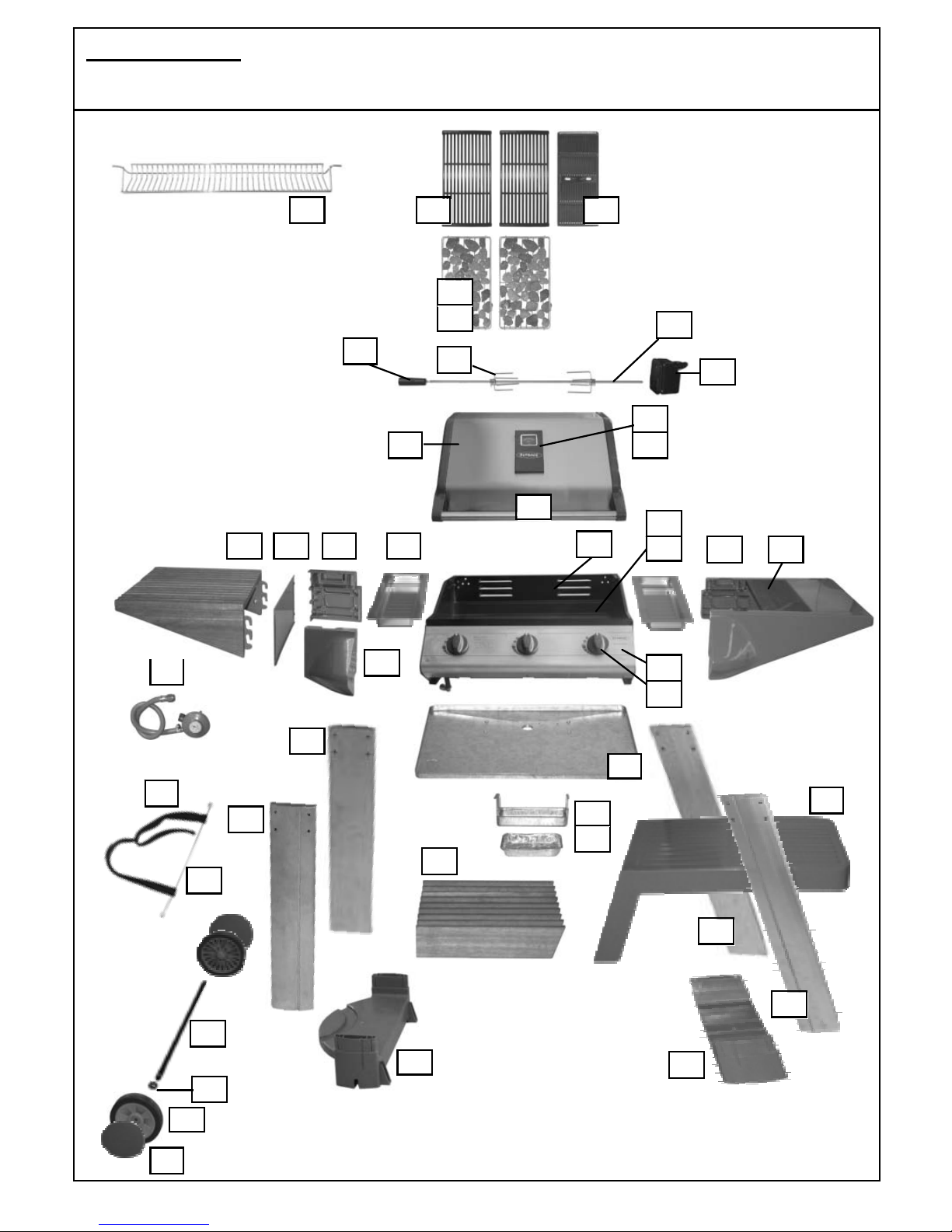

Parts Diagrams

Quantitiesvary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram.’

B10

C5C4C1

C12

B12

B13

B11

C15

C14

C16

C17

C18

C19

C11

C21

C20

C10

B14

D2 D4

C13

Hardware Reference Diagram

Specifications subject to change without prior notice.

D2 (screw)

D3(washer)

D5 (screw)

D6(Nut)

Attach the Front Right Leg (C10) to the Trolley Foot (C15)

Assembly

IMPORTANT!

•

ToolsRequired:Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric

spanner set

•

The assembly of this barbecue requires 2 people.

•

Carefully unpack the trolley box and remove all internal packaging before commencing assembly.

•

Carefully remove the box lidfrom the body box and remove all internal packaging and parts inside the body.

•

The inlet connection of the gas rail assembly on the BBQ body is lower than the body. You must never allow

the pipe to rest on the ground during assembly as serious damage could result. We recommend the body is

left sitting inthebox untilrequiredfor assembly totrolley.

•

Whilst every care is takeninthemanufactureof this product, caremust betaken duringassembly incase

sharp edges are present.

Attach the Rear Right Leg (C11) to the Trolley Foot (C15). The legs are a push fit onto the trolley foot and

on the gas bottle holder. In case of difficulty, they may need tapping lightly with a soft face mallet. Take

care not to damage parts.

AttachtheBottom Slat Assembly (C12)tothe Base Tray (C13)usingtheScrews (D2).

Attachtheleg assembly totheBaseTray (C13) usingthe Screws (D2).

Align the Gas BottleHolder(C14)withthe Slat Assembly (C12).

AttachtheFront Left Leg (C8) andRearLeft Leg(C9)totheGas BottleHolder (C14).

Note: Threaded inserts must befacinginthe directionshown!

Threaded

Insert

AttachtheGas BottleHolder (C14)tothe Bottom Slat Assembly (C12)usingtheScrews

(D2) and Washers (D3).

Insert the axle (C19) through the clamping brackets on the gas bottle holder (C14) and tighten the clamp

screws. Take care not to over tighten these screws which will damage the plastic Gas Bottle Holder

AttachtheGas BottleHolder (C14)tothe Bottom Slat Assembly (C12)usingtheScrews (D2)

and Washers (D3).

Place the Wheels (C17) onto the Axle (C19) and secure with Locknuts (C18).

Carefully turn the completed trolley over, right side up.

CAUTION! Care must be taken to ensure hood does not fall open

unexpectedly or that the hood surface is damaged when set on the ground.

Carefully turntheBarbecueBody (B1) upside down andremovetheDrip Tray (B6). Attachthe

R/H Side Shelf (C6) to the Barbecue Body (B1) using the Screws (D2).

AttachtheFront Left Endcap(C3)totheBody (B1) usingthe Screws (D2).
