Gas Barbecues
Assembly and Operating Instructions for
Outback® Trooper, Outback® Hunter, and Outback® Ranger Gas Barbecues
0359
WARNING
•
For outdoor use only.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
•
Retain these instructions for future reference.
•
Leak test your barbecue annually. Check the hose connections are tight and leak test
each time you reconnect the gas bottle.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
2
A. Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For more
details on hardware, please see ‘Hardware Reference Diagram’.
CODE PART QTY Outback®
Trooper Outback®
Hunter Outback®
Ranger
HOOD
A1 Hood (Pre-Assembled to Body) 1
A2 Heat Shield 1
A3 Handle 1
A4 Hinge Plate 4
A5 Gasket 4
A6 Hinge Assembly 2
A7 Hinge Bolt 12
A8 Hinge Nut 12
A9 Heat Gauge 1
A10 Heat Gauge Nut 2
A11 Warming Rack 1
BODY
B1 Cooking Grill 221
B2 Reversible Cooking Griddle N/A 11
B3 Lava Rock Basket 221
B4 Lava Rock (Packed in Basket) 221
B5 Body (see Part A1: Hood) 1
B7 Knob 234
B8 Control Panel 1
B9 Drip Tray 1
B10 Drip Tray Handle 1 111
B11 Hose and Hose Clip 1
B12 Burner 234
TROLLEY
C1 Side Shelf 2
C2 Short Leg Front 1
C4 Long Leg Front 1
C6 Screen 1
C7 Trolley Base 1
C8 Leg Endcap 2
C9 Axle 1
C10 Wheel 2
C11 Hubcap 2
HARDWARE
D1 Handle Nut 2
D2 Handle Washer 2
D3 Handle Spacer 2
D4 Handle Bolt 2
D5
D6
D7 Trolley Bolt 24
D8 Body Support Bolt 8
D9 Spacer 8
D10 Wingnut 8
D11 Washer 2
D12 Locknut 2
C3 Short Leg Rear 1
C5 Long Leg Rear 1
Pre-Assembled Component
Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
3

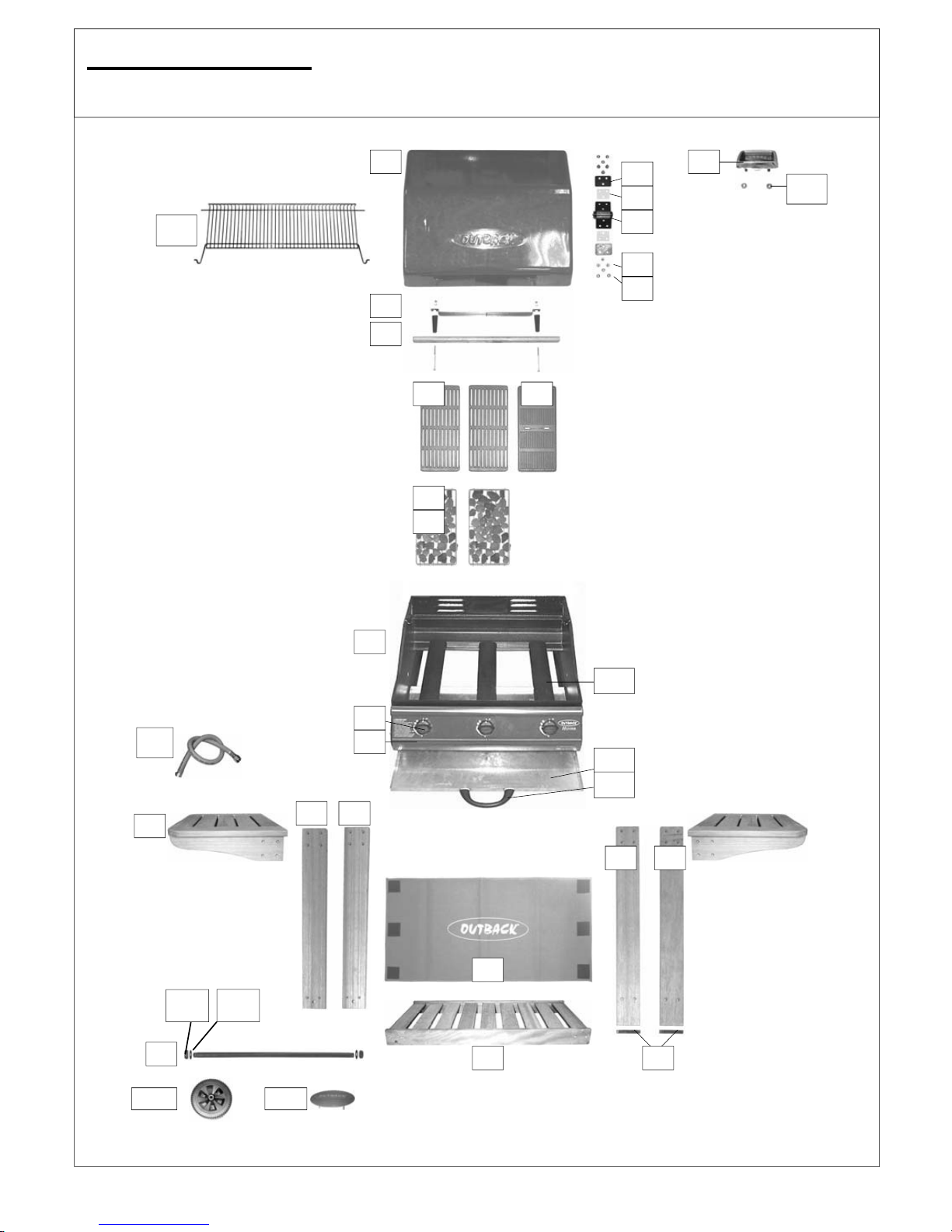

B. Parts Diagrams
Quantities vary according to model purchased. Specifications subject to change without prior notice. For more
details on hardware, please see hardware pack page.
B1 B2
A1 A4
A5
A6
A9
A10
A11
B3
B4
B5
B9
B10
B11
C1 C2
C5
C6
C7
C9
C10 C11
C8
A8
A7
B7
B8
B12
D11D12
A2
A3
C3
C4
4

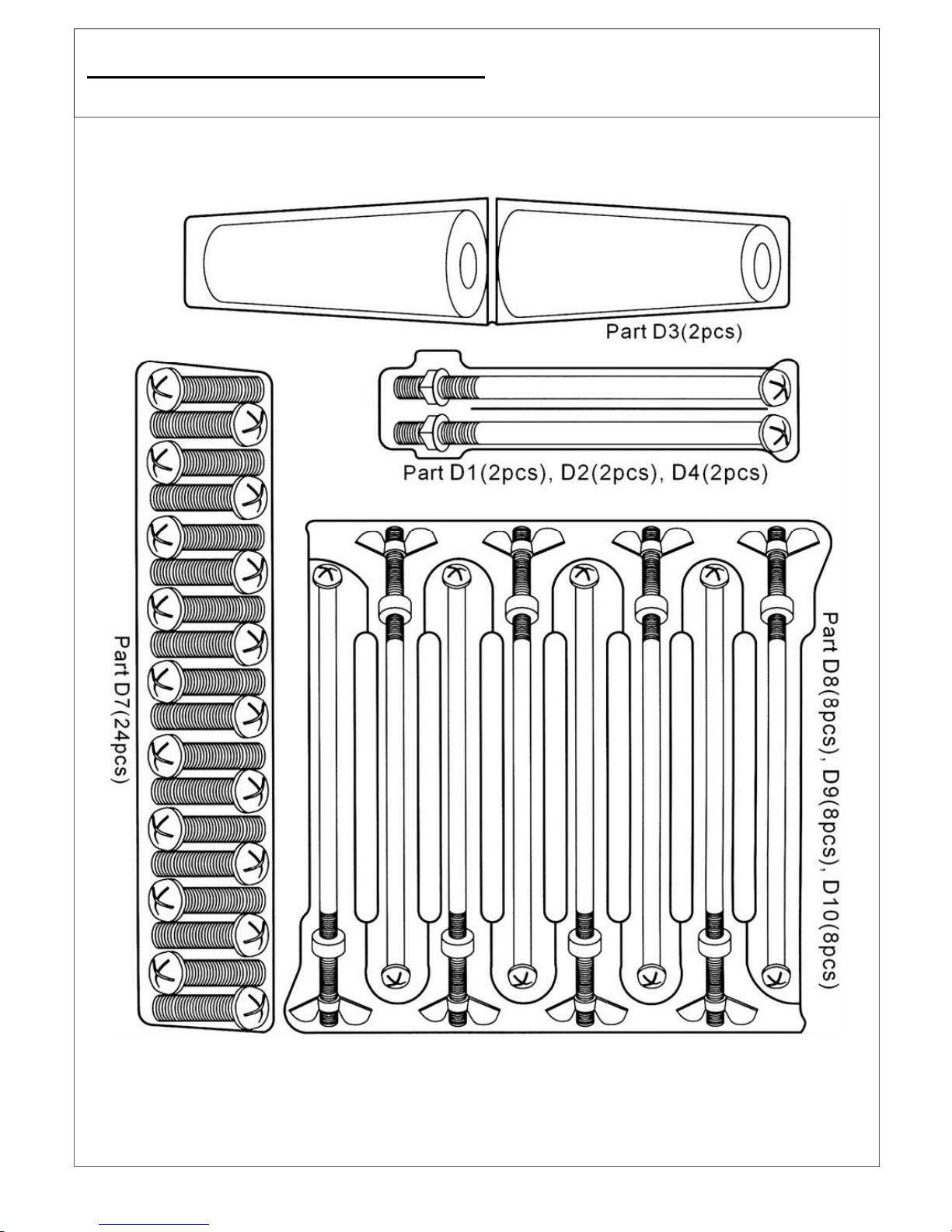

C. Hardware Reference Diagram
Specifications subject to change without prior notice.
5
2

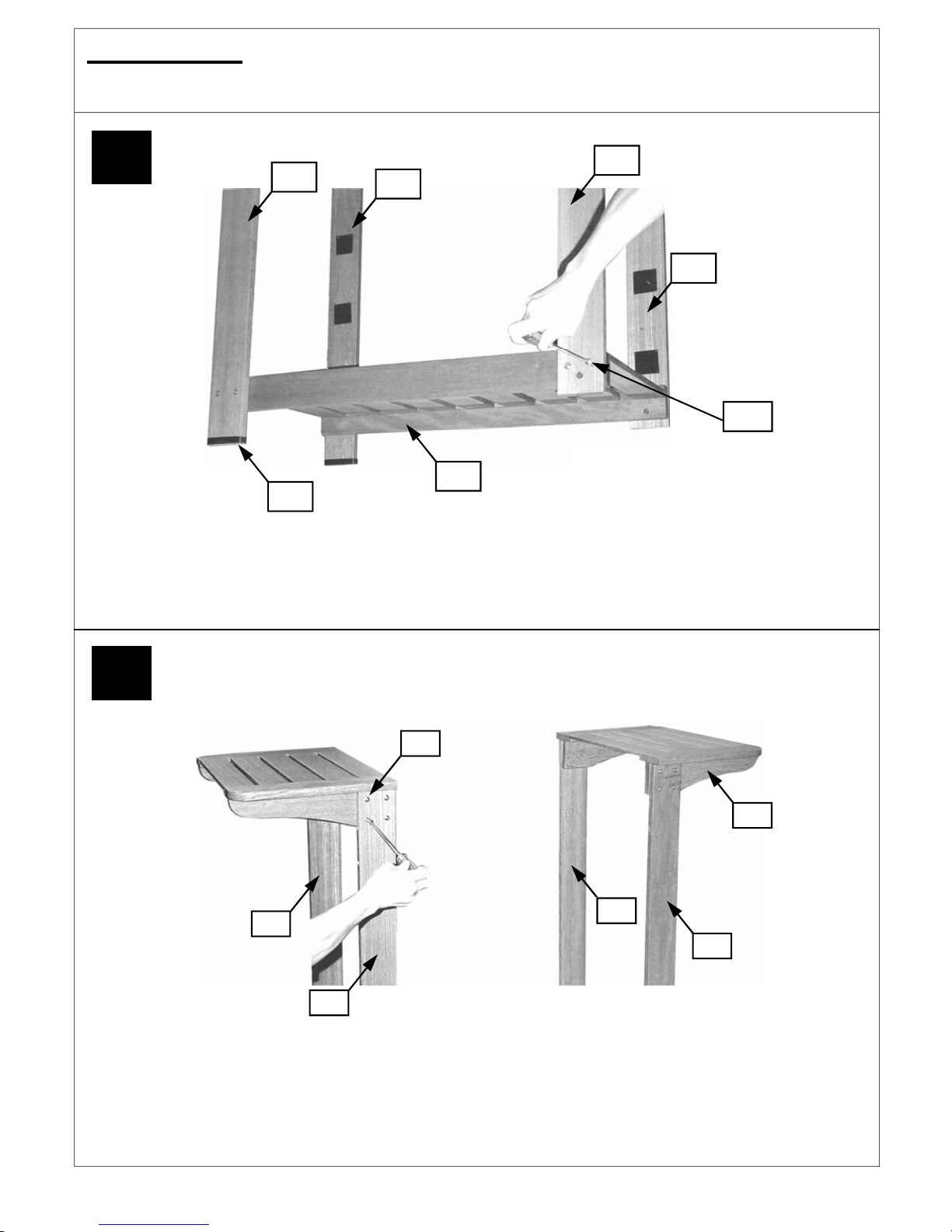

Attach the short (C2,C3) and long legs (C4,C5) to the trolley base (C7) using the trolley
bolts (D7). Take care to fix the legs with Velcro attached as shown in the illustration.
Attach the side shelves (C1) to the short (C2,C3) and long (C4,C5) legs using the trolley bolts
D. Assembly
TOOLS NEEDED FOR ASSEMBLY:
Medium size flat blade or Phillips/crosspoint screwdriver, adjustable spanner or metric spanner set
C5
C8
D7
C3
C7
(Photo depicts trolley
from the reverse side)
1
D7
C2
C1
C4
C3 C5
C2
C4
6

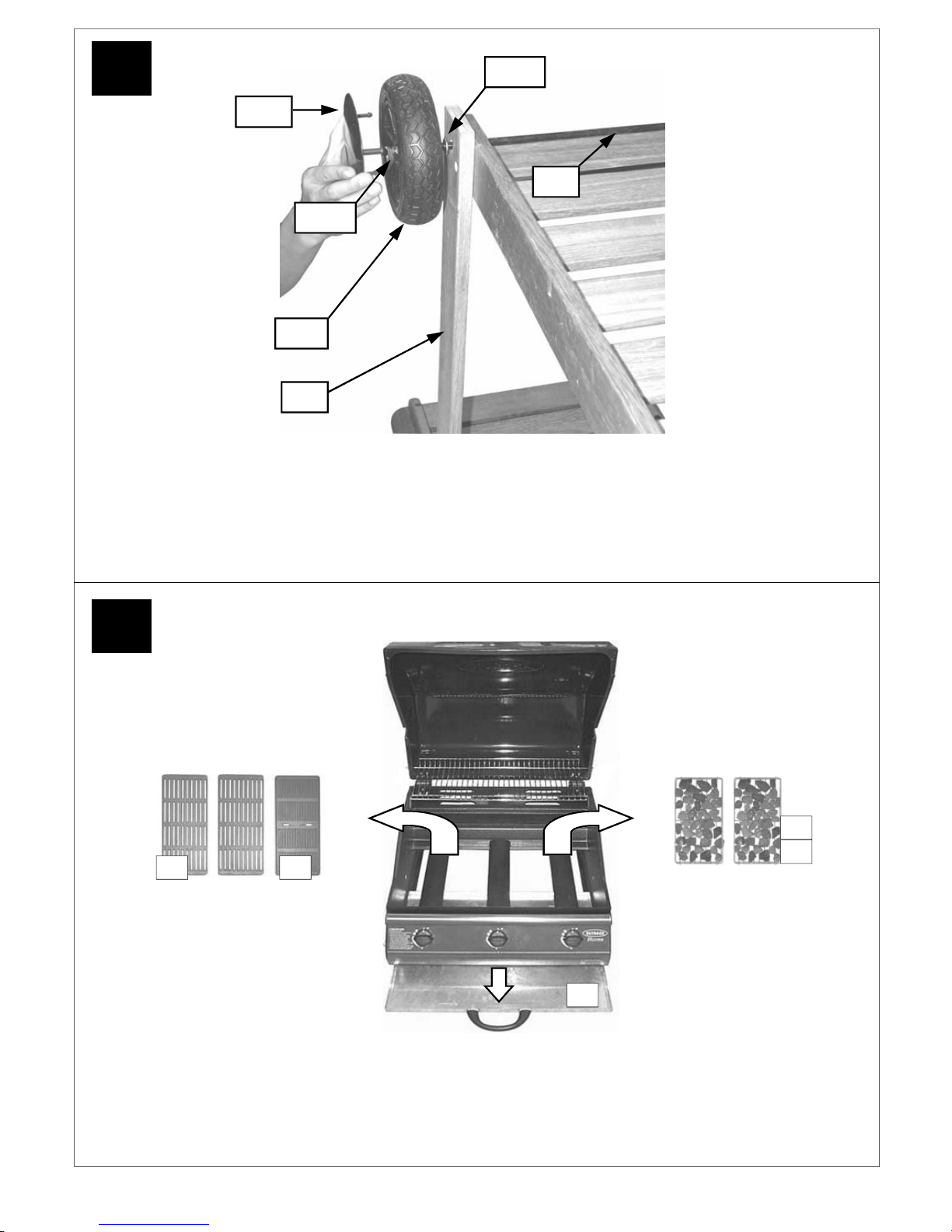

Turn the trolley over so that it stands on its side shelves. Slide the axle (C9) through the
corresponding holes in the short legs (C2,C3). Place a washer (D11) on each end of the
axle. Slide the wheels (C10) over each end of the axle. Secure the wheels into place with
the locknuts (D12). Snap the hubcaps (C11) into the wheels.
D12
C10
D11
C11
C9
C2
Remove all cast iron cooking components, lava rock baskets,
drip tray, and any internal packaging from the barbecue body.
B1 B2 B4
B3
B9
4
3
7
B5 B5

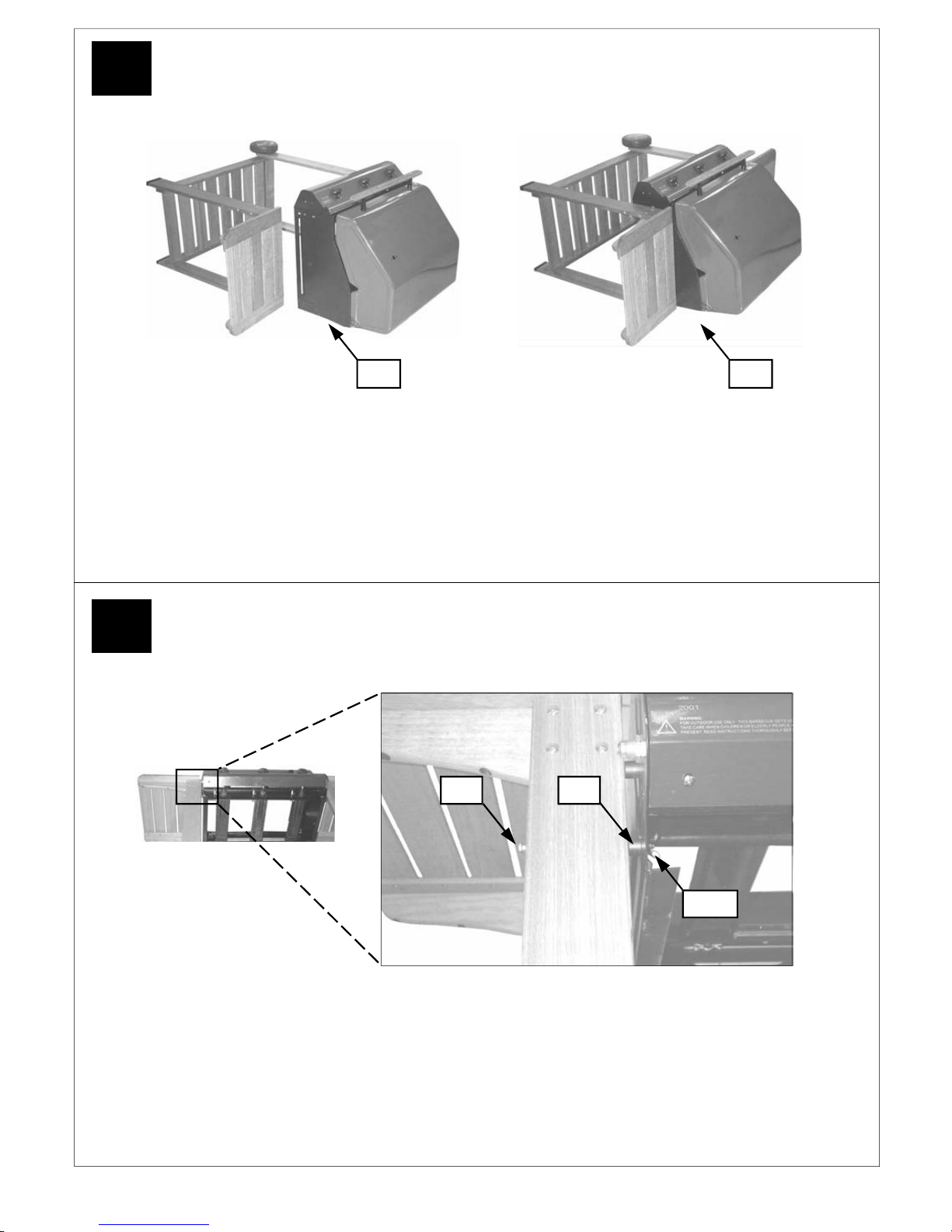

Lay the assembled trolley on its side. Lay the body (B5) on its back and slide into position between the
trolley legs. Warning: Care must be taken to ensure hood does not fall open unexpectedly. When
positioning the body of the barbecue, ensure the control panel is on the same side as the legs with
Velcro fastenings.
D9D8
D10
With the barbecue laid on the ground, insert a body support bolt (D8) through the short leg,
through a spacer (D9), through the sidewall of the body, and secure the bolt with a wing nut (D10).
Repeat the process for all the legs until the body is completely fixed to the trolley.
6
5
8

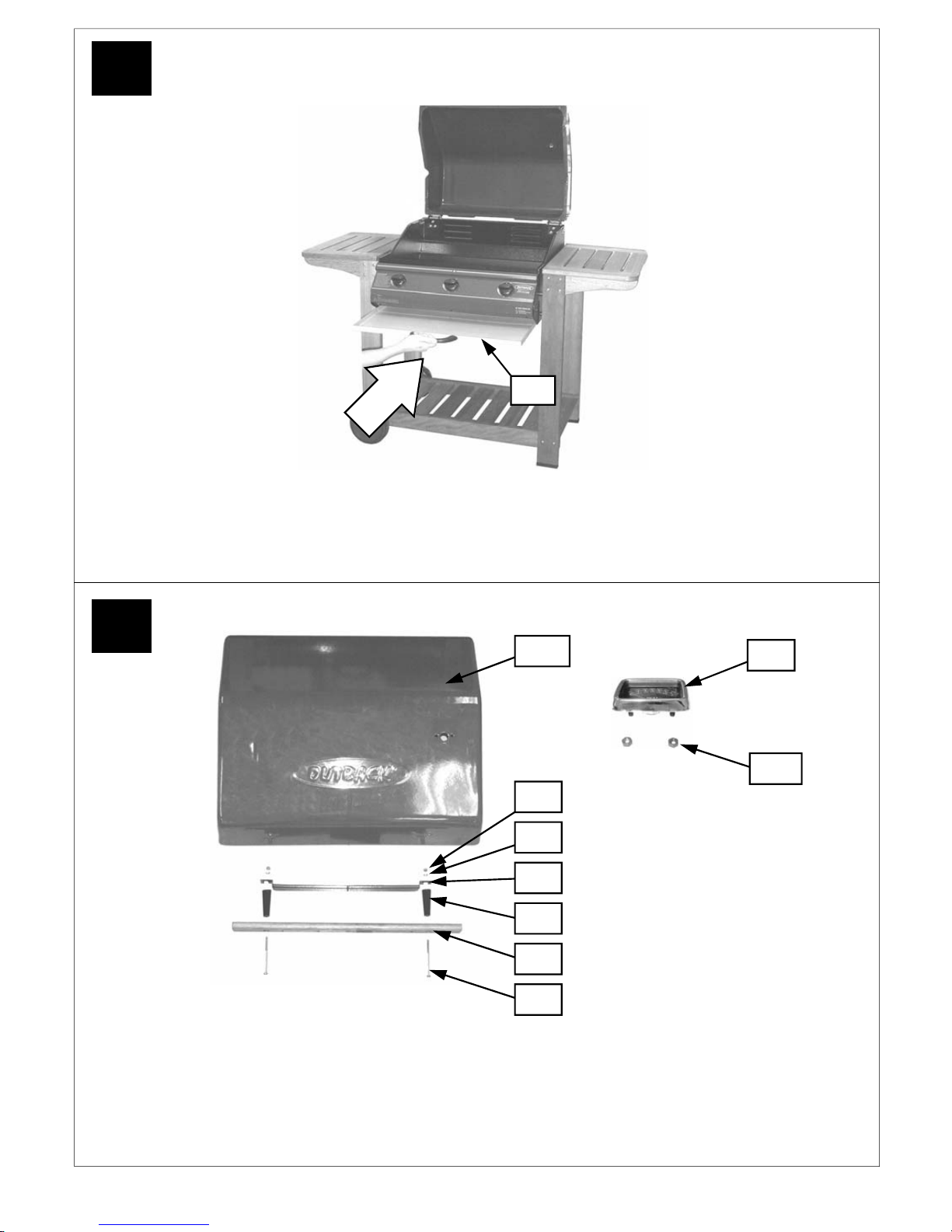

Attach the hood handle (A3) to the hood (A1) by inserting the handle bolts (D4) through the
handle (A3), handle spacers (D3), heat shield (A2), and through the front wall of the hood (A1).
Secure with washers (D2) and nuts (D1). Attach the heat gauge (A9) onto hood, by slotting its
screws into the holes in the hood and securing with the heat gauge nuts (A10).
A9
A10
A1
D2
A3
D4
D3
A2
D1
Replace the drip tray (B9) by sliding it underneath the barbecue body.
B9
8
7
9
(Rear view of the barbecue trolley.)
C6
10
9

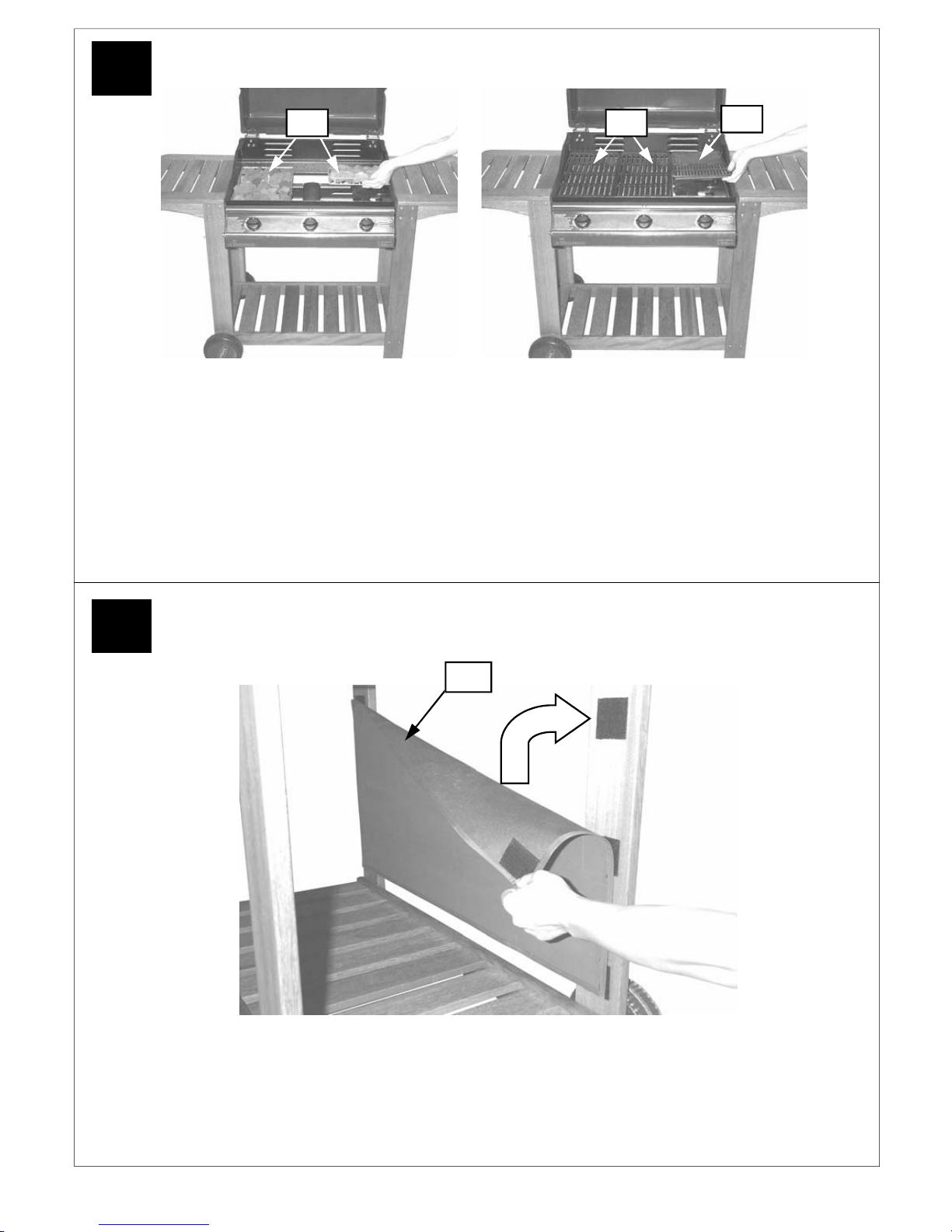

Remove the plastic wrap from the lava rock basket(s) (B3) and lay them carefully into the body
ensuring that they lie level within the body. Lay the cooking grill(s) (B1) and griddle (B2) into
place.
2 burner model configuration: Left half—Cooking Grill, Rock Basket; Right half—Cooking Grill,
Rock basket
3 burner model configuration: Left —Cooking Grills, Rock Baskets; Right —Griddle Plate
4 burner model configuration: Left half—Cooking Grill, Rock Basket; Right half—Griddle Plate
B2
B1
B3
10
Leak Test Diagram
ASSEMBLY IS NOW COMPLETE.
PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON
OPERATION AND MAINTENANCE.
11

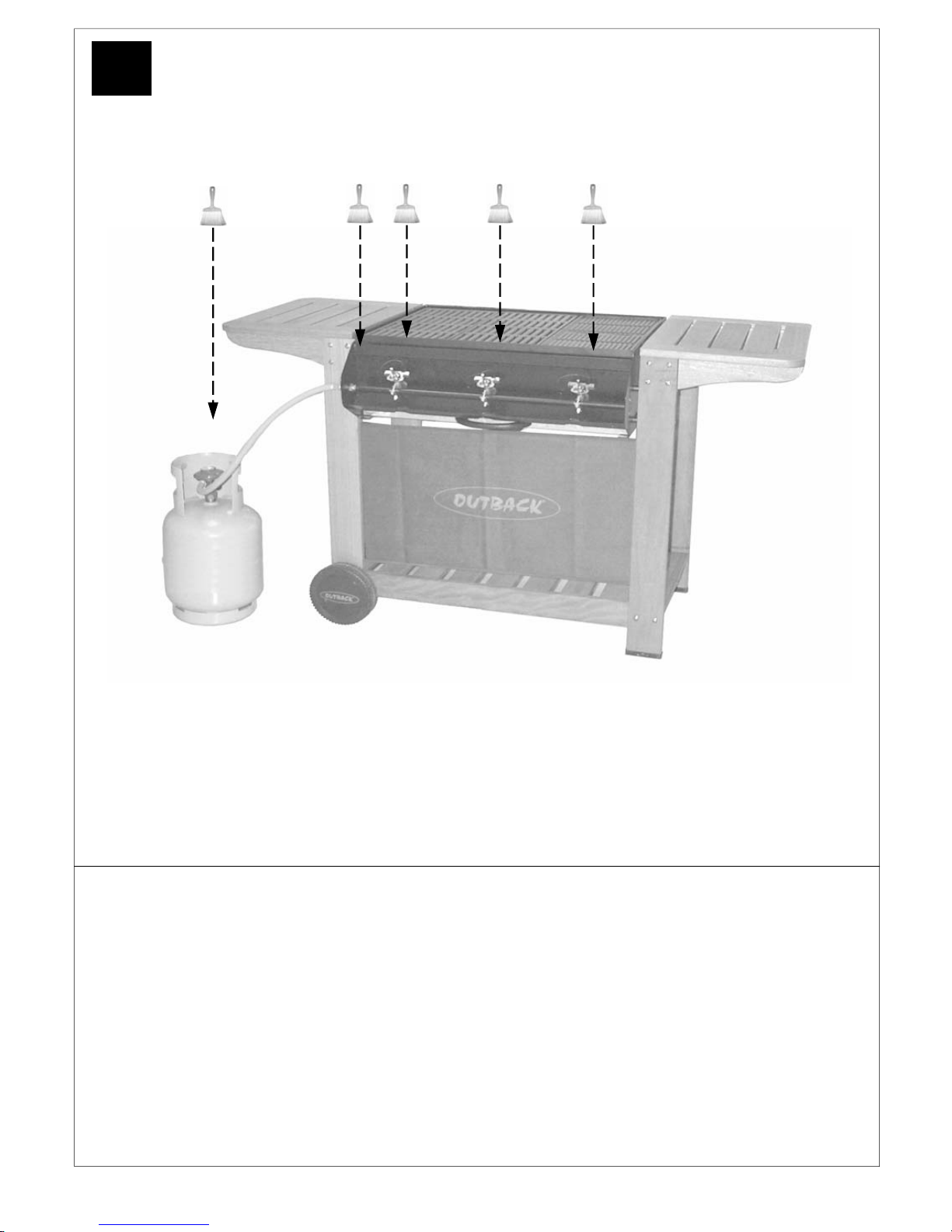

11a. Connect the gas hose (B11) to the barbecue (Before the Leaking Test). Ensure the mating
faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or
liquid on the joint. The nut must be tightened with the use of a spanner. Do not use force which
may damage the assembly.
11b. All joints and connections must now be leak tested before using the barbecue. For details
of leak testing, please refer to instructions on Page 12. Number of valves to be leak tested will
vary with model of barbecue.
