Outback THG3710SS-3 Bedienungsanleitung

Assembly and Operating Instructions for Outback®

Excelsior Select 3 Burner and Excelsior Select 6 Burner Gas BBQ

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could result

in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may be

dangerous and will invalidate your warranty. This does not affect your statutory rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that the

hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and contact

your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

THG3710SS-3 THG6710SS-3

Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram’.

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

CODE PART QTY Outback® Excelsior

Select 3 Burner Gas BBQ Outback® Excelsior

Select 6 Burner Gas BBQ

HOOD

A1 Hood Handle 1  

A2 Hood (Pre-Assembled to Body) 1  

A3 Hood Panel 1  

A4 Heat Indicator and Nuts 1  

B1 Barbecue Body 1  

B2 Burner 36

B3 Control Panel 1  

B4 Knob 36

B5 Drip Tray 1  

B6 Drip Pan 1 

B7 Drip Tray Left Bracket 1 

B8 Drip Tray Right Bracket 1 

B9 Lava Rock 1  

B10 Lava Rock Basket 1  

B11 Cooking Grill 1  

B12 Cooking Griddle 1  

B13 Hose and Regulator Assembly 1 

B14 Warming Rack 1  

TROLLEY

C1 Side Burner Shelf 1  

C2 Side Shelf Shield 1  

C3 Front Left Endcap 1  

C4 Rear Left Endcap 1  

C5 Utensil Tray 2  

C6 Side Shelf 1  

C7 Right Insert 1  

C8 Left Front Leg 1  

C9 Left Rear Leg 1  

C10 Right Front Leg 1  

C11 Right Rear Leg 1  

C12 Bottom Slat Assembly 1  

C13 Base Tray 1  

C14 Gas Bottle Holder 1  

C15 Trolley Foot 1  

C16 Hubcap 2  

C17 Wheel 2  

C18 Axle 1  

C19 Retaining Rod 1  

C20 Gas Bottle Strap 1  

C21 Side Shelf Hook 2  

C22 Fixing Bracket 2  

C23 Side Burner Grid 1  

HARDWARE

D1 M4x15 Bolt 4  

D2 M5x15 Bolt 4  

D3 Ø5 Washer 4  

D4 M5 Nut 4  

D5 M6x15 Bolt 24  

D6 Ø6 Washer 4  

D7 M6x35 Bolt 16  

D8 1/4-20UNCx12 Bolt 6  

D9 Locknut 2  

BODY

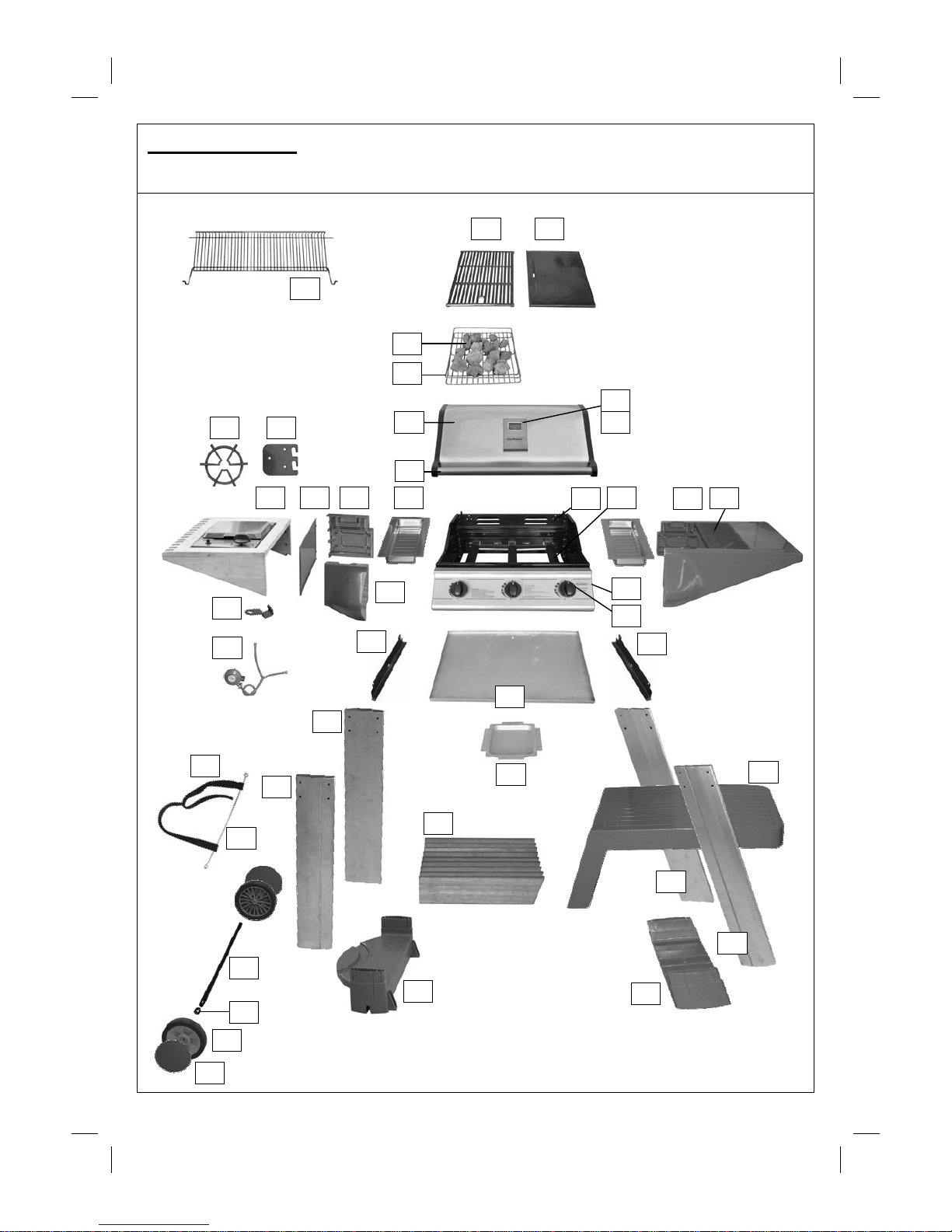

Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see hardware pack page.

C5C4C1

C12

B12

B10

C15

C14

C16

C17

C18

C11

C20

C19

C10

C13

C21

B13

C22

B7 B8

B11

C23

B14

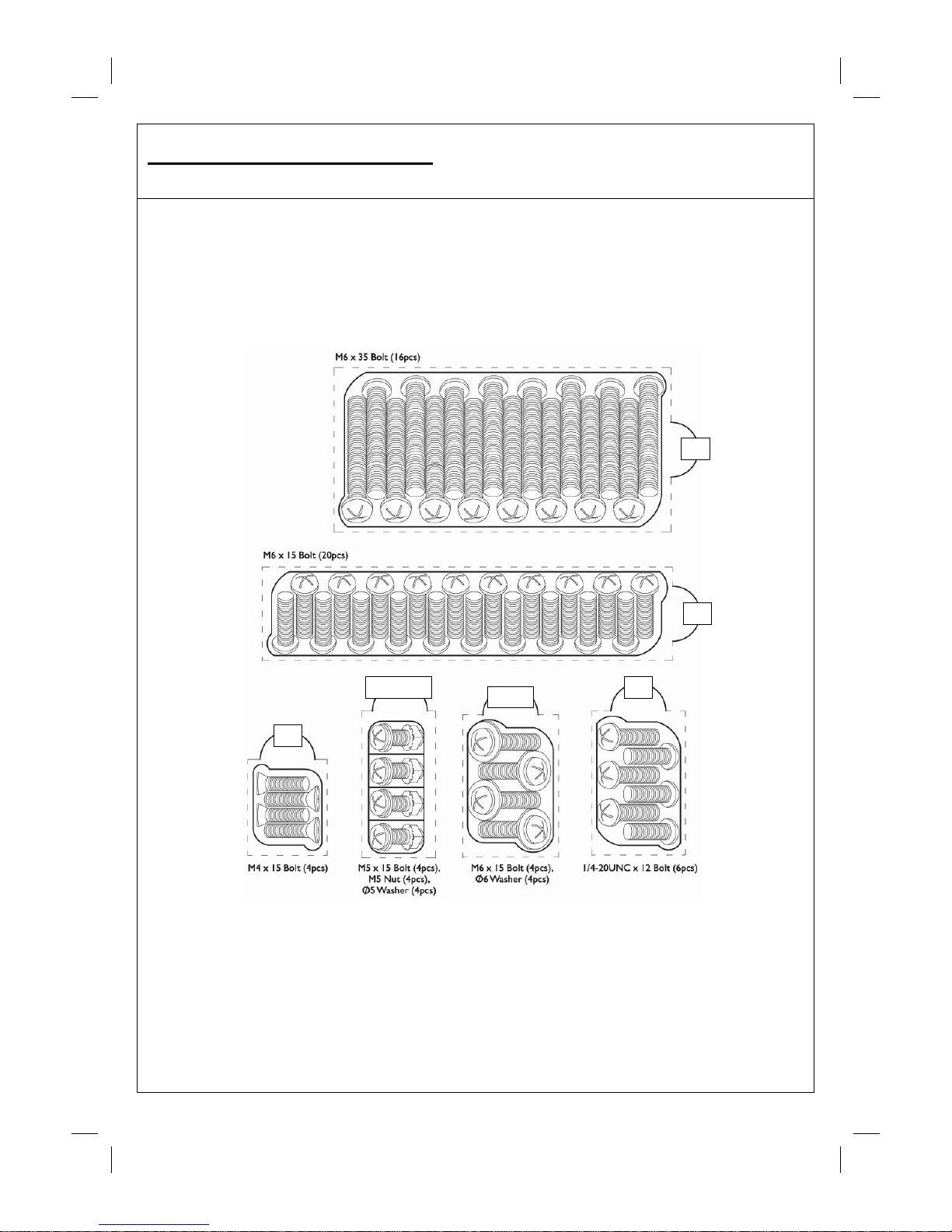

Hardware Reference Diagram

Specifications subject to change without prior notice.

D2,D3,D4 D5,D6

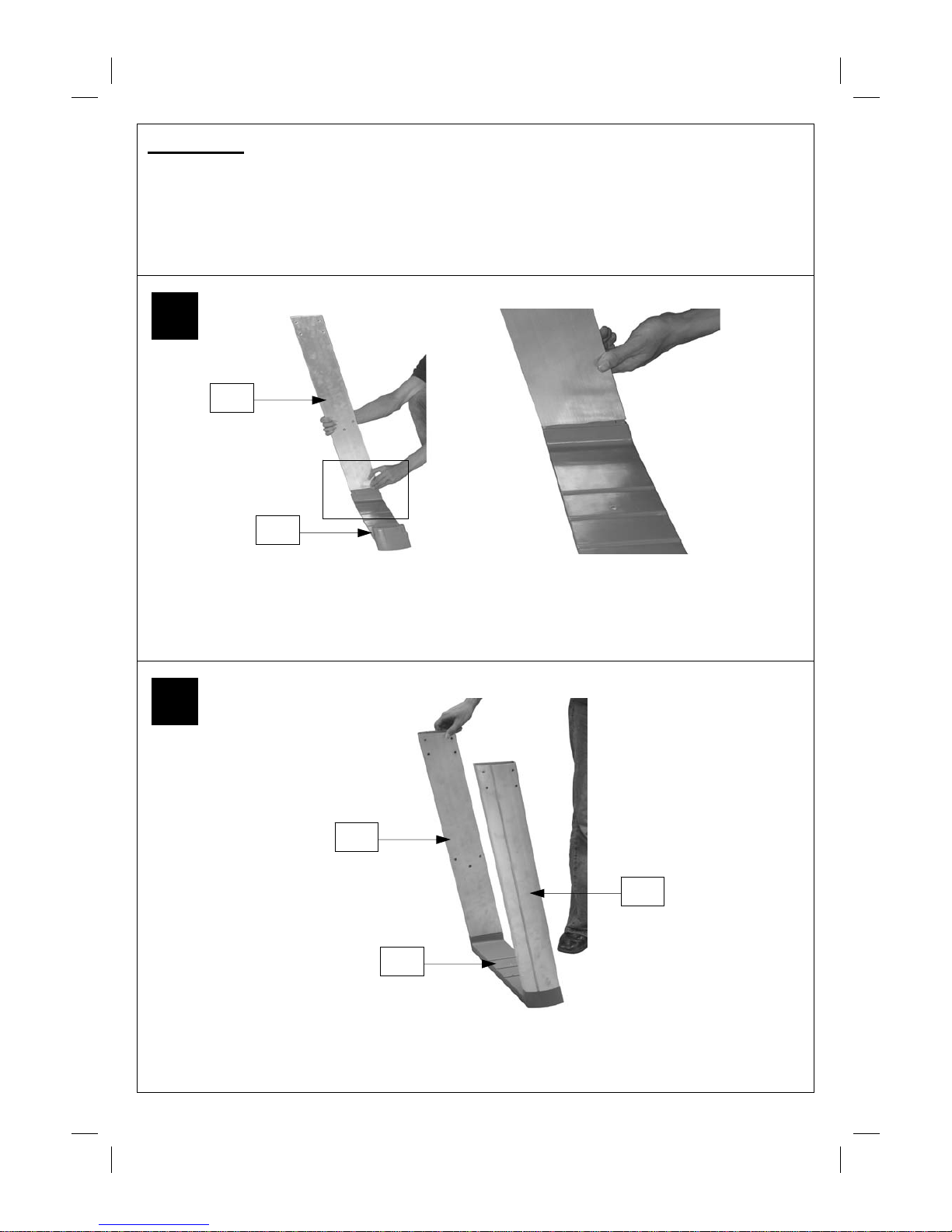

Attach the Right Front Leg (C10) to the Trolley Foot (C15).

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable

spanner or metric spanner set.

• Remove any internal component or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case

sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your barbecue.

Attach the Right Rear Leg (C11) to the Trolley Foot (C15). The leg is a push fit onto the trolley foot and on

the gas bottle holder. In case of difficulty, they may need tapping lightly with a soft face mallet. Take care

not to damage parts.

C11

C15

C11

C10

C15

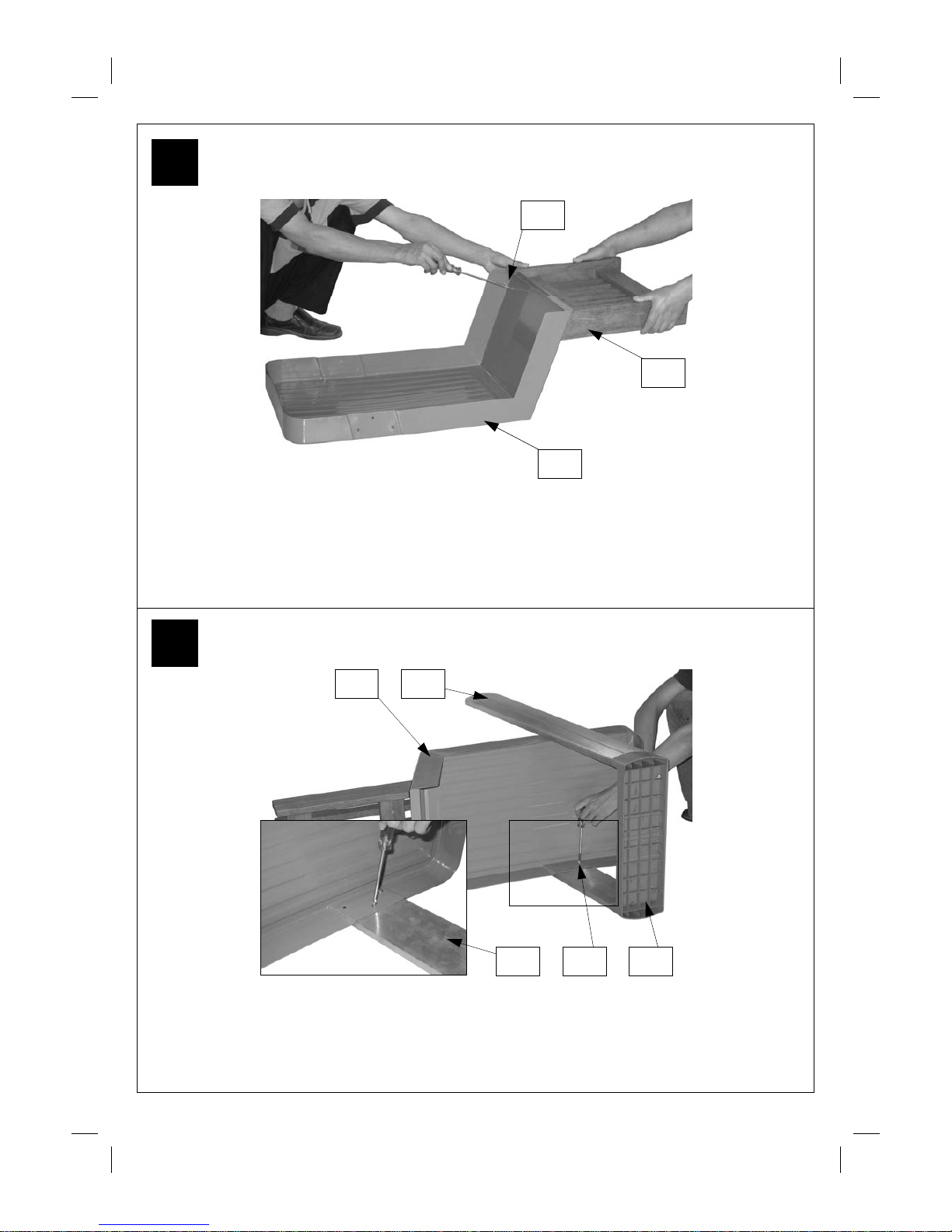

Attach the Bottom Slat Assembly (C12) to the Base Tray (C13) using the M6x15 Bolts (D5).

Attach the leg assembly to the Base Tray (C13) using the M6x15 Bolts (D5).

C11

C13

C12

D5 C15

C10C13

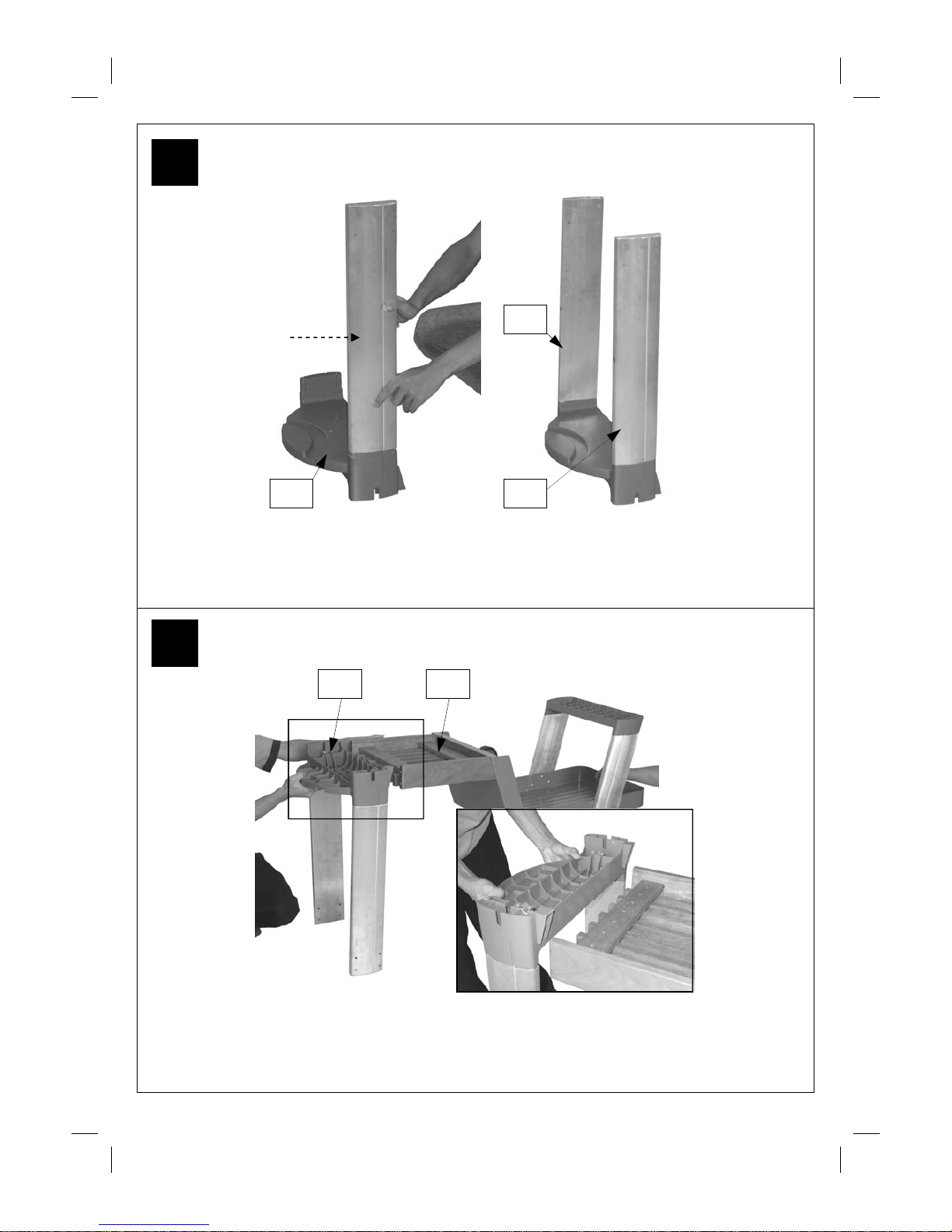

Align theGas Bottle Holder (C14) with the Bottom Slat Assembly (C12).

Attach the Left Front Leg (C8) and Left Rear Leg (C9) to the Gas Bottle Holder (C14).

Note: Threaded inserts must be facing in the direction shown!

Threaded

Insert

C14

C14 C8

C12

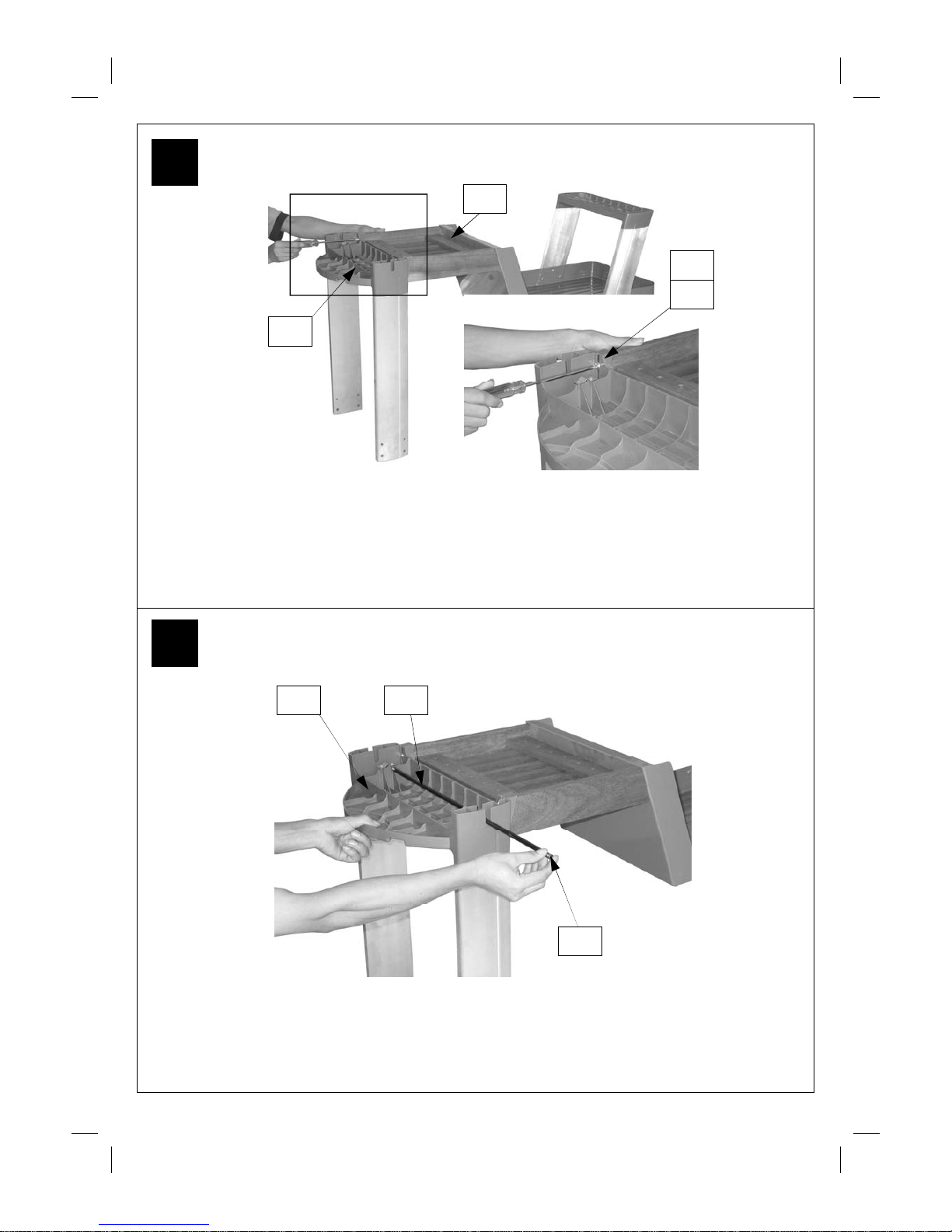

Attach the Gas Bottle Holder (C14) to the Bottom Slat Assembly (C12) using the Screws

(D2) and Washers (D3).

Unscrew the Locknuts (D9) from both ends of the Axle (C18).

Insert the axle through the clamping brackets into the Gas Bottle Holder (C14) and tighten the clamp

screws. Take care not to over tighten these screws which will damage the plastic gas bottle holder.

Attach the Gas Bottle Holder (C14) to the Bottom Slat Assembly (C12) using M6x15 Bolts (D5)

and Ø6 Washers (D6).

C14

C12

C18

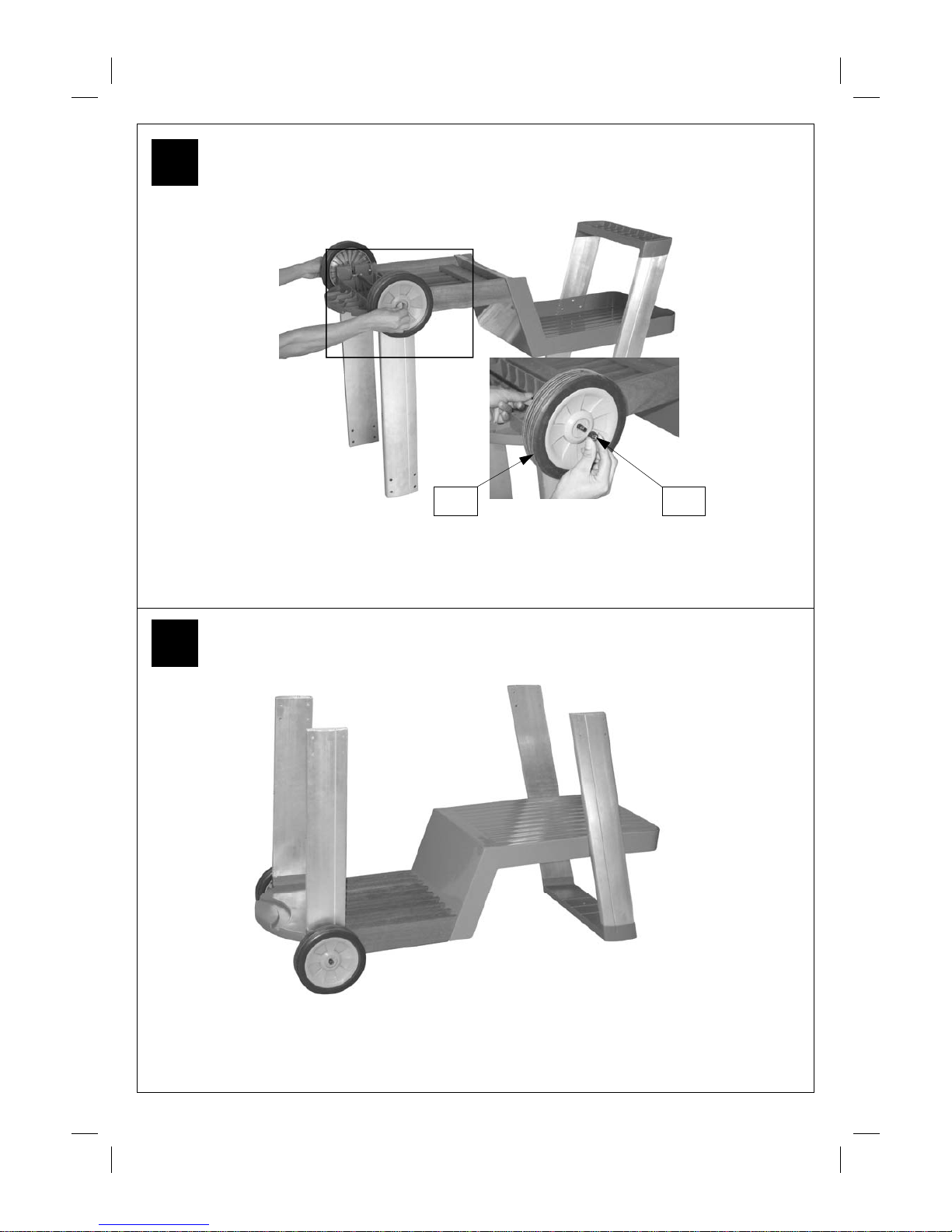

Slide the Wheels (C17) over each end of the axle. Secure the wheels into place with the

locknuts.

Carefully turn the completed trolley over, right side up.

D9C17

Remove all cooking components, flame tamer, and any internal packaging from the Barbecue

Body (B1).

Carefully turn the barbecue body upside-down.

CAUTION! Care must be taken to ensure the hood does not fall open unexpectedly or

becomes damaged when it is set on the ground.

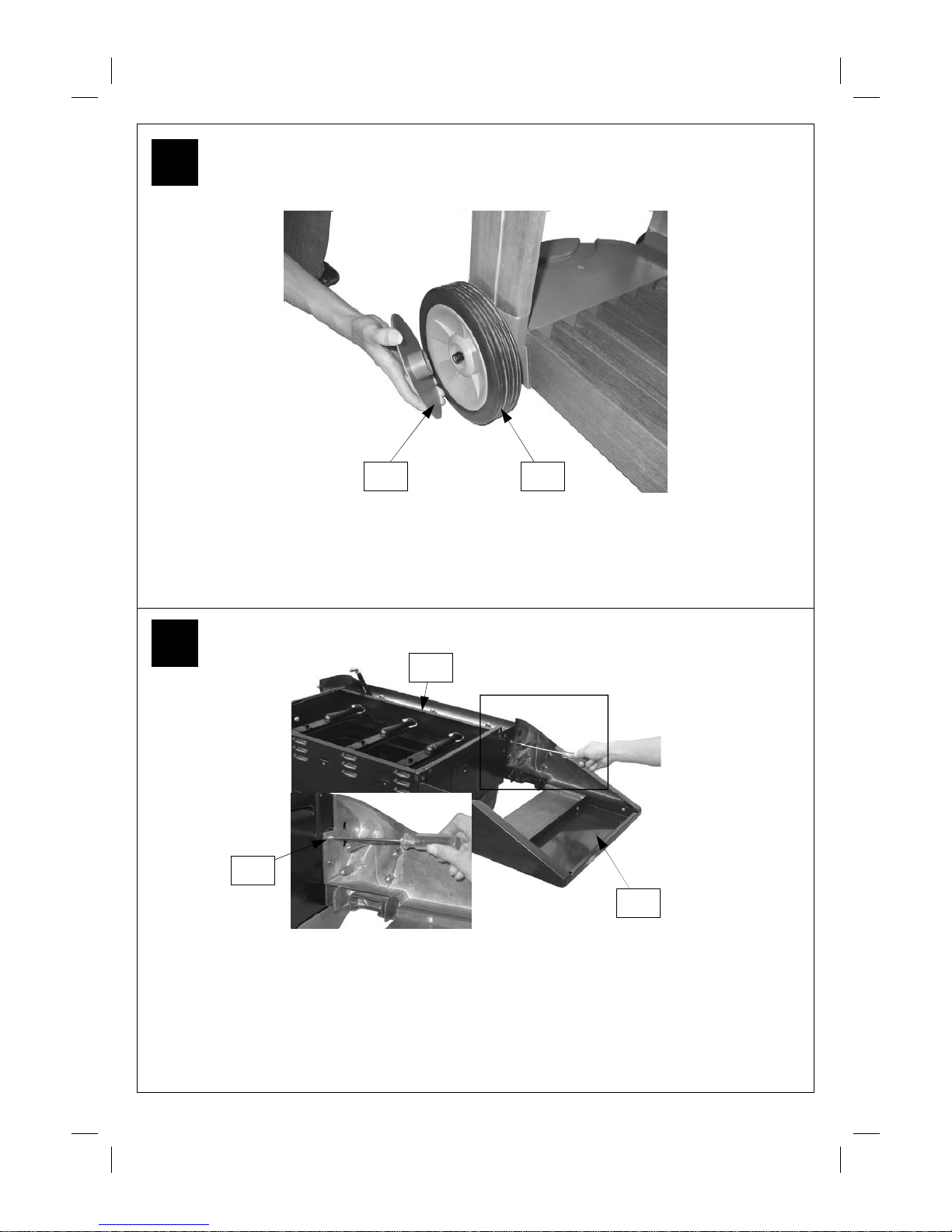

Attach the Side Shelf (C6) to the barbecue body using M6x15 Bolts (D5).

Place the wheel Hubcaps (C16) onto the outsides of the wheels.

C17C16
