OWC OWCMANVLS2ASY Bedienungsanleitung

OWC “Value Line” Slim External Optical Enclosure

Assembly Guide

Thank you for purchasing your new OWC “Value Line” Slim External Optical

enclosure! This assembly guide will explain how to install your own optical

drive mechanism in just a few easy steps.

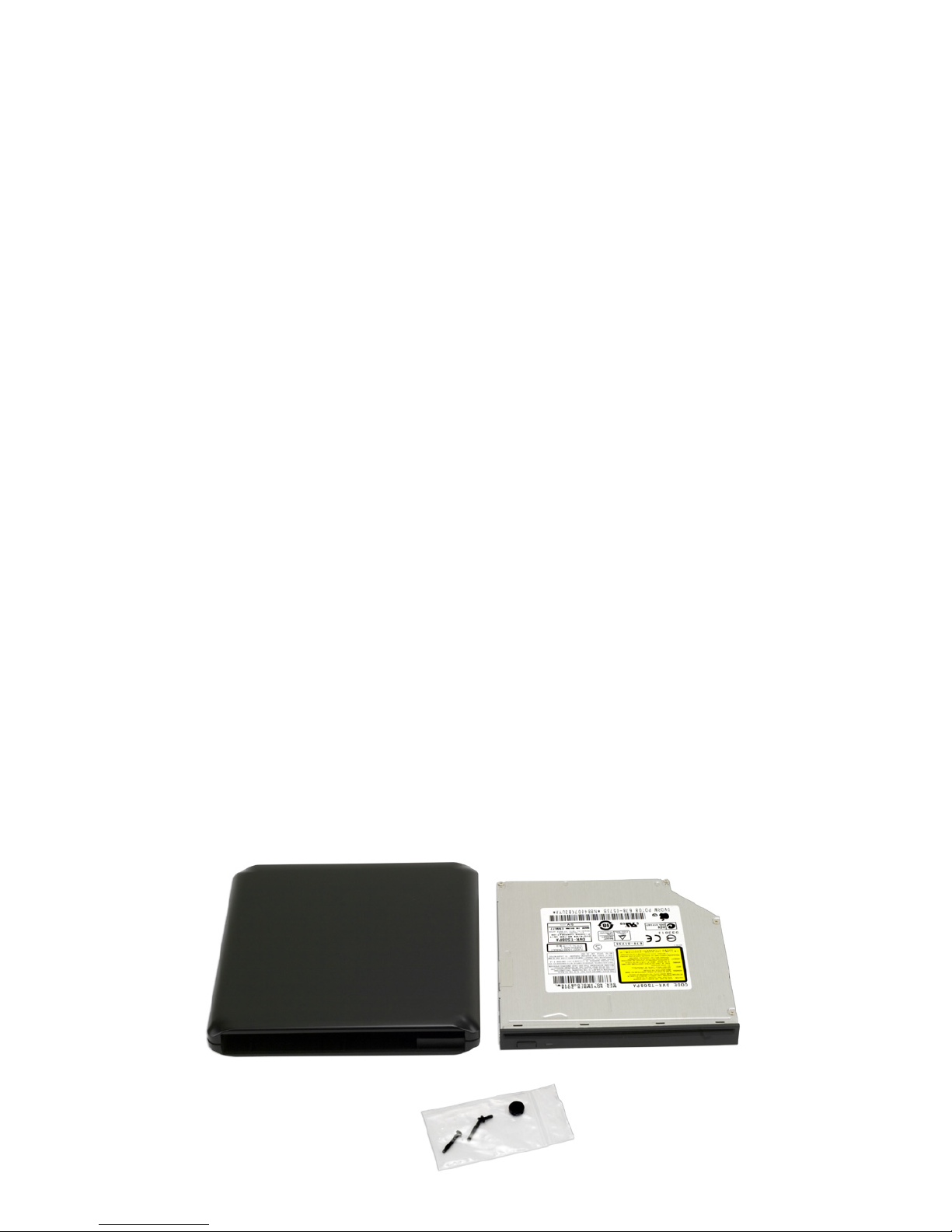

Overview of included items:

• Enclosure body

• USB 2.0 “Y” Cable (not pictured)

• 2 Phillips machine thread screws to attach the drive to the case

• 1 Phillips coarse thread screw to attach the top case to the bottom case

• 4 Rubber feet w/ adhesive

You will need your own 12.7mm slimline optical drive, either a slot loading

mechanism or a tray loading model. The mechanism shown below is a slot

loading unit, along with it’s front bezel. Assembly of the slot loading mecha-

nism is more involved than tray loading models, instructions for slot loading

mechanism are below. If you have a tray loading model, you can skip the next

2 paragraphs as there is no bezel to install.

Attachment of the front bezel will dier depending on the model of optical

drive you install, but most simply snap onto the front of the optical drive, us-

ing a series of clips to lock onto the drive mechanism. Use care when attaching

the bezel, it is very easy to accidentally misalign one of the locking clips and

you can bend or break them.

Before continuing, make sure that the front bezel is fully attached and cen-

tered on the drive mechanism. There should be at least 2 attachment points

on the top, bottom, and sides each, either in the form of clips or indentations

that hold the bezel centered on the mechanism.

Remove the top cover of the enclosure by sliding it towards the rear - it will

unlock and lift o.

Slide the drive mechanism through the front opening of the bottom enclosure

until it is fully inserted into the bridge card and is ush with the front of the

drive opening.

Assembly Instructions:

Place the top of the enclosure back onto the bottom, and sliding from the rear,

lock it in place to the bottom of the enclosure.

Place the top of the enclosure on the bottom, and sliding from the rear, lock it

in place to the bottom of the enclosure.

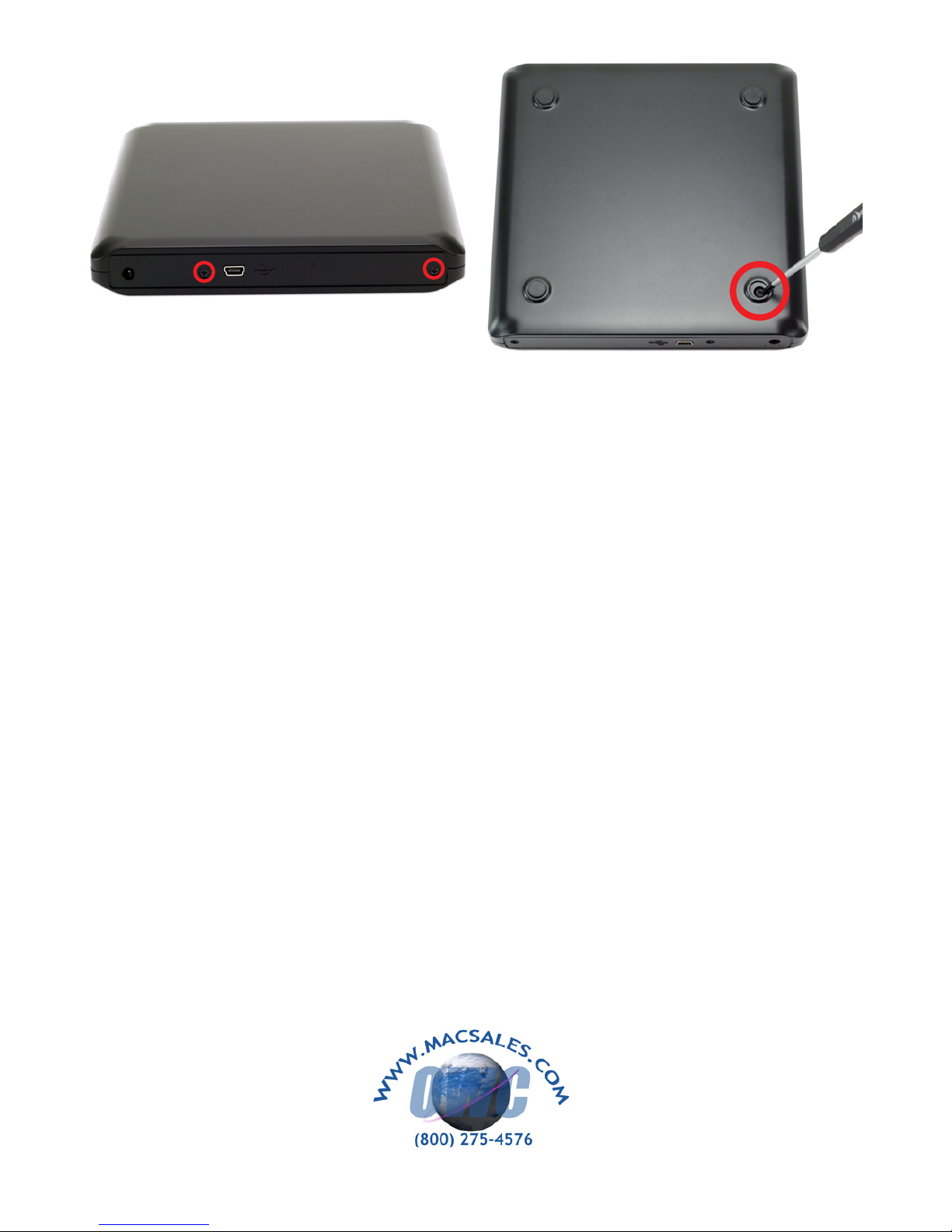

Insert the 2 long screws through the back of the enclosure, and while holding

the drive mechanism in from the front, tighten the screws fully to secure the

drive mechanism into the enclosure.

Turn the enclosure over so you can see the bottom side. Insert the short Phil-

lips screws through the enclosure, into the top cover you just installed, and

tighten. Finally, place the included rubber feet on the bottom of the enclosure.

To connect the external optical enclosure to your computer, attach the

included USB “Y” cable to the USB mini B port and the USB A connector to your

computer. Depending on the drive mechanism you installed, and the power of

your USB port, you may need to connect the second USB A connector from the

included USB “Y” cable to another USB port on your computer. A second op-

tion would be to purchase a separate standalone power supply - available at:

http://eshop.macsales.com/search/OWCMOTGPWR

Most customers will not need either the “Y” cable or a standalone power cable

but will be able to use the enclosure with any mini B USB to standard A USB

cable.

We hope you enjoy your new external storage device!
