Panasonic CX-400 Series Bedienungsanleitung

2013.1 panasonic.net/id/pidsx/global

Amplifier Built-inSmall Photoelectric

Sensor

CX-400 Series

USER’S MANUAL

WUME-CX400-3

Contens

1. Cautions··························································································3

2. Part Description ················································································4

3. Mounting ·························································································6

3-1 Mounting to sensor mounting bracket (Optional)··········································· 6

3-2 Installation interval (Thru-beam type CX-41 ·············································· 7

3-3 Mounting when detecting materials having a gloss

CX-493CX-48····················································· 9

CX-48 ······················10

CX-44 ···································· 11

 ·········································································· 12

····················································································· 14

5-1

Beam alignment (Thru-beam type CX-41CX-49CX-48

··14

CX-42 ·································15

CX-44 ······················· 17

CX-44 ······················19

 ·········································· 21

CX-44················· 21

CX-491 ······························· 22

9. Option··························································································· 23

9-1 Slit mask (Thru-beam type CX-41·························································· 23

CX-411 ······························· 24

CX-49CX-48···············25

 ··············································································· 26

11. Dimensions··················································································· 34

1. Cautions

WARNING

 Never use this product as a sensing device for personnel protection.

 



each region or country.

 

 Make sure to carry out wiring in the power supply off condition.

 Take care that wrong wiring will damage the sensor.

 Verify that the supply voltage variation is within the rating.

 



 



an actual ground.

 

same raceway.

 Do not use during the initial transient time (50ms) after the power supply is switched

ON.

 

-

formance.

 

possible with 0.3mm2

power supply line and the output line of less than 10m is acceptable in case using this

product as conforming to S-mark.

 Make sure that stress by forcible bend or pulling is not applied directly to the sensor



 This sensor is suitable for indoor use only.

 



 



 This product cannot be used in an environment containing inflammable or explosive

gasses.

 Never disassemble or modify the product.

2. Part Description

Standard type



Power indicator (green)

lights up when the power is ON





Operation indicator (Orange)

Lights up when the sensing

output is ON



Sensing range becomes

longer when turned.

Stability indicator (Green)

Lights up under the

stable light condition or

the stable dark condition

Operation mode switch Operation Description

Light-ON

Light-ON mode is obtained when the operation

mode switch (beam-thru type incorporate it in

the receiver ) is turned fully clockwise (L side).

Dark-ON

Dark-ON mode is obtained when the operation

mode switch (beam-thru type incorporate it in the

receiver ) is turned fully counterclockwise (D side).

opera-

tion mode switch slowly. Turning with excessive strength will cause



Operation mode switch







Stability indicator (Green)

Lights up under the

stable light condition or

the stable dark condition

Operation indicator (Orange)

Lights up when the sensing

output is ON

Operation mode switch

Operation mode switch Operation Description

Detection-

Detecting-ON mode is obtained when

the operation mode switch is turned

fully clockwise (L side).

Detection-



Not detecting-ON is obtained when the

operation mode switch is turned fully

counterclockwise (D side)

Operation

mode switch slowly. Turning with excessive strength will cause damage



Basic type



Power indicator (green)

lights up when the power is ON





Operation indicator (Orange)

Lights up when the sensing

output is ON

Stability indicator (Green)

Lights up under the

stable light condition or

the stable dark condition

3. Mounting

3-1 Mounting to sensor mounting bracket (Optional)

 The tightening torque should be 0.5N·m or less.

MS-CX-3MS-CX2-2 MS-CX2-4 

M3 (length 12mm) screw with washer

Accessory of sensor mounting bracket

Mounting bracket MS-CX2-1 (Optional)



 In case mounting two sets of the -

low indicates (typical example)

 



Sensing distance L (m)



CenterLeft Right

400



200 0 200 400

10 (L1)

parallel deviation diagram (typical) 

In case using at sensing distance (L1)



295mm according to diagram above.

The installation interval is

Approx. 295mm × 2 = 590mm

CX-411

away.

CX-412parallel deviation diagram (typical)

CenterLeft Right





500 0 500



15 (L2)

Sensing distance L (m)





In case using at sensing distance (L2)



790mm according to diagram above.

The installation interval is



CX-412

more away.

CX-413parallel deviation diagram (typical)

CenterLeft Right



2 0 2 4

30 (L3)

Sensing distance L (m)





In case using at sensing distance (L3)



2.175m according to diagram above.

The installation interval is

Approx. 2.175m × 2 = 4.35m

CX-413

away.

Model No. AB

 10m Approx. 590mm or more

 15m 

 30m Approx. 4.35m or more

 CX-49CX-48-

fuse reflective type CX-42

CX-44

3-3

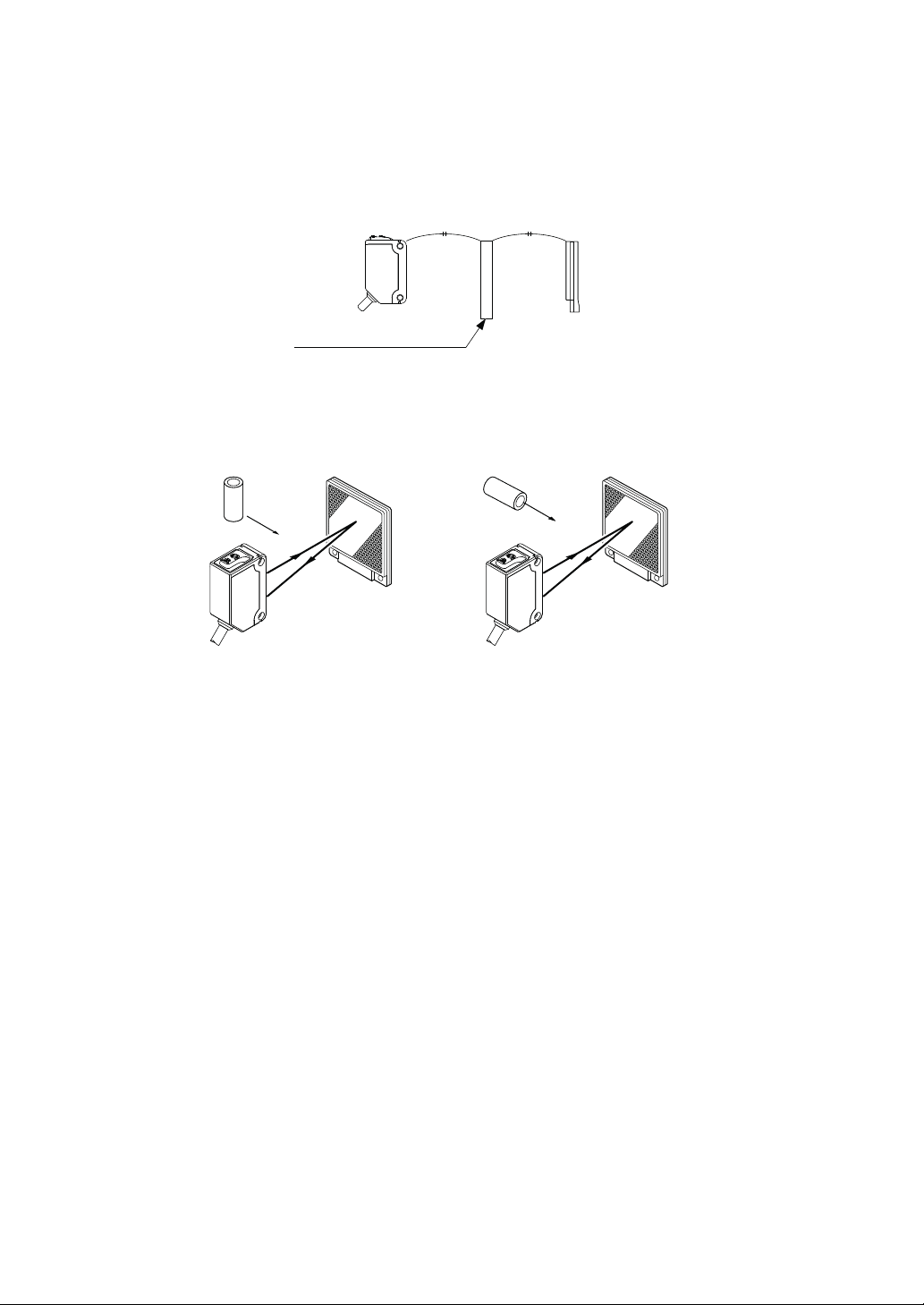

Mounting when detecting materials having a gloss



 Please take care of the following points when detecting materials having a gloss with ret-

CX-493CX-48

1. 

2. 

L

Sensing





10 to 30°

Glossy surface

 -



 CX-491





 





CX-48





 

-



 



CX-48



CX-48



Good Not good
