Installation Guide

Home Network System

Motion Sensor

Model No. KX-HNS102FX

Thank you for purchasing a Panasonic product.

This document explains how to install the motion sensor properly.

For details about how to use the system, refer to the User’s Guide

(page 14).

Please read this document before using the unit and save it for future

reference.

Introduction

Accessory information ...............3

Important Information

About this system ......................4

For your safety ...........................4

Important safety instructions ......5

For best performance ................5

Other information .......................6

Setup

Part names and functions ..........7

LED indicator .............................7

Setup overview ..........................7

Inserting the batteries ................8

Registering the motion

sensor ........................................8

Information about sensor

features ......................................9

Confirming the usage area ......11

Wall mounting ..........................12

Appendix

Testing the motion sensor .......14

Adjusting the sensor

sensitivity .................................14

Features available when using the

[Home Network] app ................14

Accessing the User’s Guide ....14

Specifications ..........................15

Table of Contents

Accessory information

Supplied accessories

No. Accessory item/Part number Quantity

ABatteries*1 2

BWall mounting adaptor*2 1

CWall mounting screws (25 mm) 2

*1 When replacing batteries, see “Power source” of “Specifications”, page 15

for battery information.

*2 The motion sensor can be wall mounted with or without the wall mounting

adaptor (page 12).

A B C

Other information

RDesign and specifications are subject to change without notice.

RThe illustrations in these instructions may vary slightly from the actual product.

Trademarks

RiPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other

countries.

RAndroid is a trademark of Google Inc.

RMicrosoft, Windows, and Internet Explorer are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

RAll other trademarks identified herein are the property of their respective owners.

Introduction

About this system

RThis system is an auxiliary system; it

is not designed to provide complete

protection from property loss.

Panasonic will not be held

responsible in the event that

property loss occurs while this

system is in operation.

RThe system’s wireless features are

subject to interference, therefore

functionality in all situations cannot

be guaranteed. Panasonic will not

be held responsible for injury or

damage to property that occurs in

the event of wireless communication

error or failure.

For your safety

To prevent severe injury and loss of life/

property, read this section carefully

before using the product to ensure

proper and safe operation of your

product.

WARNING

Power connection

RUse only the power source marked

on the product.

RDo not connect non-specified

devices.

Installation

RTo prevent the risk of fire or

electrical shock, do not expose the

product to rain or any type of

moisture.

RDo not place or use this product

near automatically controlled

devices such as automatic doors

and fire alarms. Radio waves

emitted from this product may cause

such devices to malfunction

resulting in an accident.

RKeep small parts (screws, etc.) out

of the reach of children. There is a

risk of swallowing. In the event they

are swallowed, seek medical advice

immediately.

Operating safeguards

RDo not disassemble the product.

Medical

RConsult the manufacturer of any

personal medical devices, such as

pacemakers or hearing aids, to

determine if they are adequately

shielded from external RF (radio

frequency) energy. DECT features

operate between 1.88 GHz and

1.90 GHz with a peak transmission

power of 250 mW.

RDo not use the product in health

care facilities if any regulations

posted in the area instruct you not to

do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

CAUTION

Battery

RThe batteries should be used

correctly, otherwise the product may

be damaged due to battery leakage.

RDo not charge, short-circuit,

disassemble, or heat the batteries.

RDo not dispose of batteries in a fire.

RRemove all the batteries when

replacing.

Important Information

RDo not mix old, new or different

types of batteries.

RIt is recommended that batteries are

replaced annually.

RKeep out of the reach of small

children. There is a risk of

swallowing. If the battery is

swallowed, seek medical attention

immediately.

RRemove the battery if it becomes

unusable. There is a risk of leakage,

overheating, and rupture. Do not

attempt to use a battery if it is

leaking.

RDo not intentionally pour water on

the battery or allow it to get wet.

There is a risk of fire and smoke. If

the battery becomes wet, remove it

immediately and contact an

authorised service centre.

Important safety

instructions

When using your product, basic safety

precautions should always be followed

to reduce the risk of fire, electric shock,

and injury to persons, including the

following:

1. Do not use this product near water

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement or near a

swimming pool.

2. Use only the batteries indicated in

this document. Do not dispose of

batteries in a fire. They may

explode. Check with local codes for

possible special disposal

instructions.

SAVE THESE INSTRUCTIONS

For best performance

Hub location/avoiding noise

The hub and other compatible

Panasonic devices use radio waves to

communicate with each other.

RFor maximum coverage and

noise-free communications, place

your hub:

– at a convenient, high, and central

location with no obstructions

between the product and hub in

an indoor environment.

– away from electronic appliances

such as TVs, radios, personal

computers, wireless devices, or

other phones.

– facing away from radio frequency

transmitters, such as external

antennas of mobile phone cell

stations. (Avoid putting the hub

on a bay window or near a

window.)

RIf the reception for a hub location is

not satisfactory, move the hub to

another location for better reception.

Environment

RKeep the product away from

electrical noise generating devices,

such as fluorescent lamps and

motors.

RThe product should be kept free

from excessive smoke, dust, high

temperature, and vibration.

RThe product should not be exposed

to direct sunlight.

RDo not place heavy objects on top of

the product.

RThe product should be kept away

from heat sources such as radiators,

cookers, etc. It should not be placed

in rooms where the temperature is

Important Information

less than 0 °C or greater than 40 °C.

Damp basements should also be

avoided.

ROperating the product near electrical

appliances may cause interference.

Move away from the electrical

appliances.

Other information

CAUTION: Risk of explosion if battery

is replaced by an incorrect type.

Dispose of used batteries according to

the instructions.

Routine care

RWipe the outer surface of the

product with a soft moist cloth.

RDo not use benzine, thinner, or any

abrasive powder.

Disposal of Old Equipment and

Batteries (Only for European Union

and countries with recycling

systems)

These symbols (A, B) on the

products, packaging, and/or

accompanying documents mean that

used electrical and electronic products

and batteries must not be mixed with

general household waste. For proper

treatment, recovery and recycling of old

products and used batteries, please

take them to applicable collection

points in accordance with your national

legislation.

By disposing of them correctly, you will

help to save valuable resources and

prevent any potential negative effects

on human health and the environment.

For more information about collection

and recycling, please contact your local

municipality. Penalties may be

applicable for incorrect disposal of this

waste, in accordance with national

legislation.

For business users in the European

Union

If you wish to discard electrical and

electronic equipment, please contact

your dealer or supplier for further

information.

Information on Disposal in other

Countries outside the European

Union

These symbols (A, B) are only valid

in the European Union. If you wish to

discard these items, please contact

your local authorities or dealer and ask

for the correct method of disposal.

Note for the battery symbol

This symbol (B) might be used in

combination with a chemical symbol. In

this case it complies with the

requirement set by the Directive for the

chemical involved.

Note for the battery removal

procedure

Refer to “Inserting the batteries” on

page 8.

Important Information

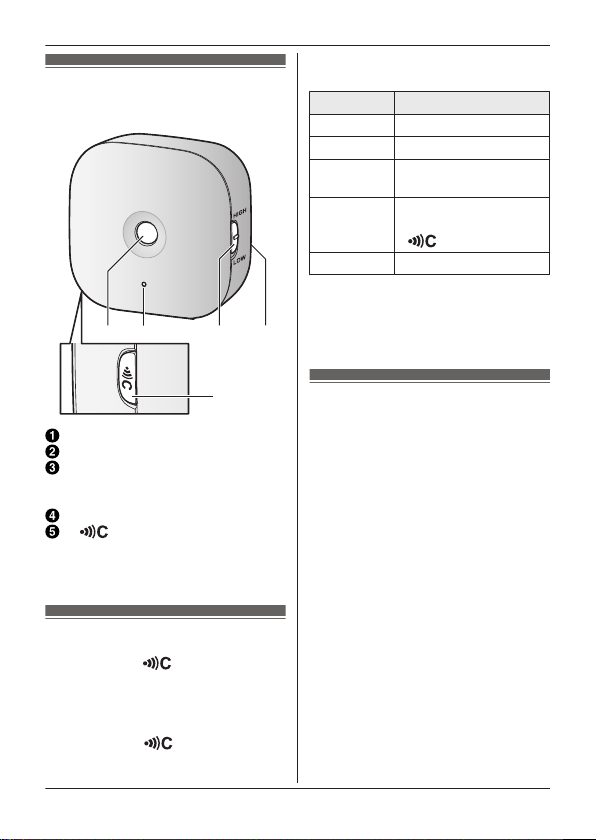

Part names and

functions

ABCD

Infrared sensor

LED indicator

MHIGHN/MLOWN

Used to change the sensor

sensitivity (page 14).

Rear cover

M N

Used to confirm the status of the

sensor or register the sensor to

the hub.

LED indicator

You can press M N and check the

LED indicator to confirm the sensor’s

status.

After confirming the sensor’s status, we

recommend turning the LED indicator

off by pressing M N again as soon

as possible, otherwise battery life may

be reduced.

Indicator Status

Green, lit No motion detected

Red, lit Motion was detected

Red,

blinking

Sensor is out of range

of the hub

Green,

blinking

slowly

Registration mode

(You pressed and held

M N)

Off No battery power

Note:

RThe LED indicator does not indicate

sensor status if the sensor has not

been registered (page 8).

Setup overview

1Initial setup

Make sure you can access the

system using your mobile device.

For details, refer to the System

Setup Guide included with your

hub.

2Insert the batteries

The motion sensor is battery

powered.

3Registration

Required only if the motion sensor

was purchased separately (i.e.,

not as part of a bundle).

4Confirm the installation area

Read the information in this

document to confirm that the

desired installation area is suitable

to proper operation.

5Installation

Install the motion sensor in the

desired location.

Setup

Inserting the

batteries

RUSE ONLY Alkaline batteries AA

(LR6) size.

RDo NOT use Manganese/Ni-Cd/

Ni-MH batteries.

RConfirm the polarities ( , ).

1Remove the rear cover by

pressing the upper sides of the

cover (A) and sliding it down (B).

2Insert the batteries.

3Install the rear cover.

RPlace it with the “ ” mark

facing upwards and slide it.

Registering the

motion sensor

This procedure is not required for

devices that were included as part of

a bundle.

Before you can use the motion sensor,

it must be registered to the hub.

If you purchased devices separately

(i.e., not as part of a bundle), you must

You can register each device by using

the registration buttons or the [Home

Network] app.

Setup

Using registration buttons

1Hub:

Press and hold M OTHER

DEVICEN until the LED indicator

blinks slowly in green.

2Motion sensor:

Press and hold M N until the

LED indicator blinks slowly in

green (page 7).

RWhen registration is complete,

the hub sounds one long beep.

Note:

RTo cancel without registering the

sensor, press M N on the hub and

on the sensor again.

RIf registration fails, the hub sounds

several short beeps.

Using the app

When you register the motion sensor

by using the [Home Network] app, you

can assign a name to your devices and

group them by location.

For more information, refer to the

User’s Guide (page 14).

Information about

sensor features

The motion sensor utilises an infrared

sensor (i.e., heat sensor).

Please read the following information

before deciding where to install the

motion sensor.

Note:

RThe motion sensor’s sensor features

are not designed to be used in

situations that require high reliability.

We do not recommend use of the

motion sensor’s sensor features in

these situations.

RPanasonic takes no responsibility for

any injury or damage caused by the

use of the motion sensor.

Using heat to detect motion

The motion sensor’s infrared sensor

can detect motion by recognizing

temperature differences that occur

within the range of the sensor. It does

this by detecting the infrared rays that

are emitted naturally by people,

animals, etc., which correlate to the

object’s temperature. The detection

range is indicated in the illustration by

the grey area in front of the motion

sensor.

Detection range when looking from

above

Horizontal detection range:

approx. 90°

Setup

Detection range when looking from

the side

Vertical detection range: approx.

20°

Distance of detectable motion:

approx. 5 m

Note:

RDetection becomes difficult when

there is little difference between the

temperatures of objects and the

surrounding environment, such as

during summer. Conversely,

detection becomes easier when

there is a large difference between

the temperatures of objects and the

surrounding environment, such as

during winter or at night.

RDetection does not occur when there

are obstacles in front of the infrared

sensor. Remove the obstacles or

change the installation location.

Direction of motion

It is easier to detect objects that move

sideways in front of the motion sensor,

and more difficult to detect objects that

move directly toward the front of the

motion sensor.

It is difficult to detect movement

directly towards the front of the

motion sensor.

It is easy to detect movement

sideways in front of the motion

sensor.

Detection range

Motion sensor

Setup

Inhaltsverzeichnis

Andere Panasonic Zubehör Handbücher

Panasonic

Panasonic KX-HNS103FX Bedienungsanleitung

Panasonic

Panasonic MA3X704 Bedienungsanleitung

Panasonic

Panasonic Grid-EYE AMG88 Series Bedienungsanleitung

Panasonic

Panasonic HL-C203F Bedienungsanleitung

Panasonic

Panasonic SR-HBA101 Bedienungsanleitung

Panasonic

Panasonic MA6X123 (MA123) Bedienungsanleitung

Panasonic

Panasonic Light Emitting Diodes LNG692CF6 Bedienungsanleitung

Panasonic

Panasonic KX-HNS104C Bedienungsanleitung

Panasonic

Panasonic MA3XD11 Bedienungsanleitung

Panasonic

Panasonic ER857 Bedienungsanleitung

Panasonic

Panasonic Light Emitting Diodes LNJ0F1C5FRA1 Bedienungsanleitung

Panasonic

Panasonic MA6Z718 Bedienungsanleitung

Panasonic

Panasonic AWPH500 - INDOOR PAN/TILT HEAD Bedienungsanleitung

Panasonic

Panasonic CY-100 Series Bedienungsanleitung

Panasonic

Panasonic WV-PB5504A Bedienungsanleitung

Panasonic

Panasonic MA2JP02 Bedienungsanleitung

Panasonic

Panasonic WX-LA20 Bedienungsanleitung

Panasonic

Panasonic MA2SP06 Bedienungsanleitung

Panasonic

Panasonic KX-HNS101C Bedienungsanleitung

Panasonic

Panasonic HL-C211F-MK Bedienungsanleitung

Panasonic

Panasonic KX-TGA20 Bedienungsanleitung

Panasonic

Panasonic CX-400 Series Bedienungsanleitung

Panasonic

Panasonic MA3S781D Bedienungsanleitung

Panasonic

Panasonic KX-TGP700 Service-Handbuch

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Bedienungsanleitung
