Panasonic KX-HNS105C Bedienungsanleitung

Installation Guide

Home Network System

Indoor Siren

Model No. KX-HNS105C

Thank you for purchasing a Panasonic product.

This document explains how to install the indoor siren properly.

For details about how to use the system, refer to the User’s Guide

(page 12).

Please read this document before using the unit and save it for future

reference.

For assistance, please visit our support page on:

www.panasonic.ca/english/support

In order to use this device:

RDownload the latest version of the [Home Network] app.

RUpdate your hub to the latest firmware version (version 5.00 or later).

For more information, refer to the User’s Guide (page 12).

Printed in China

HNS105C_(en-en)_0224_ver.020.pdf 1 2015/02/24 15:12:14

Introduction
Accessory information ...............3
Important Information
About this system ......................4
For your safety ...........................4
Important safety instructions ......5
For best performance ................6
Other information .......................6
Setup
Part names and functions ..........7
LED indicator .............................7
Setup overview ..........................7
Registering the siren ..................8
Confirming the usage area ........9
Installation ...............................10
Note about power
connections .............................11
Appendix
Testing the siren ......................12
Adjusting the siren’s volume ....12
Features available when using the
[Home Network] app ................12
Accessing the User’s Guide ....12
Specifications ..........................13
Industry Canada Notices and
other information ......................13
Warranty ..................................14
2
Table of Contents
HNS105C_(en-en)_0224_ver.020.pdf 2 2015/02/24 15:12:14

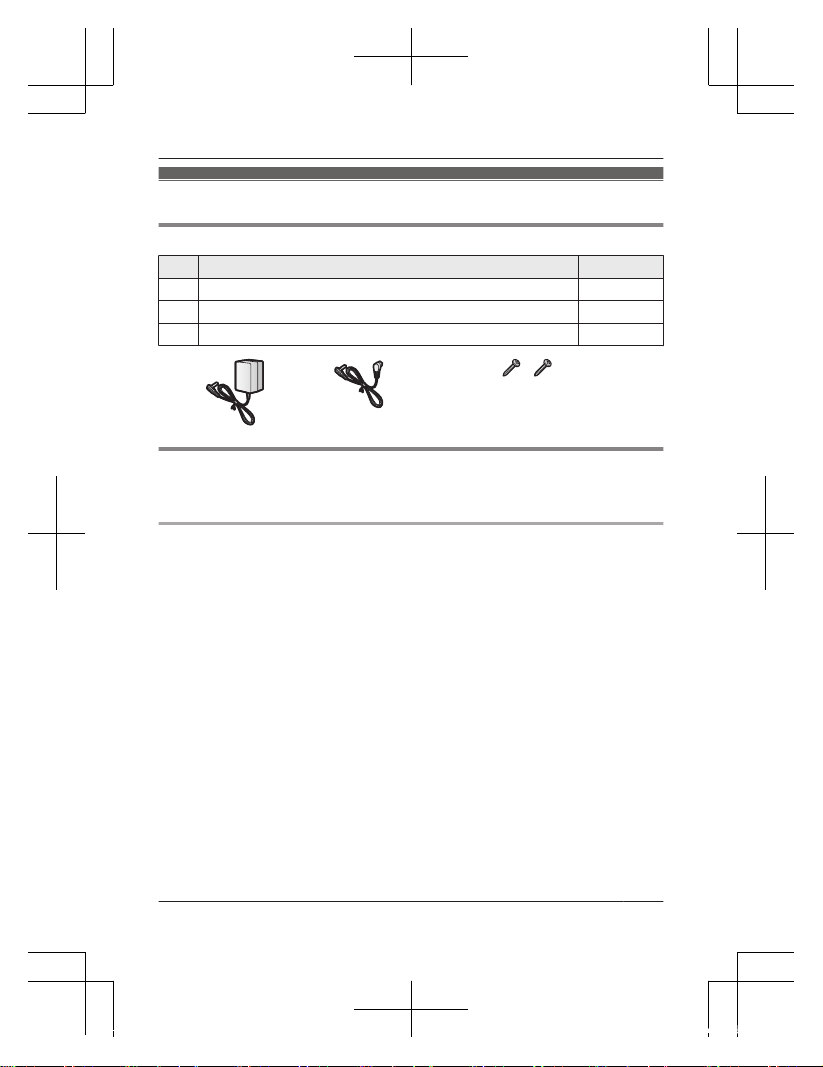

Accessory information

Supplied accessories

No. Accessory item/Part number Quantity

AAC adaptor/PNLV236 1

BDC extension cord 1

CWall mounting screws (25 mm (1 inch)) 2

A B C

Other information

RDesign and specifications are subject to change without notice.

RThe illustrations in these instructions may vary slightly from the actual product.

Trademarks

RiPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other

countries.

RAndroid is a trademark of Google Inc.

RMicrosoft, Windows, and Internet Explorer are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

RAll other trademarks identified herein are the property of their respective owners.

For assistance, visit www.panasonic.ca/english/support 3

Introduction

HNS105C_(en-en)_0224_ver.020.pdf 3 2015/02/24 15:12:14

About this system

RThis system is an auxiliary system; it

is not designed to provide complete

protection from property loss.

Panasonic will not be held

responsible in the event that

property loss occurs while this

system is in operation.

RThe system’s wireless features are

subject to interference, therefore

functionality in all situations cannot

be guaranteed. Panasonic will not

be held responsible for injury or

damage to property that occurs in

the event of wireless communication

error or failure.

For your safety

To prevent severe injury and loss of life/

property, read this section carefully

before using the product to ensure

proper and safe operation of your

product.

WARNING

Power connection

RUse only the power source marked

on the product.

RDo not overload power outlets and

extension cords. This can result in

the risk of fire or electric shock.

RCompletely insert the AC adaptor/

power plug into the power outlet.

Failure to do so may cause electric

shock and/or excessive heat

resulting in a fire.

RRegularly remove any dust, etc.

from the AC adaptor/power plug by

pulling it from the power outlet, then

wiping with a dry cloth. Accumulated

dust may cause an insulation defect

from moisture, etc. resulting in a fire.

RUnplug the product from power

outlets if it emits smoke, an

abnormal smell, or makes an

unusual noise. These conditions can

cause fire or electric shock. Confirm

that smoke has stopped emitting

and contact us by visiting our

Support page:

www.panasonic.ca/english/

support

RUnplug from power outlets and

never touch the inside of the product

if its casing has been broken open.

Danger of electric shock exists.

RNever touch the plug with wet

hands. Danger of electric shock

exists.

RDo not connect non-specified

devices.

Installation

RTo prevent the risk of fire or

electrical shock, do not expose the

product to rain or any type of

moisture.

RDo not place or use this product

near automatically controlled

devices such as automatic doors

and fire alarms. Radio waves

emitted from this product may cause

such devices to malfunction

resulting in an accident.

RDo not allow the AC adaptor to be

excessively pulled, bent or placed

under heavy objects.

RInstall the product only on a vertical

surface. Do not install the product on

a ceiling, as the product may fall,

resulting in damage or injury.

RKeep small parts (screws, etc.) out

of the reach of children. There is a

risk of swallowing. In the event they

4For assistance, visit www.panasonic.ca/english/support

Important Information

HNS105C_(en-en)_0224_ver.020.pdf 4 2015/02/24 15:12:14

are swallowed, seek medical advice

immediately.

Operating safeguards

RUnplug the product from power

outlets before cleaning. Do not use

liquid or aerosol cleaners.

RDo not disassemble the product.

RNever put metal objects inside the

product. If metal objects enter the

product, turn off the circuit breaker

and contact an authorized service

centre.

Medical

RConsult the manufacturer of any

personal medical devices, such as

pacemakers or hearing aids, to

determine if they are adequately

shielded from external RF (radio

frequency) energy. DECT features

operate between 1.92 GHz and

1.93 GHz with a peak transmission

power of 115 mW.

RDo not use the product in health

care facilities if any regulations

posted in the area instruct you not to

do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

CAUTION

Installation and location

RNever install wiring during a lightning

storm.

RThe AC adaptor is used as the main

disconnect device. Ensure that the

AC outlet is installed near the

product and is easily accessible.

RTo avoid the risk of strangulation,

keep the product and the AC

adaptor cord at least 1 m (3 feet)

from a child’s crib and out of the

reach of small children.

Preventing accidents and injuries

RDo not put your ear(s) near the

product, as loud sounds emitted

from the product may cause hearing

impairment.

RDo not look directly at the strobe

light when it is flashing. Light emitted

from the strobe light may cause

damage to the eyes.

RConsider the installation

environment carefully when

installing the product. Pay particular

attention to infants, children, and the

elderly, as they may be more

sensitive to loud sounds and strobe

lights.

Important safety

instructions

When using your product, basic safety

precautions should always be followed

to reduce the risk of fire, electric shock,

and injury to persons, including the

following:

1. Do not use this product near water

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement or near a

swimming pool.

2. Use only the power cord indicated

in this document.

SAVE THESE INSTRUCTIONS

For assistance, visit www.panasonic.ca/english/support 5

Important Information

HNS105C_(en-en)_0224_ver.020.pdf 5 2015/02/24 15:12:14

For best performance

Hub location/avoiding noise

The hub and other compatible

Panasonic devices use radio waves to

communicate with each other.

RFor maximum coverage and

noise-free communications, place

your hub:

– at a convenient, high, and central

location with no obstructions

between the product and hub in

an indoor environment.

– away from electronic appliances

such as TVs, radios, personal

computers, wireless devices, or

other phones.

– facing away from radio frequency

transmitters, such as external

antennas of mobile phone cell

stations. (Avoid putting the hub

on a bay window or near a

window.)

RIf the reception for a hub location is

not satisfactory, move the hub to

another location for better reception.

Environment

RKeep the product away from

electrical noise generating devices,

such as fluorescent lamps and

motors.

RThe product should be kept free

from excessive smoke, dust, high

temperature, and vibration.

RThe product should not be exposed

to direct sunlight.

RDo not place heavy objects on top of

the product.

RWhen you leave the product unused

for a long period of time, unplug the

product from the power outlet.

RThe product should be kept away

from heat sources such as heaters,

kitchen stoves, etc. It should not be

placed in rooms where the

temperature is less than 0 °C (32 °F)

or greater than 40 °C (104 °F).

Damp basements should also be

avoided.

ROperating the product near electrical

appliances may cause interference.

Move away from the electrical

appliances.

Other information

Routine care

RWipe the outer surface of the

product with a soft moist cloth.

RDo not use benzine, thinner, or any

abrasive powder.

6For assistance, visit www.panasonic.ca/english/support

Important Information

HNS105C_(en-en)_0224_ver.020.pdf 6 2015/02/24 15:12:14

Part names and

functions

A B D

Horn

Strobe light

Flashes when the siren is

sounding.

LED indicator

MHIGHN/MLOWN

Used to adjust the siren’s volume

(page 12).

Rear cover

M N

Used to register the siren to the

hub.

LED indicator

You can use the LED indicator to

confirm the siren’s status.

Indicator Status

Green, lit Normal operation

Red,

blinking

slowly

Siren is not registered

to a hub

Red,

blinking

Siren is out of range of

the hub

Red,

blinking

quickly

Alarm system was

triggered

Green,

blinking

Registration mode

(You pressed and held

M N)

Off No power

Setup overview

1Initial setup

Make sure you can access the

system using your mobile device.

For details, refer to the System

Setup Guide included with your

hub.

2Registration

Required only if the siren was

purchased separately (i.e., not as

part of a bundle).

3Confirm the installation area

Read the information in this

document to confirm that the

desired installation area is suitable

to proper operation.

For assistance, visit www.panasonic.ca/english/support 7

Setup

HNS105C_(en-en)_0224_ver.020.pdf 7 2015/02/24 15:12:14

4Installation

Install the siren in the desired

location.

Registering the siren

This procedure is not required for

devices that were included as part of

a bundle.

Before you can use the siren, it must

be registered to the hub.

If you purchased devices separately

(i.e., not as part of a bundle), you must

You can register each device by using

the registration buttons or the [Home

Network] app.

Note:

RBefore registering the siren, make

sure the AC adaptors of the hub and

siren are connected and each

device is powered.

Using registration buttons

1Hub:

Press and hold M OTHER

DEVICEN until the LED indicator

blinks in green.

2Siren:

Press and hold MN until the

LED indicator blinks in green

(page 7).

RWhen registration is complete,

the hub sounds one long beep.

Note:

RTo cancel without registering the

siren, press MN on the hub and

on the siren again.

RIf registration fails, the hub sounds

several short beeps.

Using the app

When you register the siren by using

the [Home Network] app, you can

assign a name to your devices and

group them by location. For more

information, refer to the User’s Guide

(page 12).

8For assistance, visit www.panasonic.ca/english/support

Setup

HNS105C_(en-en)_0224_ver.020.pdf 8 2015/02/24 15:12:14

Confirming the

usage area

Wireless communication

range

The wireless communication range of

each device in the system from the hub

is approximately 50 m (160 feet)

indoors and approximately 300 m

(1,000 feet) outdoors. Wireless

communication may be unreliable

when the following obstacles are

located between the hub and other

devices.

RMetal doors or screens

RWalls containing aluminum-sheet

insulation

RWalls made of concrete or

corrugated iron

RDouble-pane glass windows

RMultiple walls

RWhen using each device on

separate floors or in different

buildings

Note:

RYou can use the siren’s LED

indicator to confirm the siren’s

communication status (page 7). If

the LED indicator is lit in green or is

blinking quickly in red, the siren is

communicating properly with the

hub.

Usage area cautions

Using the siren in the following areas

may cause deformation, malfunction, or

operational failure.

RIn direct sunlight

RAreas exposed to grease or steam,

such as kitchens

RNear fire or heating devices

RNear magnetic fields (such as near

microwaves and magnets)

RAreas subject to extreme

temperature changes, such as next

to air conditioners

RAreas with reflective objects, such

as glass, that can interfere with

detection of temperature variation

RAreas where the temperature is

affected by strong illuminating

objects (such as fluorescent lights)

RNear devices that emit strong radio

waves, such as mobile phones

For assistance, visit www.panasonic.ca/english/support 9

Setup

HNS105C_(en-en)_0224_ver.020.pdf 9 2015/02/24 15:12:14

Installation

Mount the siren on a wall using the

holes in the rear cover.

Note:

RThe strobe light flashes when the

siren sounds. Mount the siren in a

location where its strobe light will be

visible.

RMount the siren on the stable

location where the siren can be

adequately supported when

mounting.

RMount the siren securely to a wall.

Vibrations may cause it to fall if it is

not secured.

RDo not mount siren on a soft

material. It may fall down, break or

cause injury.

RDo not mount the siren on the

following places: gypsum board,

ALC (autoclaved lightweight cellular

concrete), concrete block, plywood

less than 25.4 mm (1 inch) thick, etc.

RUse only the supplied Panasonic AC

adaptor PNLV236.

1Remove the rear cover by

pressing the upper sides of the

cover (A) and sliding it down (B).

2Attach the rear cover to the wall by

using screws (

RPlace the rear cover with “UP”

mark facing upwards.

37 mm (1 15/32 inches)

10 For assistance, visit www.panasonic.ca/english/support

Setup

HNS105C_(en-en)_0224_ver.020.pdf 10 2015/02/24 15:12:14

Inhaltsverzeichnis

Sprachen:

Andere Panasonic Zubehör Handbücher

Panasonic

Panasonic HL-C201F Bedienungsanleitung

Panasonic

Panasonic MA2J704 Bedienungsanleitung

Panasonic

Panasonic MA3SD29F Bedienungsanleitung

Panasonic

Panasonic HG-F Series Bedienungsanleitung

Panasonic

Panasonic MA26111 Bedienungsanleitung

Panasonic

Panasonic HG-T1110 Bedienungsanleitung

Panasonic

Panasonic Light Emitting Diodes LN222RPX Bedienungsanleitung

Panasonic

Panasonic AY-PB2002 Bedienungsanleitung

Panasonic

Panasonic MA3X701 Bedienungsanleitung

Panasonic

Panasonic HL-G1*A-RA-C5 Series Bedienungsanleitung

Panasonic

Panasonic MA2J7290G Bedienungsanleitung

Panasonic

Panasonic MALHxxxYG Series Bedienungsanleitung

Panasonic

Panasonic MQ-W EM Series Bedienungsanleitung

Panasonic

Panasonic MA3J1470G Bedienungsanleitung

Panasonic

Panasonic MIR-H163-PA Bedienungsanleitung

Panasonic

Panasonic Schottky Barrier Diodes MA4ZD030G Bedienungsanleitung

Panasonic

Panasonic CX-400 Series Bedienungsanleitung

Panasonic

Panasonic AY-PB2003 Bedienungsanleitung

Panasonic

Panasonic MA3X704 Bedienungsanleitung

Panasonic

Panasonic MA3D752 Bedienungsanleitung

Panasonic

Panasonic MA21D382G Bedienungsanleitung

Panasonic

Panasonic MAZ9xxxH Series Bedienungsanleitung

Panasonic

Panasonic MA2ZD18 Bedienungsanleitung

Panasonic

Panasonic MA3DF30 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung

Axminster

Axminster Tooling Stylus Tip Ballpoint Pen Kit Bedienungsanleitung
